SPECIFICATIONS
| Motor Type | DC Servo Motor |
| Rated Power(W) | 100 |
| Voltage (V) | 24 |
| Rated Speed (rpm) | 3000RPM |
| Rated Torque(Nm) | 0.95 |
| Rated Current(A) | 5.4 |
| Rotor inertia | 0.29*10^(-4)kg.㎡ |
| Electrical time constant | 1.58ms |
| Winding resistance | 0.17Ω |
| Winding inductance | 0.27mH |
| Frame Size | 60mm |
| Weight | 1.8kg |
Product Feature
High Efficiency

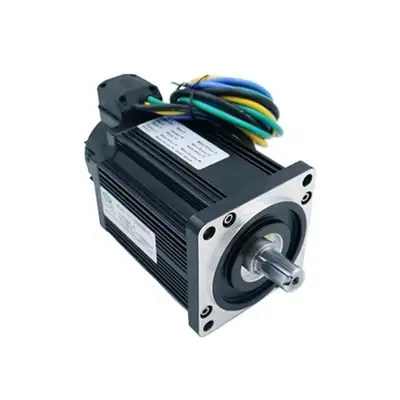

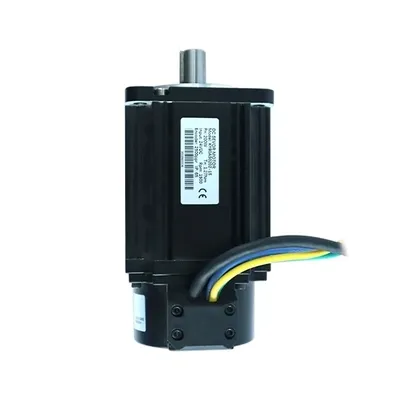

The 100W 24V 60mm DC Servo Motor offers high efficiency, ensuring optimal performance with minimal energy consumption, making it ideal for various applications.
Compact Design
This servo motor features a compact 60mm design, allowing for easy integration into tight spaces and equipment with limited room.
Precise Control
Equipped with advanced servo technology, this motor provides precise control over speed and position, ensuring accurate and reliable operation.
Durability and Reliability
Built with high-quality materials, this servo motor is designed for durability and long-term reliability, capable of withstanding demanding conditions and continuous use.
- 100W DC servo motor with IP55 protection and F class insulation.
- Winding end structure optimized, copper and iron loss decreased, compact size, light weight, low temperature increase, and high efficiency (85%)
- ATO DC brushless servo motors with high coercivity, NdFe35 permanent magnet material, strong anti-demagnetization ability, and steady motor performance
- Low vibration, low noise, and low moment of inertia
- High torque, quick dynamic reaction, broad speed range, and high overload capacity (4 times)
Product Applications
Robotics
Ideal for robotics applications, this servo motor provides precise and responsive control, essential for the accurate movement and positioning of robotic arms and joints.
Automated Machinery
Perfect for automated machinery, this motor ensures smooth and reliable operation, enhancing the performance and efficiency of production lines and automated systems.
CNC Machines
Suitable for CNC machines, this servo motor offers high precision and control, critical for the accurate cutting, drilling, and milling operations in CNC equipment.
Home Automation
Great for home automation projects, this motor can be used in applications such as automated curtains, adjustable furniture, and other smart home devices, providing modern convenience and functionality.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
