Home / 104MM 250W Micro AC Gear Motor

104MM 250W Micro AC Gear Motor

$316-$335

The 104MM 250W Micro AC Gear Motor has stable performance at rated frequency, reliable starting and stable direction. It is suitable for equipment that requires high reliability and strong starting stability, such as small conveyor belts, mixers and other machines.

Get a QuoteLeave a Message

Model TypeAC Motor

Voltage(V)110/220/380

Output(W)250

Size(mm)108

Speed(RPM)1400/1680

SPECIFICATIONS

  Motor Model Power Voltage Frequency Current Stating Torque Rated Torque Rated Speed Rated Time Capacitor
motor with round shaft motor with gear shaft W V Hz A mN.M mN.M r/min min uF/VAC
Induction motor 6IK250/300A-AF 6IK250/300GN-AF 250/300 1PH110 50 3.40/4.10 2131/2557 1705/2046 1400  continuous 40/250
1 Phase 60 3.40/4.10 1776/2131 1421/1705 1680
6IK250/300A-CF 6IK250/300GN-CF 250/300 1PH220 50 1.75/2.10 2131/2557 1705/2046 1400  continuous 12/450
1 Phase 60 1.75/2.10 1776/2131 1421/1705 1680
6IK250/300A-SF 6IK250/300GN-SF 250/300 3PH220 50 1.50/1.80 2131/2557 1705/2046 1400  continuous
3 Phase 60 1.25/1.50 1776/2131 1421/1705 1680
6IK250/300A-UF 6IK250/300GN-UF 250/300 3PH380 50 0.80/1.06 2131/2557 1705/2046 1400  continuous
3 Phase 60 0.75/0.90 1776/2131 1421/1705 1680
Reversible motor 6RK250/300A-AF 6RK250/300GN-AF 250/300 1PH110 50 2.90/3.50 2131/2557 1705/2046 1400 30 40/250
1 Phase 60 2.90/3.50 1776/2131 1421/1705 1680
6RK250/300A-CF 6RK250/300GN-CF 250/300 1PH220 50 1.80/2.00 2131/2557 1705/2046 1400 30 12/450
1 Phase 60 1.80/2.20 1776/2131 1421/1705 1680
Brake motor 6IK250/300A-AFM 6IK250/300GN-AFM 250/300 1PH110 50 3.40/4.10 2131/2557 1705/2046 1400  30 40/250
1 Phase 60 3.40/4.10 1776/2131 1421/1705 1680
6IK250/300A-CFM 6IK250/300GN-CFM 250/300 1PH220 50 1.75/2.10 2131/2557 1705/2046 1400  30 12/450
1 Phase 60 1.75/2.10 1776/2131 1421/1705 1680
6IK250/300A-SFM 6IK250/300GN-SFM 250/300 3PH220 50 1.50/1.80 2131/2557 1705/2046 1400  continuous
3 Phase 60 1.25/1.50 1776/2131 1421/1705 1680
6IK250/300A-UFM 6IK250/300GN-UFM 250/300 3PH380 50 0.80/1.06 2131/2557 1705/2046 1400  continuous
3 Phase 60 0.75/0.90 1776/2131 1421/1705 1680
  Motor Model Power Voltage Frequency Speed Control Range Stating Torque Rated Torque Rated Time Capacitor
Variable motor motor with roundshaft  motor with gear shaft W V Hz A mN.M 90r/min mN.M 1400r/min mN.M min uF/VAC
6IK250/300RA-AF 6IK250/300RGN-AF 250/300 1PH110 50 90-1400 2131/2557 682/818 1705/2046 continuous 40/250
1 Phase 60 90-1680 1776/2131 682/818 1705/2046
6IK250/300RA-CF 6IK250/300RGN-CF 250/300 1PH220 50 90-1400 2131/2557 682/818 1705/2046 continuous 12/450
1 Phase 60 90-1680 1776/2131 682/818 1705/2046
reduction ratio KW   2.5 3 3.6 4 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200 250 300 400 500 600 750
50
Hz		 r/min 0.25 2 560 467 389 350 280 233 187 156 140 112 93 78 70 56 47 38.8 35 28 23.3 18.7 15.5 14 11.7 9.3 7.8 7 5.6 4.7 3.5 2.8 2.3 1.86
N.M 700 4.02 4.83 5.79 6.44 8.05 9.66 12.1 4.5 16.1 18.1 21.8 26.1 29 36.3 43.5 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44
60
Hz		 r/min 0.25 3.22 672 560 467 420 336 280 224 187 168 134 112 93.3 84 67.2 56 46.7 42 33.6 28 22.4 18.7 16.8 14 11.2 9.33 8.4 6.72 5.6 4.2 3.36 2.8 2.24
N.M 840 3.23 3.88 4.66 5.17 6.47 7.76 9.7 1.6 12.9 14.6 17.5 21 23.3 29.1 35 42 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44
50
Hz		 r/min 0.3 2.59 560 467 389 350 280 233 187 156 140 112 93 78 70 56 47 38.8 35 28 23.3 18.7 15.5 14 11.7 9.3 7.8 7 5.6 4.7 3.5 2.8 2.3 1.86
N.M 700 4.83 5.79 6.95 7.72 9.66 11.6 14.5 7.4 19.3 21.5 25.8 30.9 34.4 43 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44
60
Hz		 r/min 0.3 3.86 672 560 467 420 336 280 224 187 168 134 112 93.3 84 67.2 56 46.7 42 33.6 28 22.4 18.7 16.8 14 11.2 9.33 8.4 6.72 5.6 4.2 3.36 2.8 2.24
N.M 840 3.88 4.66 5.59 6.21 7.76 9.31 11.6 14 15.5 17.3 20.7 24.9 27.6 34.5 41.4 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44 44

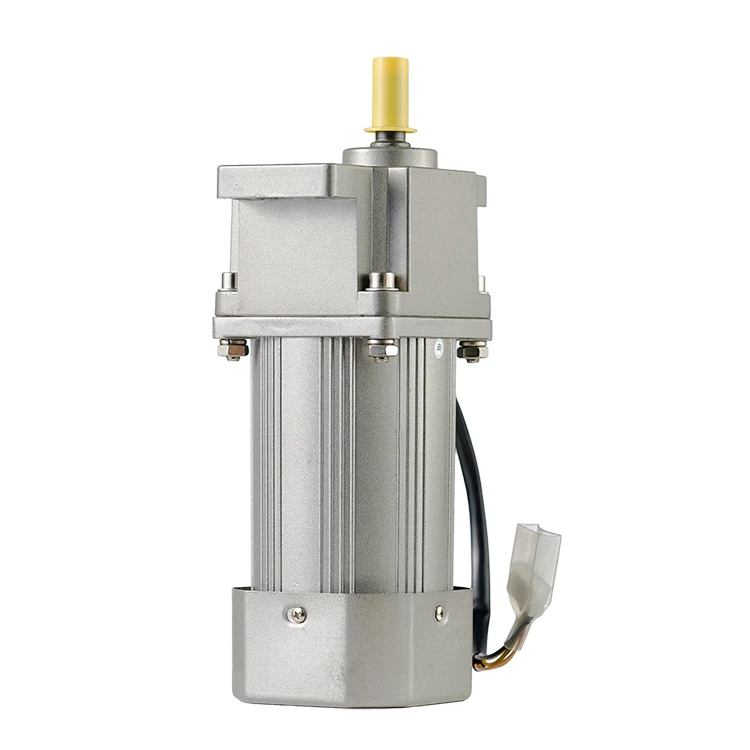

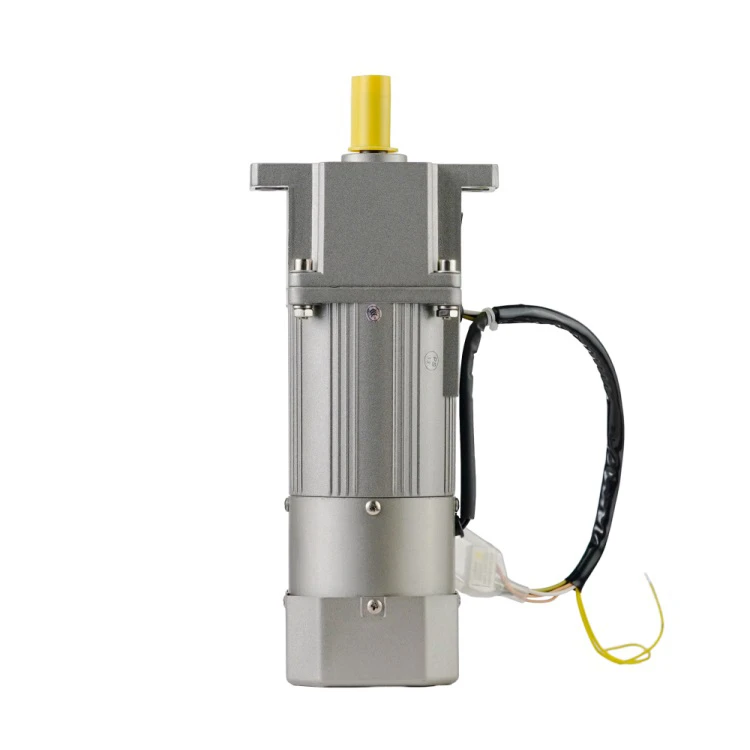

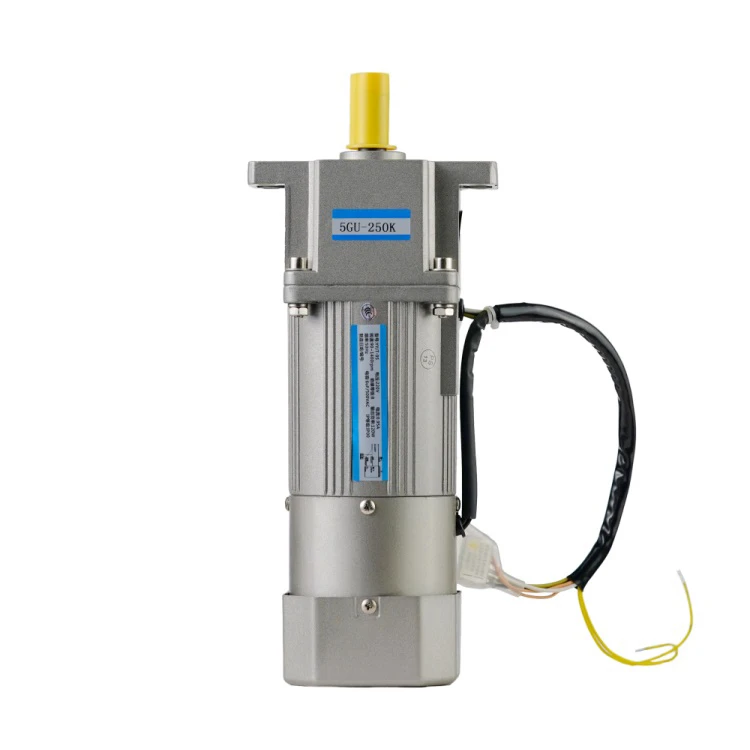

Product Display

104MM 250W

Micro AC Gear Motor

  • Extremely high torque output
  • Easy bidirectional operation
  • Multiple speed ranges
  • Energy-saving design

Support
Customization

Factory
Direct Sales

Product Feature

Extremely high torque output

The motor has high torque output and provides excellent power for demanding applications. It can work well under extreme conditions and is ideal for tasks that require a large amount of torque output.

Multiple speed ranges

Precise control can be easily achieved, and the speed can be adjusted according to the operating requirements, achieving unparalleled performance and versatility in various situations.

Easy bidirectional operation

The reversible gear function goes beyond traditional designs and is ideal for machinery that needs to change the direction of rotation, such as cranes and conveyor systems. This feature provides additional convenience and adaptability when bidirectional operation is critical.

Energy-saving design

Designed for maximum energy efficiency, it can reduce operating costs for continuous industrial use. In addition to being economical, it also promotes sustainable development by optimizing resource utilization.

Product Applications

Industrial Automation

CNC lathe machine, Industrial Robot, Printing Equipment

Medical Devices

CMedical X-ray Machines, Medical Infusion Pumps, Medical Centrifuges

Laboratory Equipment

Fume Hood, Crushing Grinder, Rotary Evaporator

Consumer Electronics

Refrigerators, Washing Machines, Electric Fans

Office Automation

Printers, Scanners, Fax Machines

Small Scale Renewable Energy Projects

Small Wind Turbines, Micro Hydro Generators, Solar Air Conditioning Systems

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
104mm-250w-micro-ac-gear-motor-dimensions-1.STEP1961KBDownload
104mm-250w-micro-ac-gear-motor-dimensions-2.STEP1398KBDownload
104mm-250w-micro-ac-gear-motor-dimensions-3.STEP1432KBDownload
104mm-250w-micro-ac-gear-motor-dimensions-4.STEP1648KBDownload
104mm-250w-micro-ac-gear-motor-dimensions-5.STEP2174KBDownload
104mm-250w-micro-ac-gear-motor-dimensions-6.STEP1912KBDownload
AC-Motor-Catalog.pdf23.4MBDownload
