SPECIFICATIONS
| Model: | BLDC-HPM-10KW |
| Voltage: | 48V/ 72V/ 96V/ 120V |
| Rated Power: | 8 kW-20 kW |
| Protection Class: | IP54 |
| Rated Current: | 245A/165A/125A/95A |
| Cooling Method: | Water cooling |
| Efficiency: | 91% |
| Phase Resistance (Milliohm): | 3.1/48V; 6.0/72V; 18.0/120V |
| Phase Induction(100KHZ): | 34uH/48V; 77uH/72V; 252uH/120V |
| Rated Speed: | 3700 rpm (customizable) |
| Max Phase Current: | 500A/500A/400A/300A |
| Casing: | Alu Smartum |
| Length (height): | 170mm |
| Diameter: | 206mm |
| Weight: | 17 kg |

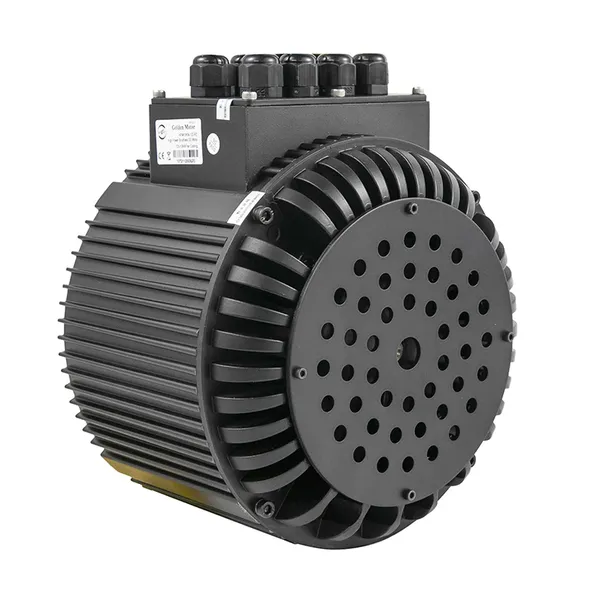

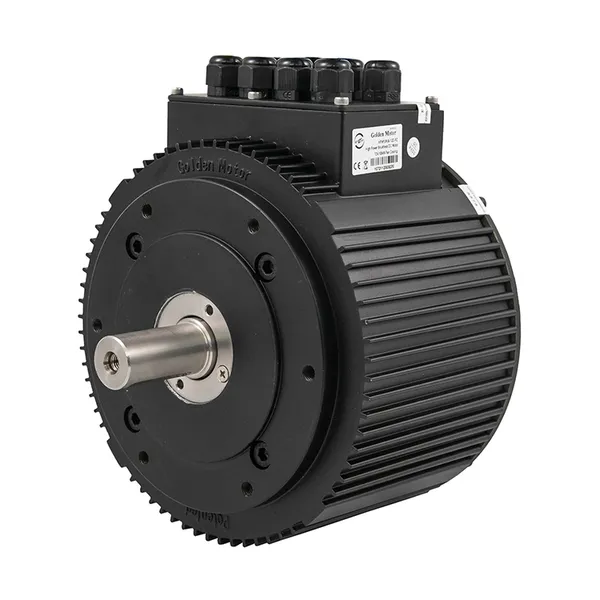

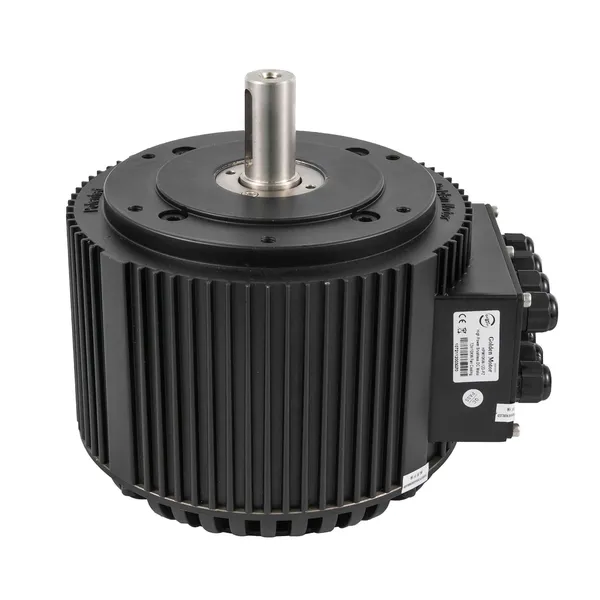

Product Display
Our 48V/72V water-cooled brushless DC motor is a popular choice due to its ease of use and no additional equipment requirement. This motor is designed to provide efficient and reliable performance, even in closed positions where there may be limited airflow for cooling. The water-cooling system ensures optimal temperature control, allowing for prolonged operation without overheating.
With a rated power of 10kW and a customizable speed range of 2000-6000 rpm, our brushless DC motor offers exceptional power and flexibility. It boasts a high efficiency rating of 91%, maximizing energy utilization and extending the range of your electric vehicle.
Product Feature
High Power Output
This 10kW brushless DC motor boasts a significant power output and a wide speed range of 2000-6000 rpm, enabling robust and flexible operation for your electric vehicle.
Efficient Cooling Mechanism
A unique water-cooling system is incorporated, providing optimal temperature control for prolonged operation without overheating, even in closed positions with limited airflow. An extra pump is needed for operation.
Easy to Handle and Use
Designed for ease of use, this motor requires no additional equipment, making it a practical solution for various applications.
High Energy Efficiency
With an impressive efficiency rating of 91% ensures energy utilization is maximized, thereby extending your electric vehicle's range.
Product Applications
Comprehensive for Electric Vehicles
The motor is perfect for a variety of electric vehicles, including cars, motorcycles, golf carts, ATVs, UTVs, and yachts.
Reliable Performance In Various Settings
Its robust construction and reliable performance make it a great choice for various transportation applications.
Stellar Upgrade Option
Enhance your electric vehicle with this affordable and efficient 10kW brushes DC motor and experience the power and reliability it brings to your electric vehicle.
Related Products
Videos

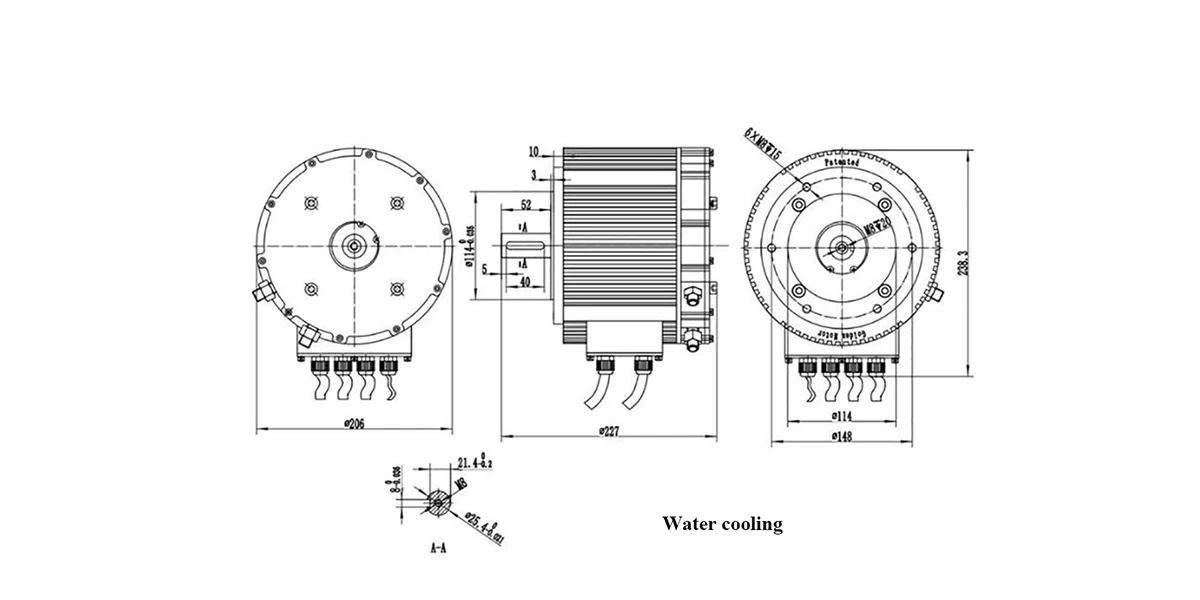

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
