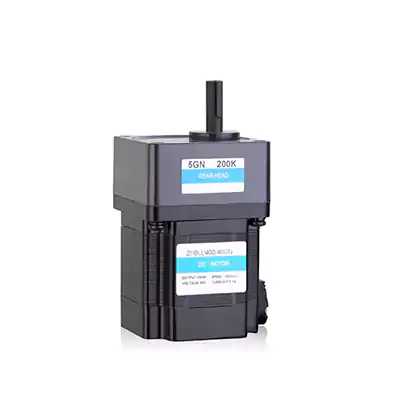

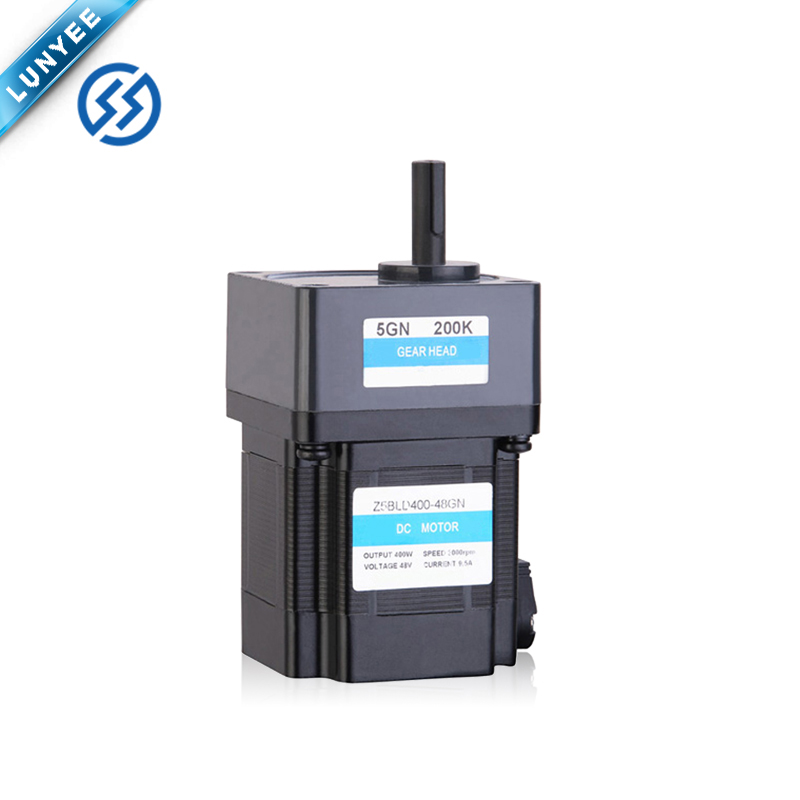

10W 60MM BLDC Gear Motor

Name: 10W 60MM BLDC Gear Motor
Availability: InStock

This 10W 60MM BLDC Gear Motor brings reliable, reliable power to a wide variety of applications. It offers high torque and low noise output, for powerful, quiet performance. With optimized temperature control and no-load current protection, this motor has a long service life and is easy to maintain.

Get a Quote Leave a Message

Model Type

Voltage(V)100~220V

Flange()60

Motor Type()Brushless

SPECIFICATIONS

Model	Voltage (V)	Frequency (HZ)	Rated Power (W)	Rated Current (A)	Rated Speed (RPM)	Rated Torque (N.m)	Grade Protection (IP)
Z2BLD10-220GN	220-230	50/60	10	0.20	3000	0.03	65
Z2BLD10-220GN	100-120	50/60	10	0.45	3000	0.03	65

Product Display

This motor has the optional accessories: gearbox, controller, encoder, brake.

For DC brushless motor, we can make from 10W to 500W with all voltage and speed ratio.

Motor voltage,power and speed will be customized according to your requests under the allowed circumstance of adoptable dimension

If you have interest or demand, you can send inquiry for details

Gearbox Ratio, Speed and Torque:

Dimension Drawing:

Product Feature

Durable Brushless Design

Employs a brushless design that significantly reduces wear and tear, ensuring a longer lifespan compared to traditional motors.

High Efficiency

Delivers exceptional energy efficiency, reducing operational costs and optimizing performance for various applications.

Low Noise Operation

The motor's design ensures quiet operation, making it suitable for environments where noise levels are of concern.

Compact and Lightweight

Its 60mm frame size coupled with a light build allows for easy integration into space-constrained applications.

Excellent Torque-to-Size Ratio

Despite its compact size, it offers impressive torque, ensuring powerful performance for its class.

Product Applications

Precision Instrumentation

Ideal for applications requiring precise control and minimal vibration, such as in medical devices or laboratory equipment.

Automated Guided Vehicles

Its compact size and efficient operation make it perfect for use in AGVs, where space and energy efficiency are crucial.

Robotic Arms

Provides the necessary torque and precision needed for the smooth operation of robotic arms in manufacturing and assembly lines.

Consumer Electronics

Suitable for integration into consumer electronics where quiet and efficient operation is essential.

Renewable Energy Systems

Its efficiency and durability make it an excellent option for small-scale renewable energy applications, such as solar trackers.

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
