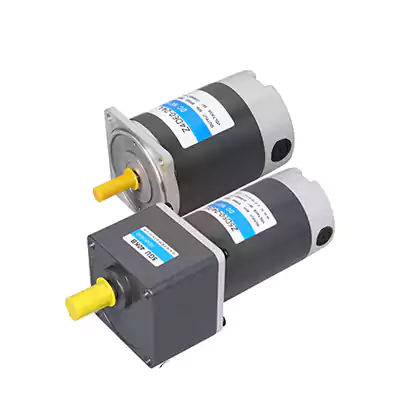

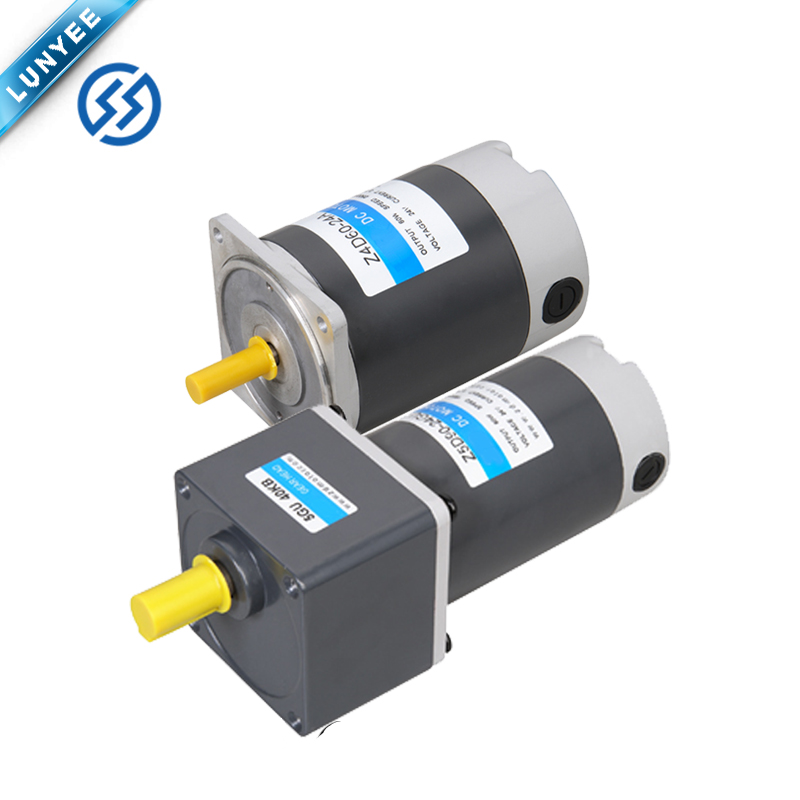

10W Brush DC Gear Motor

Name: 10W Brush DC Gear Motor
Price: 80.00 USD
Availability: InStock

$80.00

This 10W Brush DC Gear Motor is perfect for powering a wide variety of applications, ranging from automation equipment to robotic systems. With a no-load speed of 200 RPM and a gear ratio of 10, this motor is highly efficient and provides plenty of torque.

Get a Quote Leave a Message

Model Type

Output Power (W)()10

Voltage (V)()12

Speed with Load (rpm)()2800/3000

SPECIFICATIONS

The 10W DC motor is a brushed motor with the advantages of low noise, high torque and long life

*Silent Bearing:High precision silent ball bearing highload operation,no shaking longer life

*Gear Set:Use alloy steel gears,high precision high hardness,strong wear resistance and increase motor torque

*Pure copper :Strong conductivity increase torque

*Precision-cast housing: The cast iron material is harder than ordinary case, The heat dissipation effect is better, firm and durable

Model	Voltage(v)	Out put Power(w)	No-load Parameters		Load Parameters			Brush Life(H)	Motor Weight(Kg)
Model	Voltage(v)	Out put Power(w)	Speed(r/min)	Current(A)	Speed(r/min)	Torque(mN.m)	Current(A)	Brush Life(H)	Motor Weight(Kg)
Z2D10-12	12	10	3200	1.0Max	2800	34	2.0	2000	0.7
Z2DW10-12	12	10	3200	1.0Max	2800	34	2.0	2000	0.7
Z2D10-24	24	10	3200	1.0Max	3000	32	0.9	2000	0.7
Z2DW10-24	24	10	3200	1.0Max	3000	32	0.9	2000	0.7
Z2D10-90	90	10	3000	1.0Max	2800	34	0.6	2000	0.7
Z2DW10-90	90	10	3000	1.0Max	2800	34	0.6	2000	0.7

Reminder

Motor voltage, power and speed can be customized according to customer requirements under the conditions of accessories size and other conditions

If W is added after D, it means an external brush gear motor, if there is no W, it is a standard built-in brush gear motor;

for external brush motor, user can replace brush externally; built-in brush motor replaces brush When motor needs to be disassembled, it can be replaced

Parallel Shaft Gearhead (Sold Separately)

Gearhead Type

Gearhead Model

Gear Ratio

Long Life.Low Noise

2GN10XK(Mid-gearbox)

3、 3.6、 5、 6、 7.5、 9、 12.5、 15、 18、 25、 30、 36、 50、 60、 75、 90、 100、 120、 150、 180、 200

Type	Gear Ratio	3	3.6	5	6	7.5	9	10	12.5
Z2D10-24GN	Speed(r/min)	1000	833	600	500	400	333	300	240
Z2D10-24GN	2GN K Torque N.m	0.08	0.09	0.13	0.15	0.19	0.23	0.26	0.32
Type	Gear Ratio	15	18	20	25	30	36	40	50
Z2D06-24GN	Speed(r/min)	200	167	150	120	100	83	75	60
Z2D06-24GN	2GN□K Torque	0.39	0.46	0.46	0.58	0.70	0.84	0.93	1.16
Type	Gear Ratio	60	75	90	100	120	150	180	200
Z2D06-24GN	Speed(r/min)	50	40	33	30	25	20	17	15
Z2D06-24GN	2GN K Torque	1.25	1.75	1.88	2.09	2.51	3.00	3.00	3.00

Installation Dimensions

Product Display

A Brush DC Motor, which is powered by direct current, allows for precise speed control. The Brush DC Motor provides constant and consistent current by using rings to power a magnetic drive that powers the motor's armature. The Brush DC Motor, perhaps one of the oldest utilized motors, is widely employed due to its ability to change the speed-torque ratio in practically any manner.

Product Feature

Durable Construction

This 10W brush DC gear motor uses high precision silent ball bearings, alloy steel gears, and pure copper for increased torque. The precision-cast housing is made out of durable cast iron material that dissipates heat effectively.

Efficient Design

Equipped with a high-load operation capability, this motor operates without shaking for a longer life. The silent bearing and the use of pure copper contribute to its high conductivity and increase the motor torque.

High-Performance Output

With a no-load speed of 200 RPM and a gear ratio of 10, this motor offers reliable, efficient, and high-torque output for demanding applications.

Compact and Versatile

The motor's compact size allows for space-efficient installations, making it suitable for a variety of applications, from automation equipment to robotic systems.

Product Applications

Automation Equipment

Its robust design and high torque output make it perfect for use in automation equipment, delivering reliable performance for demanding tasks.

Robotic Systems

The motor's compact design and quiet operation make it ideal for use in robotic systems that require precision and speed control.

Versatile Use

Thanks to its accommodating voltage range and customizable speed, the brush DC gear motor is highly versatile, suitable for a wide range of applications.

Indoor Applications

The motor's robust construction, reliable performance, and efficient design make it a suitable choice for various indoor applications.

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
DC-Motor-Catalog.pdf	55.7MB	Download
