SPECIFICATIONS
| Model Type Above:gearbox below in（）：round shaft |
Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting torque mN.m |
Rated tourque mN.m |
Rated speed r/min |
Capacitor μF |
|
| Lead Wire Type | Terminal Box Type | ||||||||
| 5RK120GU-AF | 5RK120GU-AFT | 120 | 1ph100 | 50 | 2.25 | 700 | 930 | 1250 | 35 |
| (5RK120A-AF) | (5RK120A-AFT) | 120 | 1ph100 | 60 | 2.85 | 700 | 750 | 1550 | 35 |
| 5RK120GU-EF | 5RK120GU-EFT | 120 | 1ph110 | 60 | 1.9 | 650 | 750 | 1550 | 30 |
| (5RK120A-EF) | (5RK120A-EFT) | 120 | 1ph120 | 60 | 1.9 | 720 | 750 | 1550 | 30 |
| 5RK120GU-CF | 5RK120GU-CFT | 120 | 1ph220 | 50 | 1.15 | 720 | 930 | 1250 | 8 |
| (5RK120A-CF) | (5RK120A-CFT) | 120 | 1ph230 | 50 | 1.15 | 720 | 930 | 1250 | 8 |
| 5RK120GU-HF | 5RK120GU-HFT | 120 | 1ph220 | 60 | 1.2 | 720 | 750 | 1550 | 8 |
| (5RK120A-HF) | (5RK120A-HFT) | 120 | 1ph230 | 60 | 1.2 | 720 | 750 | 1550 | 8 |

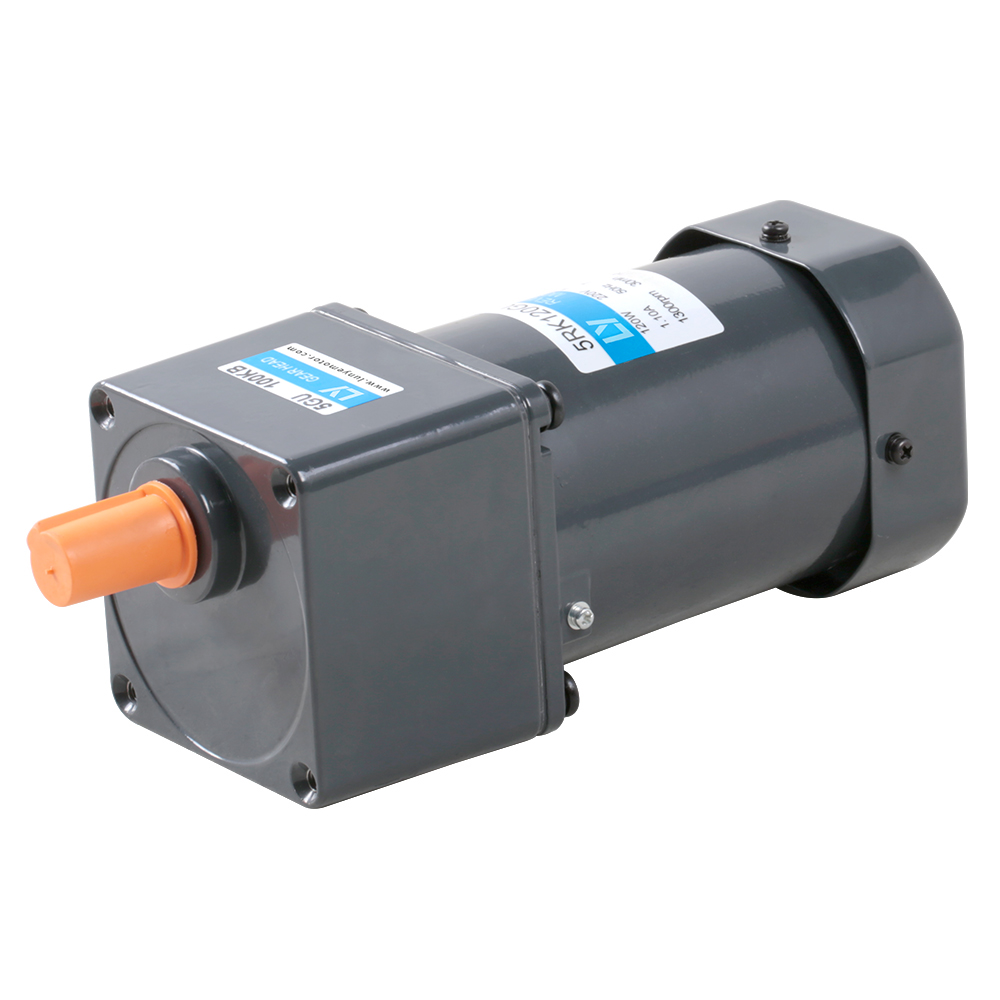

Product Display
Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.
Product Feature
Segmented Power Range
Our 1phase Micro AC Gear Motor has power ranges from 6W to 120W, broad enough to cater for varying demands of many applications.
Reversible Operation
This motor features a basic brake, facilitating it to stop and change direction in a reasonable amount of time. Making it a perfect fit for situations where the motor needs to change direction regularly.
High-performance Custom Gearbox Design
We offer a motor with a custom gearbox design, embedding high torque, and low speed, primed for applications that require uninterrupted operation.
High Overload Capacity
The motor sustains high capacity for overload, thereby assuring reliable and long-lasting operation.
Energy Efficient
Our product design prioritizes minimal energy consumption while providing outstanding performance, thereby guaranteeing cost-effectiveness and ecological sustainability.
Product Applications
Industrial Machinery
Our AC gear motor is ideal for the rigors of heavy machinery where consistent power and adaptability to varying loads are a necessity. It can withstand demanding industrial environments and provide reliable performance in applications such as conveyor systems, industrial mixers, and heavy-duty equipment.
Robotics
The precision and variability in speed of our AC gear motor make it an excellent choice for robotics. It offers fine control and dependability, enabling precise movement and positioning of robotic components. It is suitable for applications in industrial automation, collaborative robots (cobots), and other robotic systems.
Automotive Applications
Our AC gear motor finds application in the automotive industry, particularly in equipment that requires torque and reverse functionality. It can be used in assembly lines, maintenance platforms, and other automotive machinery where reliable and versatile motor operation is essential.
Agricultural Equipment
Our AC gear motor flawlessly fits into agricultural machinery that demands high torque for processing, harvesting, or material handling. It can power agricultural equipment such as conveyors, grain augers, harvesters, and feed mixers, providing the necessary strength and reliability for agricultural applications.
Home Appliance Manufacturing
With its adaptability and efficiency, our AC gear motor is a prime choice for manufacturers of home appliances. It is suitable for applications in appliances that require quiet operation, durability, and precise control, such as washing machines, dryers, dishwashers, and more.
Related Products
Videos

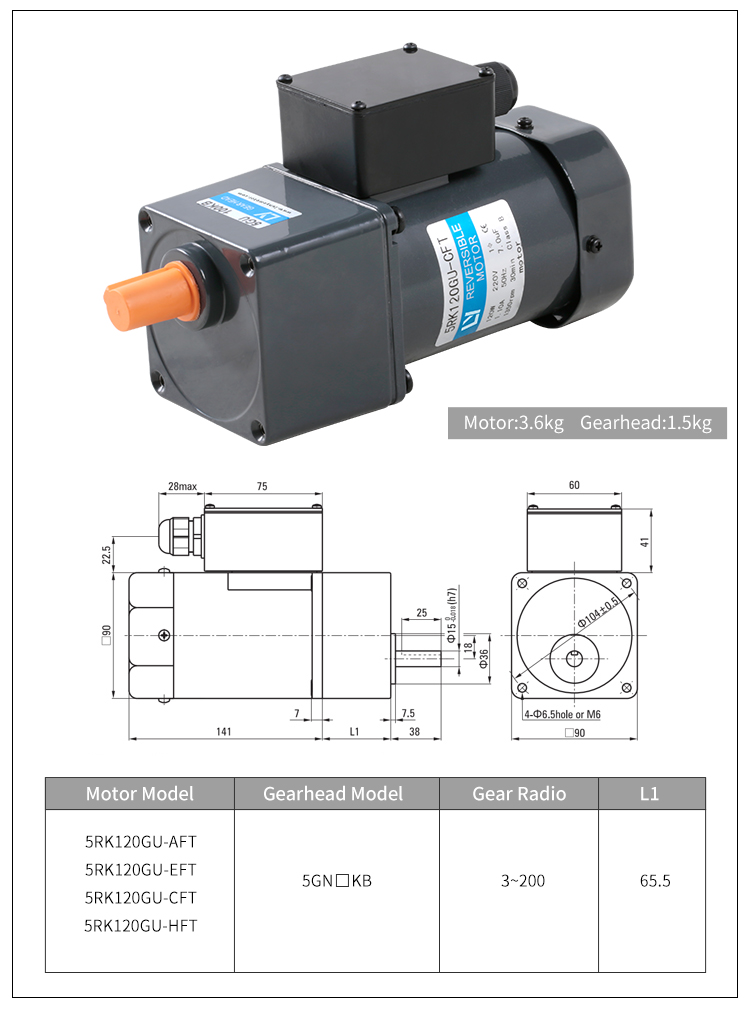

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
