SPECIFICATIONS
| Motor Type Lead Wire Type |
Rating | Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting torque mN.m |
Rated tourque mN.m |
Rated speed r/min |
Capacitor μF |
|
| Pinion Shaft | Round Shaft | |||||||||
| 5RK120GU-AFM | 5RK120A-AFM | 30min | 120 | 1ph100 | 50 | 2.25 | 700 | 930 | 1250 | 35 |
| 120 | 1ph100 | 60 | 2.85 | 700 | 750 | 1550 | 35 | |||
| 5RK120GU-EFM | 5RK120A-EFM | 30min | 120 | 1ph110 | 60 | 1.9 | 650 | 750 | 1550 | 30 |
| 120 | 1ph120 | 60 | 1.9 | 720 | 750 | 1550 | 30 | |||
| 5RK120GU-CFM | 5RK120A-CFM | 30min | 120 | 1ph220 | 50 | 1.15 | 720 | 930 | 1250 | 8 |
| 120 | 1ph230 | 50 | 1.15 | 720 | 930 | 1250 | 8 | |||
| 5RK120GU-HFM | 5RK120A-HFM | 30min | 120 | 1ph220 | 60 | 1.2 | 720 | 750 | 1550 | 8 |
| 120 | 1ph230 | 60 | 1.2 | 720 | 750 | 1550 | 8 | |||
| 5IK120GU-SFM | 5IK120A-SFM | Cont | 120 | 3ph220 | 50 | 0.7 | 930 | 930 | 1250 | 8 |
| 120 | 3ph220 | 60 | 0.6 | 750 | 750 | 1550 | 8 | |||
Product Display

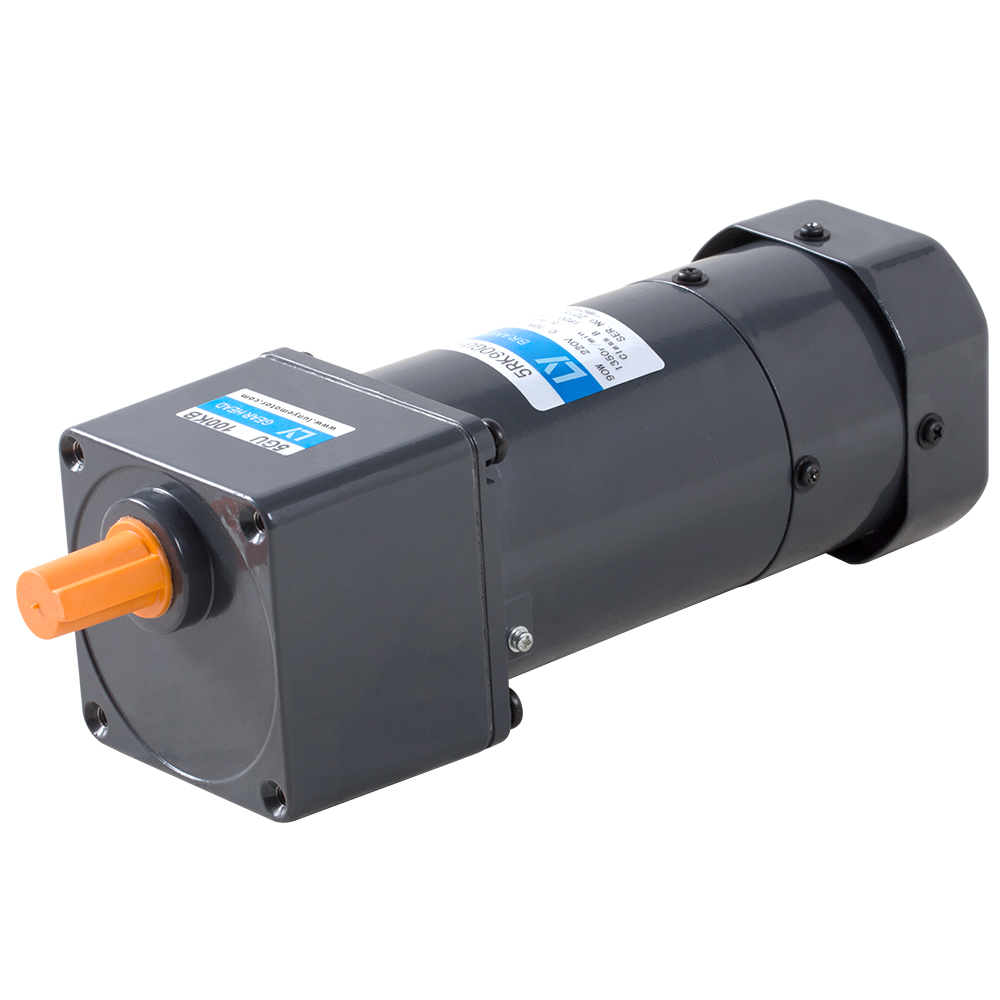

A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.
Product Feature
Dynamic Braking System
Experience superior control and safety with the motor's dynamic braking system that ensures quick halting of operations whenever needed.
Reversibility and Precision
The reversible operation of our motor provides accuracy and adaptability for complex motor-driven processes and machinery.
Durable Gear System
Constructed with a robust gear mechanism, this motor guarantees sustained performance and resilience for long-term use.
High Output Power
With 120W of output power, our motor delivers potent force effectively, capable of performing in high-demand environments.
Efficiency Across Frequencies
Our three-phase motor is efficient at both 50 and 60 Hz, making it adaptable and efficient in varied international electrical environments.
Consistent Operational Speed
Maintaining a rated speed between 1250 to 1550 r/min, the motor offers consistent performance, crucial for precise applications.
Versatile Voltage Adaptability
Designed to perform with a voltage supply of 220V, the motor presents adaptability across various infrastructures without compromising performance.
Product Applications
Industrial Machinery
The motor's high torque, dynamic braking, and speed consistency make it ideal for various industrial machines that demand robust operation.
Automated Systems
For systems requiring rapid braking and position maintenance, our motor provides the necessary power and functionality.
Material Handling
With its stable and controlled motion, the AC gear brake motor is excellently suited for conveyors and other material handling equipment.
Agricultural Equipment
Durability and control are vital in agricultural settings; this motor is up to the task, providing reliable performance in a variety of farm-based machines.
Specialized Industrial Processes
When specific operations require heavy-duty braking and precision control, our motor delivers, ensuring efficiency and effectiveness.
Packaging Machines
Unmatched in stability and quick-stop capability, the motor is perfect for packaging machines where accuracy and reliability are paramount.
Related Products
Videos

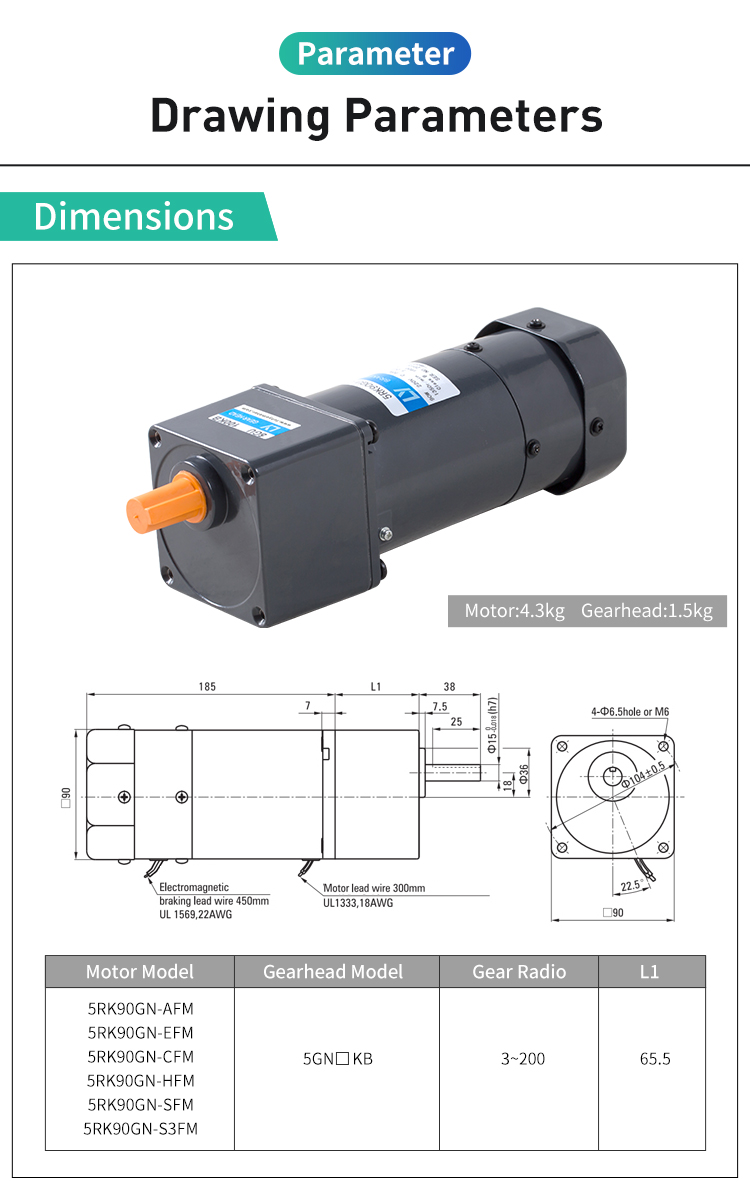

DIMENSIONS
