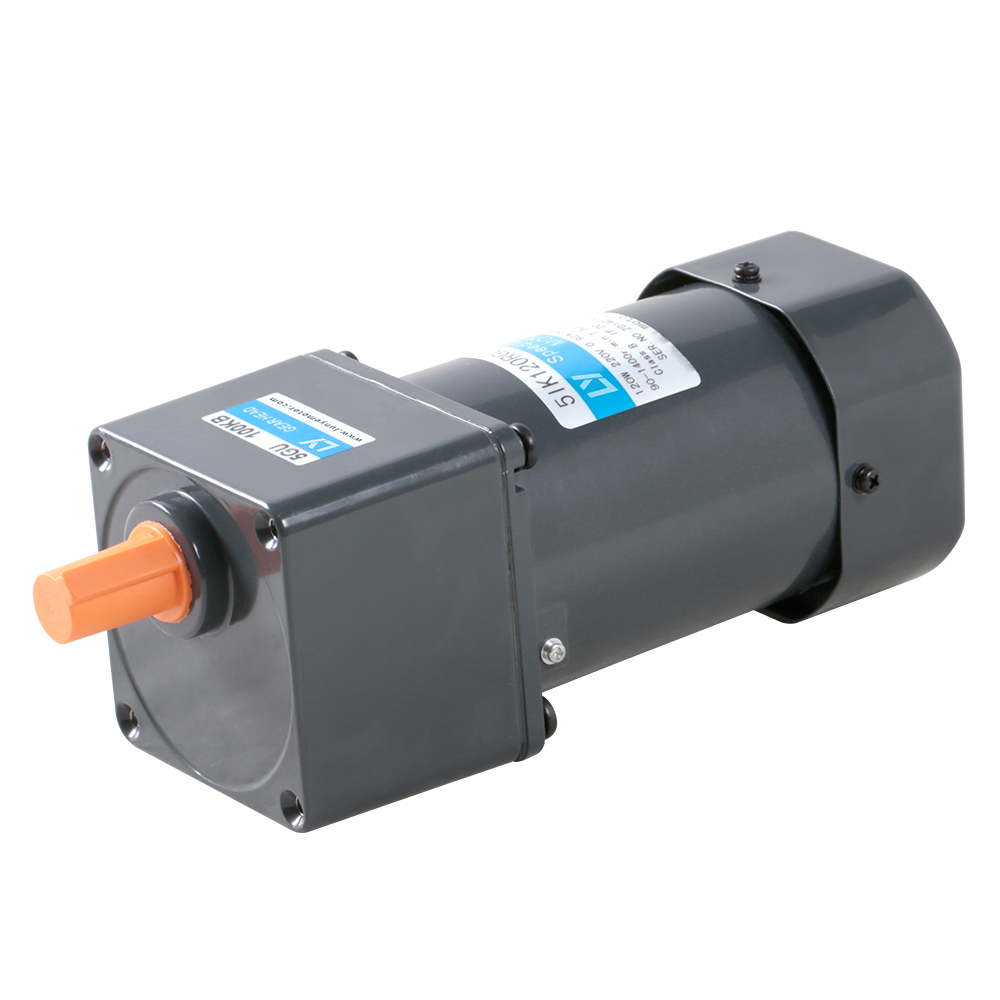

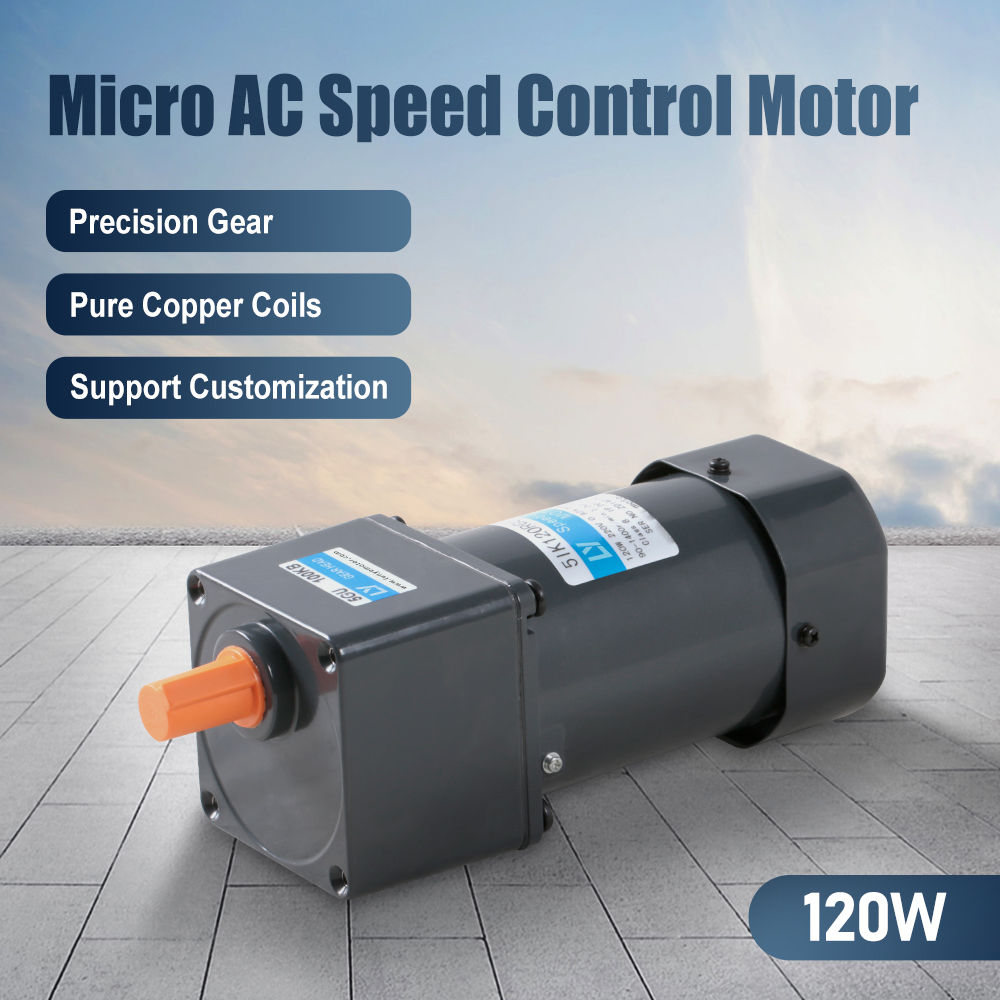

120W 90mm Flange Electric AC Gear Motor
$104.00-$108.33
The 120W 90mm Flange Electric AC Gear Motor is the ideal industrial-grade motor for powering small-scale applications and projects. Boasting a 90mm flange, it offers superior torque and power—up to 120W—in an efficient package. Built for durability and performance, it's the perfect motor for a variety of projects.
SPECIFICATIONS
| Motor Type Lead Wire Type |
Output power W |
Voltage V |
Frequency Hz |
Speed Control Range r/min | Rated Torque | Starting Torque mN.m |
Current A |
Capacitor μF |
Pinion Shaft | |
| 5IK120RGU-AF | 5IK120RA-AF | 120 | 1ph100 | 50 | 90-1400 | 750 | 330 | 530 | 3.5 | 30 |
| 5IK120RGU-AF | 5IK120RA-AF | 120 | 1ph100 | 60 | 90-1700 | 750 | 330 | 530 | 3.5 | 30 |
| 5IK120RGU-EF | 5IK120RA-EF | 120 | 1ph110 | 60 | 90-1700 | 750 | 360 | 530 | 3.25 | 25 |
| 5IK120RGU-EF | 5IK120RA-EF | 120 | 1ph120 | 60 | 90-1700 | 750 | 360 | 530 | 0.23 | 25 |
| 5IK120RGU-CF | 5IK120RA-CF | 120 | 1ph220 | 50 | 90-1400 | 750 | 330 | 530 | 1.5 | 7 |
| 5IK120RGU-CF | 5IK120RA-CF | 120 | 1ph230 | 50 | 90-1400 | 750 | 330 | 530 | 1.5 | 7 |
| 5IK120RGU-HF | 5IK120RA-HF | 120 | 1ph220 | 60 | 90-1700 | 750 | 360 | 530 | 1.5 | 7 |
| 5IK120RGU-HF | 5IK120RA-HF | 120 | 1ph230 | 60 | 90-1700 | 750 | 360 | 530 | 1.5 | 7 |
Product Display
Speed adjustable motor is applied with a variable frequency drive or comparable technology to regulate motor speed and torque. Variable speed motors enable goods and manufacturing facilities to significantly decrease the amount of energy spent by the motors in their devices by putting these critical variables of motor performance under the control of the operator.
Product Feature
Precision Engineered Construction
Built to deliver precision and reliability, the 120W 90mm Flange Electric AC Gear Motor is engineered with high-quality materials that ensure durability in various industrial conditions. Its sturdy construction translates to an impressive service lifespan.
High Torque Output
With its 120-watt power output, this motor offers high torque that guarantees substantial force for a wide array of applications, making it an excellent choice for tasks requiring consistent and powerful operation.
Adaptable Speed Range
Flexibility in operation is a key feature of this AC gear motor, boasting an adaptable speed range that can be fine-tuned to align with specific task requirements. This ensures optimal performance across different uses.
Energy-Efficient Operation
Designed for energy savings, this motor integrates features that reduce power consumption without compromising on performance, making it a cost-effective solution for continuous industrial use.
Compact Design
The compact 90mm flange design of this motor facilitates easy integration into a multitude of machinery and equipment, enabling a seamless blend with existing systems or new designs.
Product Applications
Automation Machinery
This gear motor is ideally suited for use in automation machinery where precise motion control is crucial. It ensures smooth and accurate operations in assembly lines, robotics, and automated guided vehicles (AGVs).
Material Handling
Its consistent torque and variable speed capability make the 120W 90mm Flange Electric AC Gear Motor a reliable component in the material handling industry, enhancing conveyance systems such as belt conveyors and roller conveyors.
Food and Beverage Industry
In the food and beverage sector, hygiene and precision are paramount. This motor's adaptable speed and durable design make it an asset for processing and packaging equipment that demands consistent performance and cleanliness.
Medical Equipment
The precision and reliability of this motor qualify it for critical medical applications, including lab mixers, pumps, and centrifuges where exact speed and power control are necessary for successful operation.
Renewable Energy Systems
Contributing to eco-friendly initiatives, the 120W 90mm Flange Electric AC Gear Motor can be integrated into renewable energy systems such as solar trackers and wind turbine adjustments, benefiting from its efficient and powerful performance.
