| Motor Type Lead Wire Type | Rating | Output power W | Voltage V | Frequency Hz | Current A | Starting torque mN.m | Rated tourque mN.m | Rated speed r/min | Capacitor μF | |
| Pinion Shaft | Round Shaft | |||||||||
| 5RK120GU-AFM | 5RK120A-AFM | 30min | 120 | 1ph100 | 50 | 2.25 | 700 | 930 | 1250 | 35 |
| 120 | 1ph100 | 60 | 2.85 | 700 | 750 | 1550 | 35 | |||
| 5RK120GU-EFM | 5RK120A-EFM | 30min | 120 | 1ph110 | 60 | 1.9 | 650 | 750 | 1550 | 30 |
| 120 | 1ph120 | 60 | 1.9 | 720 | 750 | 1550 | 30 | |||
| 5RK120GU-CFM | 5RK120A-CFM | 30min | 120 | 1ph220 | 50 | 1.15 | 720 | 930 | 1250 | 8 |
| 120 | 1ph230 | 50 | 1.15 | 720 | 930 | 1250 | 8 | |||
| 5RK120GU-HFM | 5RK120A-HFM | 30min | 120 | 1ph220 | 60 | 1.2 | 720 | 750 | 1550 | 8 |
| 120 | 1ph230 | 60 | 1.2 | 720 | 750 | 1550 | 8 | |||
| 5IK120GU-SFM | 5IK120A-SFM | Cont | 120 | 3ph220 | 50 | 0.7 | 930 | 930 | 1250 | 8 |
| 120 | 3ph220 | 60 | 0.6 | 750 | 750 | 1550 | 8 | |||

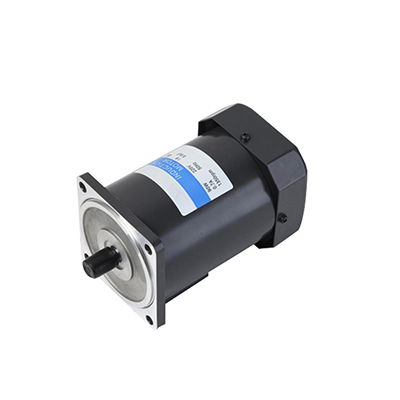

A brake motor is a motor that has a brake and is appropriate for devices that need quick braking and have a holding function. The brake operates in such a way that it engages when the electrical power to the motor is turned off or fails. When the power is turned off, the brake will activate an immediate stop, which may help to keep the loading and position stable.
A Manufacturer’s Certificate of Origin, also known as a Manufacturer’s Statement of Origin, is a specified document certifying the country.
