12V 24V 3000N 50-800mm 7mm/s-35mm/s linear actuator
$39-$215
Maximize efficiency in your business operations with our high-power linear actuator, capable of delivering a substantial load capacity of 3000N. Crafted for precision and strength, this actuator is capable of adjusting its speed to the load from a swift 35mm/s when handling 750N up to a powerful 7mm/s at a full 3000N capacity. The customizable stroke length ensures tailored applications, making it a versatile tool for various business needs.
SPECIFICATIONS
If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!
| Input Voltage | 24V / 12V DC |
| Load Capacity | 3000N |
| Max Speed | 7mm/s(3000N), 35mm/s(750N) |
| Stroke | Customize |
| Type of Duty | 10%, 2min.on / 18min.off |
| Limit switches | Inner |
| Operation Temperature | -15℃~45℃ |
| Protection Class | IP20 |

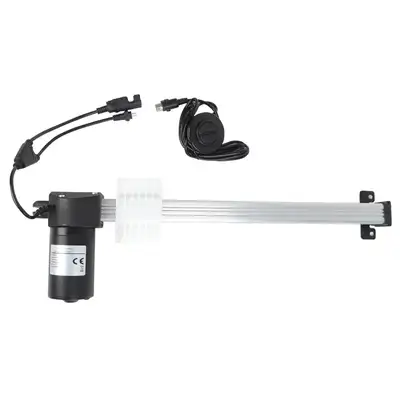

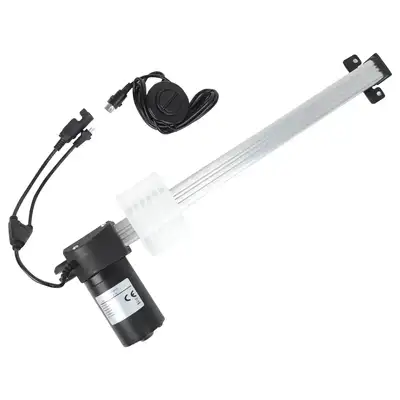

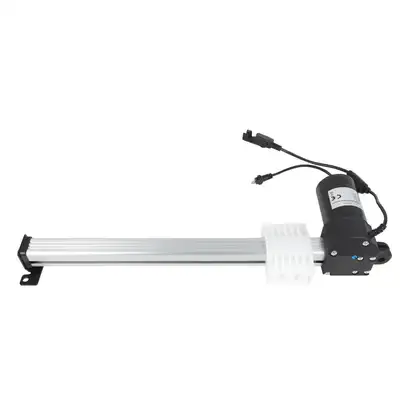

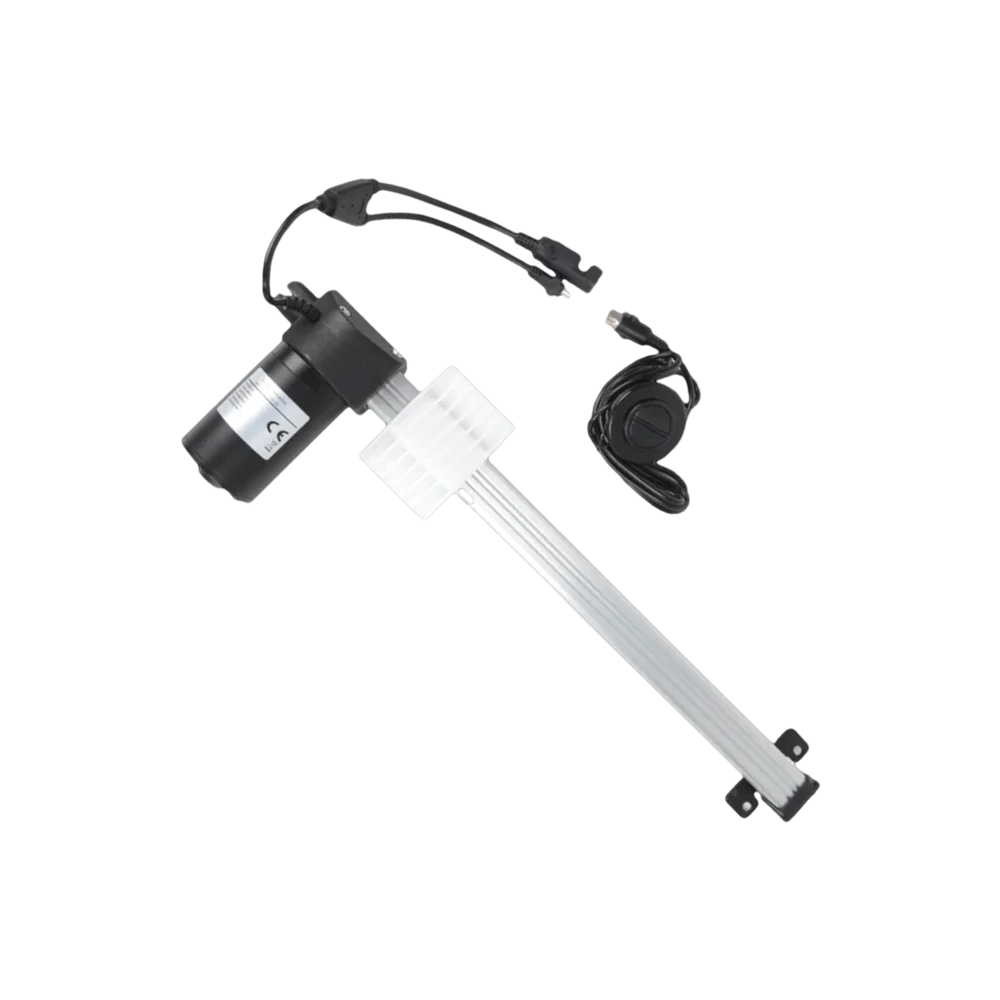

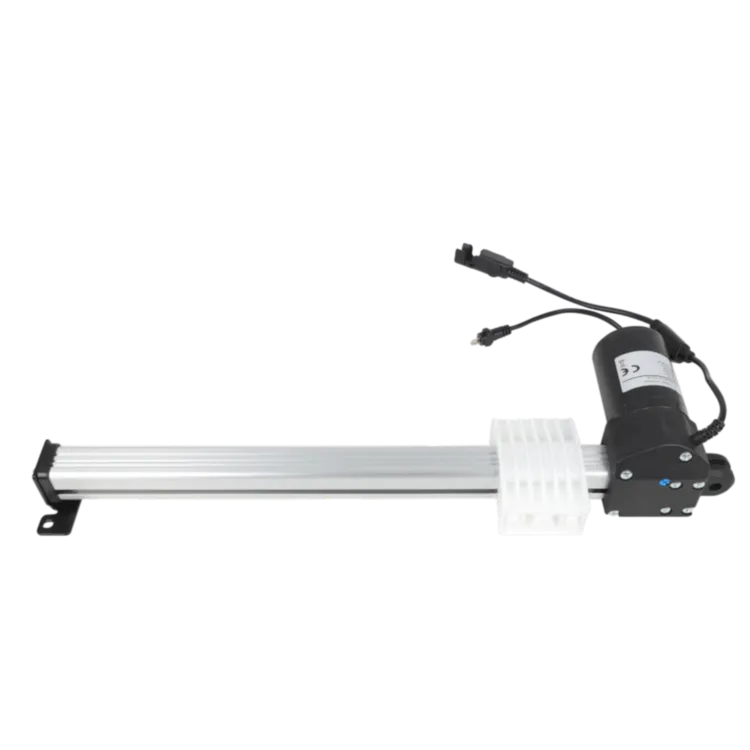

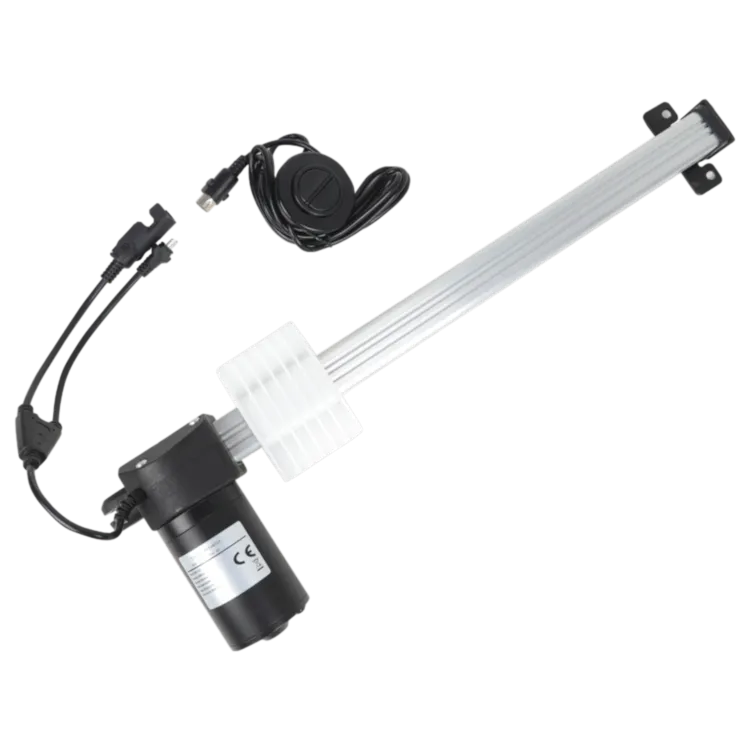

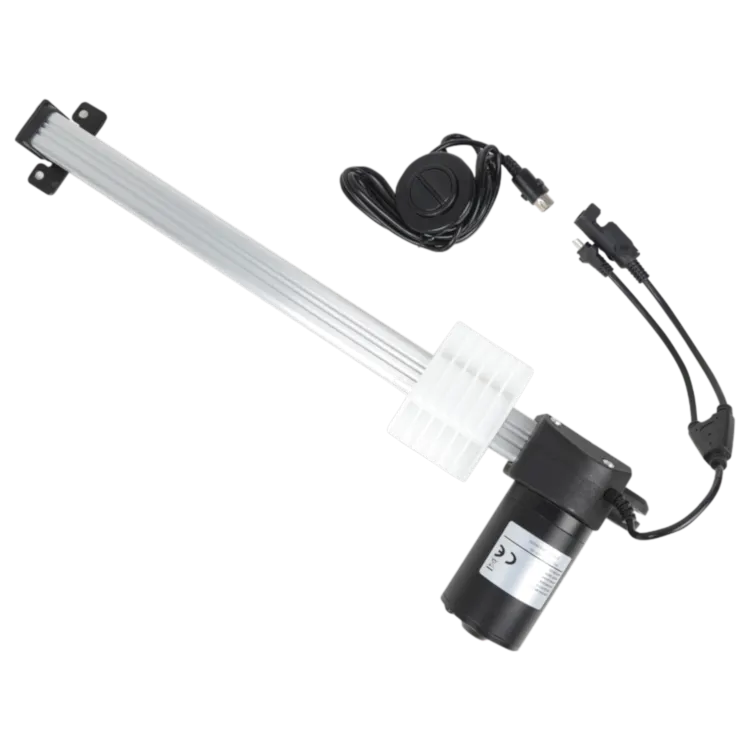

Product Display
Product Feature
High Load Capacity
Delivers an impressive 3000N force for demanding applications, ensuring the motor can handle heavy loads effectively.
Customizable Speed and Stroke
Offers a maximum speed of 35mm/s for lighter loads (750N) and 7mm/s for the full load (3000N), allowing for precise control. The stroke length can also be customized to meet specific requirements.
Flexible Input Voltage
Accommodates both 24V and 12V DC power supplies, providing flexibility in power source options.
Smart Design
Comes with internal limit switches for precision control, enabling accurate positioning and preventing overextension or damage to the motor.
Type of Duty
Designed for intermittent use with a 10% duty cycle, which means it can operate continuously for 2 minutes and then requires an 18-minute rest period.
Temperature Resilience
Operates reliably in temperatures ranging from -15℃ to 45℃, making it suitable for a wide range of environments and applications.
Initial Protection Class
Rated IP20, suitable for indoor use where it is not exposed to liquids. Provides basic protection against solid objects larger than 12.5mm, such as fingers or small tools.
Product Applications
Industrial Automation
Linear actuators are widely used in industrial automation systems for tasks like pick-and-place operations, assembly line positioning, material handling, and packaging machinery, providing precise linear motion and positioning.
Automotive Manufacturing
In automotive manufacturing, linear actuators are used for various operations, including robotic welding, part positioning, and seat adjustment mechanisms, enabling precise linear movements and positioning.
Medical and Laboratory Equipment
Linear actuators are employed in medical and laboratory equipment, such as hospital beds, surgical tables, medical imaging devices, and laboratory automation systems, allowing for controlled linear motion and positioning of components or patients.
Renewable Energy Systems
Linear actuators play a role in renewable energy systems, such as solar tracking systems and wind turbine pitch control mechanisms, facilitating linear motion for optimal energy capture and system efficiency.
Manufacturing and Machine Tools
Various manufacturing processes and machine tools, including CNC machines, presses, and forming equipment, utilize linear actuators for accurate linear positioning, tool movement, and workpiece handling.
Valve and Gate Automation
Industries involving valve and gate automation, such as water treatment facilities, oil and gas plants, and power generation systems, rely on linear actuators for precise control and positioning of valves and gates.
Woodworking and Furniture Manufacturing
Linear actuators are used in woodworking and furniture manufacturing for tasks like adjusting table saw fences, positioning workpieces, and controlling automated machinery for cutting and shaping operations.
Theatrical and Stage Equipment
In the entertainment industry, linear actuators are employed in theatrical and stage equipment, such as moving stage platforms, lighting rigs, and special effects mechanisms, enabling controlled linear motion and positioning.
Related Products
Videos

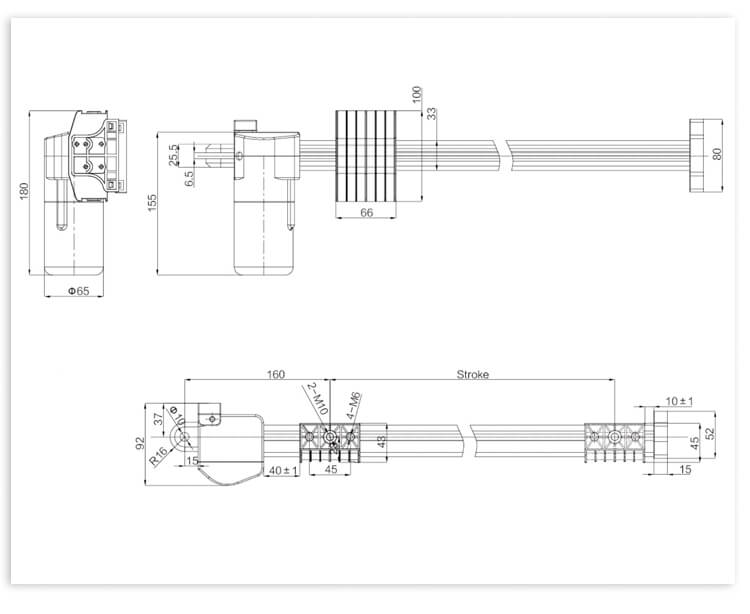

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
