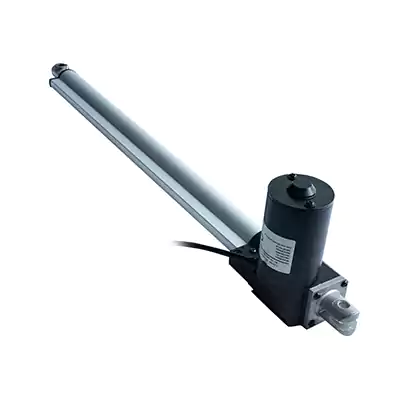

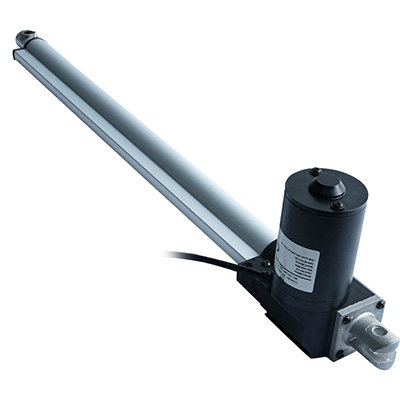

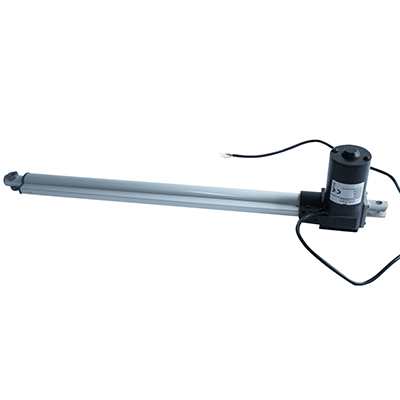

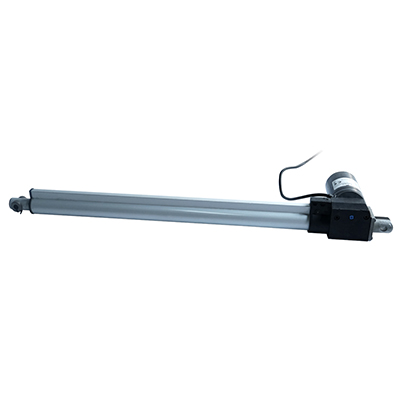

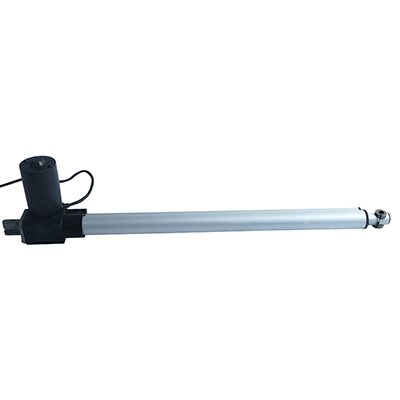

12v-24v 8000N 50-800mm 4~36mm/s linear actuator
$
Our 12v-24v 8000N 50-800mm 4~36mm/s linear actuator provides powerful lifting force with adjustable stroke and speed settings to achieve the exact motion you desire. With a high-torque motor and rated load of 8000N, this actuator is sure to perform reliably and consistently.
SPECIFICATIONS
| Input Voltage | 24V / 12V DC |
| Load Capacity | 8000N |
| Speed | 4~36mm/s |
| Stroke | Customize |
| Type of Duty | 10%,2min.on / 18min.off |
| Limit switches | Inner |
| Operation Temperature | -15℃~45℃ |
| Protection Class | IP67 |
If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!
Product Display
LY011E Electric linear actuator large thrust 6000N industrial reciprocating push rod lifter 12V24V nursing bed telescopic rod is mainly composed of electric push rod, control box, remote control board and cable. The electric push rod can realize the functions of lifting, tilting and turning according to the different combinations of the supporting motor, the lead screw and the control device and the travel switch. Because the electric actuator has a small size and a quiet design; and high safety, its locking force can reach ten times the thrust force, safe; easy to operate. It is suitable for applications in various industries, such as electric hospital beds, home care beds, and furniture , Office furniture, and industrial industries. Excellent product performance and strong output load capacity make this product capable of taking important responsibilities in industrial applications.
Shopping guide:
1. Determine the voltage: There are two options for voltage: DC 12V and 24V.
2. Determine the stroke of the push rod, that is, the range of motion of the push rod, which can be customized according to your requirements.
3. Determine the pushing speed of the putter. Different speeds correspond to different powers. The details are described in the details. You can also consult online or leave a message to me.

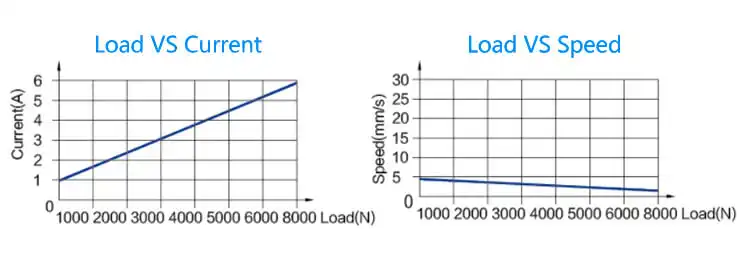

The power of the putter is related to the speed. The faster the speed, the smaller the power, and the slower the speed, the greater the power. The two are inversely proportional. Buyers can choose the appropriate speed and thrust motor according to the following parameter table:
Product Feature
High Load Capacity
Capable of handling loads up to 8000N, making it suitable for heavy-duty applications.
Adjustable Stroke Length
Offers a wide range of stroke lengths from 50mm to 800mm, providing flexibility to meet different requirements.
Variable Speed Options
Operates at speeds ranging from 4mm/s to 36mm/s, allowing for customized performance based on application needs.
Dual Voltage Compatibility
Supports both 12V and 24V input, enhancing its versatility and ease of integration.
Durable Construction
Constructed with high-quality materials to ensure durability and longevity in various environments.
Quiet Operation
Designed to operate quietly, making it suitable for applications where noise is a concern.
Easy Installation
Comes with user-friendly installation instructions and mounting brackets for quick setup.

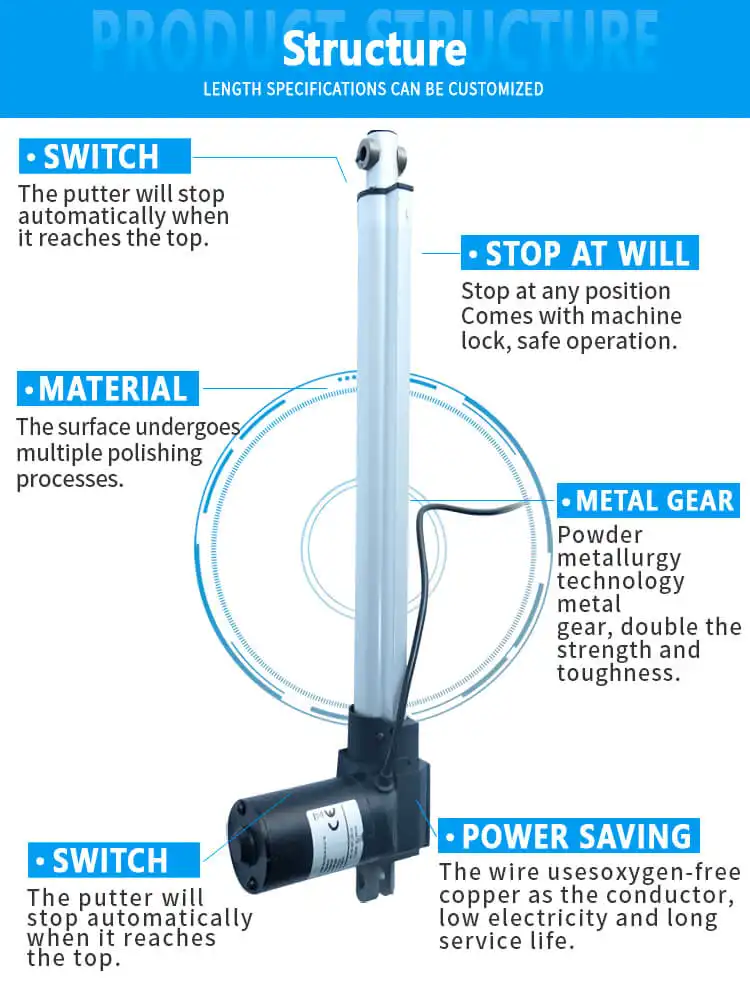

1. Durable: powder metallurgy technology is used inside the fuselage, and the life of metal gears is longer
2. Stability: Screw gasket design, specially added flat washers, effectively prevent the screws from falling off, quality assurance, safety and worry.
3. Load limit 6000N (600KG);
4. Operating temperature-15°C~45C;
5. Hall signal feedback can be selected (Hall adopts American imports);
6. Built-in travel switch, with self-locking ability;
7. Protection grade IP43;
8. The product has a certain degree of dustproof and waterproof function, and is silent;
9. It is produced with high-end materials, and the internal parts have no return material, which is durable and long-lasting;
10. The shell is made of pure aluminum alloy, the screws are GB standard, and the internal wire is American standard;
11. Electrode plugs can choose national standard, American standard, European standard, etc.
Product Applications
Home Automation
Ideal for home automation projects, including adjustable beds, recliners, and smart furniture.
Industrial Automation
Suitable for industrial automation systems that require precise and reliable linear motion.
Solar Tracking Systems
Perfect for use in solar tracking systems to adjust the position of solar panels for optimal energy capture.
Automotive Applications
Applicable in automotive systems such as adjustable car seats and lift gates.
Medical Equipment
Can be used in medical equipment like hospital beds, dental chairs, and patient lifts.
Agricultural Machinery
Useful in agricultural machinery for tasks such as adjusting the height of implements and controlling gates.
Robotics
Ideal for robotic applications requiring precise and controlled linear motion.
As an innovative product of emerging technology, electric actuators have a huge impact on the progress of human science and technology. Now electric push rods have been widely used by humans, and electric push rods can be used wherever body position adjustment is required. At present, the world's mature application areas are:
1. Furniture field: sofas, chairs for the elderly, lazy chairs, foot bath chairs, home beds, beauty beds, massage chairs, massage beds, TV racks, electric beds, theater sofas, etc.
2. Office furniture field: desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, work tables, laboratory tables, etc.
3. Industrial technology field: door opener, window opener, sweeper, agricultural harvester, yacht, automobile, stage, etc.
Related Products
Videos

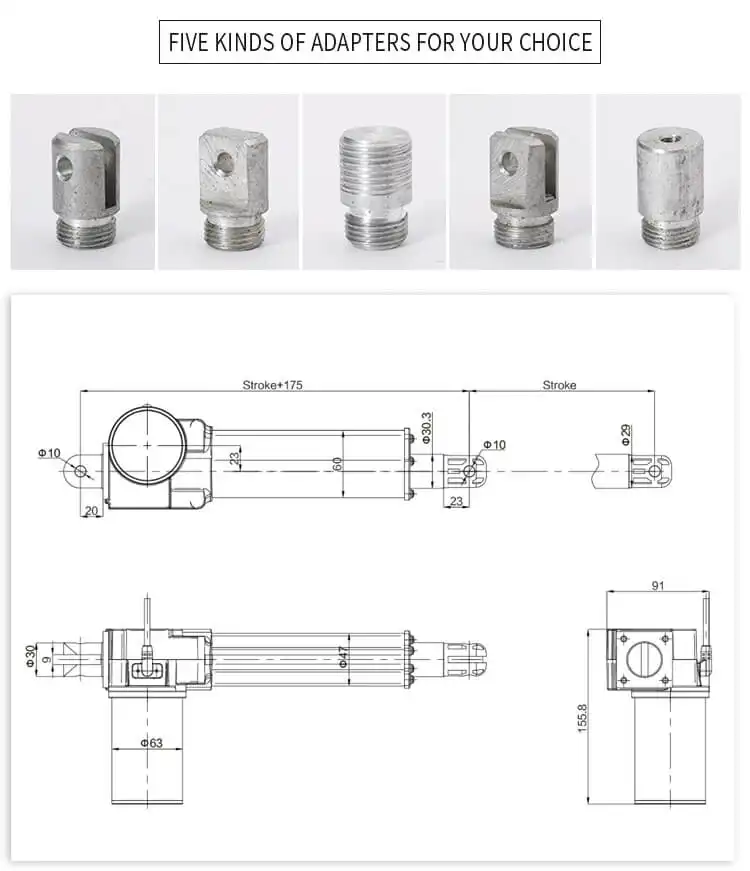

DIMENSIONS
