SPECIFICATIONS
![12V 250W 0.8 Nm 3000 rpm 26A Brushless DC Motor](/static/images/products/12v-250w-0.8-nm-3000-rpm-26a-brushless-dc-motor-5.webp)
Model: | BLDC-D5BLD250 |
Matched Controller Model: | BLD-750 |
Rated Power: | 250W |
Rated Voltage: | 12V |
Rated Current: | 26.06A |
Phase: | 3 phase |
Rated Torque: | 0.8 Nm |
Max. Torque: | 2.39Nm |
Rated Speed: | 3000 rpm |
No-load Speed: | 3300 rpm |
No-load Current: | <6.2A |
Square Flange Size: | 86 mm |
Working Efficiency: | 71% |
Insulation Grade: | F |
Protection Grade: | IP54 |
Motor Lead Length: | 1 meter |
Certificate: | CE, RoHS, ISO |
Weight: | 3 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.
![12V 250W 0.8 Nm 3000 rpm 26A Brushless DC Motor](/static/images/products/12v-250w-0.8-nm-3000-rpm-26a-brushless-dc-motor-7.webp)
Power Wire | Hall Wire | ||
Red | U | Red | 5V |
Yellow | V | Black | GND |
Black | W | Blue | Hu |
Green | Hv | ||
White | Hw |
Product Display

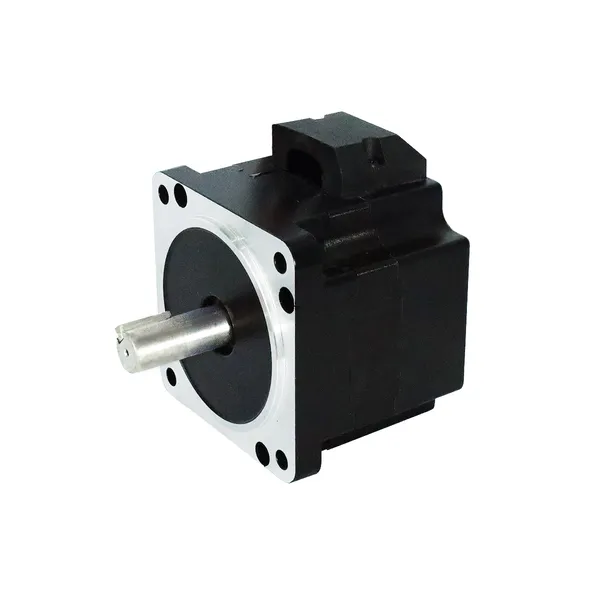

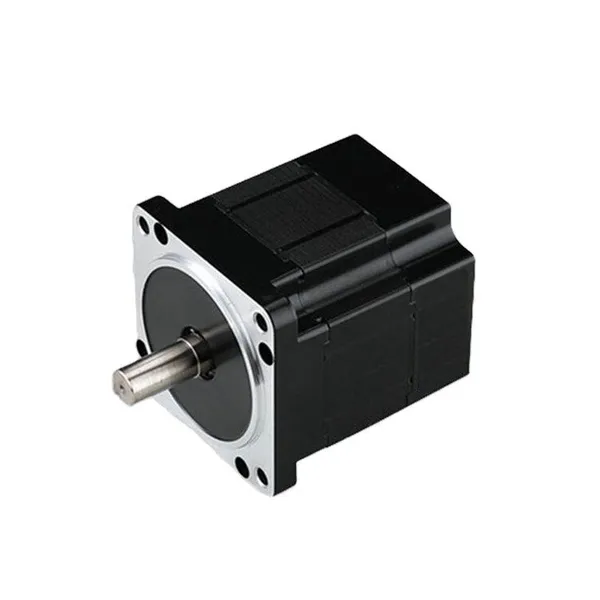

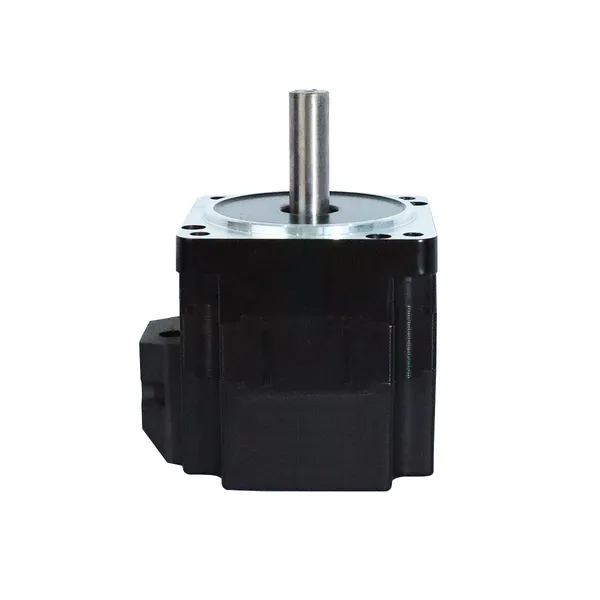

Discover our powerful 12V 250W brushless DC motor. With a rated speed of 3000 rpm, a rated torque of 0.8 Nm, and a rated current of 26.06A, it delivers high torque and precise control. This 3-phase motor can continuously operate at maximum rotational torque, ensuring reliable performance. It is an ideal choice for electric cars.
Get the best value with our low-priced 12V 250W BLDC motor, designed specifically for electric vehicles. This high-torque 3-phase brushless DC motor offers a rated speed of 3000 rpm, a rated torque of 0.8 Nm, and a rated current of 26.06A. It delivers the desired torque and rotation speed with efficiency and controllability.
Product Feature
- Stable speed control: 12V brushless motor continues to set speed and a feedback signal is compared from the speed of the motor to adjust the voltage applied to the motor; therefore, even if the load change, still can set the speed from slow instantaneous adjustment to, and in order to stabilize the running speed.
- Thin, high power: 3 phase DC motor adopts a permanent magnet brushless motor rotor, thus realizing the thin and high power.
- Wide speed control range: 250W brushless DC motor speed control range than speed ac motor and inverter wider, because unlike the speed ac motor that at low speed have restrictions on the use of torque, so there is no brush motor is suitable for from low speed to high speed, all require the use of a certain torque.
- Contribute to energy saving: The rotor of the brushless dc electric motor is used for the permanent magnet, which can reduce the two-loss of the rotor, so the power consumption is reduced by more than 20% compared with the three-phase induction motor with variable frequency control, which is helpful for the energy saving of the device.
- Equipped with protection function: 12V 250W BLDC motor can help to protect the safety of the equipment system.
Product Applications
Electric Vehicles
With its high torque, speed, and energy efficiency, our brushless DC motor can significantly improve the performance of electric vehicles.
Domestic Appliances
Our DC motor is highly suitable for domestic appliances like inverter air conditioners and washing machines, delivering reliable and efficient performance.
Industrial Machines
Be it CNC machine tools, polishing and grinding equipment, or packaging machinery, our motor can provide the power and precision required for various industrial machines.
Drones, Medical Machinery and More
From drones to medical machinery, turnstiles, and AGV trollies, our motor's versatility makes it a great fit for a variety of applications.
![12V 250W 0.8 Nm 3000 rpm 26A Brushless DC Motor](/static/images/products/12v-250w-0.8-nm-3000-rpm-26a-brushless-dc-motor-6.webp)
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
File Name | Size | Download |
DC-Motor-Catalog.pdf | 55.7MB | Download |
