SPECIFICATIONS
![12V 350W 1.12 Nm 3000 rpm 36.9A Brushless DC Motor](/static/images/products/12v-350w-1.12-nm-3000-rpm-36.9a-brushless-dc-motor-5.webp)
Model: | BLDC-D5BLD350 |
Matched Controller Model: | BLD-750 |
Rated Power: | 350W |
Rated Voltage: | 12V |
Rated Current: | 36.94A |
Phase: | 3 phase |
Rated Torque: | 1.12 Nm |
Max. Torque: | 3.35 Nm |
Rated Speed: | 3000 rpm |
No-load Speed: | 3300 rpm |
No-load Current: | <8.4A |
Square Flange Size: | 86 mm |
Working Efficiency: | 85% |
Insulation Grade: | F |
Protection Grade: | IP54 |
Motor Lead Length: | 1 meter |
Certificate: | CE, RoHS, ISO |
Weight: | 6 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

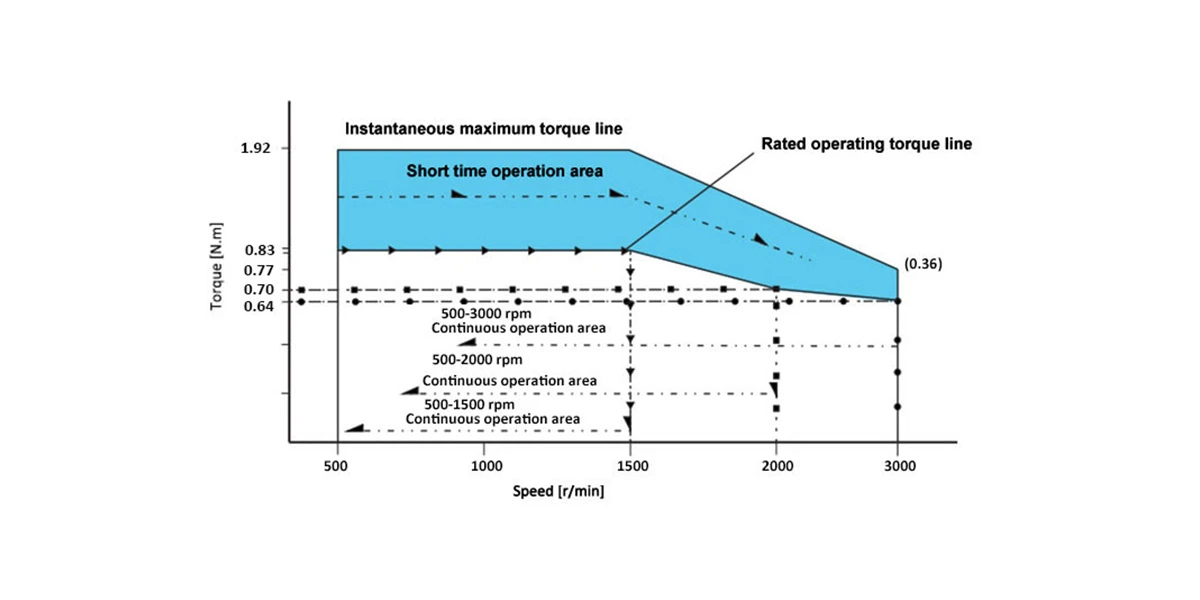

Speed - Torque Curve
![12V 350W 1.12 Nm 3000 rpm 36.9A Brushless DC Motor](/static/images/products/12v-350w-1.12-nm-3000-rpm-36.9a-brushless-dc-motor-7.webp)
- Instantaneous maximum torque line: The maximum torque momentarily impacts the load when the motor is started. Beyond this torque, the over-current protection of the driver will cause the motor to stop.
- Short-time operation area: The motor can run for a short time within this torque range at different speeds. If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
- Rated operating torque line: The rated torque of the motor runs at different speeds, and the motor can run for a long time at this torque.
- Continuous operating area: When the motor rotates at different speeds, it runs continuously in this corresponding zone.
![12V 350W 1.12 Nm 3000 rpm 36.9A Brushless DC Motor](/static/images/products/12v-350w-1.12-nm-3000-rpm-36.9a-brushless-dc-motor-8.webp)

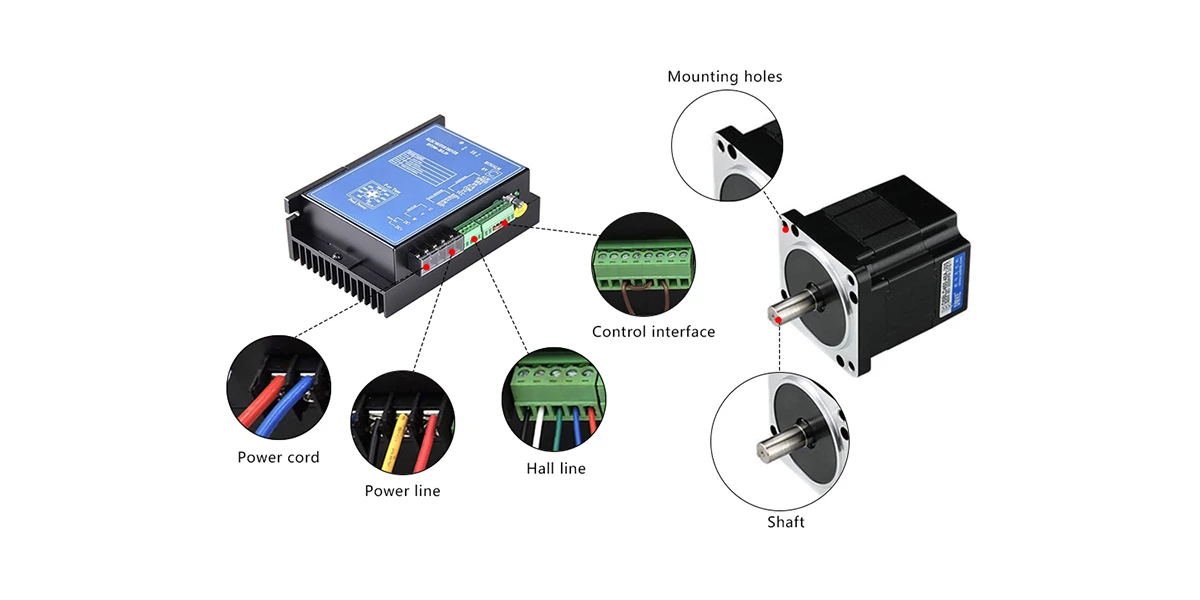

Line Define
Power Wire | Hall Wire | ||
Red | U | Red | 5V |
Yellow | V | Black | GND |
Black | W | Blue | Hu |
Green | Hv | ||
White | Hw |

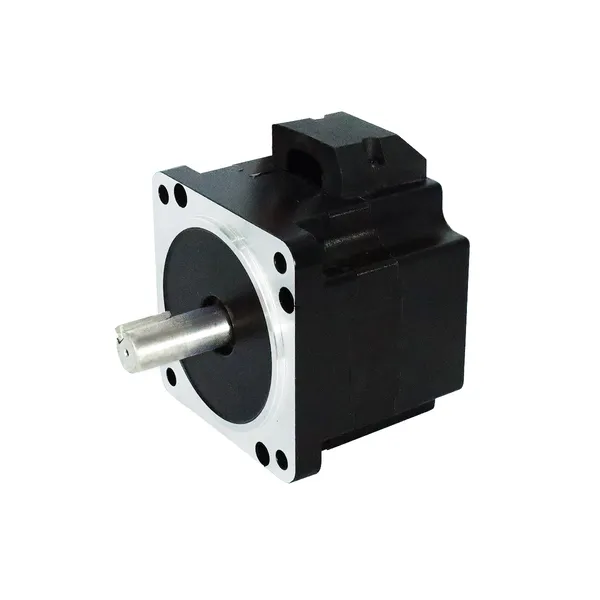

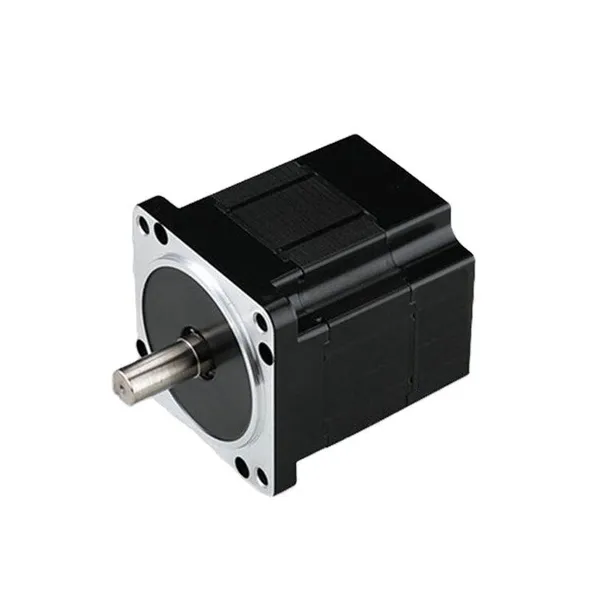

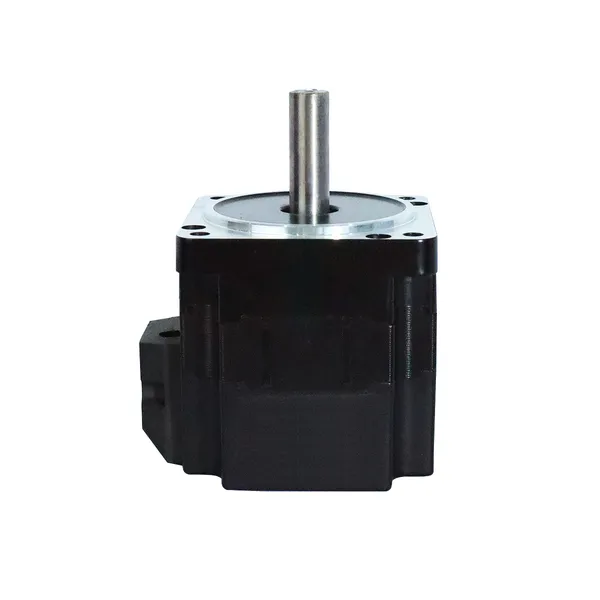

Product Display
We offer a high torque brushless motor with a rated power of 350W, available for purchase online. This motor operates at 12V and is equipped with advanced brushless technology, allowing for precise control of torque and rotation speed. With a rated speed of 3000 rpm, a rated current of 39.64A, and a rated torque of 1.12 Nm, it delivers reliable and efficient performance. The 3-phase brushless DC motor offers high efficiency and controllability, ensuring optimal power output and a long operating life.
Product Feature
Features
- Stable speed control: The 12V brushless motor maintains a consistent speed by comparing a feedback signal with the motor speed and adjusting the applied voltage accordingly. This enables precise and stable speed control even when there are changes in the load.
- Compact and powerful: The 3-phase DC motor utilizes a permanent magnet brushless rotor design, resulting in a compact form factor with high power output.
- Wide speed control range: The speed control range of the 350W brushless DC motor is wider compared to speed AC motors and inverters. Unlike speed AC motors, which have torque restrictions at low speeds, brushless motors can operate efficiently across a wide speed range, from low to high speeds, with the required torque.
- Contributes to energy savings: The brushless DC electric motor features a permanent magnet rotor, which reduces rotor losses. As a result, it consumes over 20% less power than a three-phase induction motor with variable frequency control, making it an energy-efficient choice for devices.
- Equipped with protection functions: The 12V 350W BLDC motor is equipped with built-in protection functions to ensure the safety and integrity of the equipment system.
Product Applications
Electric Vehicles
With its high power output and strong torque, this motor is ideal for electric vehicles such as scooters, motorcycles, and small electric cars, providing reliable propulsion and enhanced performance.
Industrial Machinery
From conveyor systems to industrial robots, this motor is suitable for various industrial machinery applications, providing efficient and reliable operation in demanding environments.
Renewable Energy Systems
Whether used in wind turbines or solar tracking systems, this motor provides the necessary power and efficiency for renewable energy applications, contributing to sustainable energy production.
Automation Equipment
With its robust construction and efficient cooling, this motor is ideal for automation equipment such as CNC machines and 3D printers, ensuring reliable and precise motion control.
![12V 350W 1.12 Nm 3000 rpm 36.9A Brushless DC Motor](/static/images/products/12v-350w-1.12-nm-3000-rpm-36.9a-brushless-dc-motor-6.webp)
Tips: Why should a 350W BLDC motor be used with a brushless motor controller?
- 12V 350W brushless DC motors belong to the category of permanent magnet brushless synchronous motors. Its parameters, model, power supply voltage, output power, phase angle, presence or absence, photoelectric switch or self-identification function must be set by the brushless motor controller.
- The 350W BLDC motor has no brushes and commutators, so if you want to maintain the direction of rotation, you must have an electronic commutator. At the same time, the brushless motor controller can also control the start and stop of the motor, forward and reverse rotation, speed, overvoltage, overcurrent and under voltage protection, etc., so it is necessary to have a brushless motor controller.
Related Products
Videos

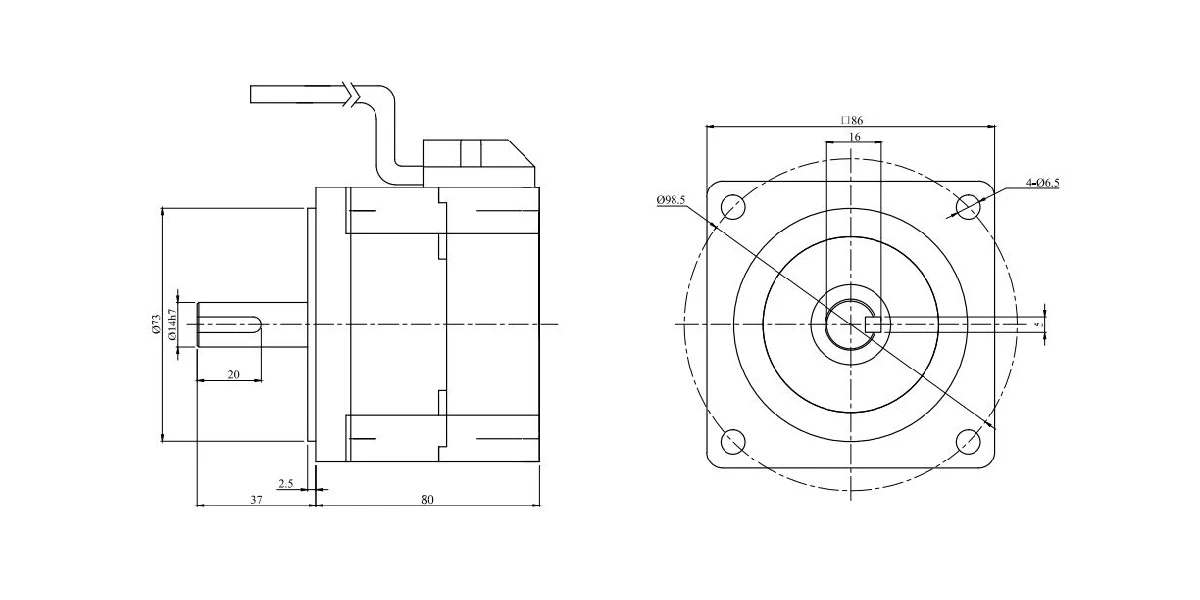

DIMENSIONS
Technical Documents Downloads
File Name | Size | Download |
DC-Motor-Catalog.pdf | 55.7MB | Download |
