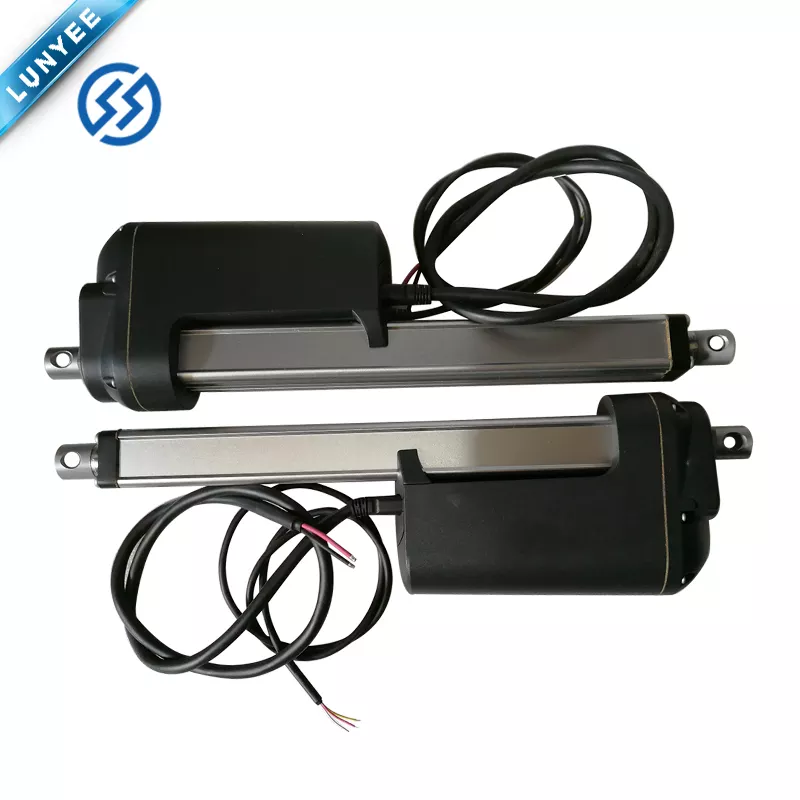

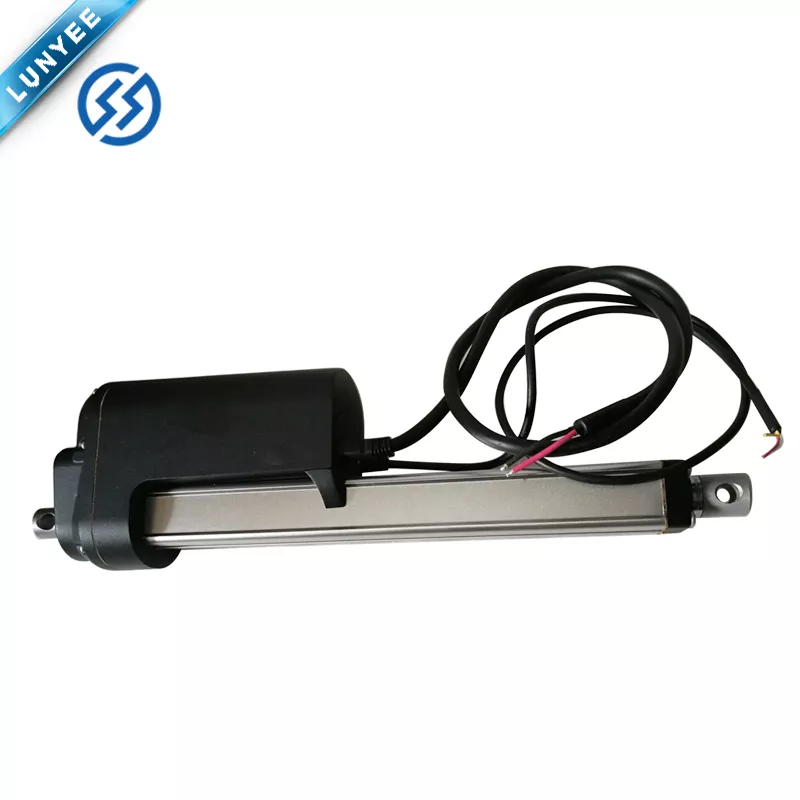

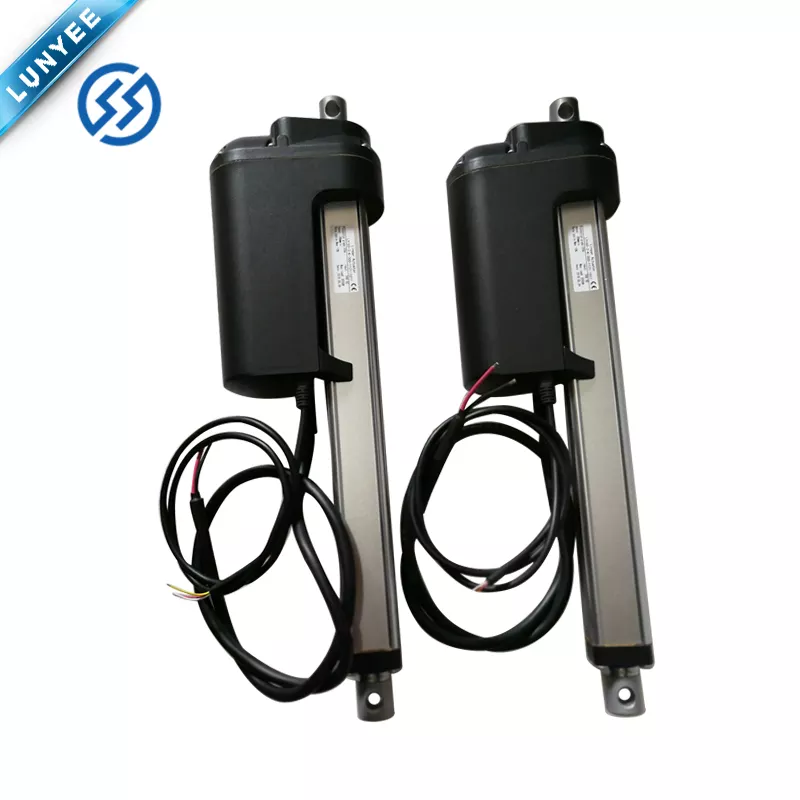

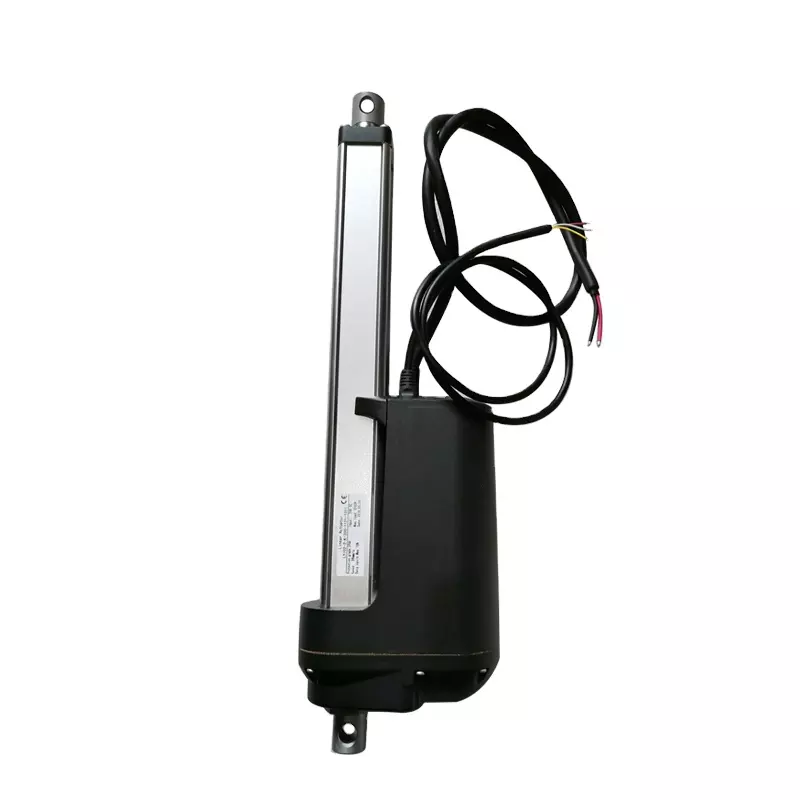

12v-48v 12000N 100-600mm 6.5-60mm/s DC Electric Linear Actuator
$167.60 -$ 257.50
12v-48v 12000N 100-600mm 6.5-60mm/s DC Electric Linear Actuator provides maximum force of 12000N and a stroke range from 100-600mm at speed of 6.5-60mm/s. Engineered for power and reliability, this finishing touch is an excellent addition to any automation project.
SPECIFICATIONS
| Code | Gear ratio | Pitch (mm) | Speed without load (mm/s) | Speed with full load (mm/s) | Max load(push/pull) N | Max lock(push/pull) N | No load amp (A) | Full load amp (A) | Potentiometer (Bourns 0-10K ohm A 5%,10- Turn) | ||
| 12V | 24V | 12V | 24V | ||||||||
| A | 40：1 | 4 | 6.5 | 4.5 | 12000 | 15000 | 4 | 2.4 | 20 | 10.5 | 176mm e.g.100mm stroke=5.7KΩ |
| B | 30：1 | 8.5 | 5 | 11000 | 12000 | 4 | 2.4 | 20 | 10.5 | ||
| C | 20:01 | 13 | 9 | 9000 | 9000 | 4 | 2.4 | 20 | 10.5 | ||
| E | 40：1 | 8 | 13 | 7 | 10000 | 12000 | 4 | 2.4 | 20 | 10.5 | 352mm e.g.200mm stroke=5.7KΩ |
| F | 30：1 | 17 | 9.5 | 7000 | 8000 | 4 | 2.4 | 20 | 10.5 | ||
| G | 20:01 | 25 | 14 | 5000 | 6000 | 4 | 2.4 | 20 | 10.5 | ||
| I | 40：1 | 12 | 20 | 11 | 6500 | 8000 | 4 | 2.4 | 20 | 10.5 | 528mm e.g.500mm stroke=9.4KΩ |
| J | 30：1 | 25 | 13 | 4500 | 5500 | 4 | 2.4 | 20 | 10.5 | ||
| K | 20:01 | 38 | 24 | 3200 | 4000 | 4 | 2.4 | 20 | 10.5 | ||
Product Display
- 1. DC Mini permanent magnet motor, firm structure, durable.
- 2. Speed from 6.5mm/s to 60mm/s as requested.
- 3. Maximum load 12000N.
- 4. Potentionmeter feedback Optional.
- 5. Build in limit switch.
- 6. IP Grade: IP66.
- 7. Certificate: CE
- 8. Overload clutch protection.
- 9. Tempreture Range: -40℃~65℃ Duty cycle : 20% with full load in normal tempreture.
- 10. Widely used in various industry equipment, specical V ehicle and the high load output extremely harsh conditions.
Product Feature
Powerful Lifting Capacity
The 12V-48V 12000N DC Electric Linear Actuator offers an impressive lifting capacity of 12000N, making it suitable for heavy-duty applications requiring substantial force.
Adjustable Stroke Length
This actuator features an adjustable stroke length ranging from 100mm to 600mm, providing flexibility to meet various application needs.
Variable Speed Options
With speed options ranging from 6.5mm/s to 60mm/s, this actuator allows for precise control over movement speed, ensuring optimal performance for different tasks.
Wide Voltage Range
Compatible with a wide voltage range of 12V to 48V, this actuator offers versatility and can be integrated into various power systems and environments.
Product Applications
Industrial Automation
Ideal for industrial automation, this powerful actuator can be used in machinery and equipment that require precise and robust linear motion control.
Medical Equipment
Suitable for medical applications such as hospital beds, patient lifts, and examination tables, this actuator provides reliable and smooth operation, enhancing patient comfort and safety.
Solar Tracking Systems
Perfect for solar tracking systems, this actuator can efficiently adjust the position of solar panels to maximize energy capture throughout the day.
Home Automation
Great for home automation projects, this actuator can be used in adjustable furniture, automated windows, and other smart home devices, adding convenience and modern functionality.
