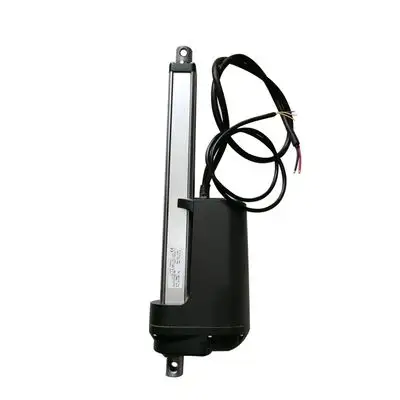

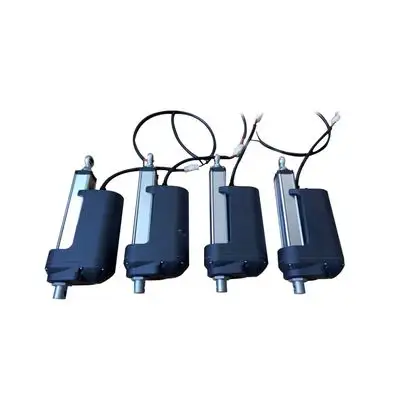

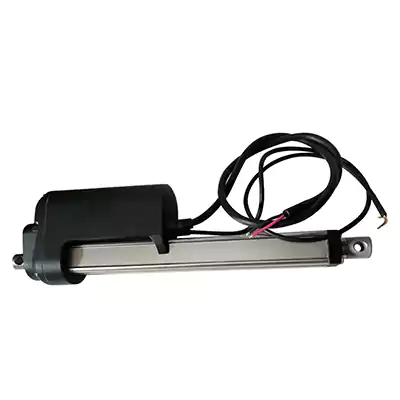

12V-72V 12000N 5mm/s-60mm/s linear actuator
$107-$312
Drive improved performance within your operations with our robust 12V-72V 12000N 5mm/s-60mm/s Linear Actuator. Engineered for versatility and strength, this high-thrust actuator can easily handle a substantial load capacity of 12000N. Equipped with adjustable speed ranging from 5mm/s to a rapid 60mm/s, it tailor-fits to your dynamic requirements. The wide range of operating voltages and customizable stroke length make this unit a versatile addition to your set of tools.
SPECIFICATIONS
| Input Voltage | 72V / 48V / 36V / 24V / 12V DC |
| Load Capacity | 12000N |
| Speed | 5~60mm/s |
| Stroke | Customize |
| Type of Duty | 10%,2min.on / 18min.off |
| Limit switches | Inner |
| Operation Temperature | -20℃~65℃ Customize |
| Protection Class | IP66 |

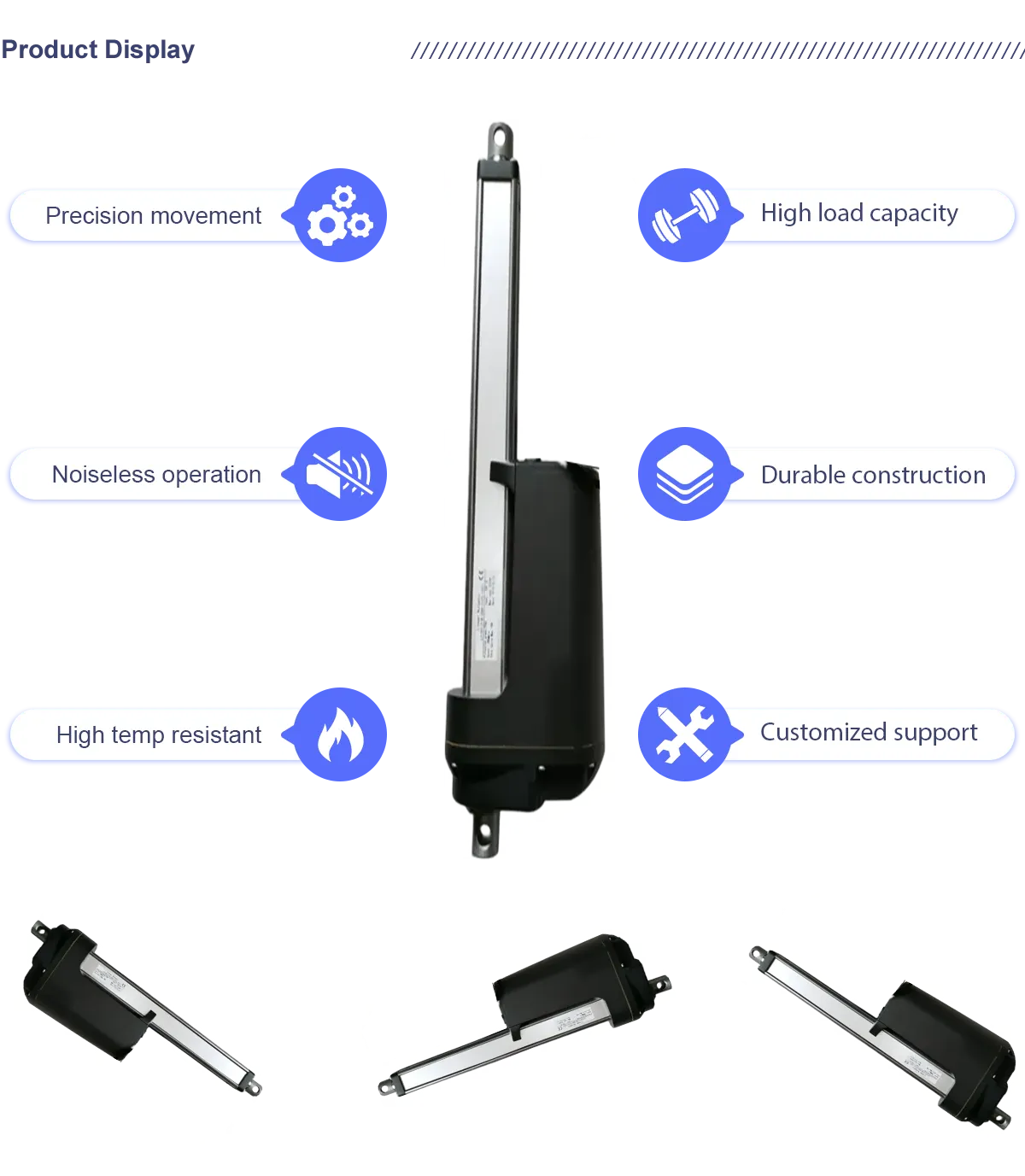

Product Display

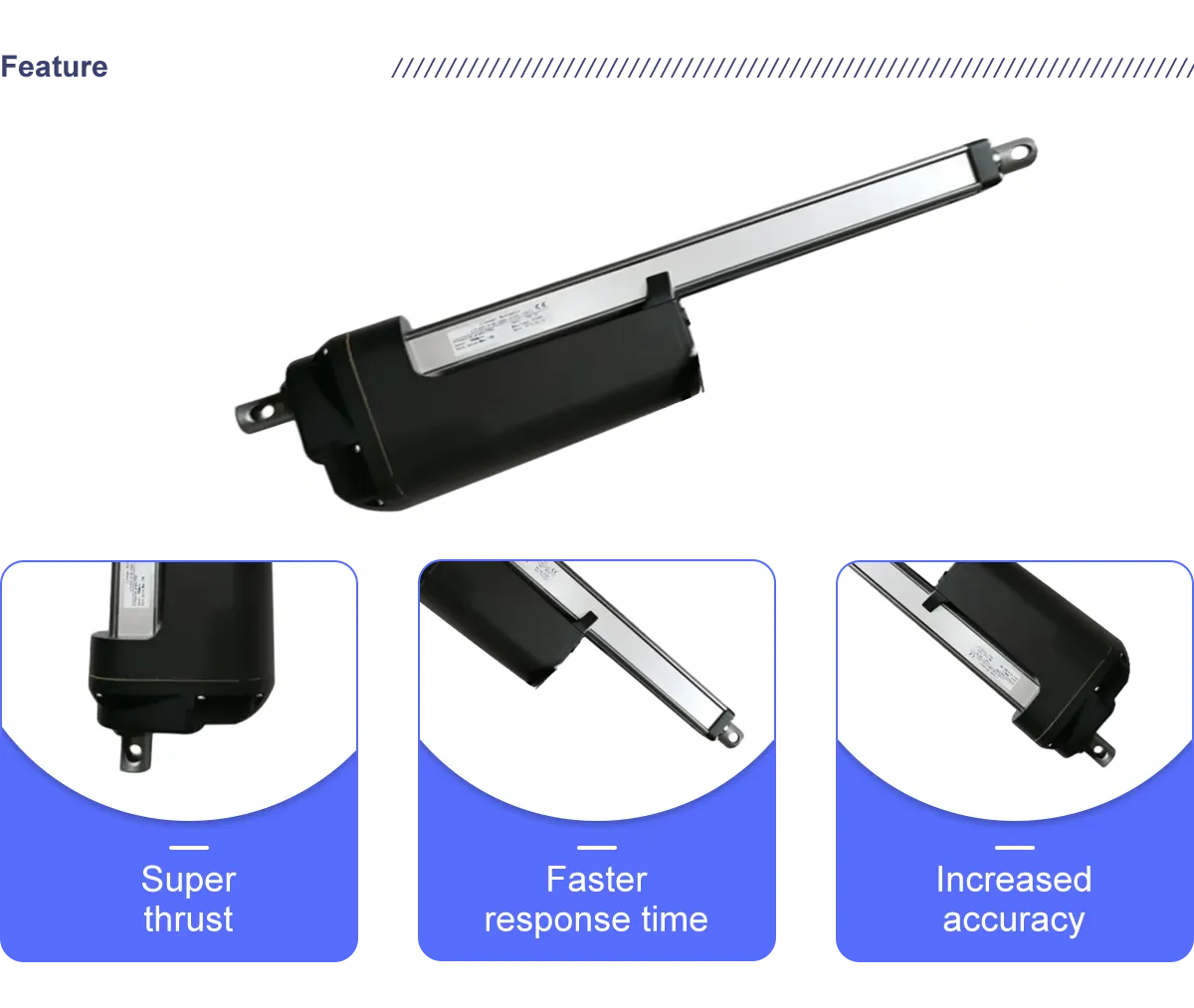

Product Feature
High Load Capacity
The high-load linear actuator is designed to handle heavy-duty applications, providing a substantial force of up to 12000N. Its robust construction enables reliable performance under demanding conditions.
Adjustable Speed and Stroke
The linear actuator offers customizable speed and stroke options based on load requirements. It provides a speed range from 5mm/s to a swift 60mm/s, allowing for precise control. The stroke length is fully customizable, providing flexibility for different applications.
Flexible Input Voltage
The linear actuator supports a wide voltage range of 12V to 72V DC, making it compatible with various power supply configurations. This flexibility allows for easy integration into different systems.
Efficient Design
Equipped with internal limit switches, the linear actuator ensures secure and precise control over its movement. These limit switches enhance safety and prevent overextension or damage to the actuator.
Duty Cycle
The linear actuator is designed for intermittent usage with a 10% duty cycle, which means it can operate for 2 minutes on and requires 18 minutes off to prevent overheating. This duty cycle ensures optimal performance and longevity of the actuator.
Temperature Resilience
The linear actuator operates efficiently within a wide temperature range, from -20℃ to 65℃. This temperature resilience allows for reliable performance in both extreme hot and cold environments.
Protection Class
Rated IP66, the linear actuator is designed to withstand dust and water ingress. This high protection class makes it suitable for both indoor and outdoor use, even in challenging environmental conditions.
Product Applications
Industrial Automation
The high-load linear actuator enhances efficiency in various industrial automation operations, including material handling, assembly line positioning, and packaging machinery. Its precise and controlled linear motion capabilities contribute to improved productivity and accuracy in these applications.
Automotive Manufacturing
In automotive manufacturing, the high-load linear actuator increases precision in procedures such as robotic welding, part positioning, and seat adjustment mechanisms. It enables controlled linear motion for precise and reliable operation in automotive assembly processes.
Medical & Laboratory Equipment
The high-load linear actuator supports controlled linear motion and positioning in various medical and laboratory equipment. It ensures accurate and precise movement in applications such as adjustable beds, lab automation systems, and imaging equipment.
Renewable Energy Systems
In renewable energy applications, the high-load linear actuator facilitates linear motion for optimal energy capture and system efficiency. It enables precise positioning and control in solar tracking systems and other renewable energy components.
Manufacturing & Machine Tools
The high-load linear actuator is utilized in manufacturing processes and machine tools to implement accurate linear positioning, tool movement, and workpiece handling. It contributes to the precision and efficiency of operations such as cutting, shaping, drilling, and machining.
Valve & Gate Automation
The high-load linear actuator is widely used in multiple industries for precise control and positioning of valves and gates. It ensures accurate linear motion in applications such as industrial valves, gate automation systems, and fluid control mechanisms.
Woodworking & Furniture Manufacturing
In woodworking and furniture manufacturing, the high-load linear actuator adjusts to workpieces and controls automated machinery for precise cutting and shaping operations. It enables controlled linear movement for enhanced precision and efficiency in woodworking processes.
Theatrical & Stage Equipment
The high-load linear actuator provides controlled linear movement and positioning in theatrical and stage equipment. It plays a crucial role in moving stage platforms, lighting rigs, and special effects mechanics, enabling precise and synchronized movements on stage.
