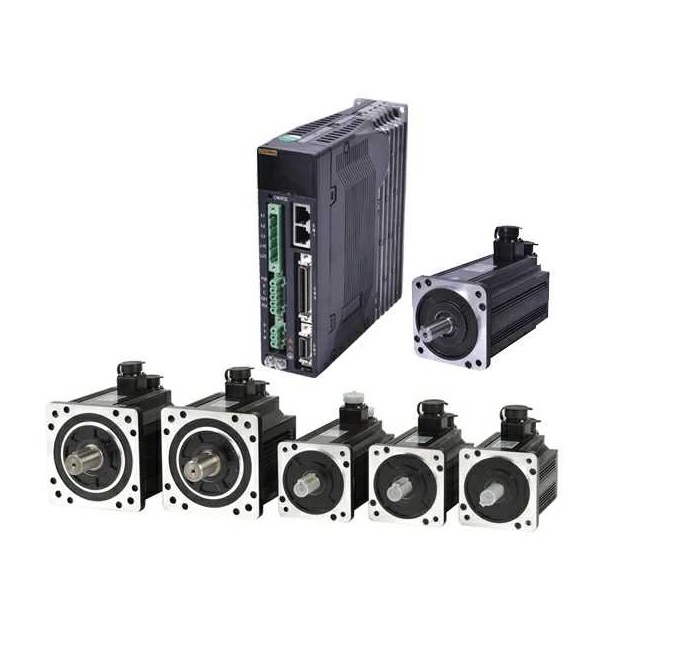

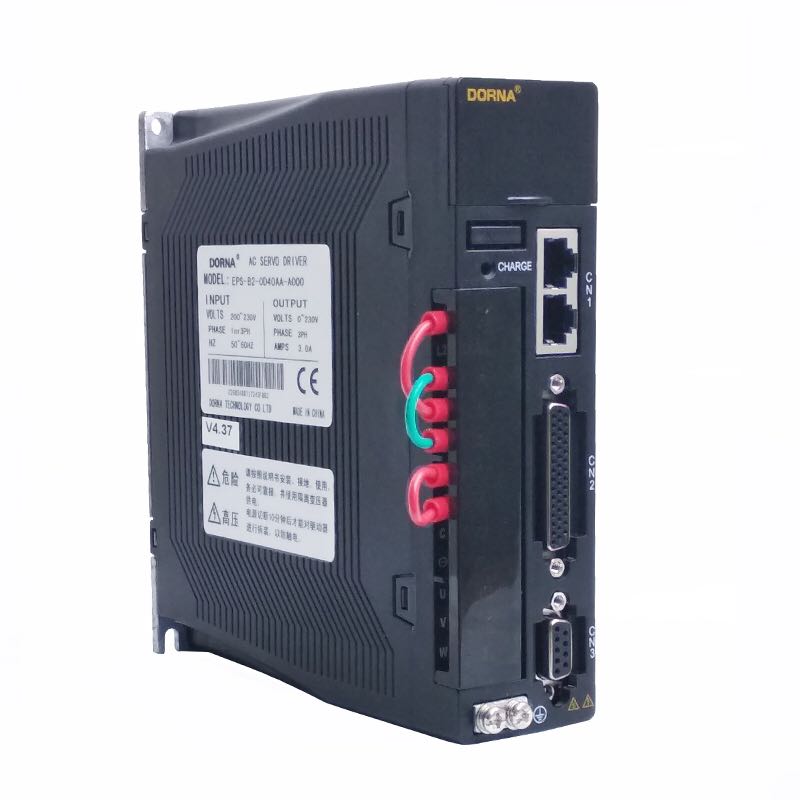

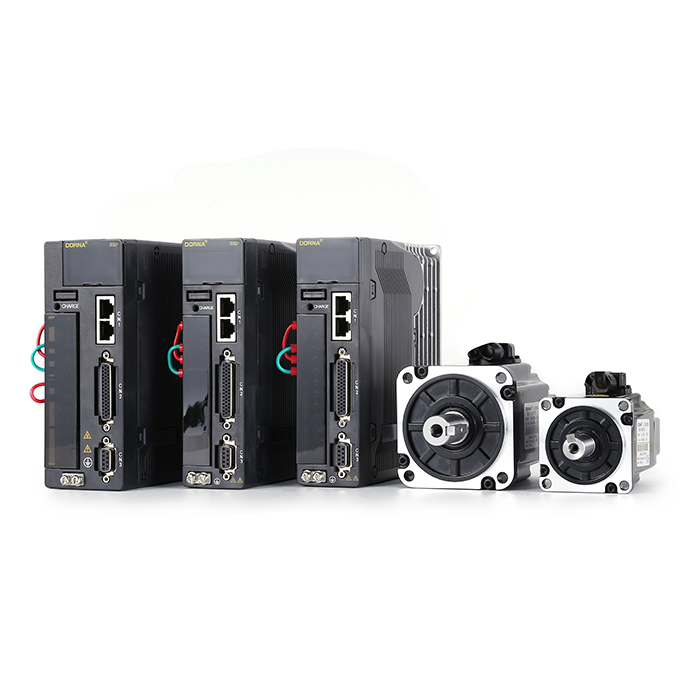

1500W 130mm 3000rpm B2 Servo Motor And Servo Driver
$390-$450
Our B2 Series Servo Motor & Driver offer 1500W of power, 130mm frame size, and 3000rpm high speed operation capability. Its advanced control technology is perfect for precision motion applications. Enjoy reliable, smooth motion control performance with excellent power efficiency.
SPECIFICATIONS
| Voltage(V) | Power | Driver Model | Flange(mm) | Motor Model | Servo | |
| Rated speed (r/min) | Torque(N.M) | |||||
| 220 | 100W | EPS-B2-0D10AA-A000 | 40 | 40DNMA2-0D10DKAM | 3000 | 0.32 |
| 200W | EPS-B2-0D20AA-A000 | 60 | 60DNMA2-0D20DKAK | 3000 | 0.64 | |
| 400W | EPS-B2-0D40AA-A000 | 60 | 60DNMA2-0D40DKAK | 3000 | 1.27 | |
| 750W | EPS-B2-0D75AA-A000 | 80 | 80DNMA2-0D75DKAK | 3000 | 2.39 | |
| 80 | 80DNMA2-0D75CKAK | 2000 | 3.58 | |||
| 90 | 90DNMA1-0D75DKAM | 3000 | 2.39 | |||
| 90 | 90DNMA1-0D75CKAM | 2000 | 3.58 | |||
| 1KW | EPS-B2-0001AA-A000 | 80 | 80DNMA2-0001DKAK | 3000 | 3.18 | |
| 130 | 130DNMA2-0001CKAM | 2000 | 4.77 | |||
| 1.5KW | EPS-B2-01D5AA-A000 | 130 | 130DNMA2-01D5AKAM | 1000 | 14.33 | |
| 130 | 130DNMA2-01D5 BKAM | 1500 | 9.55 | |||
| EPS-B2-01D5AA-A000-G | 130 | 130DNMA2-01D5CKAM | 2000 | 7.16 | ||
| 130 | 130DNMA2-01D5DKAM | 3000 | 4.77 | |||
| 2KW | EPS-B2-02D2AA-A000-G | 130 | 130DNMA1-02D2BKAM | 1500 | 12.73 | |
| EPS-B2-02D2AA-A000 | 130 | 130DNMA1-02D2CKAM | 2000 | 9.55 | ||
| 3KW | EPS-B2-0003AA-A000 | 130 | 130DNMA2-0003CKAM | 2000 | 14.33 | |
| 130 | 130DNMA2-0003DKAM | 3000 | 9.55 | |||
Product Display
Product Feature
High Power Output
This servo motor and driver combination delivers a high power output of 1500W, making it suitable for applications requiring substantial mechanical force.
Precision Control
Benefit from precise control and accurate positioning with this servo motor, ensuring smooth operation even in demanding industrial environments.
Wide Speed Range
Capable of reaching speeds up to 3000 RPM, this servo motor offers versatility in speed control for various applications.
Robust Design
The servo motor and driver feature a robust design, built to withstand heavy-duty usage and ensure long-term reliability.
Advanced Feedback System
Equipped with an advanced feedback system, this servo motor and driver combination offers precise feedback for enhanced control and performance.
Product Applications
Industrial Machinery
Deploy this servo motor and driver in industrial machinery such as presses, injection molding machines, and metalworking equipment for high-power applications.
Material Handling
Use this servo motor in material handling systems for precise positioning and efficient movement of heavy loads in warehouses and manufacturing facilities.
Wind Turbines
Integrate this servo motor into wind turbine pitch control systems to ensure optimal blade positioning for efficient energy generation.
Test and Measurement Equipment
Utilize this servo motor and driver in test and measurement equipment for accurate positioning and control in research and development laboratories.
Related Products
Videos

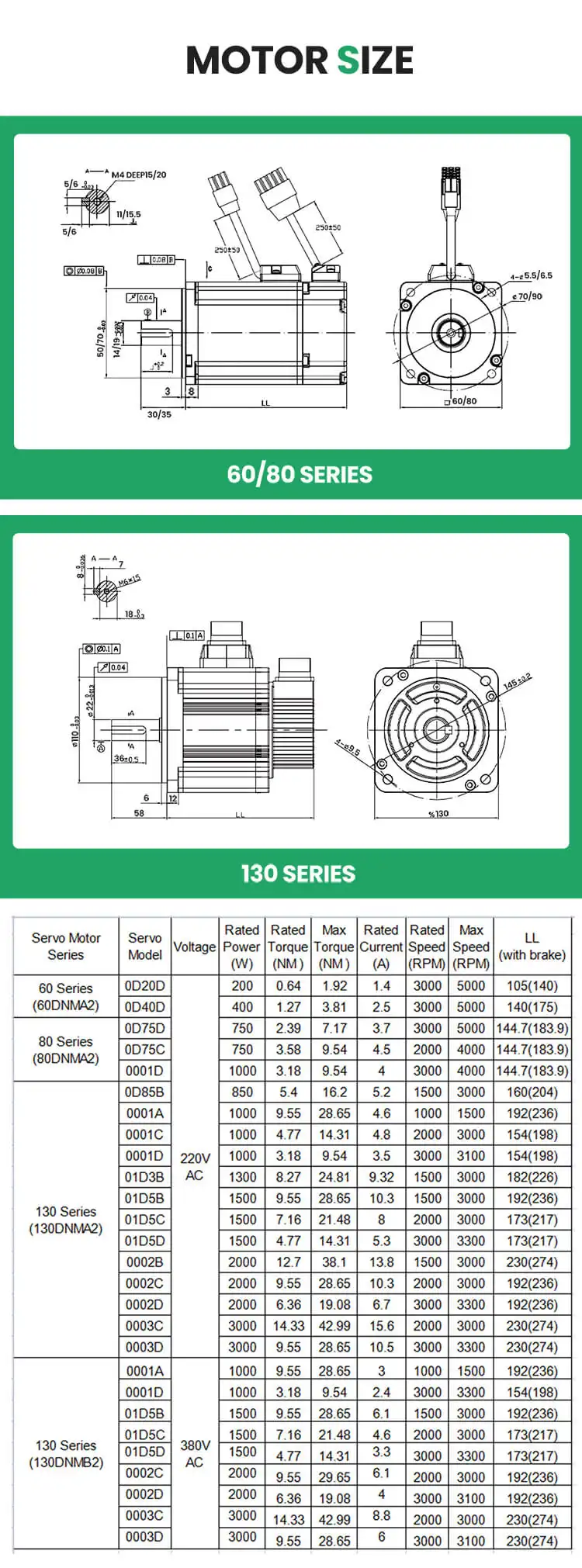

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
