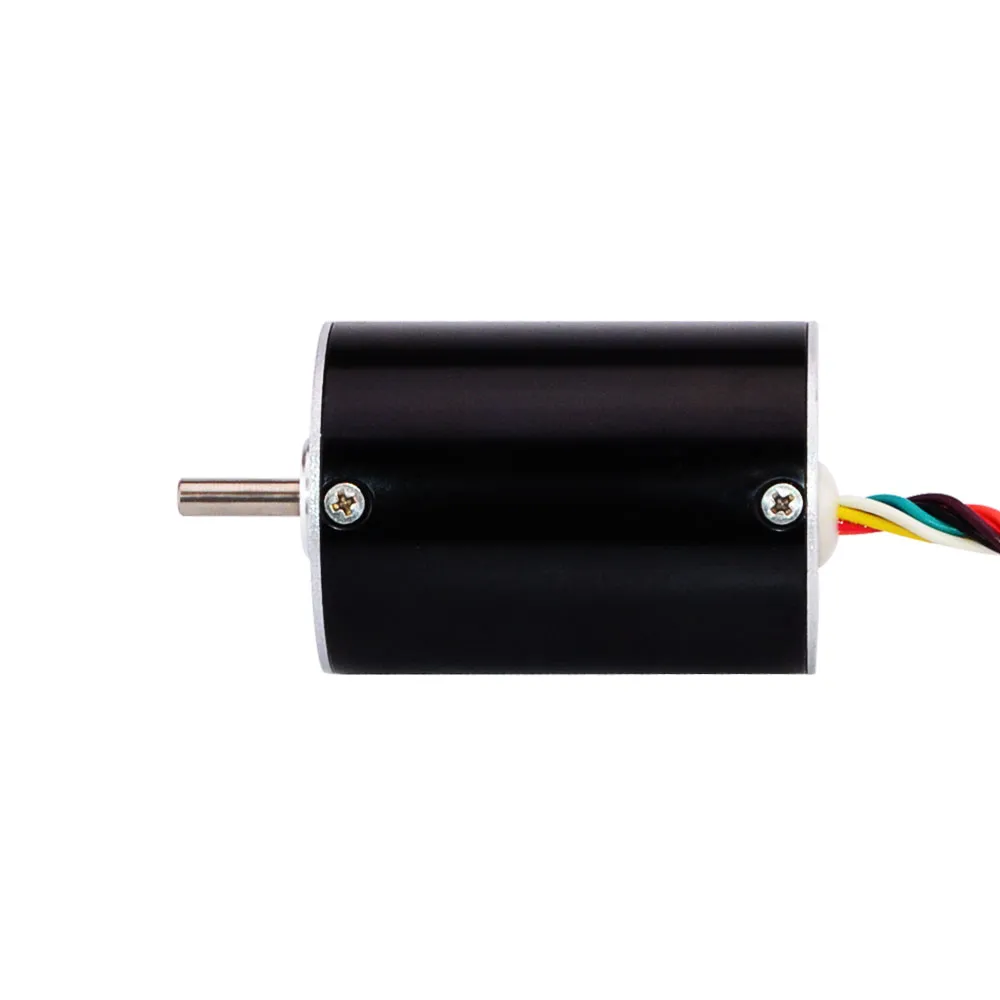

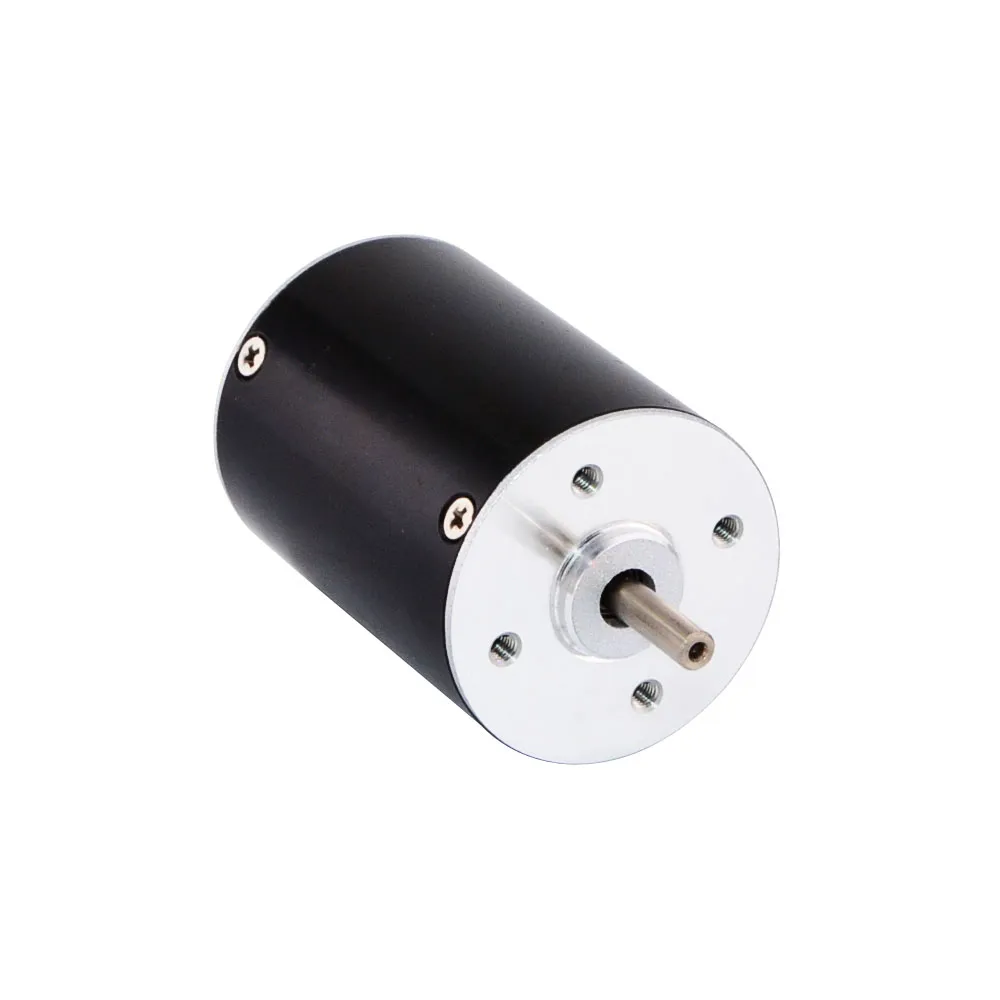

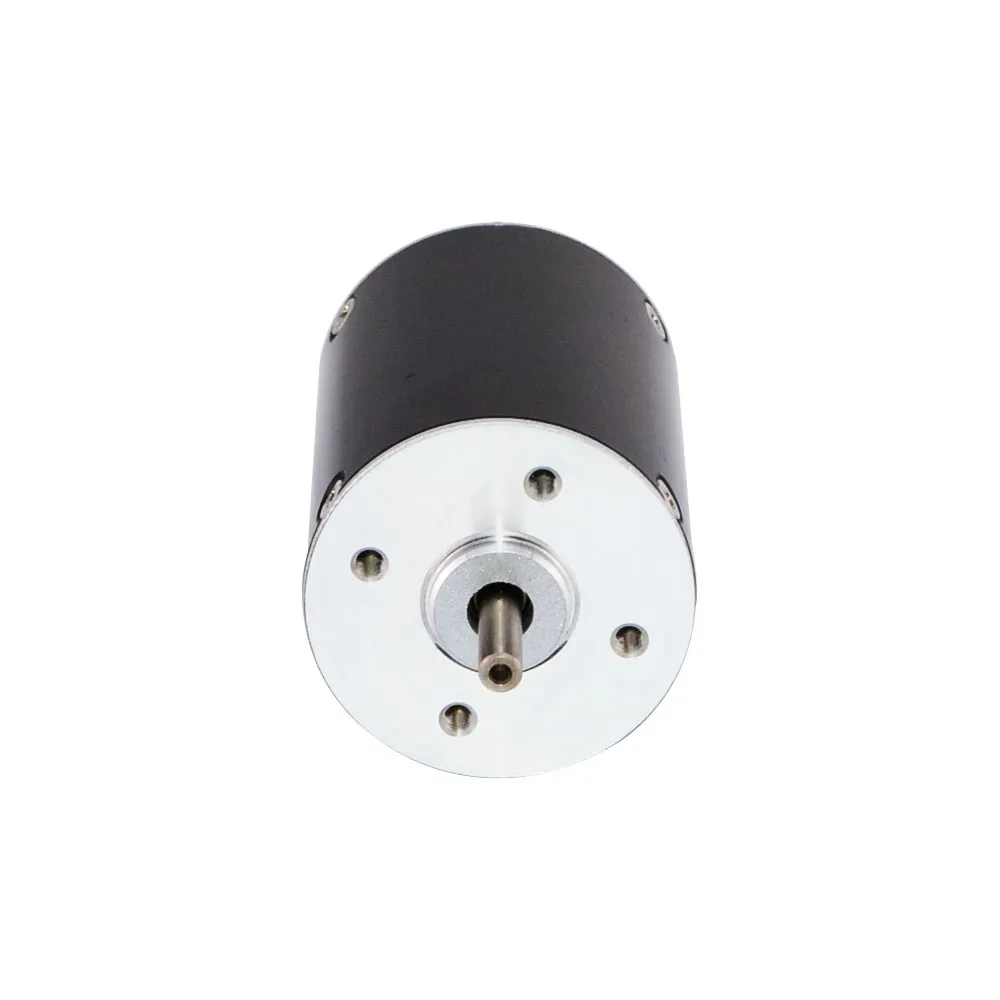

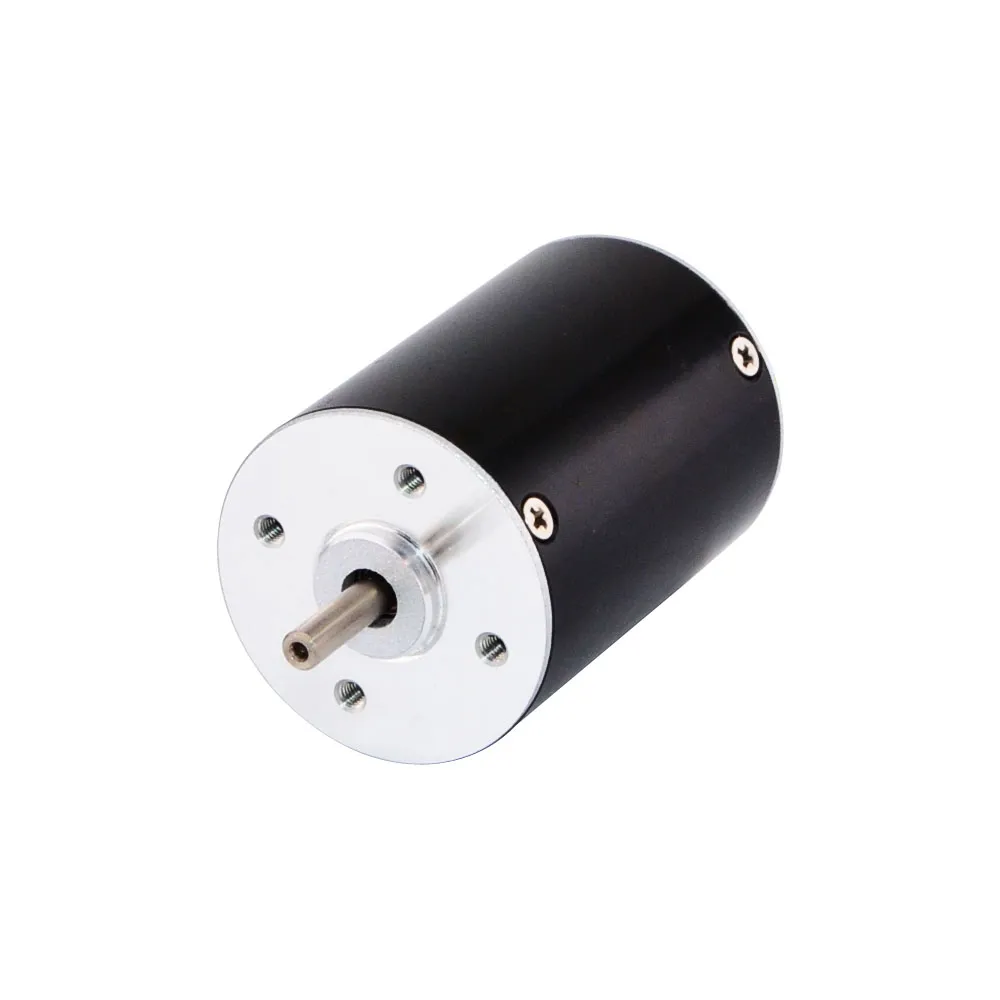

15W 24V 5000RPM 0.029Nm 0.98A Brushless DC Motor
$22.23
15W 24V 5000RPM 0.029Nm 0.98A Brushless DC Motor, a compact and energy-efficient solution that delivers precise control and reliable performance. Ideal for applications requiring low power consumption, such as small electronic devices, robotics, and automation systems.
SPECIFICATIONS
Electrical Specification
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 36BLR50-24-01 |
| Phase | 3 |
| Poles | 4 |
| Product Type | BLDC Motor |
| Rated Current(A) | 0.98 |
| Rated Power(W) | 15 |
| Rated Speed(rpm) | 5000 |
| Rated Torque(Nm) | 0.029 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | No |
| Frame Size(mm) | Φ36 |
| Body Length(mm) | 50.2 |
| Output Shaft Type | O |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 15 |
| Bearing Type | NMB Ball Bearing, C3 |
| Sensor | Hall Sensor |
| Weight | 0.25kg |
Product Feature
High-Speed Performance
This brushless DC motor offers high-speed performance with a maximum speed of 5000RPM, ensuring quick and efficient operation.
Compact and Lightweight
Designed to be compact and lightweight, making it suitable for applications with space and weight constraints.
Low Noise Operation
Utilizes brushless technology to reduce noise levels, providing a quieter operational environment.
High Efficiency
Offers high efficiency with a power output of 15W, ensuring optimal performance and energy savings.
Low Current Draw
Draws only 0.98A of current, making it energy-efficient and suitable for battery-powered applications.
Durable Construction
Constructed with high-quality materials, this motor is designed for long-lasting durability and reliable performance.
Precise Control
Provides precise control and positioning, making it ideal for applications that require high accuracy.
Product Applications
Small Robotics
Ideal for small robotics applications, providing precise motion control and high-speed operation for various robotic components.
Model Airplanes and Drones
Perfect for model airplanes and drones, delivering high-speed performance and low weight for improved flight dynamics.
Medical Devices
Suitable for medical devices, ensuring reliable and precise operation in diagnostic and therapeutic equipment.
Consumer Electronics
Used in consumer electronics, offering efficient and reliable performance for various electronic devices and gadgets.
Office Equipment
Applicable in office equipment, providing smooth and quiet operation for printers, scanners, and other office machines.
Electric Tools
Ideal for electric tools, ensuring efficient performance and precise control for drills, screwdrivers, and other handheld tools.
Automotive Applications
Suitable for automotive applications, offering high-speed and efficient operation for various automotive components and systems.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
