SPECIFICATIONS
| Motor Type Lead Wire Type |
Output power W |
Voltage V |
Frequency Hz |
Current A |
Starting torque mN.m |
Rated tourque mN.m |
Rated speed r/min |
Capacitor μF |
|
| Pinion Shaft | Round Shaft | ||||||||
| 3RK15GN-A | 3RK15A-A | 15 | 1ph100 | 50 | 0.4 | 110 | 125 | 1200 | 7 |
| 3RK15GN-A | 3RK15A-A | 15 | 1ph100 | 60 | 0.56 | 105 | 105 | 1450 | 7 |
| 3RK15GN-E | 3RK15A-E | 15 | 1ph110 | 60 | 0.43 | 85 | 105 | 1450 | 6 |
| 3RK15GN-E | 3RK15A-E | 15 | 1ph120 | 60 | 0.42 | 85 | 105 | 1450 | 6 |
| 3RK15GN-C | 3RK15A-C | 15 | 1ph220 | 50 | 0.23 | 110 | 125 | 1200 | 1.5 |
| 3RK15GN-C | 3RK15A-C | 15 | 1ph230 | 50 | 0.23 | 110 | 125 | 1200 | 1.5 |
| 3RK15GN-H | 3RK15A-H | 15 | 1ph220 | 60 | 0.2 | 85 | 105 | 1450 | 1.5 |
| 3RK15GN-H | 3RK15A-H | 15 | 1ph230 | 60 | 0.2 | 90 | 105 | 1450 | 1.5 |
Product Display
Reversible motors have an included basic brake that allows them to stop and change direction in a reasonable amount of time, making them the ideal choice for situations where the motor has to change direction regularly. Reversible motors are available in power ranges from 6W to 120W, and users may choose a gearbox with a parallel shaft to lower output speed and increase torque.
Product Feature
Efficient and Space-Saving Design

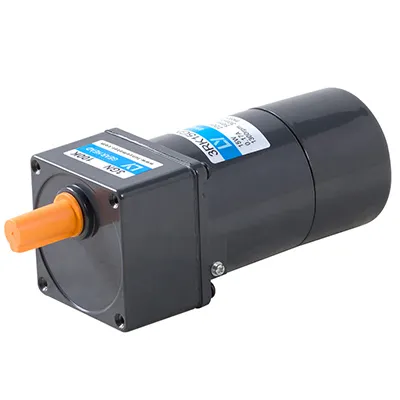

This 15W reversible AC gear motor is expertly designed to offer high effectiveness while saving space, making it perfect for both compact and extensive applications.
Powerful Torque with Low Velocity
Enjoy the combination of powerful torque and low velocity, ensuring that your machinery operates smoothly and efficiently, even under heavy loads.
Highly Reversible with Basic Brake
Incorporating a basic brake, this motor provides quick and reliable stopping and direction change capabilities, ideal for tasks requiring frequent rotational changes.
Durable and Reliable
Constructed to ensure longevity, this motor is built to withstand the toughest conditions and deliver consistent power with minimal noise, making it a reliable choice for ongoing use.
Wide Voltage Input Range
Accepting a broad voltage input range of 110-230V 50/60Hz, this motor offers versatility across various power supplies and geographies.
Energy Efficient
Remarkably designed to operate with minimal energy consumption, it ensures optimal performance while keeping operating costs low.
Product Applications
Robotics and Automation
With its precise control and reversible functionality, this gear motor is perfectly suited for robotics and automation systems, enhancing the sophistication and efficiency of modern technological solutions.
Material Handling Equipment
Its ability to produce powerful torque at low speed makes it ideal for conveyor belts, lifting devices, and other material handling equipment, ensuring smooth operation and safety.
Medical Devices
The motor's quiet operation and reliable performance align with the exacting demands of medical equipment, aiding in patient care and diagnostic machinery.
Industrial Applications
From processing machinery to production lines, this AC gear motor’s durability and power offer the required efficiency and resilience for various industrial applications.
Consumer Appliances
Utilized in consumer electronics and appliances where compact design and energy efficiency are valued, this motor enhances everyday convenience and functionality.
Related Products
Videos

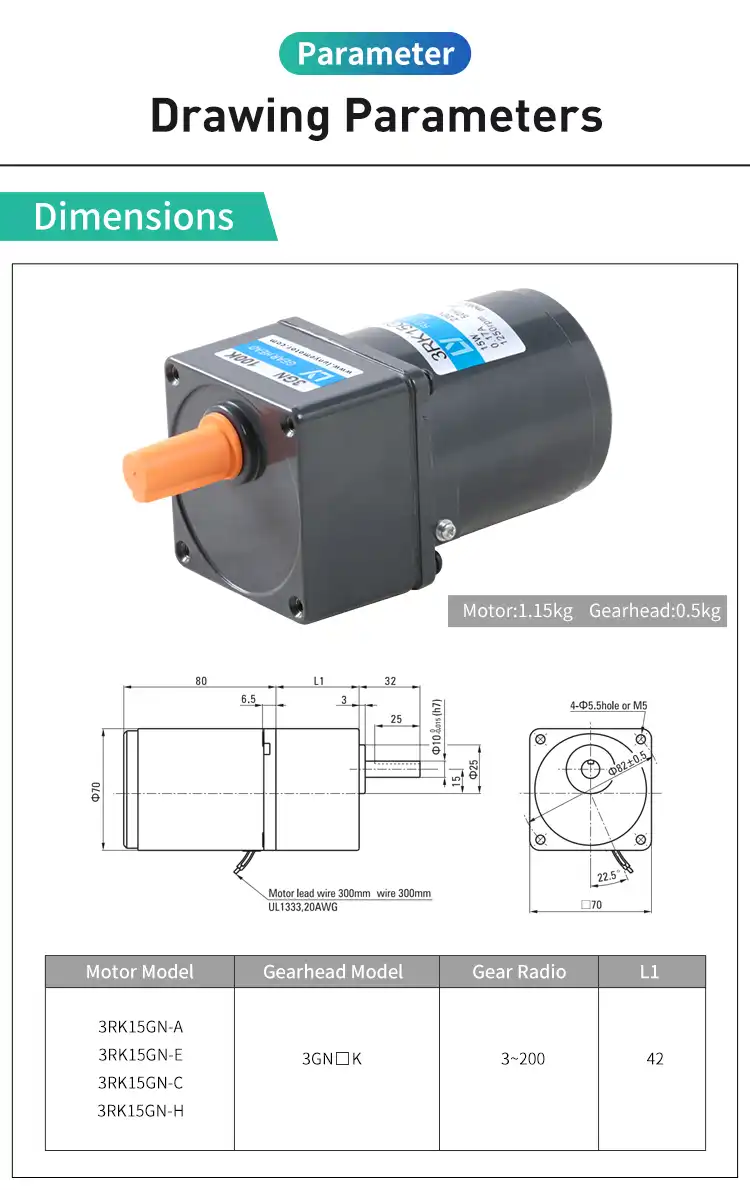

DIMENSIONS
