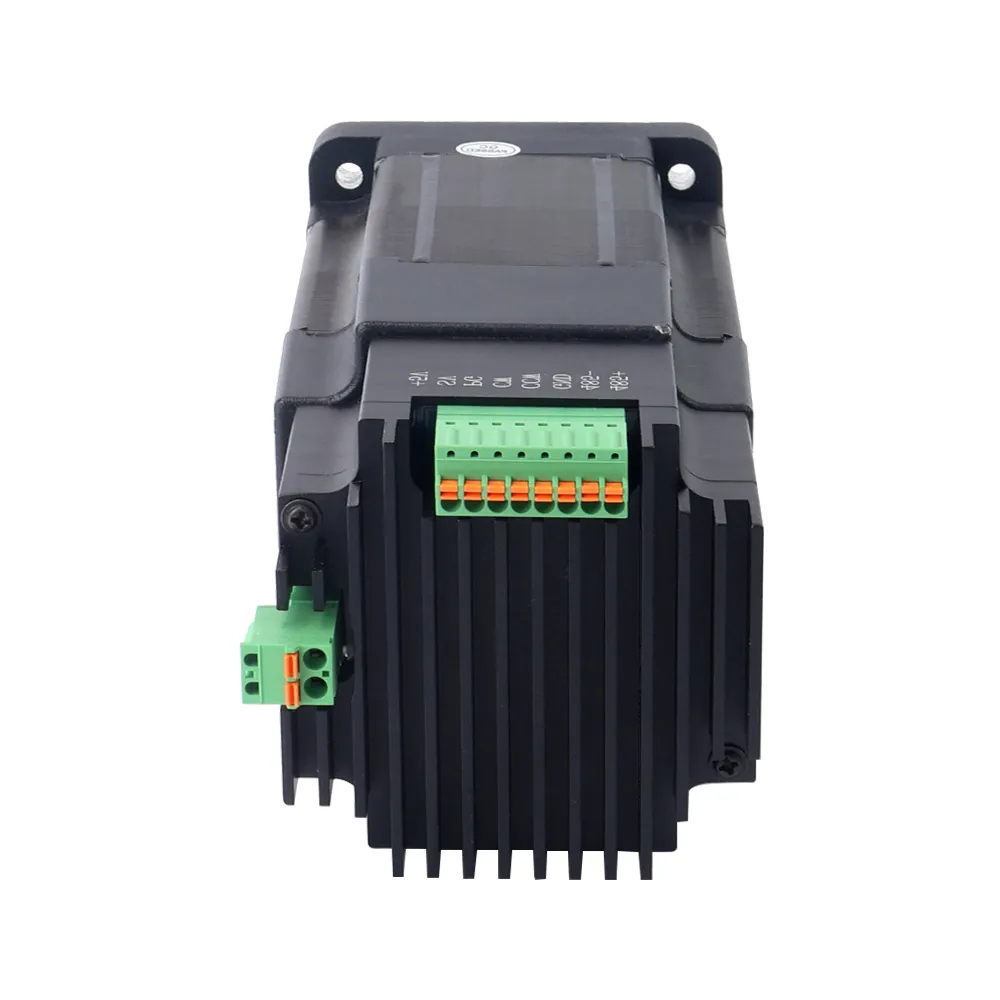

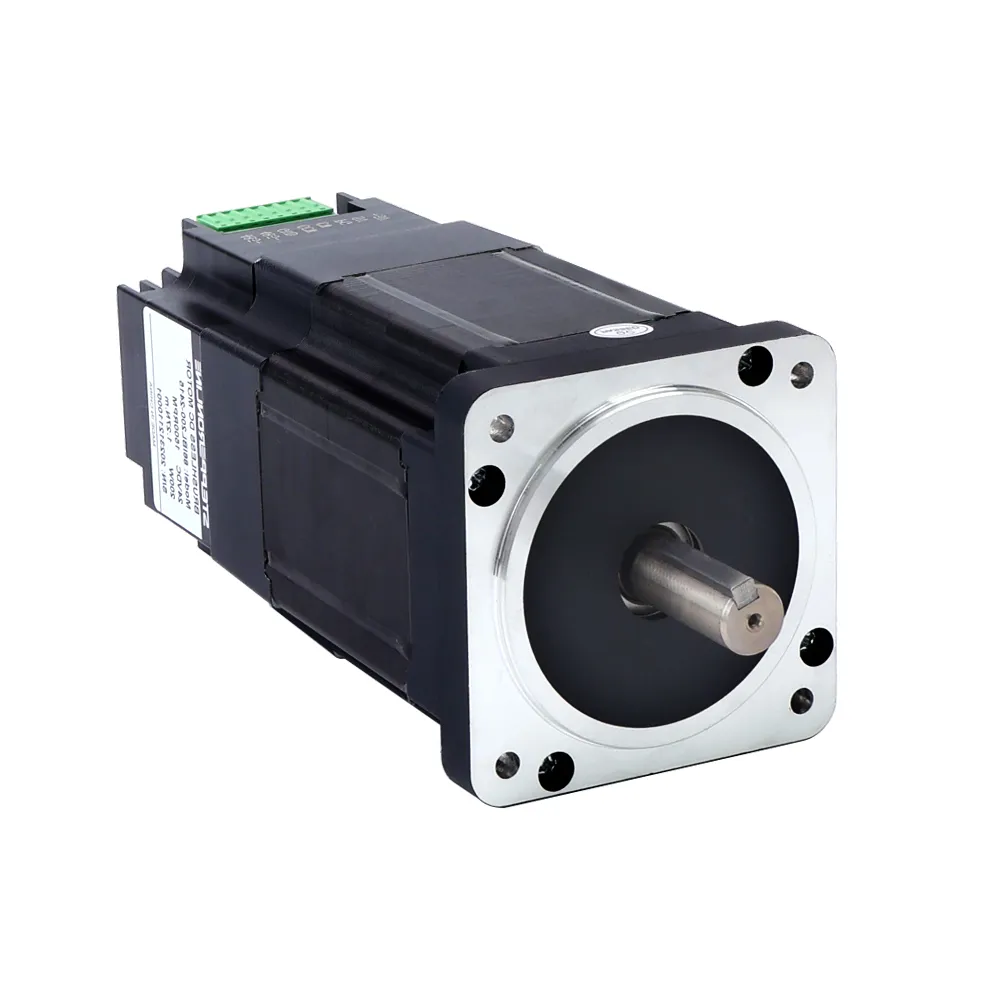

200W 24V 1500RPM 1.27Nm Nema 34 Integrated Brushless DC Motor
$170.43
200W 24V 1500RPM 1.27Nm Nema 34 Integrated Brushless DC Motor, a powerful and efficient solution designed for various automation and motion control applications. This motor, built to the Nema 34 standard, ensures compatibility with industry-standard mounting and dimensions, making it easy to integrate into your existing systems. With its high power output, precise speed control, and compact design, this motor delivers reliable performance and precise motion control.
SPECIFICATIONS
Electrical Specifications
| Manufacturer Part Number | 86IBL200-2415 |
| Phase | 3 |
| Poles | 8 |
| Rated Power | 200W |
| Rated Voltage | 24VDC |
| Rated Speed | 1500±10%RPM |
| Rated Current | 8.33±10%A |
| Rated Torque | 1.27Nm(179.85oz.in) |
| Insulation Class | Class B |
| Resistance/phase | 0.21±10%Ohms |
| Inductance/phase | 0.51±20%mH |
| Sensor | HALL |
Physical Specifications
| Inventory Method | Shared Inventory |
| Frame Size(mm) | Nema 34 (86 x 86) |
| Body Length(mm) | 168 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 32 |
| Weight | 3.09kg |
Product Feature
High Efficiency
Offers high efficiency with a 200W power output, ensuring energy savings and optimal performance.
Integrated Design
Combines motor and driver in a compact integrated design, simplifying installation and reducing wiring complexity.
High Torque
Provides a robust torque of 1.27Nm, suitable for demanding applications requiring substantial force.
Precision Control
Operates at 1500RPM, delivering precise speed control and stable performance for various applications.
Durable Construction
Built with high-quality materials to ensure long-lasting durability and reliability in industrial environments.
Low Noise Operation
Designed to operate with minimal noise, providing a quiet and efficient working environment.
Overload Protection
Equipped with overload protection to prevent damage and extend the motor's lifespan.
Product Applications
Industrial Automation
Ideal for industrial automation systems, providing reliable and efficient motor performance for machinery and equipment.
Robotics
Suitable for robotics applications, offering precise and controlled movement for various robotic functions.
CNC Machines
Perfect for CNC machines, ensuring accurate and consistent motion control for precise machining.
Conveyor Systems
Applicable in conveyor systems, providing efficient and reliable motion control for material handling.
Medical Devices
Used in medical devices that require precise and dependable motor performance for various medical applications.
Packaging Equipment
Ideal for packaging machinery, ensuring efficient and accurate operation in packaging processes.
Textile Machinery
Suitable for textile machinery, offering precise and reliable motion control in fabric processing.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
