ACL60 200W 24V/48V 3000RPM DC Servo Motor and Driver
$107-$126
This 200W 24V DC Servo Motor and Servo Driver combination is a reliable and efficient solution for precise motion control. Its 60mm size reduces mounting time, while its 200W output ensures high torque and steady speed. Ideal for industrial applications.
SPECIFICATIONS
| Rated power(W) | 200 | 200 |
| Rated voltage(V) | DC24 | DC48 |
| Rated current(A) | 12 | 6 |
| Rated speed(r/m) | 3000 | 3000 |
| Rated torque(N.m) | 0.637 | 0.637 |
| Peak torque(N.m) | 1.91 | 1.91 |
| Back EMF(V/1000r/m) | 3.85 | 7.7 |
| Torque coefficient(N.m/A) | 0.053 | 0.106 |
| Rotor inertia(kg.㎡) | 0.29x10-4 | 0.29x10-4 |
| Winding (inter-wire) resistance(Ω) | 0.17 | 0.63 |
| Winding (inter-wire) inductance(mH) | 0.27 | 1.12 |
| Electrical time constant(ms) | 1.58 | 1.77 |
| Number of poles() | 5 | 5 |
| Model | Power(W） | Volatge(VDC） | Current(A） | Flange(mm） | Shaft Dia.(mm) | Rated Speed(RPM） | Rated Torque(N·m） | Encoder(PPR) | Motor Length（mm） | Length with Brake（mm） | Driver |
| ACL40100W4- 2500E-24-8 | 100 | 24 | 7.5 | 40 | 8 | 3000 | 0.32 | 2500 | 99 | 136.3 | IDS306 |
| ACL60C200W4-2500M-24-14 | 200 | 24 | 22 | 60 | 14 | 300 | 0.64 | 2500 | 75.5 | 199.8 | IDS806 |
| ACL1301500W4- 2500M-48-22 | 1500 | 48 | 47 | 130 | 22 | 2500 | 6 | 2500 | 160 | 204 | IDS8100 |

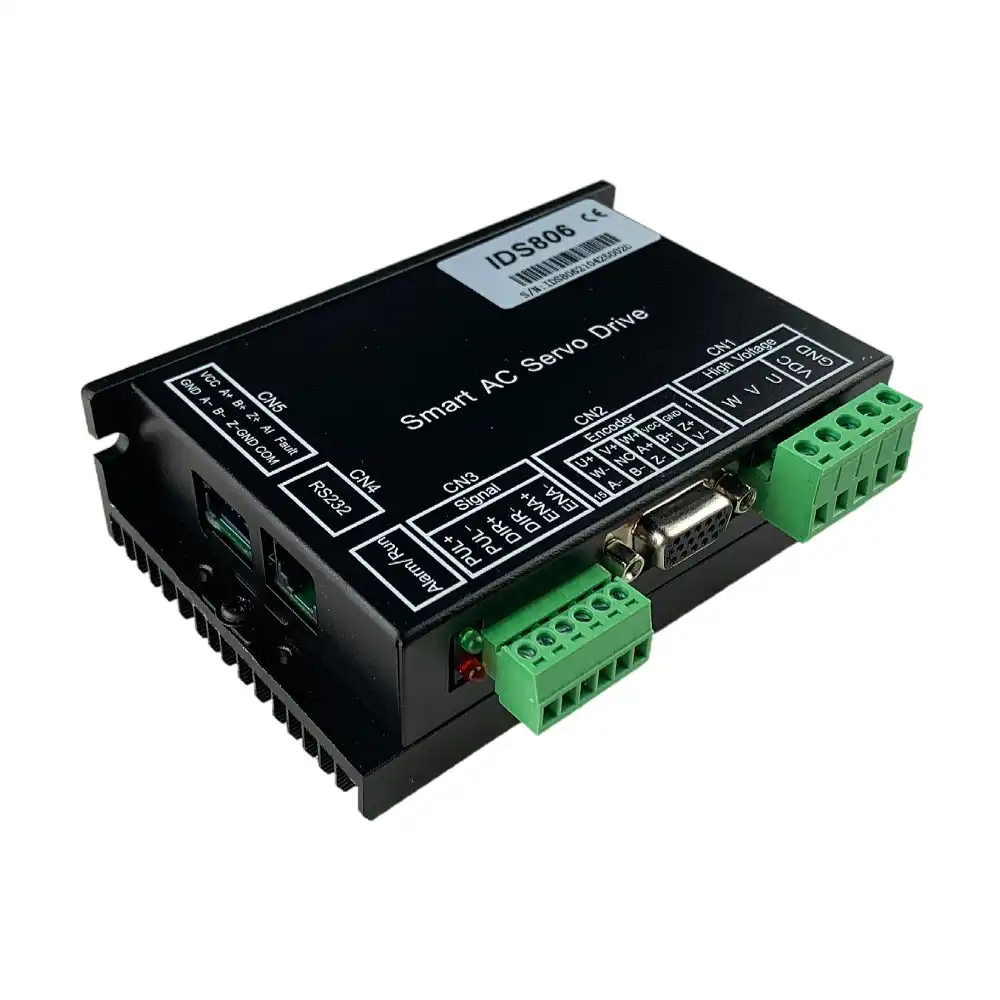

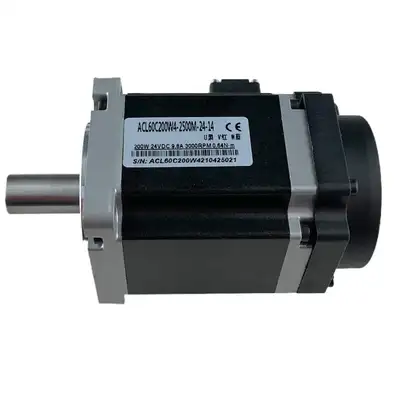

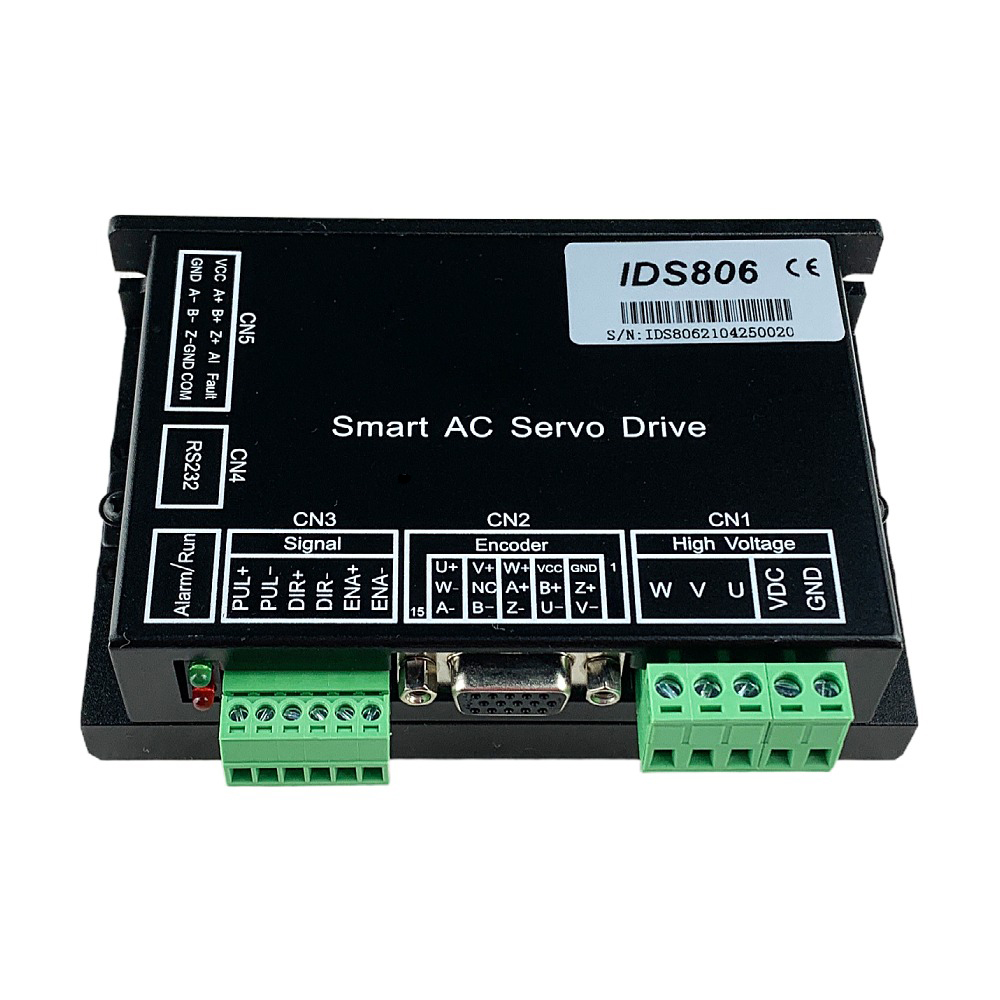

Product Display
- Operating voltage: 24VDC
- Output current: peak 10A
- Suitable motor: 5~100W low-voltage DC servo motor, brushless DC motor with encoder or hollow cup motor
- Control mode: external pulse (single-ended / differential), analog, CAN bus, RS232 communication control, IO control, etc., support position, speed and torque mode
- Parameter debugging: RS232 communication, PC debugging software or handheld debugger debugging, can backup and import parameters
- Abnormal protection: with undervoltage, overvoltage, overload, overcurrent, position deviation is too large, encoder abnormality and other alarm functions
- Tracking error: ±1pulse
- Speed control accuracy: ±1PRM
- Maximum received pulse: 1MHZ
- Minimum speed: 1RPM
- Maximum no-load acceleration: 200PRM/ms
Product Feature
High Power Output
The 200W 24V 60mm DC Servo Motor and Servo Driver provides substantial power output, making it suitable for demanding applications requiring robust performance.
Compact Design
This servo motor features a compact 60mm design, allowing for seamless integration into tight spaces and equipment with limited room.
Advanced Servo Driver
Equipped with an advanced servo driver, this motor ensures precise control over speed, position, and torque, enhancing overall performance and accuracy.
High Efficiency and Reliability
Designed for high efficiency and long-term reliability, this servo motor and driver combo reduces energy consumption and maintenance needs, ensuring durable operation under various conditions.
Product Applications
Industrial Automation
Ideal for industrial automation, this powerful servo motor and driver combo can be used in machinery and equipment that require precise and consistent control.
Robotic Systems
Perfect for robotic systems, this motor offers precise movement and control, essential for the accurate operation of robotic arms and joints.
CNC Machinery
Suitable for CNC machinery, this servo motor and driver provide high precision and reliability, crucial for accurate cutting, drilling, and milling operations.
Home and Building Automation
Great for home and building automation projects, this motor can be used in applications such as automated window systems, adjustable furniture, and other smart devices, enhancing convenience and modern functionality.
Related Products
Videos

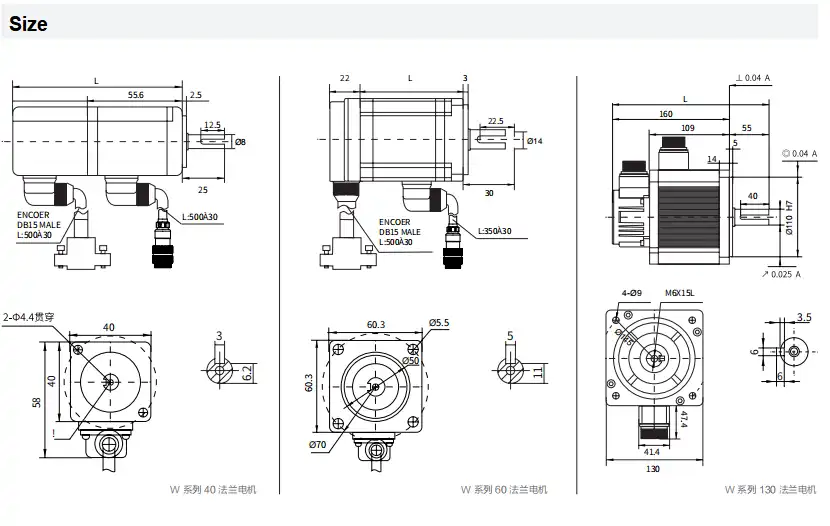

DIMENSIONS
