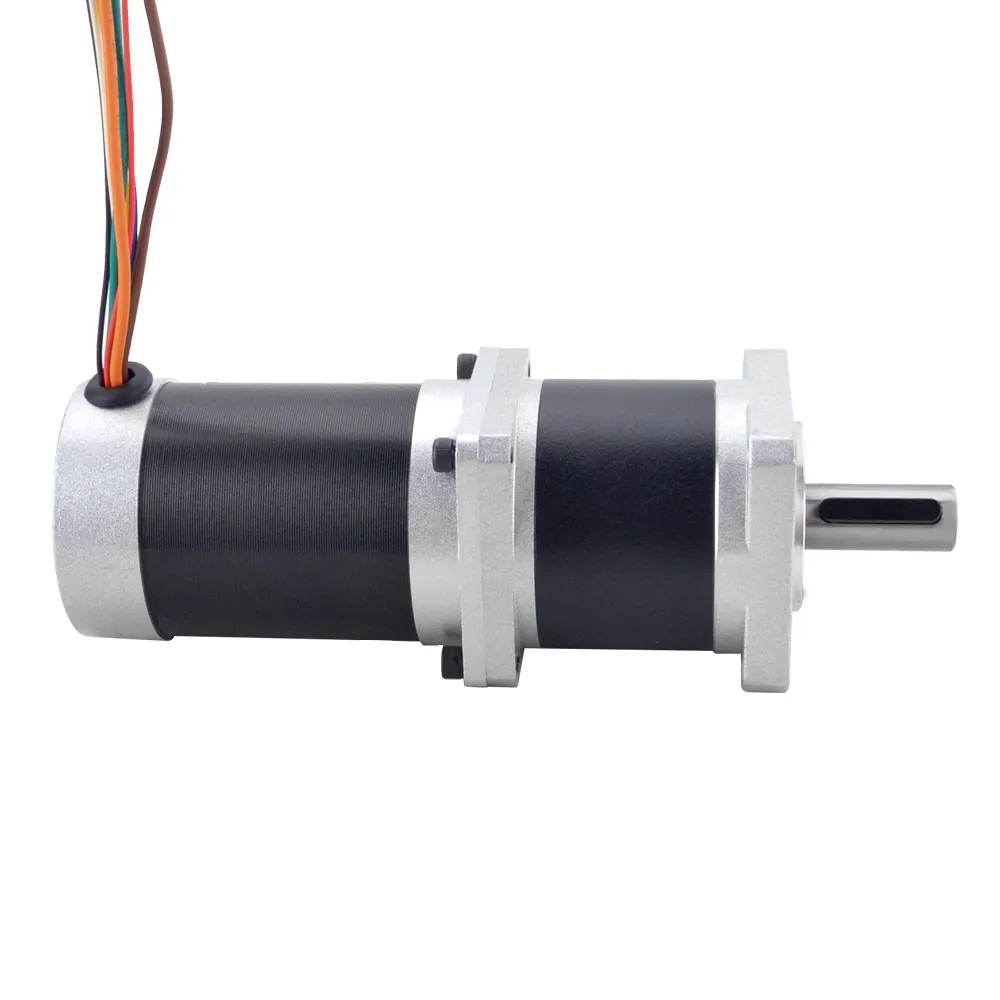

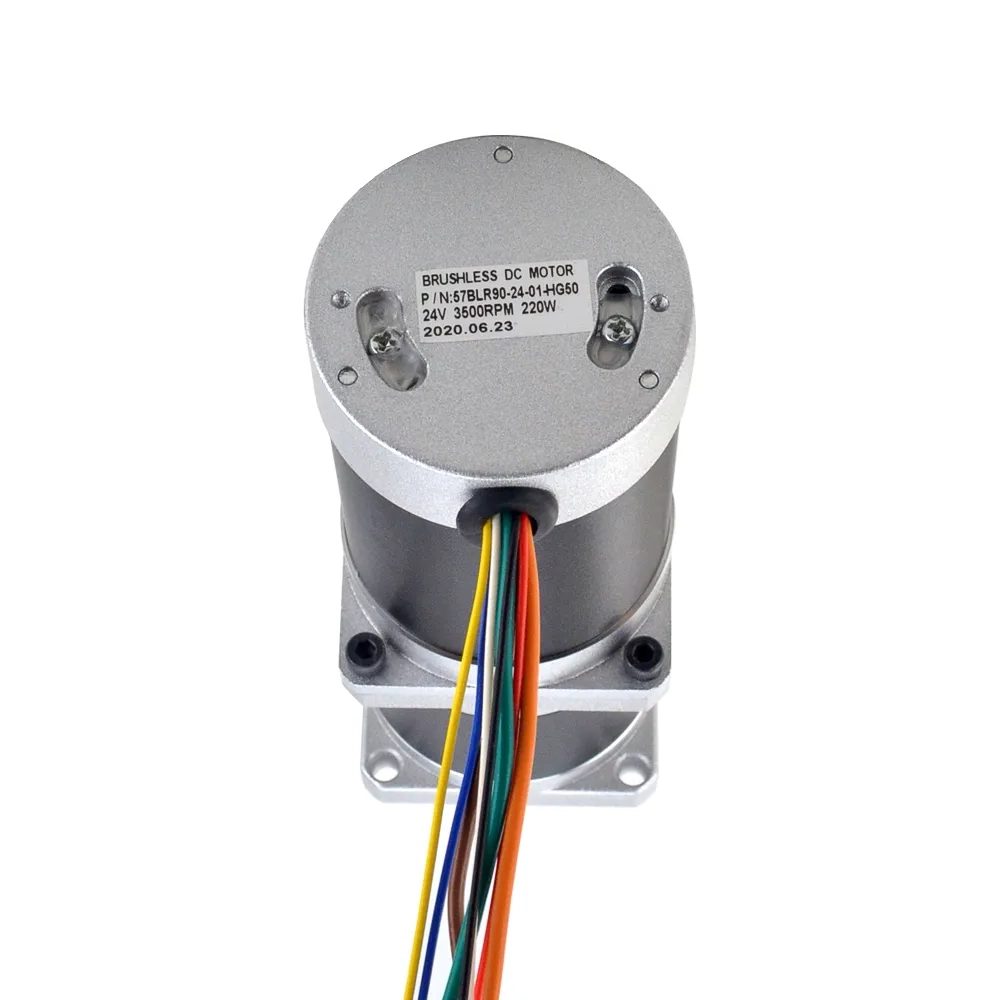

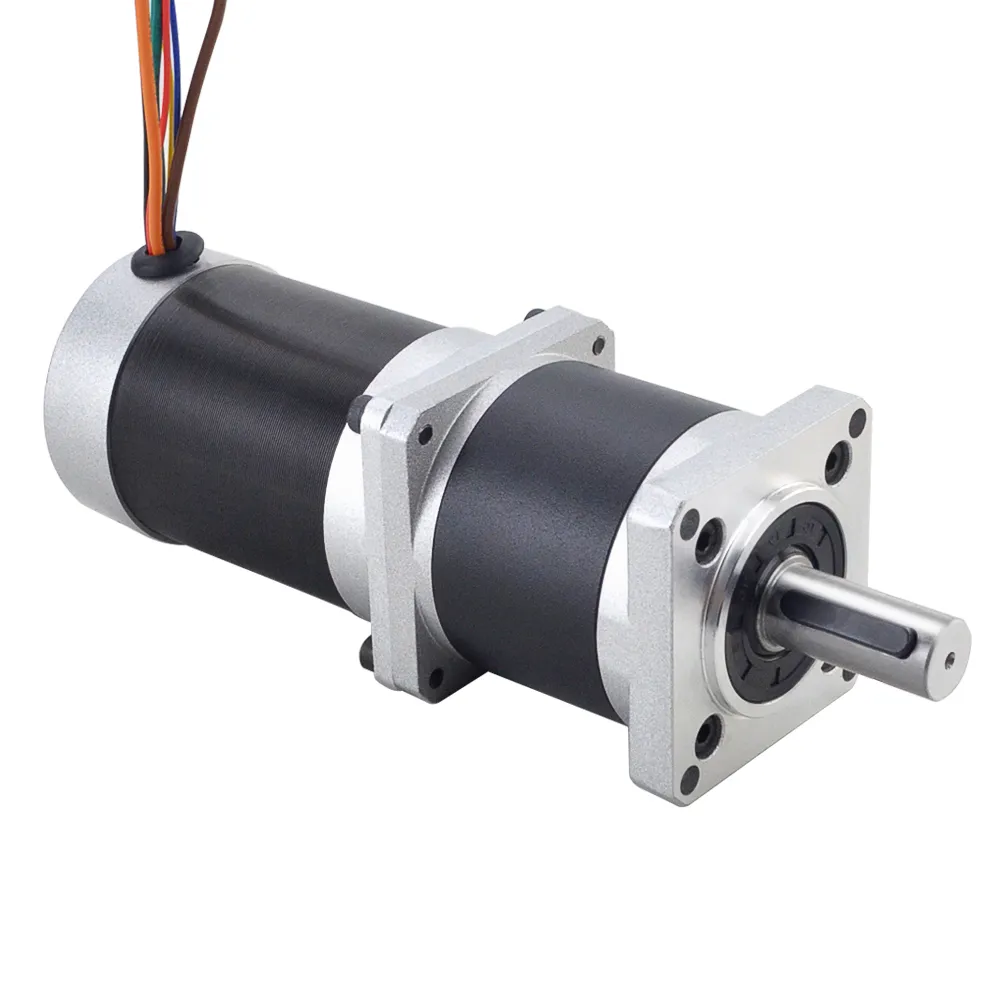

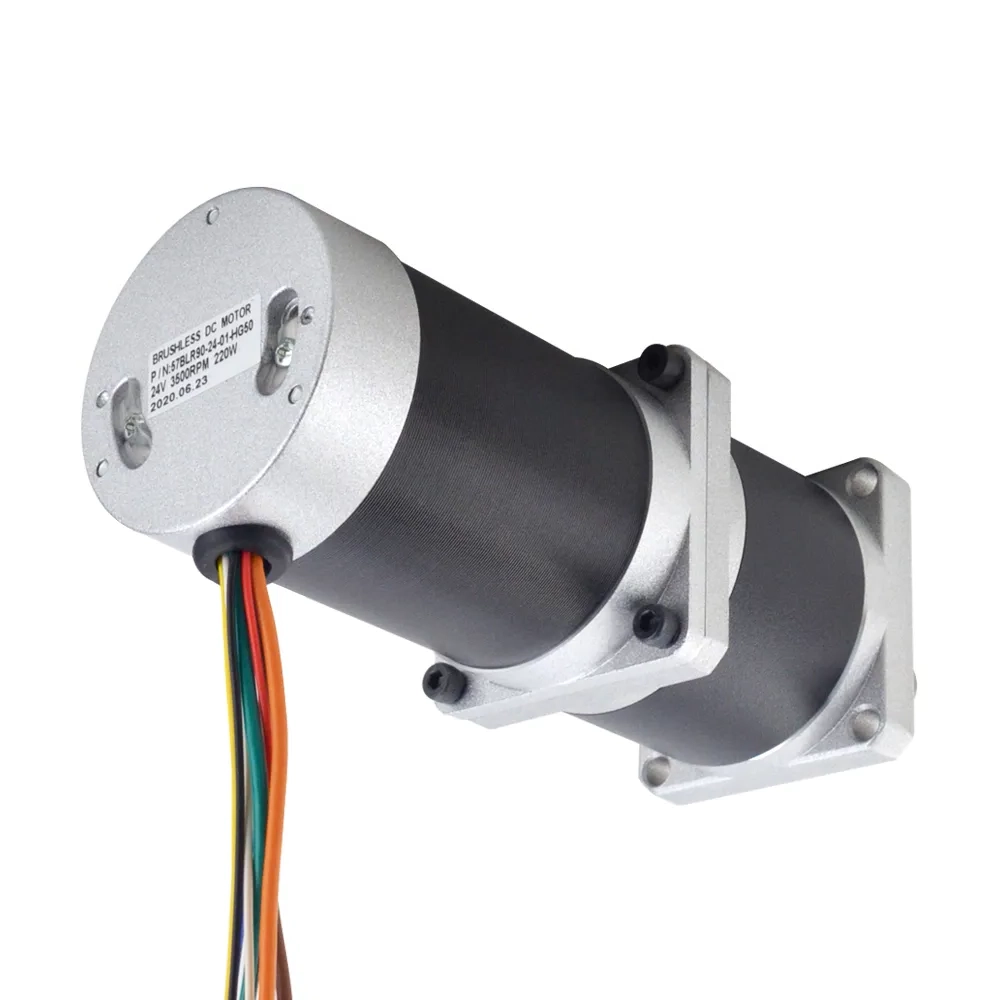

SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 57BLR90-24-01-HG50 |
| Phase | 3 |
| Poles | 4 |
| Product Type | Geared BLDC Motor |
| Rated Current(A) | 14.0 |
| Rated Power(W) | 220 |
| Rated Speed(rpm) | 70 |
| Rated Torque(Nm) | 20.00 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | Yes |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 89.1 |
| Gear Ratio(xx:1) | 50 |
| Backlash at No-load | <=1.6 deg |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 1.72kg |
Gearbox Specifications
| Attribute | Value |
|---|---|
| Gearbox Type | Planetary |
| Gear Ratio | 50 : 1 |
| Efficiency | 75% |
| Backlash at No-load | <=1.6 deg |
| Max. Permissible Torque | 20Nm(2832.8oz.in) |
| Moment Permissible Torque | 40Nm(5665.6oz.in) |
| Max. Radial Load | 250N |
| Insulation Class | B |
| Noise | <=50 dB |
| Ambient Temperature | 0 - 50℃ |
Product Feature
High Torque Output
This geared brushless DC motor delivers an impressive torque of 20.00Nm, making it ideal for heavy-duty applications.
Low Speed Operation
Operates at a low speed of 70RPM, providing precise and controlled motion for various tasks.
Efficient Power Utilization
Provides a power output of 220W, ensuring efficient energy use while delivering robust performance.
Brushless Design
The brushless design enhances the motor's lifespan, reduces maintenance, and ensures smooth operation.
Geared Mechanism
Features a geared mechanism that multiplies torque and reduces speed, optimizing performance for specific applications.
24V Operating Voltage
Operates at 24V, making it compatible with standard power supplies in various industrial settings.
Durable Construction
Built with high-quality materials to withstand demanding environments and ensure long-term reliability.
Product Applications
Industrial Automation
Ideal for industrial automation systems, providing precise and powerful motion control for machinery and equipment.
Robotics
Suitable for robotics applications, offering high torque and controlled speed for robotic arms and mobile robots.
Conveyor Systems
Perfect for conveyor systems, ensuring reliable and efficient movement of materials in production lines.
Automated Guided Vehicles (AGVs)
Used in AGVs, delivering dependable performance for automated material transport and logistics systems.
Medical Devices
Applicable in medical devices, providing accurate and reliable motion control for diagnostic and therapeutic equipment.
Agricultural Machinery
Suitable for agricultural machinery, ensuring efficient operation of equipment used in farming and harvesting.
Renewable Energy Systems
Ideal for renewable energy systems, offering reliable performance in applications like solar trackers and wind turbines.
