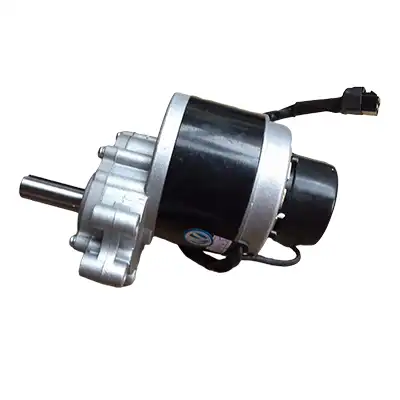

250W 24V 75rpm 120rpm 160rpm DC wheelchair motor
$38.00
This 250W 24V DC wheelchair motor is perfect for any mobility application, with three different speed options of 75, 120, and 160rpm for maximum control and performance. Enjoy the reliability and efficiency that comes with this high-power motor.
SPECIFICATIONS
Parametter Table
|
MY1016Z 24V 250W MOTOR |
|
|
Voltage |
24V |
|
Power |
250W |
|
Motor speed |
2400 / 3700 RPM |
|
Output speed |
75/120/160 rpm |
|
Rated torque |
≥45mm |
|
No-load current |
≤ 4.0 A |
|
Rated current |
≤13.7 / 14.8 A |
|
Working hours |
S2 : 60 |
|
Insulation class |
E |
|
Reduction ratio |
23.2 : 1 |
|
Motor efficiency |
≥ 70 / 76 % |
|
Load capacity |
100kg/pcs |
|
Application |
wheelchair |

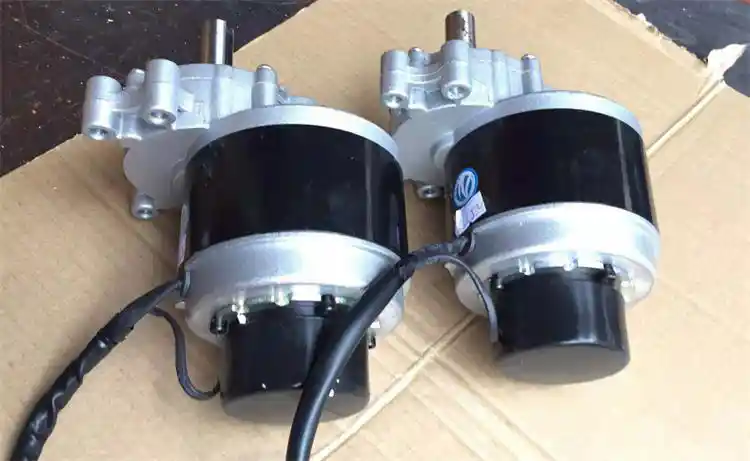

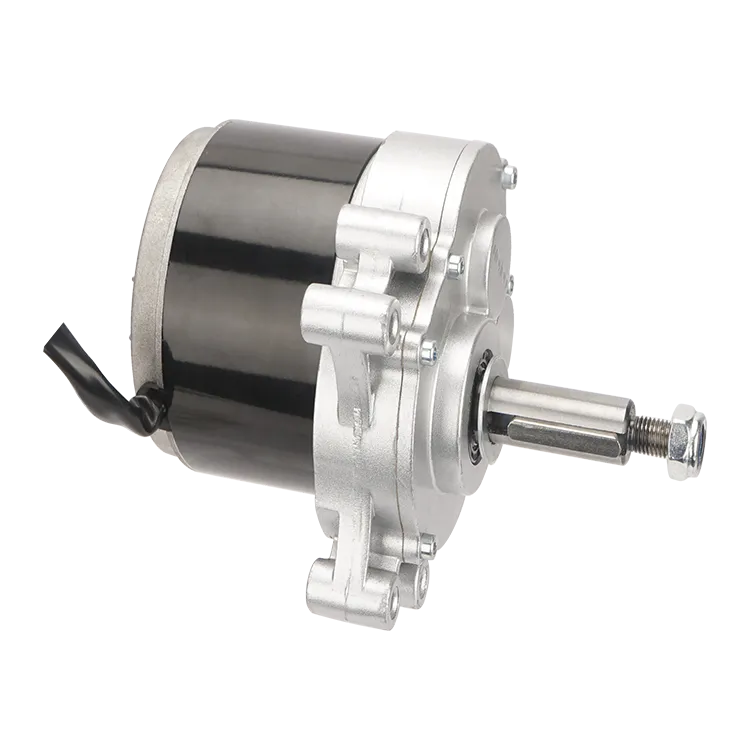

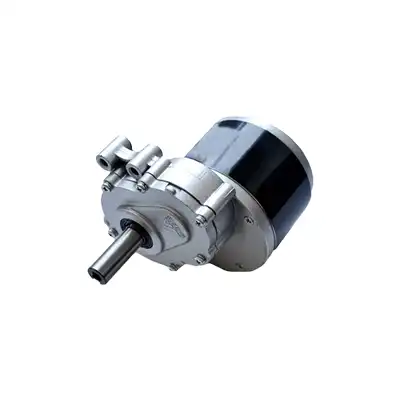

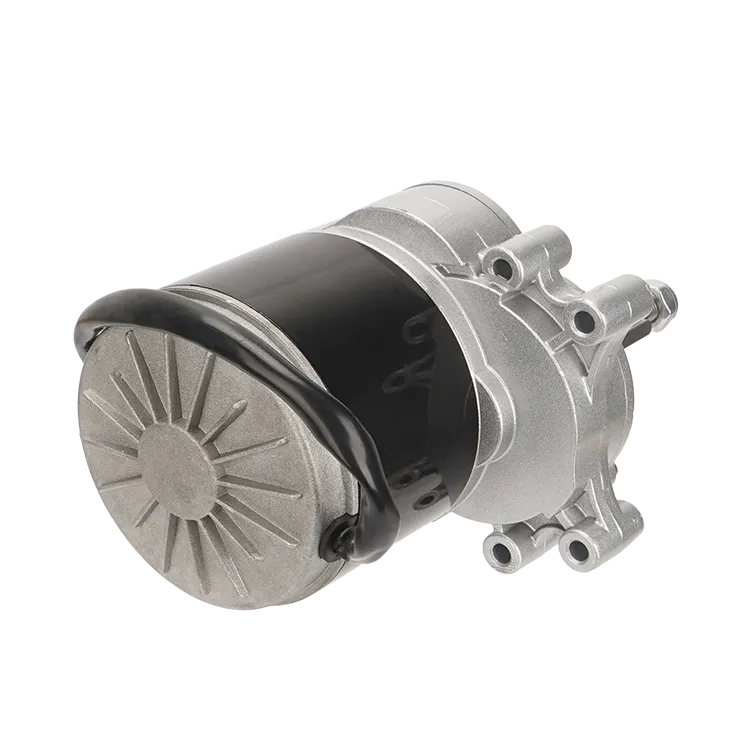

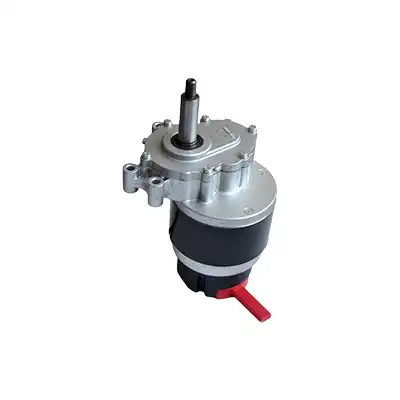

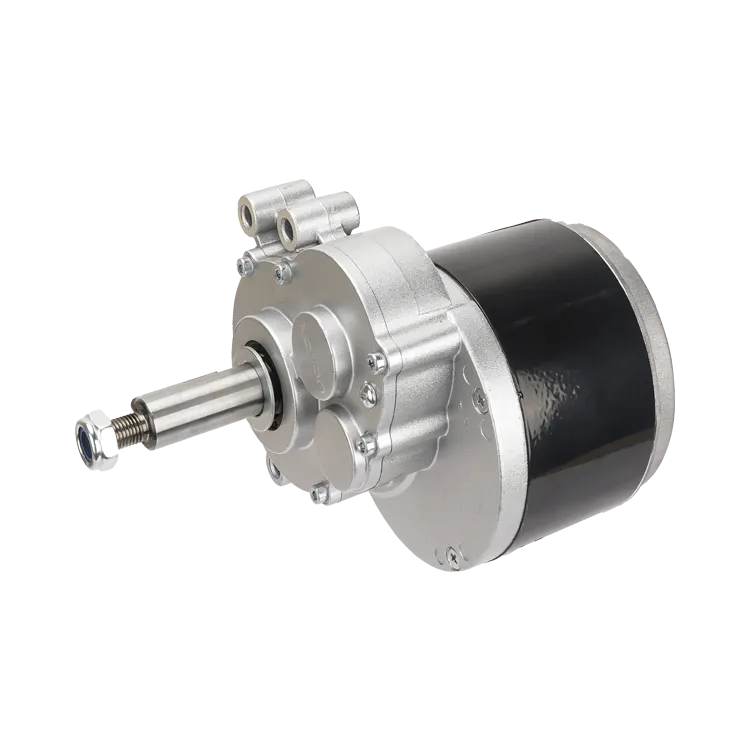

Product Display
Product Feature
Versatile Speed Selection
This motor offers three distinct speed settings of 75, 120, and 160rpm to accommodate different mobility needs and ensure superior control.
Optimized for Mobility
With an output power of 250W and 24V operation, this hub motor is specifically designed for wheelchair applications, offering reliable and efficient performance.
Durable and High Torque
It provides a rated torque of ≥4.5Nm and a robust reduction ratio of 23.2:1, making it capable of handling loads up to 100kg while maintaining smooth operation.
Energy Efficient
An impressive motor efficiency of ≥70/76% means more power is converted into movement, reducing energy waste and extending battery life.
Extended Operational Duration
Engineered to work for S2 duty cycle of 60 minutes, ensuring consistent performance during prolonged use.
Product Applications
Wheelchairs
Its high torque and variable speeds make it ideal for powering electric wheelchairs, providing users with a range of motion options for different environments and terrains.
Personal Mobility Aids
Designed to meet the demands of various personal mobility devices, this motor enhances the user's freedom and independence.
Rehabilitation Equipment
This motor can be integrated into advanced rehabilitation equipment, promoting recovery through assisted movement.
Automated Guided Vehicles (AGVs)
With its precision and durability, it's also suitable for use in AGVs commonly employed in manufacturing and warehousing operations.
Robotics Projects
DIY enthusiasts and robotics hobbyists can leverage this motor for custom projects that require controlled and sustained motion.
Related Products
Videos

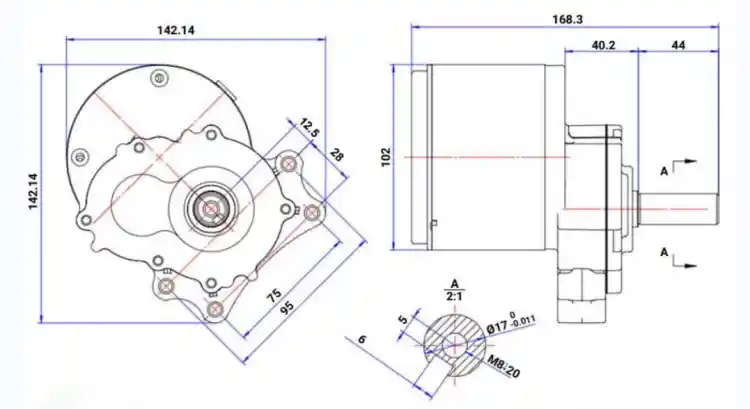

DIMENSIONS
