SPECIFICATIONS
| Model: | BLDC-H6368 |
| Max Power: | 2700W (3.5 hp) |
| Rotation Speed KV (RPM/V): | 190KV |
| Max Current: | 60A |
| Motor Length: | 63mm |
| Motor Diameter: | 68mm |
| Weight: | 0.8kg |
| Max Torque: | 5 N.m |
| Max Voltage: | 4S~12S |
| Motor Cable: | 320mm 12AWG |
| Shaft Diameter: | 10mm |
Note: 12S batteries power the motor, S is the number of batteries, and the voltage of every battery is 3.7V DC.

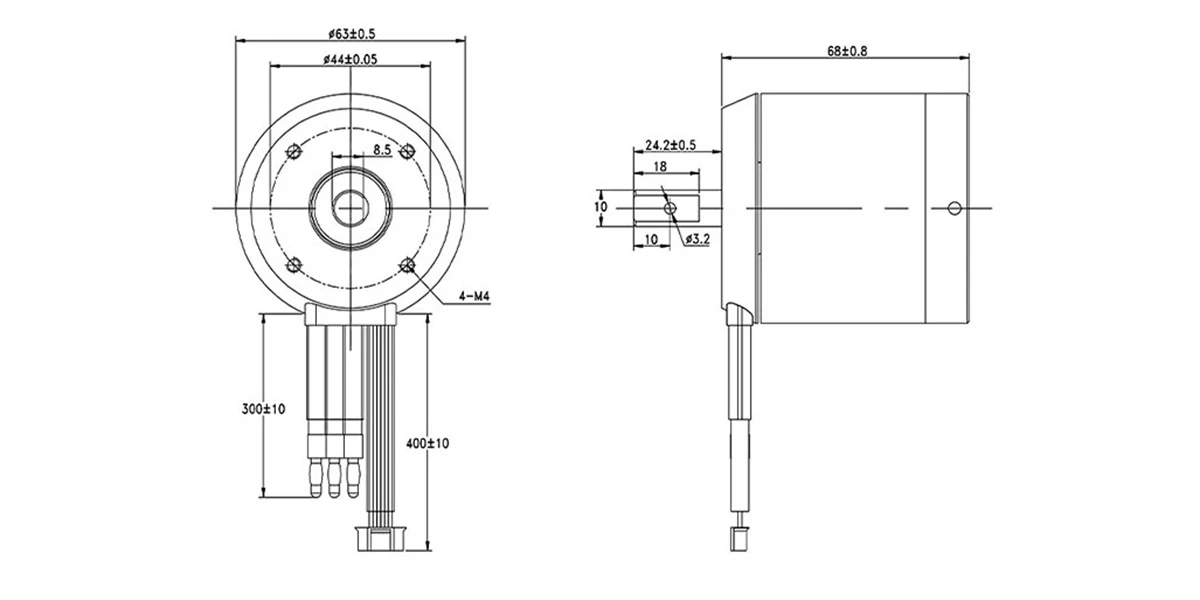

Dimensions(Unit: mm)
ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of the V4 series ESC is 60000 ERPM.The limit speed of the V6 series ESC is 15000 OERPM.
- If the maximum speed of the BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of the motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.
ESC (Electronic Speed Controller) Specification
| Model | Current Value | Number of Batteries (Input Voltage) |
| FSESC 4.12 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| FSESC 4.20 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| FSESC6.7 VESC6.6 single drive integrated | Continuous 70A, peak 200A | 3S-12S (8V-60V) |
| VESC4 dual drive integration * | 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel | 3S-12S (8V-60V) |
| ODESC3.6 single drive/dual drive | 50A continuous 1-channel, peak 120A 1-channel | 3S-12S (8V-60V) |
| VESC6 dual drive | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
| Single drive V6 75200 | Continuous 200A | 3S-12S (8V-60V) |
| Single drive VESC6 waterproof version | Continuous 60A, peak 150A | 3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

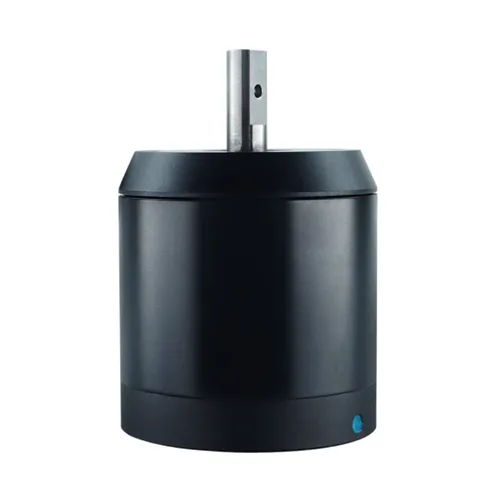

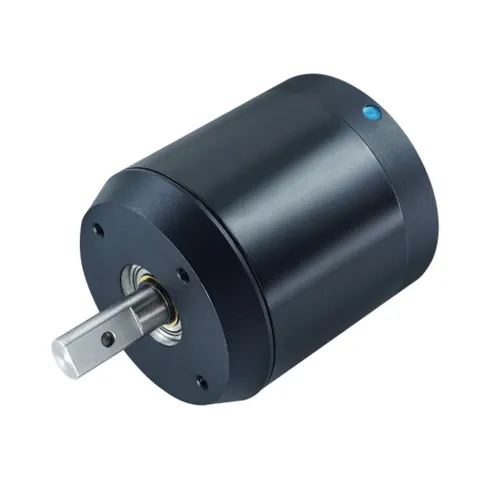

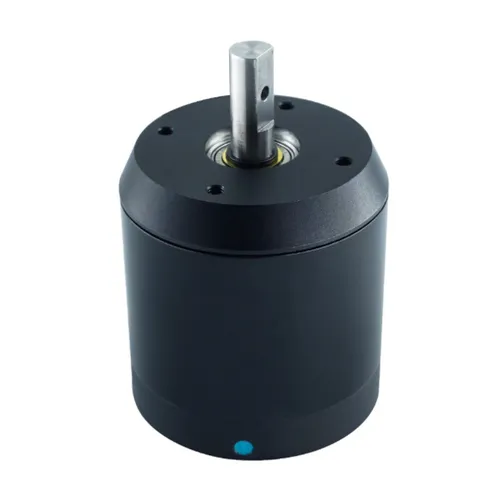

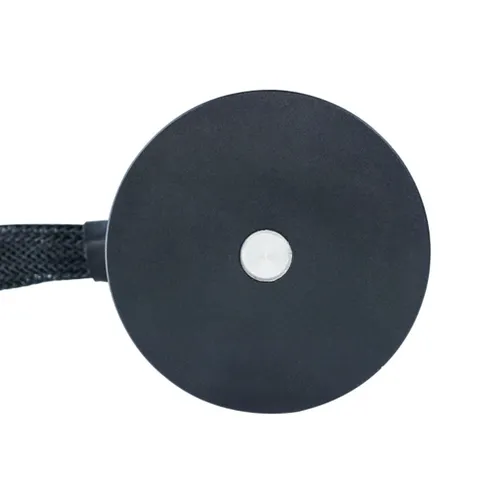

Product Display
The 190KV outrunner sensored brushless DC motor offers powerful performance and reliable operation. It is equipped with a brushless DC driver and supports a power supply range of 4-12S. With a maximum torque of 5 N.m and a 10mm shaft diameter, this motor is designed for versatility. Its compact size of 63 x 68mm ensures easy integration into various systems. The motor features excellent heat dissipation, ensuring reliable and efficient operation. It is lightweight, produces low noise, and delivers higher thrust for improved performance.
Product Feature
- Power: 2700W for robust and efficient operation.
- Speed: 190KV for optimal performance.
- Brushless DC driver for enhanced control.
- Power supply compatibility: 4-12S.
- Maximum torque: 5 N.m for high-torque applications.
- Shaft diameter: 10mm for versatility.
- Compact size: 63 x 68mm for easy integration.
- Excellent heat dissipation for reliable operation.
- Lightweight design for convenient installation.
- Low noise operation for a quieter experience.
- Higher thrust capabilities for improved performance.
Product Applications
The outrunner sensored brushless DC motor finds applications in various fields, including:
- Robotic arms, providing precise and powerful motion control.
- Robots for automation and industrial applications.
- DIY buggies, offering efficient propulsion and control for recreational or off-road use.
Note: Ensure proper installation, adhere to safety guidelines, and consider the specific requirements of your application to maximize the performance and reliability of the motor.
Tips:Can I use a sensor motor with a sensorless ESC?
Using a motor with a sensor and using it with a sensorless ESC will be no problem. The motor will simply act as a sensorless motor because the ESC will calculate the rotor synchronization based on the counter-electromotive force generated. In other words, the sensorless ESC will run the sensor motor as a sensorless motor.
