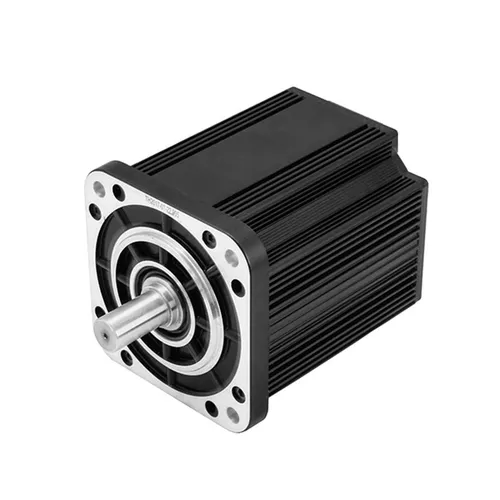

3 Phase 48V 5000W 16 Nm 3000 rpm 123A Brushless DC Motor
$1-$746.93
The 48V 5000W 3 Phase Brushless DC Electric Motor is a powerful and efficient motor used in various applications, including electric bicycles, air conditioners, drones, and more. It offers stable speed control, energy-saving features, and built-in protection functions.
SPECIFICATIONS
| Model: | BLDC-180WDM16013 |
| Matched Controller Model: | TH-G |
| Rated Power: | 5 kW |
| Rated Voltage: | 48V |
| Rated Current: | 123A |
| Phase: | 3 phase |
| Holding Torque: | 16 Nm |
| Max. Torque: | 42 Nm |
| Rated Speed: | 3000 rpm |
| No-load Speed: | 3600 rpm |
| Square Flange Size: | 180 mm |
| Working Efficiency: | 85% |
| Insulation Grade: | F |
| Protection Grade: | IP54 |
| Motor Lead Length: | 30 cm, if buy a kit (motor+controller), extra 1 meter of wire shall be provided. |
| Certificate: | CE, RoHS, ISO/TS16949 |
| Weight: | 18.6 kg |
Note: Power, Voltage, Speed, Shaft, Motor Length, and Motor Lead of BLDC Motors can be customized.

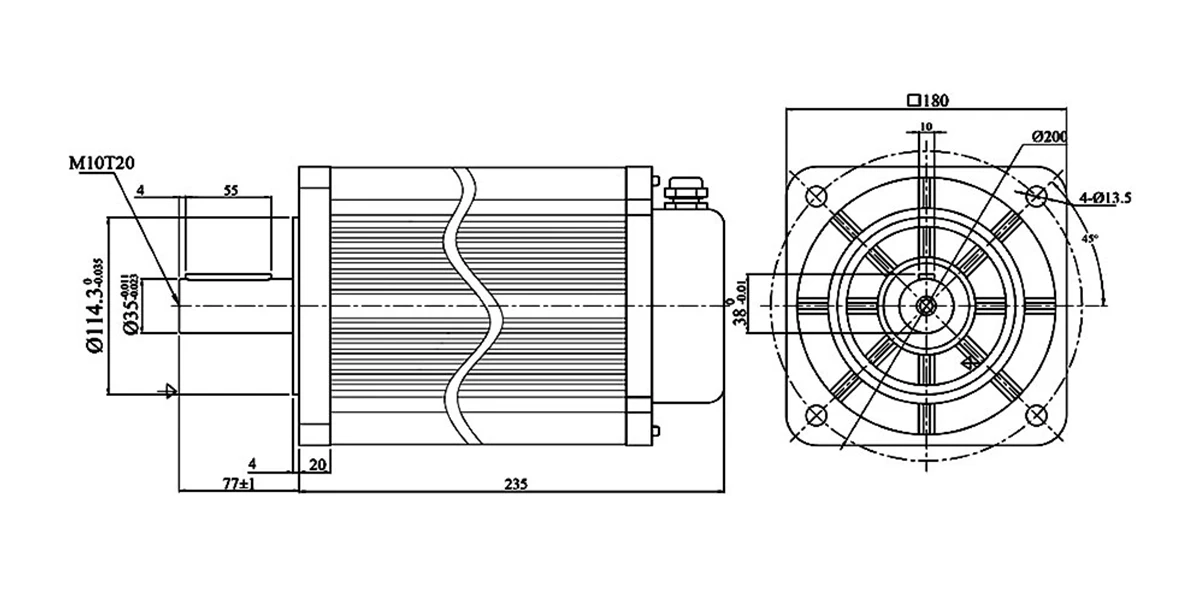

Dimensions(Unit: mm)

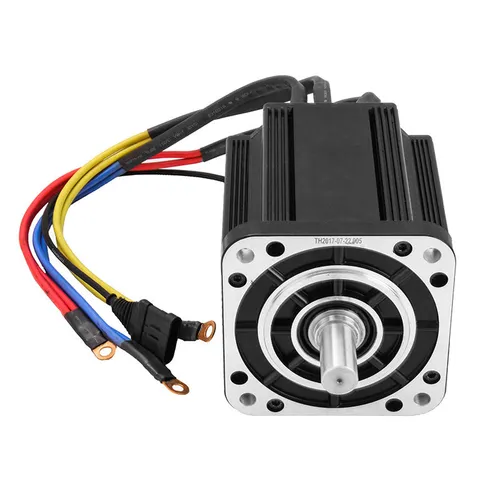

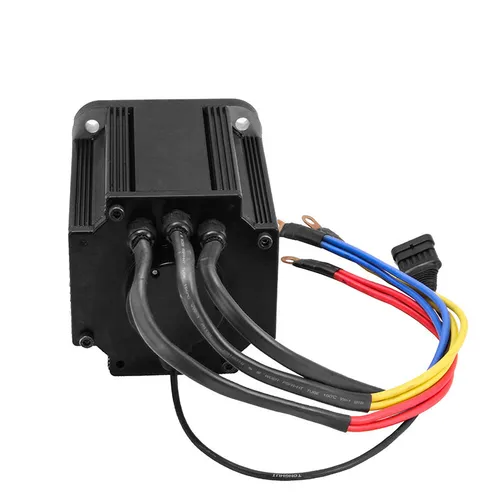

Line Define
Power Wire
| Red | Yellow | Blue |
| Motor U | Motor V | Motor W |
Feedback Wire
| Hall Line Color | Hall Signal Definition | Plug Serial Number |
| Orange and Black | 5V | 1 |
| Orange | 0V | 2 |
| Yellow | Hall A | 3 |
| Blue | Hall B | 4 |
| Green | Hall C | 5 |
Details

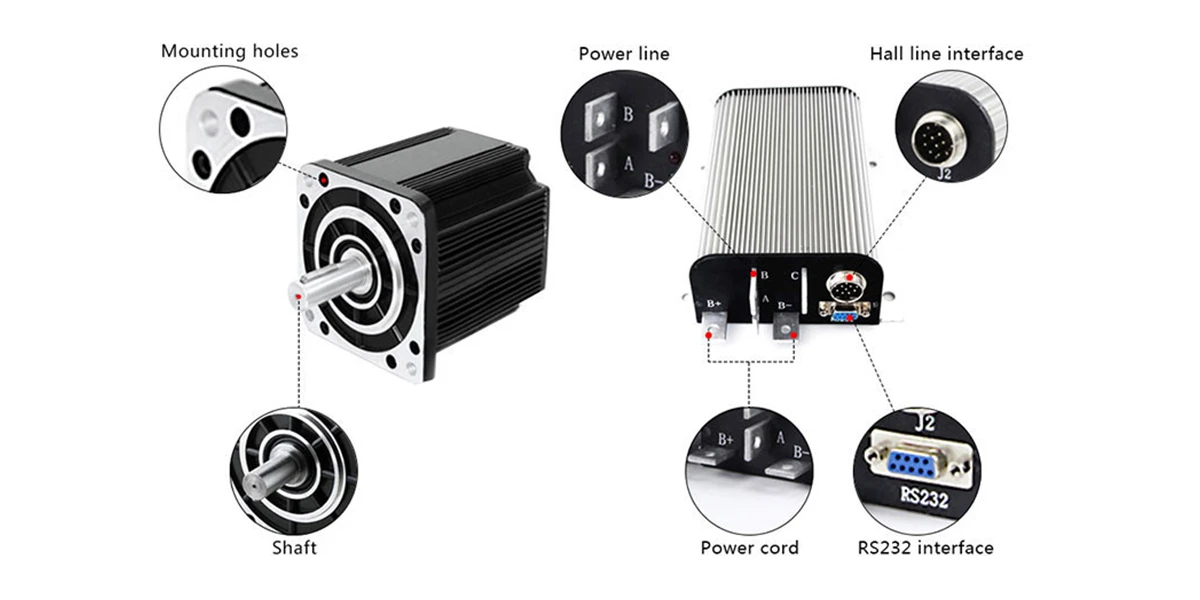

Product Display
The 48V 5000W 3 Phase Brushless DC Electric Motor is a high-performance motor designed to deliver exceptional torque and efficiency. With a rated speed of 2000 rpm and a rated torque of 16 Nm, it provides reliable power for various applications. This motor is available with a matching motor controller and gearbox, allowing for enhanced torque and efficiency specifically in electrical car applications.
Product Feature
- Stable Speed Control: The 48V brushless motor ensures stable speed control by adjusting the voltage applied to the motor based on a feedback signal. This feature allows for precise and instant speed adjustments, even under varying loads.
- Thin and High Power Design: By utilizing a permanent magnet brushless motor rotor, the 3 phase DC motor achieves a thin and compact design without compromising on power output.
- Wide Speed Control Range: Compared to speed AC motors and inverters, the 5kW brushless DC motor offers a wider speed control range. It can smoothly and efficiently operate from low to high speeds without any torque limitations at low speeds.
- Energy Saving Contribution: The brushless DC electric motor utilizes a rotor with permanent magnets, effectively reducing rotor losses and resulting in over 20% power consumption reduction compared to three-phase induction motors with variable frequency control. This energy-saving feature contributes to the overall efficiency of the device.
- Equipped with Protection Function: The 48V 5000W BLDC motor is equipped with protection functions, ensuring the safety and reliability of the equipment system.
Product Applications
The 48V 5000W Brushless DC Motor finds extensive applications in various industries and everyday devices, including:
- Electric bicycles
- Inverter air conditioners
- Washing machines
- Drones
- Automobiles
- CNC machine tools
- Polishing and grinding equipment
- Packaging machinery
- Tools
- Turnstiles
- Industrial control systems
- Medical machinery
- Automation equipment
- AGV trolleys
- Aerospace
- Intelligent storage equipment
Note: These are just a few examples of the wide range of applications that benefit from the high power and efficiency of the 48V 5000W Brushless DC Electric Motor.
