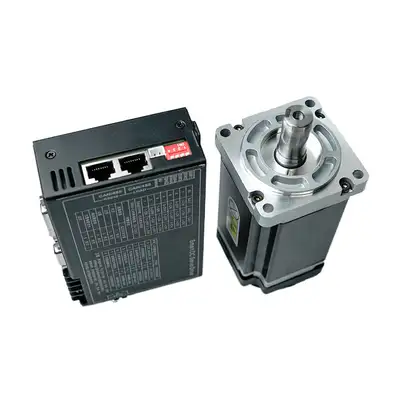

3000rpm 400W 48V DC Servo Motor Kit
$172.00
This powerful DC Servo Motor Kit is a fantastic choice for any application that requires fast, efficient motion. Featuring a 48V DC motor with a 400W rating and a top speed of 3000rpm, this kit is capable of providing reliable performance in even the most demanding of tasks. Perfect for robotics and CNC projects.
SPECIFICATIONS
| Model | Power (W) |
Voltage (VDC) |
Current (A) |
Flange (mm) |
Shaft diameter(mm) | Speed (rpm) |
Torque (N.m) |
Encoder (PPR) |
Driver |
| ACL60400W4- 1250E-48-14 | 400 | 48 | 12 | 60 | 14 | 3000 | 1.27 | 1250 | IDS806 |
| ACL60400W4- 2500E-48-14 | 400 | 48 | 12 | 60 | 14 | 3000 | 1.27 | 2500 | IDS806 |
| ACL80750W4- 2500M-48-19 | 750 | 48 | 25 | 80 | 19 | 3000 | 2.4 | 2500 | IDS850 |
| ACL 801000W5- 2500M-48-19 | 1000 | 48 | 32 | 80 | 19 | 3000 | 3.2 | 2500 | IDS850 |
Product Display
The W series dc servo motor has small size and high speed. It adopts moving-coil which has no cogging effect and extremely small torque fluctuation. And it adopt high-performance rare earth NdFeB magnets, it has high power density. Equipped with imported brand ball bearing, it has a long service life up to 10,000 hours, which is extremely cost-effective to replace similar foreign brand products.
Product Feature
Powerful and Efficient
With a 400W power output and a high speed of 3000rpm, this DC Servo Motor Kit delivers reliable and efficient performance for demanding applications.
Versatile Voltage Compatibility
Designed to operate on a 48V DC supply, this motor kit is compatible with a wide range of projects and industrial applications.
Precise Speed and Torque Control
Equipped with an encoder offering resolutions of 1250 PPR or 2500 PPR, depending on the model, for precise speed and torque control.
High-Durability Components
The use of moving-coil technology and high-performance rare earth NdFeB magnets ensures minimal cogging effect, ultra-low torque fluctuation, and enhanced power density.
Long Service Life
Thanks to high-quality imported ball bearings, these motors boast a service life up to 10,000 hours, making them a cost-effective option for long-term use.
Product Applications
Robotics
This servo motor kit is perfectly suited for robotics projects, offering the precise control needed for sophisticated robotic systems.
CNC Projects
Its high speed and torque enable it to drive various CNC machines, facilitating efficient and accurate machining processes.
Custom Machineries
The motor's capability to be customized for voltage, speed, torque, and more, makes it ideal for integrating into specialized custom machinery.
High-Speed Automation
With its fast operation and efficient performance, this motor is an excellent candidate for high-speed automation tasks in industrial settings.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
