3700W 130KV 6-20S Waterproof Sensorless Brushless DC Motor
$576.98
This 3700W inrunner motor offers continuous rated power of 2000 watts, operates with an input voltage range of 6-20S, and has a waterproof grade of IP68. The 130KV waterproof motor provides high efficiency, long lifespan, and ultra-quiet operation.
SPECIFICATIONS
Model: | BLDC-65121 |
Max Power: | 3700W |
Continuous Rated Power: | 2000W |
Rotation Speed KV (RPM/V): | 130KV |
Input Voltage Range: | 6-20S |
Motor Wire: | 8 AWG*500 mm |
Max. Torque: | 5.5 Nm |
Max. Current: | 100A |
Insulation Voltage: | AC500V/ 1MA/ 3S |
Connection Plug: | 8mm plug |
Waterproof Grade: | IP68 |
Internal Structure: | 18N/ 6P |
Axis: | ∅12*M8 |
Motor Dimension: | 65*121 mm |
Weight: | 1.62 kg |

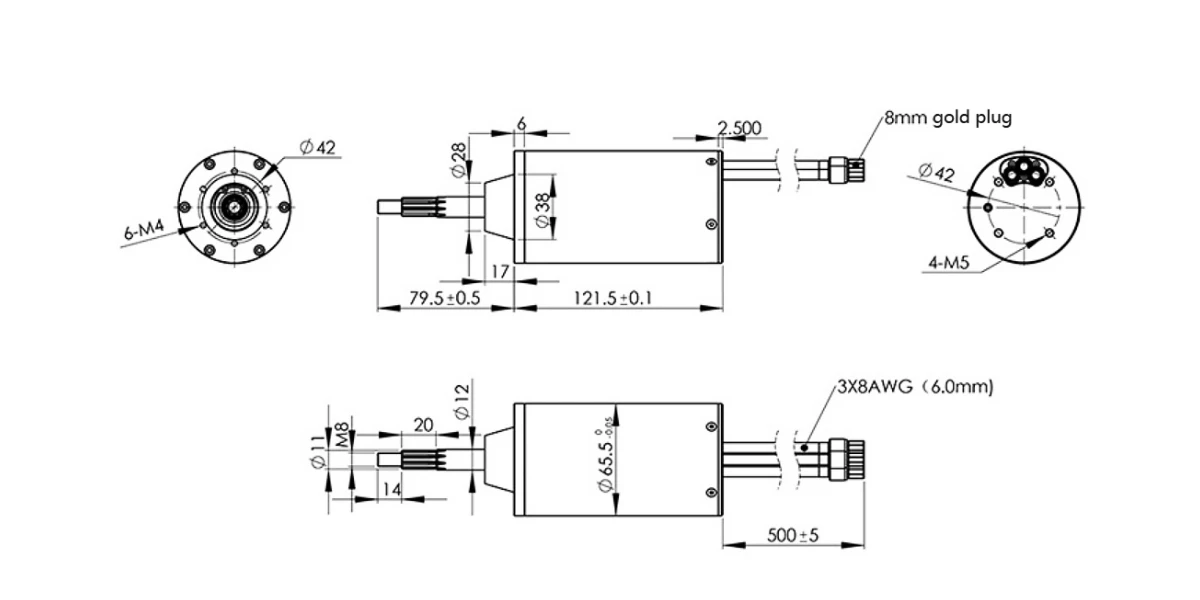

Dimensions(Unit: mm)
![3700W 130KV 6-20S Waterproof Sensorless Brushless DC Motor](/static/images/products/3700w-130kv-6-20s-waterproof-sensorless-brushless-dc-motor-5.webp)
ESC (Electronic Speed Controller) Selection forWaterproof BLDC Motor
- The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
- Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
- The limit speed of V4 series ESC is 60000 ERPM.The limit speed of V6 series ESC is 15000 OERPM.
- If the maximum speed of BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.
ESC (Electronic Speed Controller) Specification
Model | Current Value | Number of Batteries (Input Voltage) |
FSESC 4.12 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
FSESC 4.20 | Continuous 50A, peak 240A | 3S-12S (8V-60V) |
VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
VESC6.6 integrated switch dual drive version | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
FSESC6.7 VESC6.6 single drive integrated | Continuous 70A, peak 200A | 3S-12S (8V-60V) |
VESC4 dual drive integration | 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel | 3S-12S (8V-60V) |
ODESC3.6 single drive/dual drive | 50A continuous 1-channel, peak 120A 1-channel | 3S-12S (8V-60V) |
VESC6 dual drive | 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A | 3S-12S (8V-60V) |
Single drive V6 75200 * | Continuous 200A | 3S-12S (8V-60V) |
Single drive VESC6 waterproof version | Continuous 60A, peak 150A | 3S-12S (8V-60V) |
Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

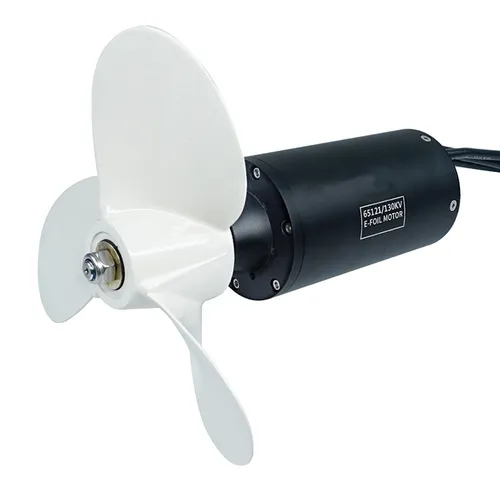

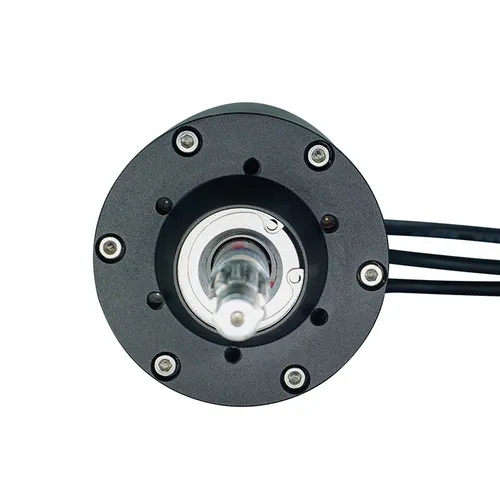

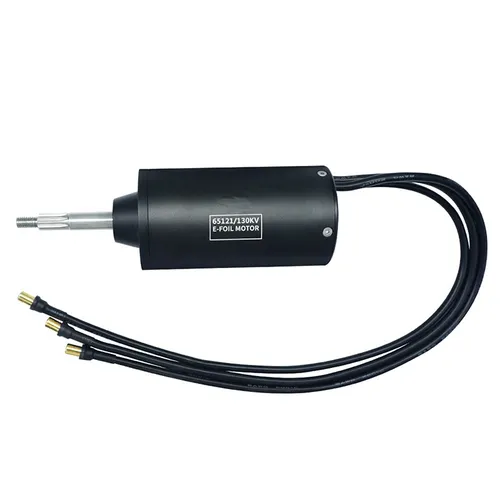

Product Display
Get a high-quality waterproof brushless DC motor at a reasonable price online. This 3700W inrunner motor offers continuous rated power of 2000 watts, operates with an input voltage range of 6-20S, and has a waterproof grade of IP68. The 130KV waterproof motor provides high efficiency, long lifespan, and ultra-quiet operation.
Product Feature
- Power output of 3.7 kW for robust performance.
- Power supply compatibility with batteries ranging from 6-20S.
- Rotation speed of 130KV for efficient propulsion.
- Waterproof grade IP68, ensuring protection against water ingress.
- Sensorless design for simplified operation.
- High efficiency, optimizing energy conversion.
- Long lifespan, providing extended usability.
- Ultra-quiet operation for a pleasant user experience.
Product Applications
This waterproof brushless DC motor is suitable for a range of applications, including:
- Underwater thrusters for marine robotics and remotely operated vehicles (ROVs).
- Electric surfboards, providing reliable and efficient propulsion for water sports enthusiasts.
- Electric boats, offering powerful and smooth operation on the water.
Note: When using this waterproof motor, ensure proper installation and adhere to safety guidelines. Additionally, consider the specific requirements and limitations of your application to maximize performance and durability.
Tips: What is a sensorless BLDC motor?
A sensorless brushless DC motor (sensorless BLDC motor) is quite simplya brushless DC motor without hall effect sensors. Hall effect sensors are sensors that are built into sensored brushless motors which are used to tell the brushless motor controller exactly where the rotor position is.
