SPECIFICATIONS
| Model: | BLDC-HPM3000L |
| Voltage: | 48V/60V/72V |
| Rated Power: | 2kW-3kW |
| Peak Power: | 6kW |
| Rated Current: | 75A/55A |
| Max Phase Current: | 240A/220A |
| Protection Class: | IP54 |
| Efficiency: | >90% |
| Rated Speed: | 3600 rpm |
| Rated Torque: | 10 N.m |
| Peak Torque: | 25 N.m |
| Poles: | 8 |
| Weight: | 8kg |

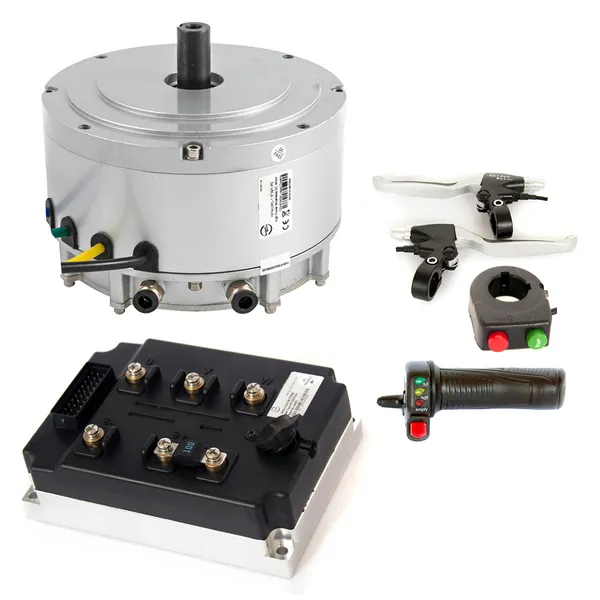

| Matched Controller: | BLDC-VEC200 |
| Cooling System: | Water cooling |
| Dimension: | 18cm dia. 12.5cm height |
| Measurement: | 25cm*25cm*26cm/CTN |

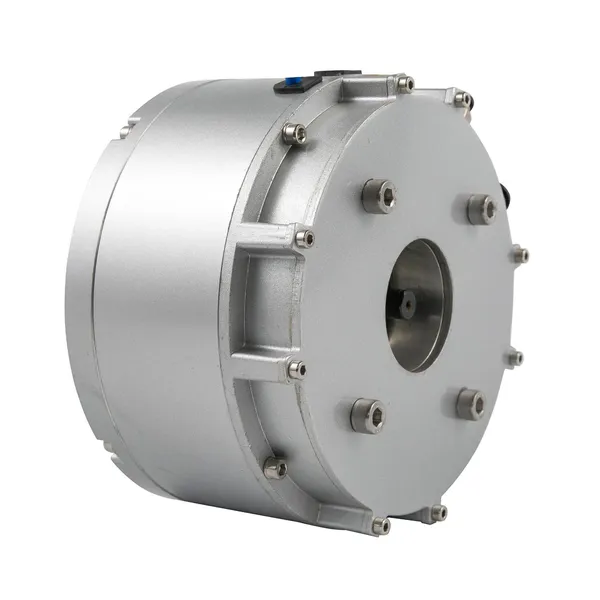

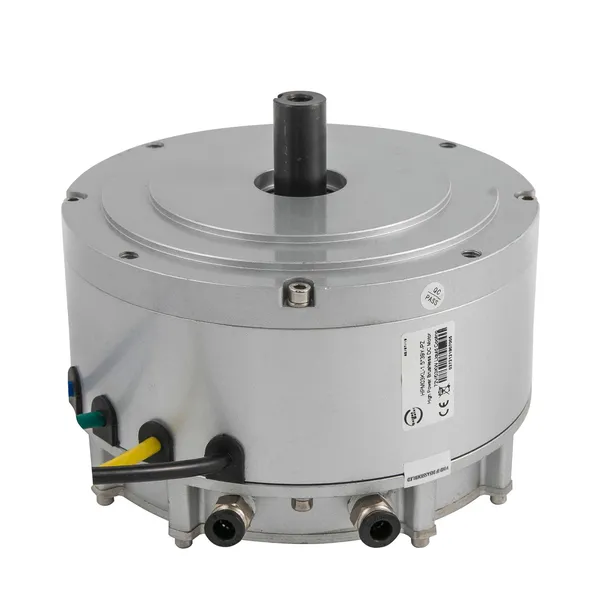

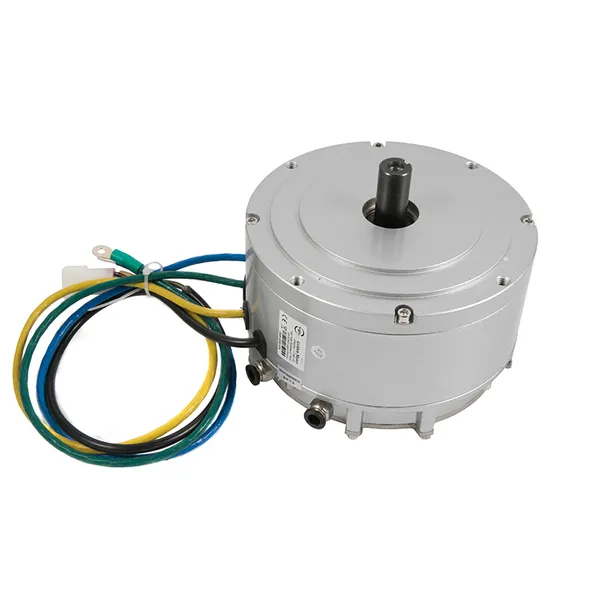

Product Display
Affordable brushless DC motors find extensive use in electric scooters and electric motorcycles. Specifically designed for electric cars, the 48V/60V/70V BLDC motor operates silently, devoid of mechanical noise. With a water-cooled configuration, this brushless motor offers a rated torque of 10 N.m and a speed range of 3000-5000 rpm, enabling electric vehicles to operate quietly and smoothly.
Product Feature
1. Compact & Efficient Design
The 3KW brushless DC motor offers a compact and efficient design, providing improved water resistance with a stainless steel shaft and a self-cooling fan.
2. Easy Usage & Superior Cooling
With an easy-to-use, water-cooled system, it requires no additional equipment for operation. The superior cooling is ideal for use in closed positions where there is insufficient wind to cool the motor, such as in cars or outboards. Note that an additional pump may be required for maximum efficiency.
3. Ideal for Various Vehicles
This motor is specifically designed for a wide range of vehicles, from cars and motorcycles to golf carts, ATVs, UTVs and yachts, proving its versatility.
4. Noise-Free Operation
Operating almost silently and devoid of mechanical noise, this motor enables vehicles to move quietly and smoothly with speed ranging from 3000-5000 rpm.
Product Applications
1. Electric Scooters and Motorcycles
Due to its affordability and silent operation, the 3kW Brushless DC Motor finds extensive usage in both electric scooters and electric motorcycles.
2. Electric Cars
The motor's compact size and high efficiency make it particularly suitable for electric cars, contributing to silent, efficient performance.
3. Other Off-Road Vehicles
The motor's versatility and adaptability make it a great choice for use in other off-road vehicles like golf carts, ATVs, and UTVs.
4. Water pumps
The 3KW BLDC motor is an exceptional choice for water pumps, which transport liquids or increase liquid pressure. Its ability to convert the mechanical energy of the original motor into a pumpable liquid offers an efficient, cost-effective solution.
3KW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.
Tips: Why Choose a Water Pump with a BLDC Motor?
The water pump can transport liquid or increase the pressure of the liquid. It is a machine that converts the mechanical energy of the original motor into a liquid that can be pumped out. BLDC water pump adopts DC 24V to drive brushless DC motor. The brushless DC motor drives the impeller to increase the liquid pressure and transport the liquid.
Related Products
Videos

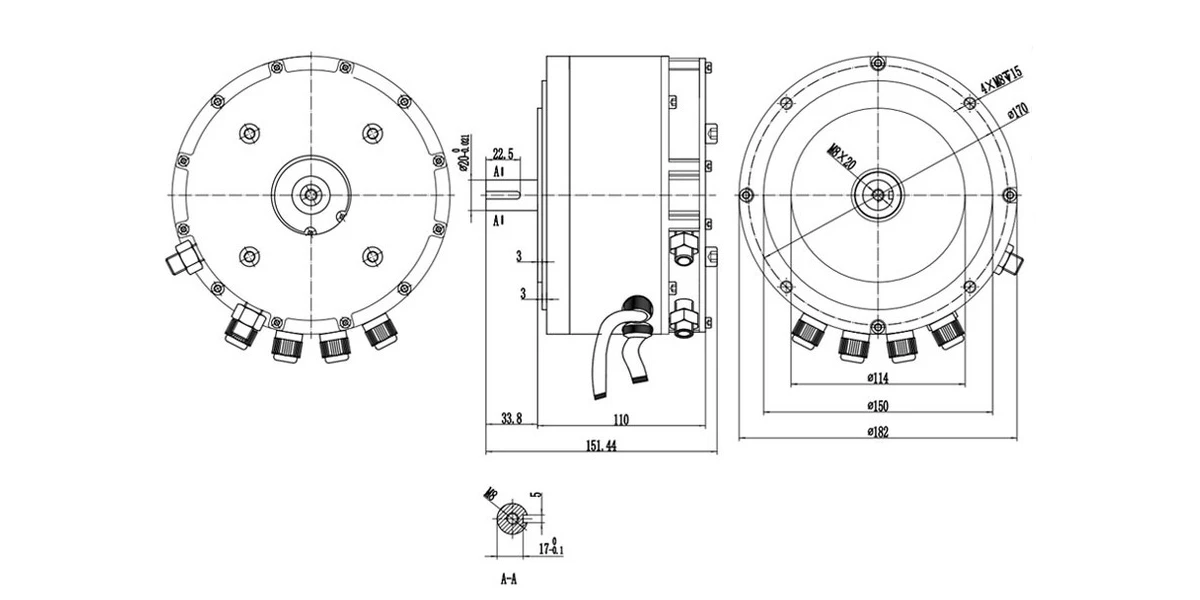

DIMENSIONS
