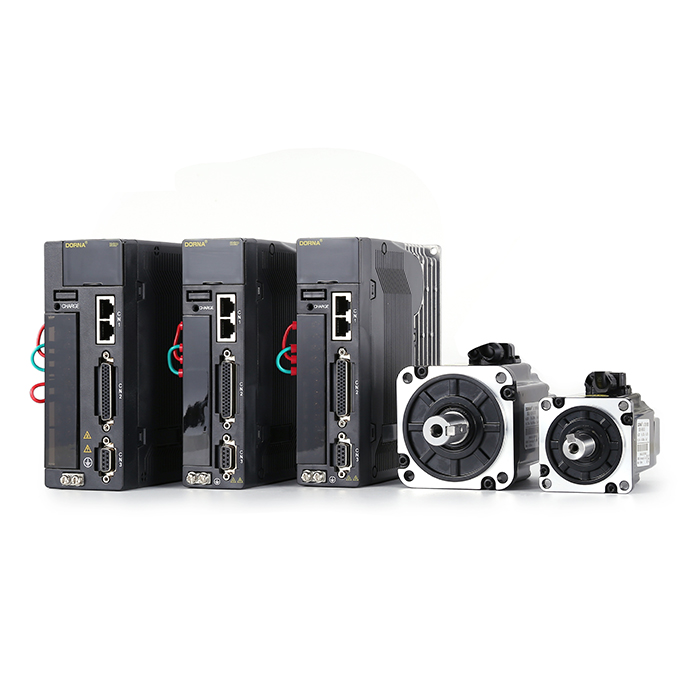

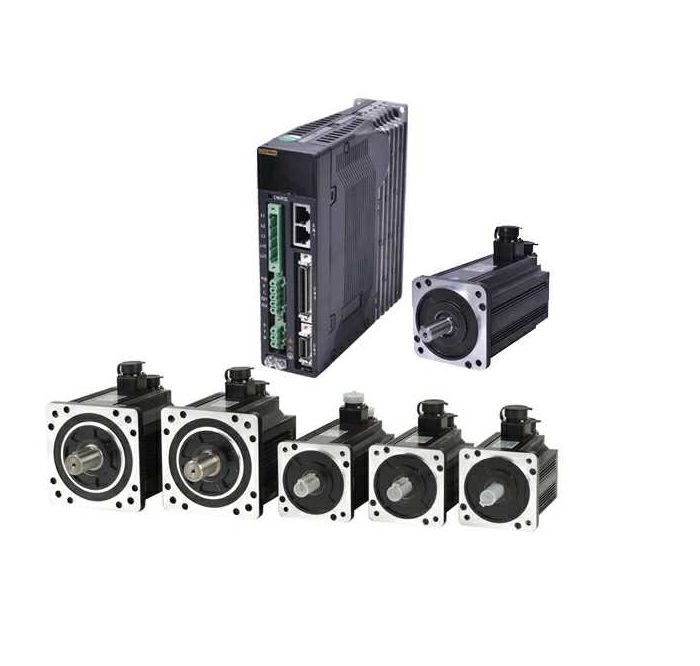

400W 60mm B2 Servo Motor And Servo Driver

400W 60mm B2 Servo Motor And Servo Driver

Name: 400W 60mm B2 Servo Motor And Servo Driver
Price: 280 USD
Availability: InStock

$245-$280

This 400W 60mm B2 Servo Motor and Servo Driver offers top-of-the-line performance in a reliable package. The motor is designed for precision operation at high speeds and torque, and the driver offers adjustable settings for maximum control and efficiency. Whether it's for demanding industrial applications or hobbyist projects, this combination offers outstanding performance.

Get a Quote Leave a Message

Model Type

Output Power (W)()400

Voltage (V)()220

Rated Speed (r/min)()3000

SPECIFICATIONS

Voltage (V)	Power	Driver Model	Flange(mm)	Motor Model	Servo Motor
Voltage (V)	Power	Driver Model	Flange(mm)	Motor Model	Rated speed (r/min)	Torque(N.M)
220	100W	EPS-B2-0D10AA-A000	40	40DNMA2-0D10DKAM	3000	0.32
	200W	EPS-B2-0D20AA-A000	60	60DNMA2-0D20DKAK	3000	0.64
	400W	EPS-B2-0D40AA-A000	60	60DNMA2-0D40DKAK	3000	1.27
	750W	EPS-B2-0D75AA-A000	80	80DNMA2-0D75DKAK	3000	2.39
			80	80DNMA2-0D75CKAK	2000	3.58
			90	90DNMA1-0D75DKAM	3000	2.39
			90	90DNMA1-0D75CKAM	2000	3.58
	1KW	EPS-B2-0001AA-A000	80	80DNMA2-0001DKAK	3000	3.18
	1KW	EPS-B2-0001AA-A000	130	130DNMA2-0001CKAM	2000	4.77
	1.5KW	EPS-B2-01D5AA-A000	130	130DNMA2-01D5AKAM	1000	14.33
		EPS-B2-01D5AA-A000	130	130DNMA2-01D5 BKAM	1500	9.55
		EPS-B2-01D5AA-A000-G	130	130DNMA2-01D5CKAM	2000	7.16
		EPS-B2-01D5AA-A000-G	130	130DNMA2-01D5DKAM	3000	4.77
	2KW	EPS-B2-02D2AA-A000-G	130	130DNMA1-02D2BKAM	1500	12.73
	2KW	EPS-B2-02D2AA-A000	130	130DNMA1-02D2CKAM	2000	9.55
	3KW	EPS-B2-0003AA-A000	130	130DNMA2-0003CKAM	2000	14.33
	3KW	EPS-B2-0003AA-A000	130	130DNMA2-0003DKAM	3000	9.55

Product Display

servo motor drive kit details

servo motor drive kit specifications

Product Feature

Robust Power Output

With a substantial 400W power output, this servo motor ensures reliable and potent operation for various applications.

High-Speed Precision

Engineered to deliver a rated speed of up to 3000 revolutions per minute, offering precision and speed for demanding tasks.

Versatile Voltage Compatibility

Accommodates a 220V supply voltage, proving its flexibility in different working environments.

Optimized Torque Delivery

It's built to provide a high torque of 1.27 N.M, guaranteeing efficient force delivery for your most challenging projects.

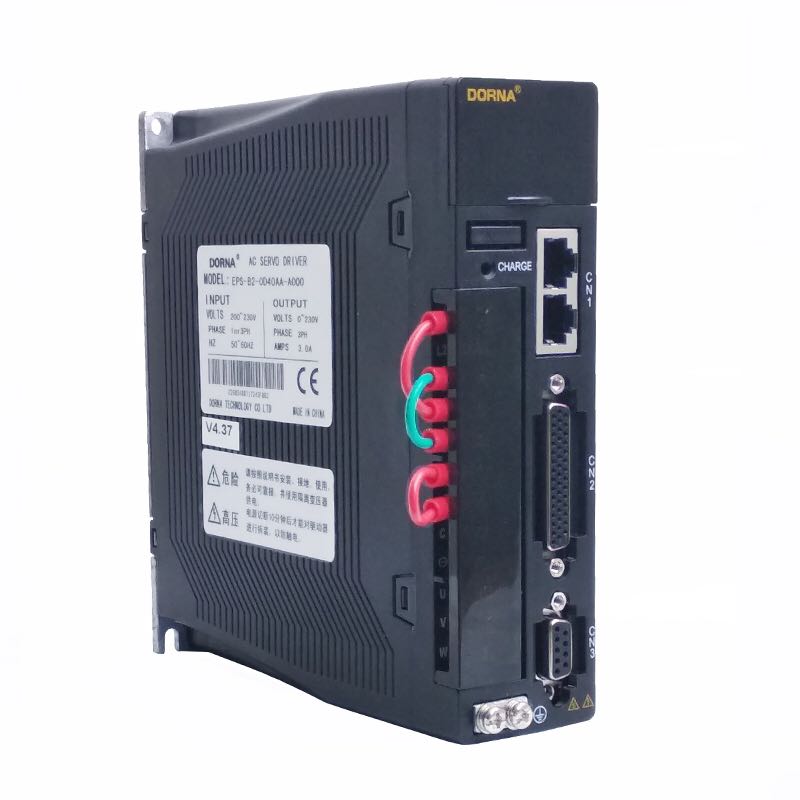

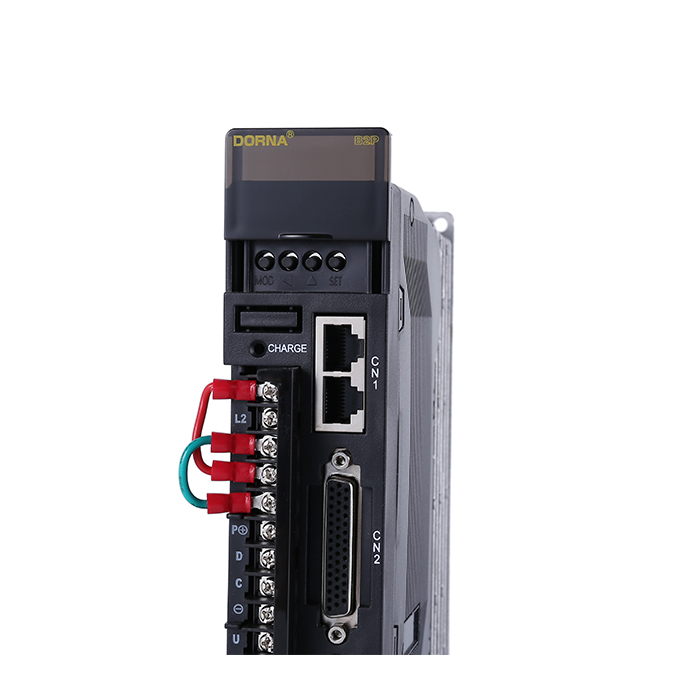

Advanced Servo Driver

Comes equipped with a state-of-the-art servo driver that enables adjustable settings to fine-tune control and efficiency.

Product Applications

Industrial Automation

Perfect for scalable industrial applications needing precision, such as assembly lines or robotics.

High-Speed Machining

Suited for CNC machinery and other high-speed machining processes where exact motion control is crucial.

Laboratory Equipment

Ideal for sensitive lab equipment requiring careful handling and reliable performance.

Dynamic Positioning

Its quick response and precision make it excellent for tasks demanding dynamic positioning accuracy.

Custom Projects

The motor's versatility and the driver's customizable settings open doors for hobbyists and makers in their innovative projects.

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
AC-Motor-Catalog.pdf	23.4MB	Download
