4040 CNC Router Machine with 500-710W Spindle Motor
$575.00-$820.00
Discover the cutting-edge LUNYEE 4040 CNC Machine, designed to revolutionize your manufacturing workflow. Equipped with robust Nema57 motors, this powerhouse delivers high-speed performance up to 5,000 RPM, ensuring your operations never slow down. Precision is our priority, with advanced transmission methods via φ12 optical axis guide rails and T10 screw rods providing exact positioning for all your projects.
SPECIFICATIONS
| Industry-Specific Attributes | |
|---|---|
| Working Table Size (mm) | 400 x 400 x 110 mm |
| Machine Type | CNC Router |
| Other Attributes | New |
| Number of Axes | 3 |
| No. of Spindles | Single |
| CNC or Not CNC | Yes |
| Place of Origin | Henan, China |
| Weight (KG) | 40 |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Applicable Industries | Other |
| Positioning Accuracy (mm) | 0.1 mm |
| Travel (X Axis) (mm) | 400 mm |
| Travel (Y Axis) (mm) | 400 mm |
| Repeatability (X/Y/Z) (mm) | 0.02 mm |
| Spindle Motor Power (kW) | 0.5/0.7/2.2 |
| Brand Name | Lunyee |
| Voltage | 48V |
| Dimension (LWH) | 636x683x538mm |
| Power (kW) | 0.5 |
| Machinery Test Report | Not Available |
| Video outgoing-inspection | Provided |
| Warranty of core components | 6 Months |
| Core Components | Motor, Driver chip, Control panel, Motor |
| Model | CNC4040 router machine |
| Driver chip | A4988 |
| Control panel | 4axis 3.0 GRBL 1.1f |
| Motor | 57HS56 stepper motor |
| Working area | 400 x 400 x 110 mm |
| Repeated accuracy | ±0.025 mm |
| Maximum operating speed | 6000 mm/min |
| Maximum processing speed | 5000 mm/min |
| Maximum acceleration | 200 mm/s² |
| Weight | 40 kg |
| Packaging and Delivery | Selling Units: Single item Single |
| package size | 34X69X54 cm |
| Single gross weight | 50.000 kg |

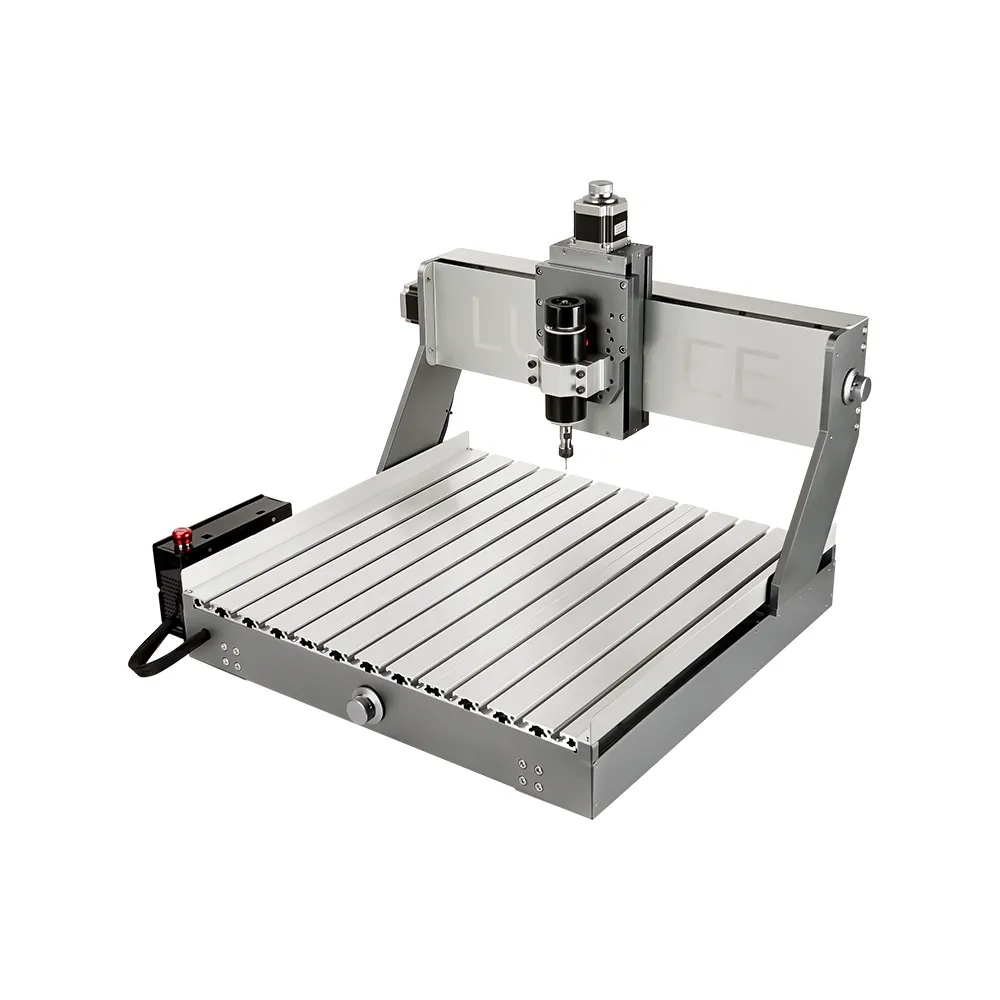

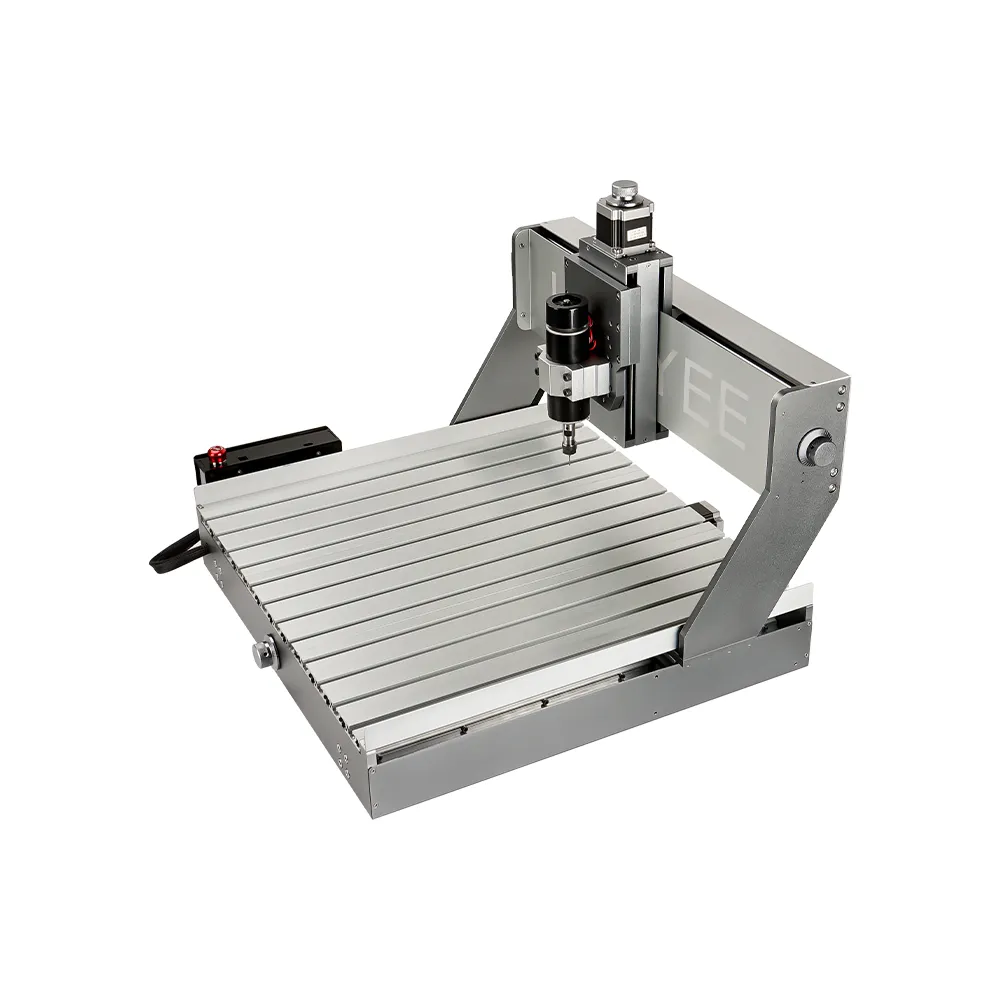

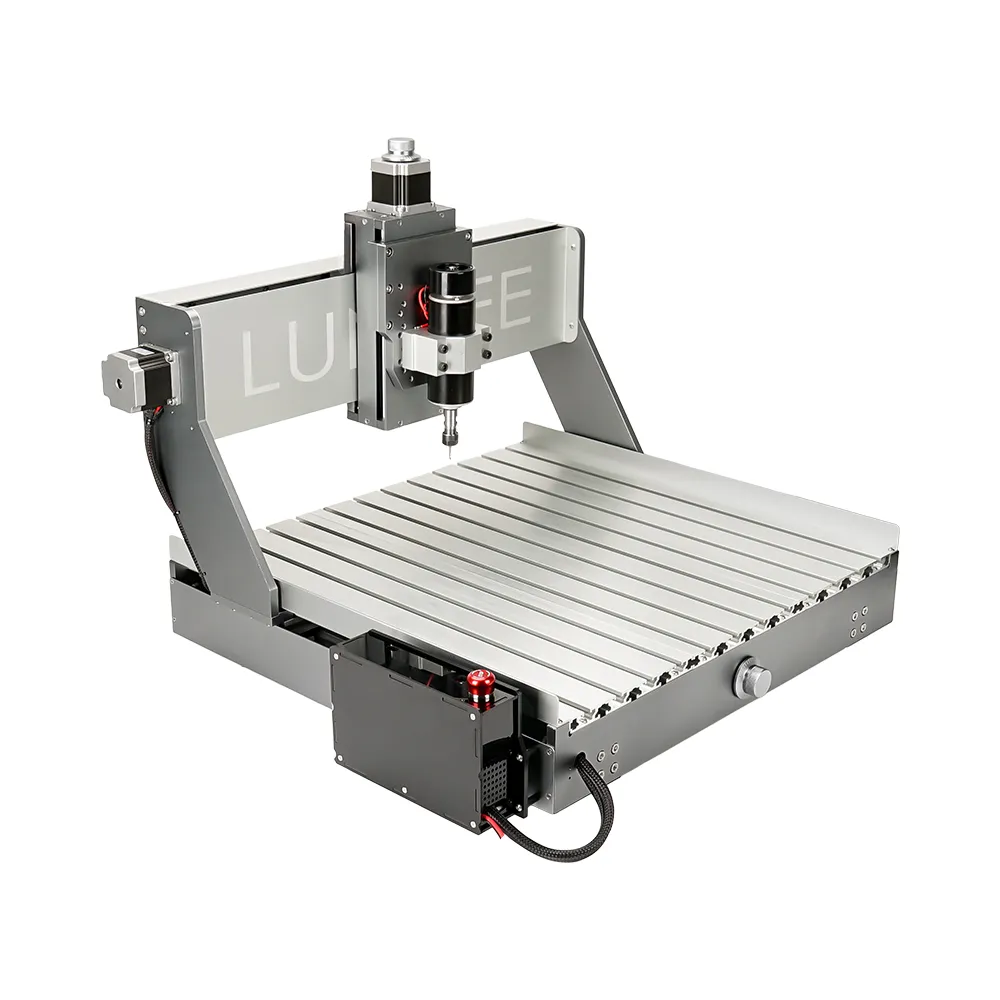

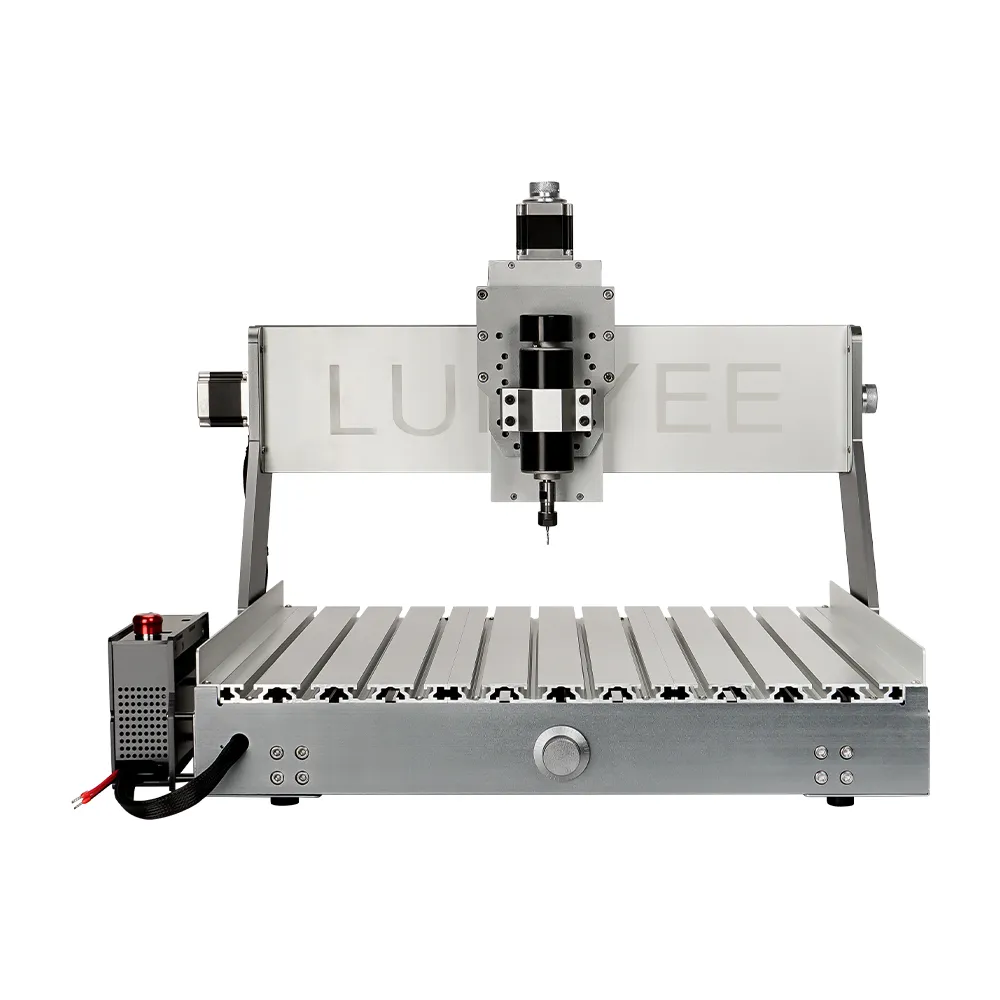

Product Display
Product Feature
Strong Power
The LUNYEE 4040 CNC Machine is equipped with a Nema57 motor with a maximum speed of 5,000 RPM, providing strong power support. This allows the machine to maintain excellent performance during high-speed machining.
Efficient Transmission Method
The X and Y axes adopt the transmission mode of φ12 optical axis guide rail + T10 screw rod, while the Z axis adopts the transmission mode of φ12 optical axis + T10 screw rod. This combination ensures smooth movement and high-precision positioning, providing a reliable basis for a variety of machining tasks.
Extra Large Working Area
The 4040 CNC Machine offers an impressively large working area of 400mm*400mm*110mm. This enables users to tackle large projects, extending the machine's range of applications.
Sturdy and Durable All-metal Countertop
The 4040 CNC Machine uses an all-aluminum alloy metal worktop, which is obviously different from the wooden worktops on the market. This unique all-metal structure not only improves the machine's life and stability but also creates a solid working platform for users to ensure excellent performance in various processing tasks.
User-friendly Operation
The 4040 CNC Machine ensures a seamless and user-friendly experience with its Grbl-based control board. Users can effortlessly operate the machine through the convenient USB interface, utilizing intuitive software like Candle or Universal Gcode Sender. The simplicity of the control system empowers users to navigate the machine with ease, allowing for efficient and hassle-free workflows.
Quick Installation
The machine is delivered as a semi-finished product, with pre-assembly in many key positions. This improves the safety of the product during transportation and provides users with a more convenient experience. Customers can quickly complete the assembly with simple operations and get to work in a short time.
Product Applications
Woodworking
CNC routers are commonly used in woodworking for crafting furniture, cabinet making, and creating intricate wooden designs and carvings.
Sign Making
Businesses use CNC routers to cut out letters and shapes for signs in materials like wood, metal, and plastic.
Prototyping
Engineers and designers across various industries use CNC routers for creating prototypes out of soft metals, woods, and plastics.
Metalworking
Although a 4040 CNC router might not handle heavy metal work, it is suitable for soft metals such as aluminum for creating small components, custom engraving, and detailed metal artwork.
Plastics Manufacturing
CNC routers can precisely cut and shape plastic sheets for manufacturing components, display cases, and many other items.
Jewelry Making
Small-scale CNC routers can be used to carve intricate designs in metal for jewelry, including custom engraving.
Aerospace
For crafting detailed parts and models out of lightweight materials, especially in the prototyping phase or for specific light craft components.
Educational
Schools and universities can use CNC routers for teaching purposes, helping students learn about manufacturing processes and CNC technology.
Arts and Crafts
Artists may use CNC routers to create complex sculptures, 3D artwork, and decorative panels from a variety of materials.
