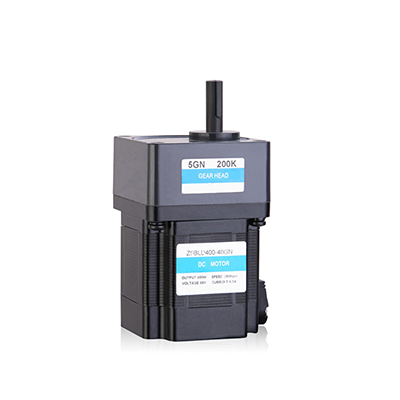

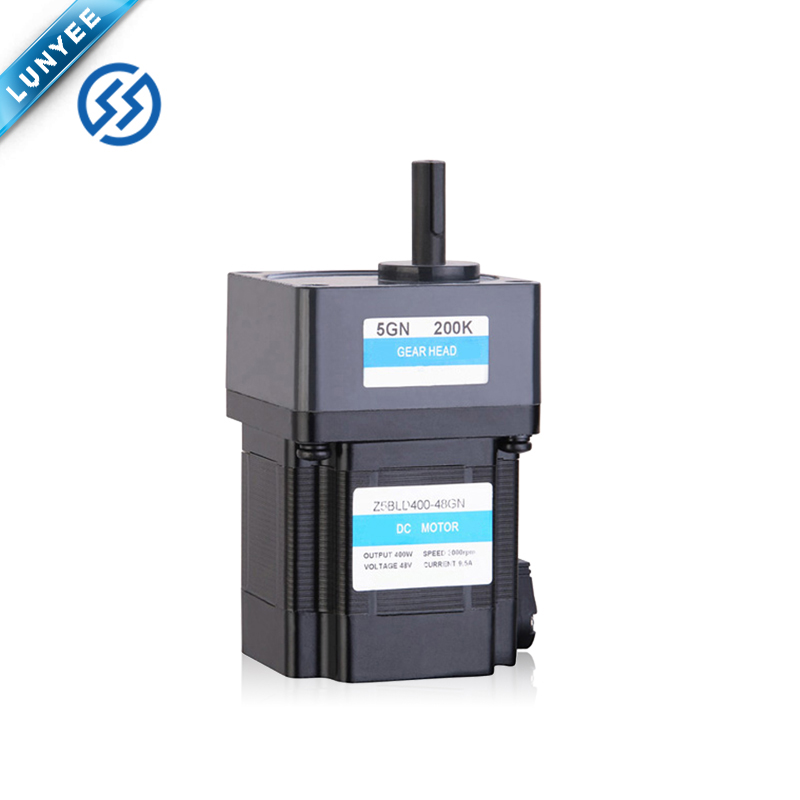

40W 80MM BLDC Gear Motor
$
This 40W 80MM BLDC Gear Motor is a reliable and powerful motor with a 40W innovative brushless DC design, ensuring performance and durability. It features 80MM gear diameter for increased torque and precision control, making it an ideal choice for a range of motion-control applications.
SPECIFICATIONS
| Model | Voltage (V) |
Frequency (HZ) |
Rated Power (W) |
Rated Current (A) |
Rated Speed (RPM) | Rated Torque (N.m) | Grade Protection IP |
| Z4BLD40-220GN | 220-230 | 50/60 | 40 | 0.55 | 3000 | 0.127 | 65 |
| 100-120 | 50/60 | 40 | 1.00 | 3000 | 0.127 | 65 |
Product Display
This motor has the optional accessories: gearbox, controller, encoder, brake.
For DC brushless motor, we can make from 10W to 500W with all voltage and speed ratio.
Motor voltage,power and speed will be customized according to your requests under the allowed circumstance of adoptable dimension
If you have interest or demand, you can send inquiry for details
Gearbox Ratio, Speed and Torque:
Dimension Drawing
Product Feature
High Efficiency
This 40W BLDC gear motor offers high efficiency, ensuring minimal energy loss and maximum performance for a variety of applications.
Compact and Lightweight Design
With an 80mm frame, this motor features a compact and lightweight design, making it easy to integrate into tight spaces and reducing the overall weight of the system.
Durable Gearbox
Equipped with a durable gearbox, this motor provides high torque at lower speeds, ensuring smooth and reliable operation even under heavy loads.
Low Noise Operation
This motor operates with low noise levels, making it ideal for applications where quiet operation is essential, such as in office equipment or home appliances.
Product Applications
Industrial Automation
Perfect for industrial automation systems, this motor provides reliable and efficient power for conveyor belts, robotic arms, and other automated machinery.
Home Appliances
Ideal for home appliances such as washing machines, air conditioners, and electric fans, this motor ensures efficient and quiet operation.
Medical Equipment
Suitable for medical equipment like automated hospital beds and diagnostic machines, this motor offers precise and reliable performance, enhancing patient care and operational efficiency.
Electric Vehicles
From electric scooters to small electric vehicles, this motor provides the necessary torque and efficiency for smooth and powerful propulsion.
