50W 24V 3000rpm encoder dc servo motor with driver
$96.27
This 50W 24V DC servo motor has an encoder and a driver, making it a reliable and powerful motor for applications that require precise motion control. With a rated speed of 3000rpm, you can be rest assured that it will deliver fast and efficient performance.
SPECIFICATIONS
|
Model |
Power
(W) |
Voltage
(VDC) |
Current
(A) |
Flange
(mm) |
Shaft diameter(mm) |
Speed
(rpm) |
Torque
(N.m) |
Encoder
(PPR) |
|
BCL57180P4- 1000E-36-8 |
180 |
36 |
6.7 |
57 |
8 |
3000 |
0.57 |
1000 |
|
BCL57130P4- 1000E-36-8 |
130 |
36 |
5.3 |
57 |
8 |
3000 |
0.41 |
1000 |
|
BCL57090P4- 1000E-24-8 |
90 |
24 |
3.5 |
57 |
8 |
3000 |
0.29 |
1000 |
|
BCL57050P4- 1000E-24-8 |
50 |
24 |
3.0 |
57 |
8 |
3000 |
0.16 |
1000 |
|
BCL42030P4- 1000E-24-5 |
30 |
24 |
1.8 |
42 |
5 |
3000 |
0.1 |
1000 |
|
BCL42060P4- 1000E-24-6 |
60 |
24 |
3.4 |
42 |
6 |
3000 |
0.2 |
1000 |
|
BCL42090P4- 1000E-24-8 |
90 |
24 |
5.2 |
42 |
8 |
3000 |
0.3 |
1000 |
Product Display
Product Feature
Precision Motion Control
Equipped with an encoder, this DC Servo Motor ensures precise speed and position control, making it ideal for applications requiring exact motion.
High-Speed Performance
With a rated speed of 3000rpm, the motor provides fast and reliable performance for efficient operations.

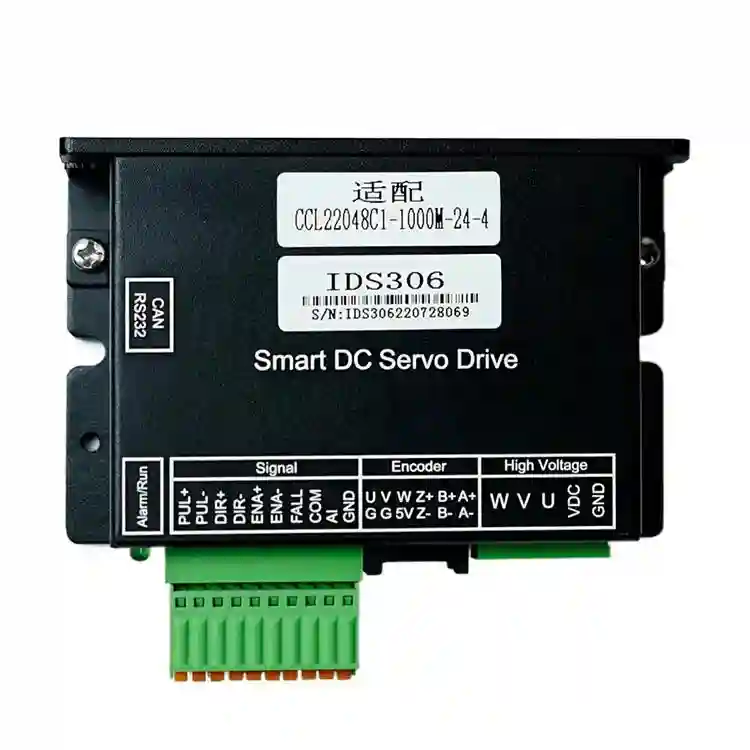

Integrated Driver
The inclusion of a driver simplifies the setup process, allowing for easier integration into existing systems.
Energy Efficient Design
Operating on just 24V and delivering a power output of 50W, this servo motor offers an excellent balance between energy efficiency and performance.
Compact and Durable
The motor's compact design and robust construction ensure long-lasting performance in a wide range of environments.
Product Applications
Automated Manufacturing
This servo motor is perfectly suited for use in automated manufacturing equipment, where precision and reliability are key.
Robotics
Its precise control and high-speed capabilities make it ideal for robotic applications, from educational kits to industrial robots.
Medical Devices
With its accuracy and efficiency, it's well-suited for medical devices that require precise movements and reliable operation.
DIY Projects
For hobbyists and makers, this motor provides a great option for DIY projects that need precise control, such as custom 3D printers or automated tools.
Related Products
Videos

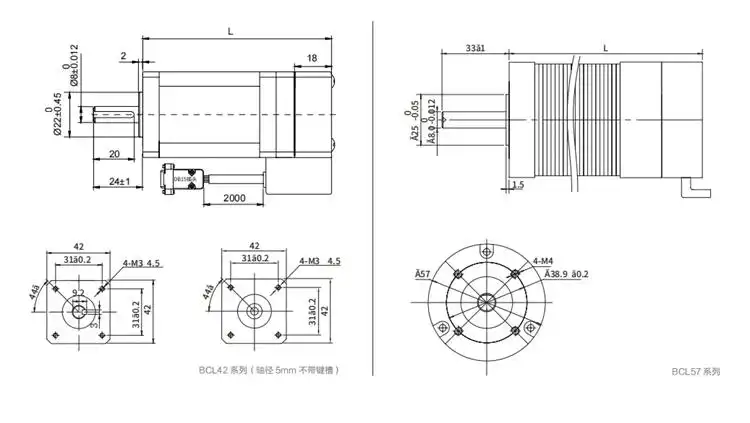

DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
