51V 8000W 200KV Outrunner Sensored Brushless DC Motor

$362.46

Model Type

Power(W)()8000

Voltage (V)()51

Rotation speed(KV)()200

SPECIFICATIONS

51V 8000W 200KV Outrunner Sensored Brushless DC Motor
Model Current Value Number of Batteries (Input Voltage)
FSESC 4.12 Continuous 50A, peak 240A 3S-12S (8V-60V)
FSESC 4.20 Continuous 50A, peak 240A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
FSESC6.7 VESC6.6 single drive integrated Continuous 70A, peak 200A 3S-12S (8V-60V)
VESC4 dual drive integration * 50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel 3S-12S (8V-60V)
ODESC3.6 single drive/dual drive 50A continuous 1-channel, peak 120A 1-channel 3S-12S (8V-60V)
VESC6 dual drive 1-channel 100A continuous, 2-channel 200A continuous1-channel peak 400A, 2-channel total peak 800A 3S-12S (8V-60V)
Single drive V6 75200 Continuous 200A 3S-12S (8V-60V)
Single drive VESC6 waterproof version Continuous 60A, peak 150A 3S-12S (8V-60V)

Note: If you need to learn more details about the ESC controllers, please contact us.

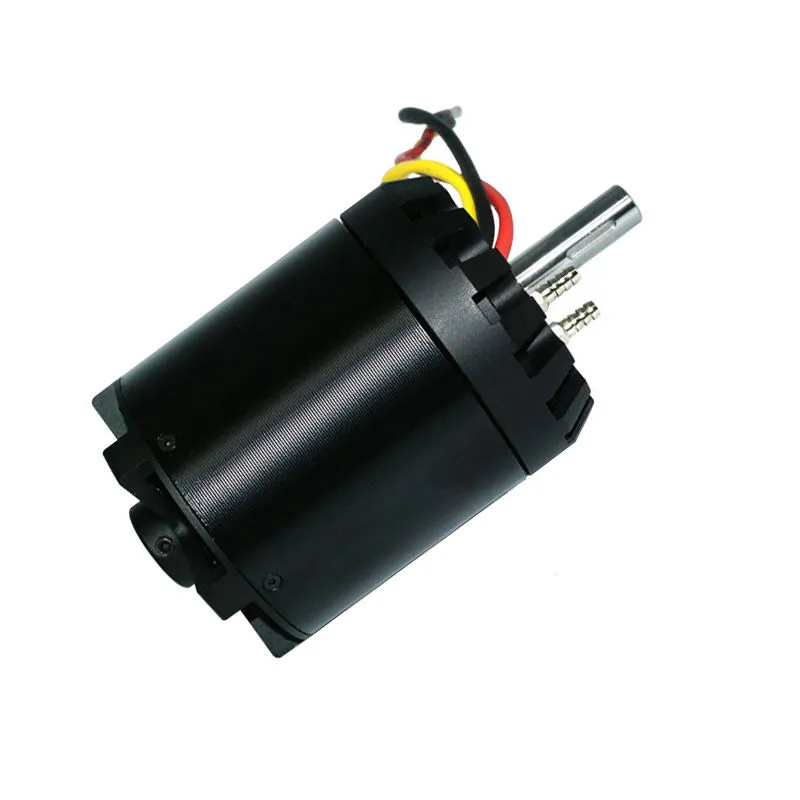

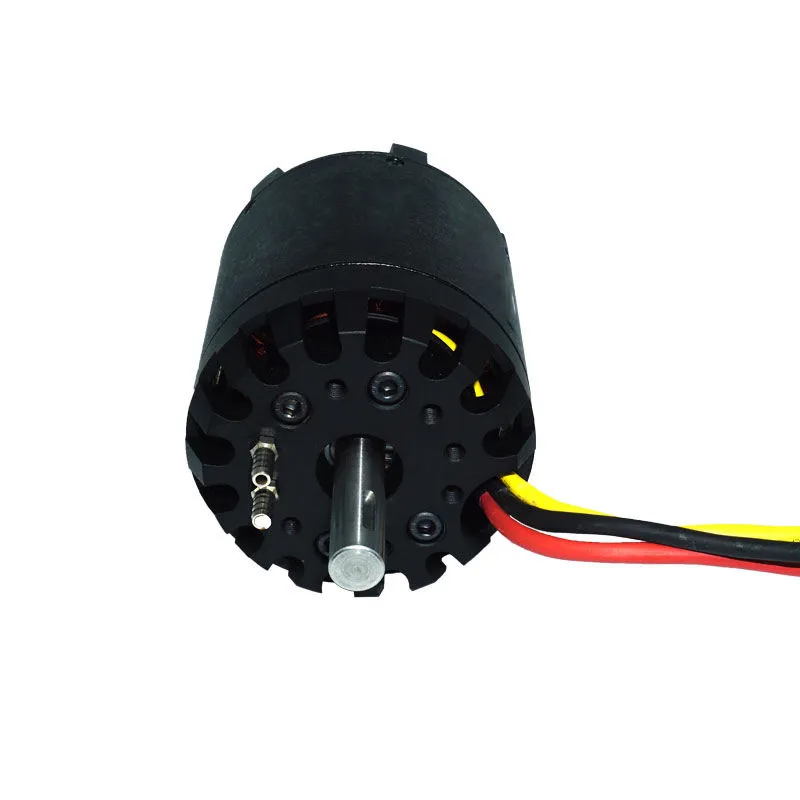

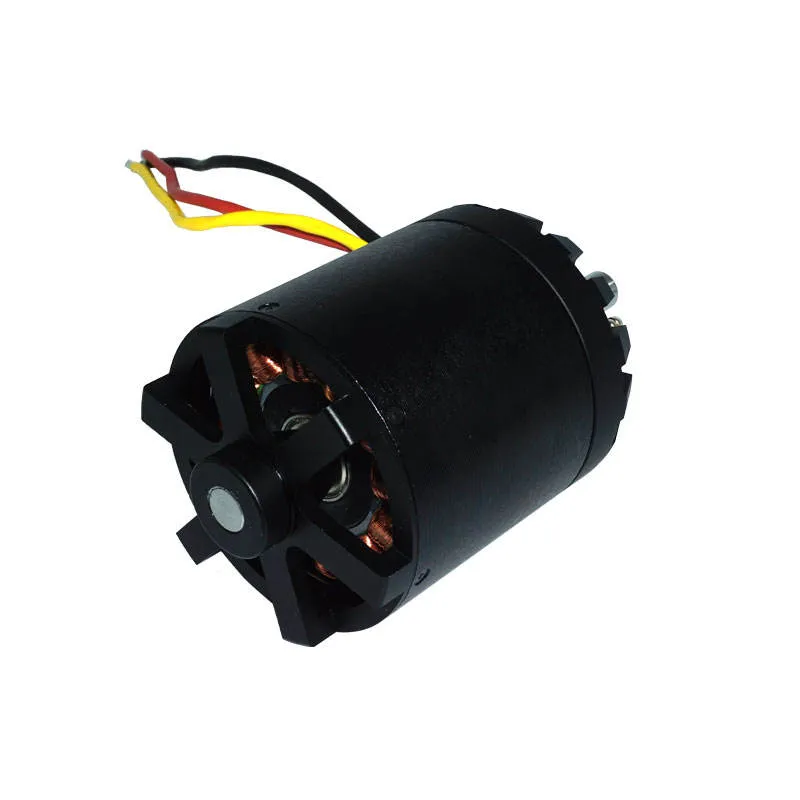

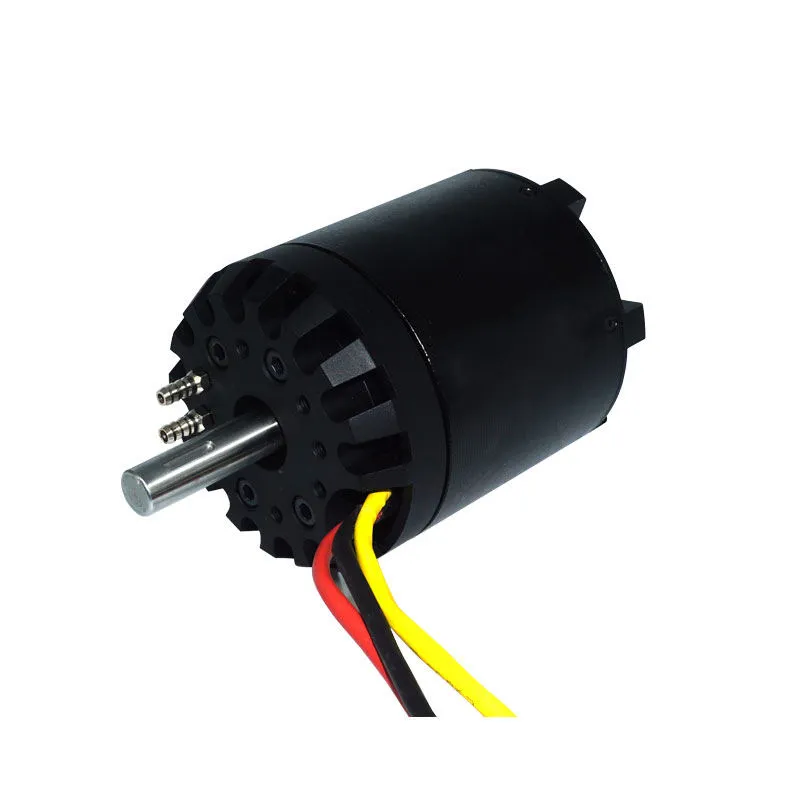

Product Display

Features

Electric skateboard motor provides maximum power 8kW, high torque 18N.m, working voltage DC 51 volts (14S battery power), can enhance your skateboard performance faster and better performance, match with controller, higher efficiency.

  • The speed of the BLDC motor does not exceed the speed of ESC, it can be matched and used.
  • Brushless DC motor speed calculation formula: battery voltage * motor KV value.Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
  • The limit speed of the V4 series ESC is 60000 ERPM.The limit speed of the V6 series ESC is 15000 OERPM.
  • If the maximum speed of the BLDC motor exceeds the speed of the electric speed controller, the ESC can also be matched by reducing the working voltage of the motor. But we do not recommend this, because it does not really play the role of a brushless DC motor.

Product Feature

High Power Output

The 51V 8000W brushless DC motor delivers an impressive power output, ensuring efficient performance for demanding applications.

Sensored Operation

Equipped with sensors for precise control, providing accurate feedback and enhanced motor performance.

High KV Rating

Features a 200KV rating, making it suitable for applications requiring high-speed operation.

Efficient Cooling

Outrunner design provides efficient cooling, ensuring stable performance during continuous operation.

Durable Construction

Constructed with high-quality materials, ensuring durability and long-lasting performance in demanding environments.

Low Noise Operation

Designed for low noise operation, providing a quiet and efficient working environment.

Compact and Lightweight

Compact and lightweight design makes it easy to integrate into various systems without adding excessive weight.

Product Applications

Industrial Automation

Applicable in industrial automation systems, ensuring reliable and efficient motor performance for machinery and equipment.

Marine Applications

Used in marine applications, providing powerful and reliable motor performance for boats and underwater vehicles.

Renewable Energy Systems

Ideal for renewable energy systems, such as wind turbines, offering efficient power generation and control.

Home Appliances

Suitable for high-performance home appliances, providing efficient and reliable motor operation.

Tips: How to stop cogging of 200KV outrunner brushless motor?

Switch to a brushless motor with more poles - the more poles the motor has, the smoother it will run at low speeds (where most cogging happens). This generally makes starting easier and reduces cogging.

Videos

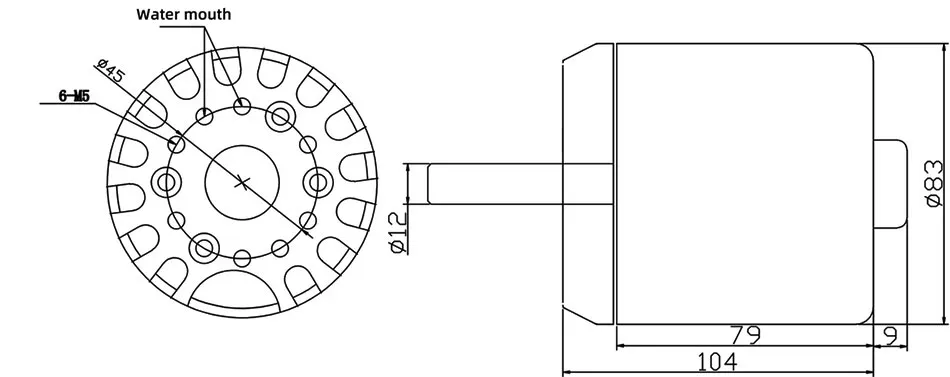

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
DC-Motor-Catalog.pdf55.7MBDownload
