SPECIFICATIONS
| Motor Type Lead Wire Type | Output power W | Voltage V | Frequency Hz | Speed Control Range r/min | Rated Torque | Starting Torque mN.m | Current A | Capacitor μF | ||
| 120r/min mN.m | 120r/min mN.m | |||||||||
| Pinion Shaft | Round Shaft | |||||||||
| 6IK120RGU-AF | 6IK120RA-AF | 120 | 1ph100 | 50 | 90-1400 | 750 | 360 | 530 | 3.65 | 30 |
| 6IK120RGU-AF | 6IK120RA-AF | 120 | 1ph100 | 60 | 90-1700 | 750 | 360 | 530 | 3.65 | 30 |
| 6IK120RGU-EF | 6IK120RA-EF | 120 | 1ph110 | 60 | 90-1700 | 750 | 360 | 520 | 3.3 | 20 |
| 6IK120RGU-EF | 6IK120RA-EF | 120 | 1ph120 | 60 | 90-1700 | 750 | 360 | 520 | 0.23 | 20 |
| 6IK120RGU-CF | 6IK120RA-CF | 120 | 1ph220 | 50 | 90-1400 | 750 | 330 | 530 | 1.55 | 8 |
| 6IK120RGU-CF | 6IK120RA-CF | 120 | 1ph230 | 50 | 90-1400 | 750 | 330 | 530 | 1.55 | 8 |
| 6IK120RGU-HF | 6IK120RA-HF | 120 | 1ph220 | 60 | 90-1700 | 750 | 360 | 530 | 1.65 | 8 |
| 6IK120RGU-HF | 6IK120RA-HF | 120 | 1ph230 | 60 | 90-1700 | 750 | 360 | 530 | 1.65 | 8 |

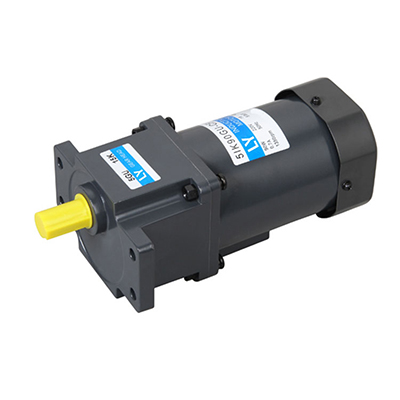

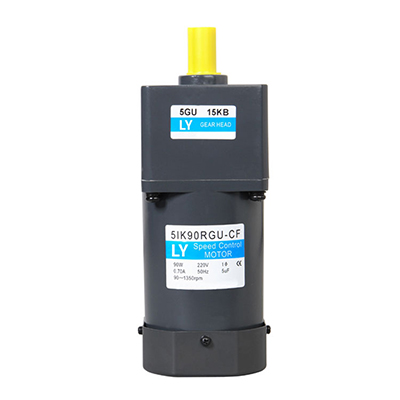

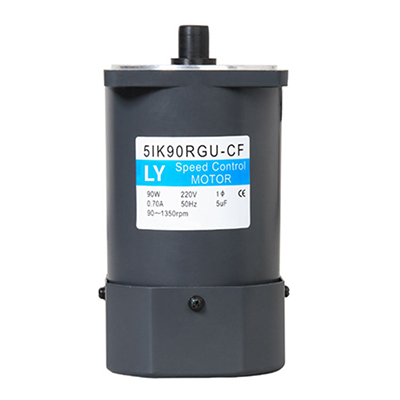

Product Display
Speed adjustable motor is applied with a variable frequency drive or comparable technology to regulate motor speed and torque. Variable speed motors enable goods and manufacturing facilities to significantly decrease the amount of energy spent by the motors in their devices by putting these critical variables of motor performance under the control of the operator.
Product Feature
High Output Power
With an output power of 120W, this motor is capable of performing high-demand tasks, providing ample strength for various applications.
Dual Voltage Compatibility
Designed for versatility, the motor operates on voltages of 100-230V at 50/60 Hz, ensuring it meets global electrical standards.
Speed and Torque Control
Speed adjustable with a range of 90-1700 r/min and supported by a variable frequency drive, the motor offers precise speed control and torque limit adjustment.
Energy Efficiency
Reducing power demand at startup and during operation, this motor is engineered for energy conservation and operational cost savings.
Enhanced Start-Up Characteristics
Features controlled acceleration to reduce mechanical stress and ensure a longer lifespan, along with a controlled current at startup for a smoother operation.
Product Applications
Industrial Automation
Ideal for use in automated machinery or production lines requiring exact control over motor speed and torque.
Energy Saving Systems
Its focus on energy conservation makes it perfect for applications that demand reduction in energy consumption without sacrificing performance.
Torque-Sensitive Operations
Adjustable torque settings are critical for applications involving torque-sensitive processes where precision is key.
Commercial Equipment
It can be deployed in commercial environments for powering conveyors, lifts, and other mechanical systems that value controlled starting and stopping.
Innovative Technology Implementations
Where new technological solutions are integrated, this motor can drive innovation with its adaptable speed and torque control.
