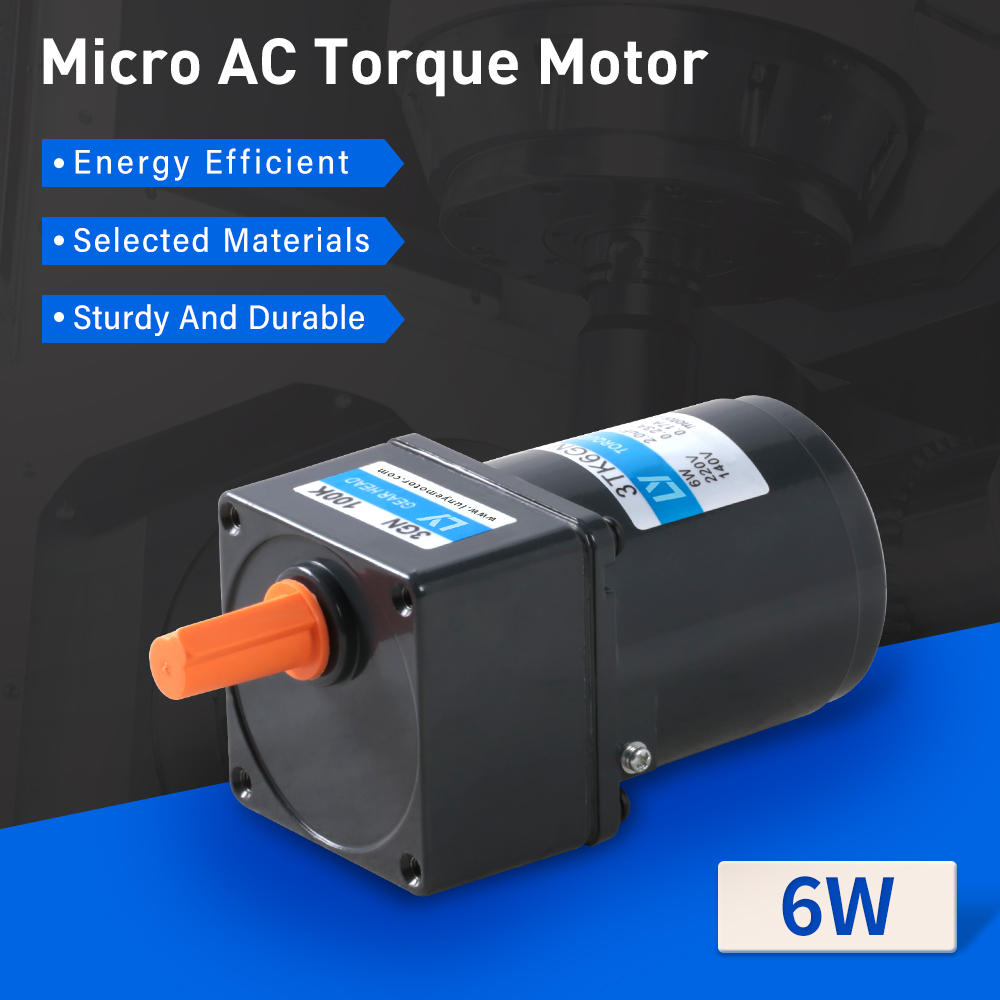

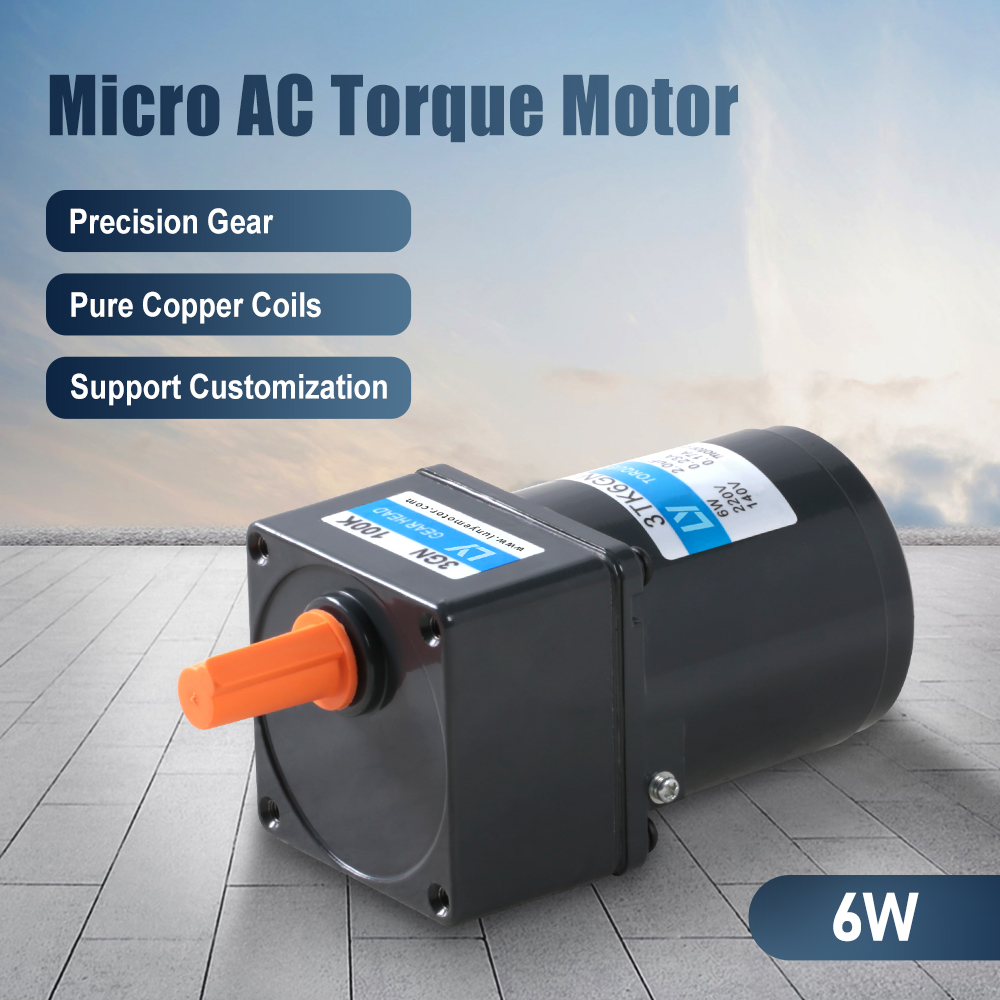

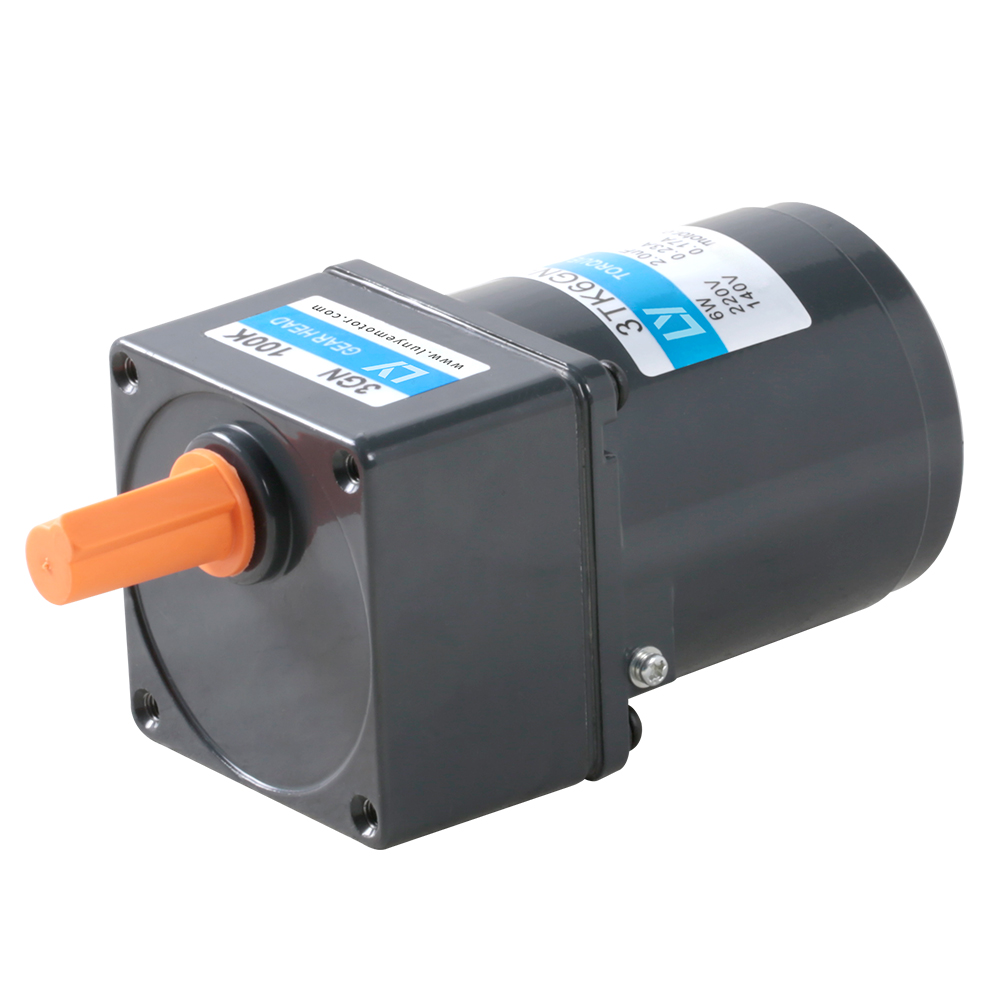

6W Micro AC Low RPM High Torque Motor
$21.67-$22.75
The 6W Micro AC Low RPM High Torque Motor is a reliable, industry-grade motor perfect for applications requiring precise operation at low speeds. It offers up to 6 Watts of power and delivers a high torque-to-inertia ratio with minimum vibration. High radial and axial force capabilities make it a top choice for efficient and dependable operation.
SPECIFICATIONS
| Model Type Lead Wire Type |
Rating At Locked rotor |
Voltage V |
Frequency Hz |
Starting Torque mN.m |
Max. Output power W |
Speed at Max. Output power r/min |
Torque at Max. Output power mN.m |
Capacitor μF |
|
| Pinion Shaft | Roung Shaft | ||||||||
| 2TK3GN-A | 2TK3A-A | 5MIN CONT |
110 60 |
50 | 69 25 |
3.2 1.3 |
750 | 41 16 |
7/250 |
| 2TK3GN-A | 2TK3A-A | 5MIN CONT |
110 60 |
60 | 69 25 |
3.2 1.3 |
900 | 37 11 |
6/250 |
| 2TK3GN-C | 2TK3A-C | 5MIN CONT |
220 140 |
50 | 69 25 |
3.2 1.2 |
750 | 41 16 |
1.5/450 |
| 2TK3GN-C | 2TK3A-C | 5MIN CONT |
220 140 |
60 | 69 25 |
3.2 1.2 |
900 | 37 11 |
1.2/450 |
| 3TK6GN-A | 3TK6A-A | 5MIN CONT |
110 60 |
50 | 134 68 |
6 2.5 |
750 | 80 36 |
8/250 |
| 3TK6GN-A | 3TK6A-A | 5MIN CONT |
110 60 |
60 | 134 68 |
6.5 2.8 |
900 | 74 30 |
7/250 |
| 3TK6GN-C | 3TK6A-C | 5MIN CONT |
220 140 |
50 | 134 68 |
6 2.5 |
750 | 80 36 |
2/450 |
| 3TK6GN-C | 3TK6A-C | 5MIN CONT |
220 140 |
60 | 134 68 |
6.5 2.8 |
900 | 74 30 |
1.5/450 |
| 4TK10GN-A | 4TK10A-A | 5MIN CONT |
110 60 |
50 | 235 74 |
10 3 |
750 | 127 46 |
10/250 |
| 4TK10GN-A | 4TK10A-A | 5MIN CONT |
110 60 |
60 | 69 25 |
10 3 |
900 | 127 38 |
8/250 |
| 4TK10GN-C | 4TK10A-C | 5MIN CONT |
220 140 |
50 | 265 98 |
10 3 |
750 | 127 46 |
2.5/450 |
| 4TK10GN-C | 4TK10A-C | 5MIN CONT |
220 140 |
60 | 225 90 |
10 3 |
900 | 127 38 |
2/450 |
| 5TK20GN-A | 5TK20A-A | 5MIN CONT |
110 60 |
50 | 363 137 |
20 6 |
750 | 224 76 |
15/250 |
| 5TK20GN-A | 5TK20A-A | 5MIN CONT |
110 60 |
60 | 294 108 |
26 6 |
900 | 216 64 |
12/250 |
| 5TK20GN-C | 5TK20A-C | 5MIN CONT |
220 140 |
50 | 363 137 |
20 6 |
750 | 224 76 |
3.5/450 |
| 5TK20GN-C | 5TK20A-C | 5MIN CONT |
220 140 |
60 | 216 64 |
26 6 |
900 | 216 64 |
3/450 |
Product Display
Torque motors have a high starting torque and torque motors have a high starting torque and sloping characteristics, allowing easy speed control simply by changing the power supply voltage. (The motor torque varies approximately in proportion to the voltage square.)
Product Feature
Superior Torque Output
Introducing our 6W Micro AC Gear Motor, engineered to deliver an impressive torque output of 16Nm. This motor is built for tasks that demand high torque, ensuring reliable performance even in the most challenging conditions. Ideal for heavy-duty applications, it guarantees efficiency and endurance.
Variable Speed for Precision Control
With its wide speed range of 0-135RPM, this micro AC motor offers exceptional control over your applications. The ability to adjust motor speeds according to specific demands makes it infinitely adaptable, suitable for a variety of scenarios. Experience unparalleled performance and versatility.
Effortless Bidirectional Operation
Our motor's reversible gear design allows for smooth direction changes, catering to equipment that necessitates rotational direction shifts. Its bidirectional operation is perfect for conveyor systems, hoists, and more, offering flexibility and convenience in operations.
Designed for Energy Efficiency
Maximize energy savings with our 6W Micro AC Motor. Its energy-efficient design aims to reduce operational costs, making it ideal for continuous industrial use. Minimize energy consumption, optimize resource utilization, and contribute to sustainability with this eco-friendly choice.
Product Applications
Reliable Industrial Machinery Performance
Our Micro AC Motor meets the rigorous demands of heavy machinery, offering consistent power and adaptability. Capable of withstanding demanding industrial environments, it provides reliable operation in conveyor systems, mixers, and other heavy-duty equipment.
Robotics Precision
With precise control and variable speed, this motor is an exceptional choice for robotics. It enables accurate movement and positioning, ideal for industrial automation, collaborative robots (cobots), and various robotic systems.
Versatile in Automotive Applications
In the automotive sector, our Micro AC Motor excels in tasks requiring torque and reversibility. It enhances assembly lines and maintenance platforms, ensuring robust and versatile motor operation.
Agricultural Equipment Efficiency
This motor seamlessly integrates into agricultural machinery, proving essential for high-torque applications. It powers conveyors, grain augers, harvesters, and feed mixers, offering strength and reliability for agricultural tasks.
Home Appliance Manufacturing Excellence
For home appliance manufacturers, our Micro AC Motor stands out for its adaptability and efficiency. Perfect for appliances requiring silent operation, durability, and precise control—like washers, dryers, and dishwashers.
