72V 10kW Air Cooling BLDC Motor For Electric Vehicle
$2-$108.57
This small-sized air-cooled brushless motor offers optional rated voltages of 48V/72V/96V/120V, catering to different power requirements. With a rated speed range of 2000-6000 rpm and an impressive efficiency rating of 91%, this motor delivers exceptional performance.
SPECIFICATIONS
![72V 10kW Air Cooling BLDC Motor For Electric Vehicle](/static/images/products/72v-10kw-air-cooling-bldc-motor-for-electric-vehicle-5.webp)
Model: | BLDC-HPM-10KW |
Voltage: | 48V/ 72V/ 96V/ 120V |
Rated Power: | 8kW-20kW |
Rated Current: | 245A/165A/125A/95A |
Max Phase Current: | 500A/500A/400A/300A |
Protection Class: | IP54 |
Efficiency: | 91% |
Phase Resistance (Milliohm): | 3.1/48V; 6.0/72V; 18.0/120V |
Phase Induction(100KHZ): | 34uH/48V; 77uH/72V; 252uH/120V |
Rated Speed: | 3700 rpm (customizable) |
Cooling Method: | Air-cooled |
Casing: | Alu Smartum |
Length (height): | 170mm |
Diameter: | 206mm |
Weight: | 17 kg |
Product Display
Upgrade your electric vehicle with a high-efficiency 10kW brushless DC motor. This air-cooled motor operates at 72V and offers a rated speed range of 2000-6000 rpm, which can be customized to suit your specific requirements. It is suitable for a wide range of applications, including cars, motorcycles, golf carts, ATVs, UTVs, and yachts.
With its high efficiency, this brushless DC motor optimizes power output while minimizing energy consumption. The air-cooled design ensures effective heat dissipation, enhancing overall performance and reliability. Whether you're looking to enhance the speed and power of your electric vehicle or upgrade other electric-powered applications, this 10kW brushless DC motor is a versatile choice.
Product Feature
High Power Output
This air-cooled BLDC motor delivers an impressive power output of 10kW, providing ample propulsion for electric vehicles.
Efficient Cooling
Equipped with an air-cooling system, this motor effectively dissipates heat during operation, ensuring optimal performance and longevity.
Compact Design
Despite its high power output, this motor features a compact design, making it suitable for integration into various types of electric vehicles.
Regenerative Braking Support
Designed to support regenerative braking systems, this motor allows for energy recapture during braking, improving overall efficiency and range of electric vehicles.
Product Applications
Electric Vehicles
Specifically designed for electric vehicles, this BLDC motor serves as a reliable and powerful propulsion system, offering enhanced performance and efficiency.
Electric Scooters
With its high power output and compact design, this motor is ideal for electric scooters, providing smooth acceleration and improved riding experience.
Electric Motorcycles
Whether used in commuter bikes or performance motorcycles, this motor offers the necessary power and performance for electric motorcycle applications, delivering exhilarating rides.
Electric Tricycles
From cargo tricycles to passenger carriers, this motor is suitable for electric tricycle applications, providing efficient and reliable propulsion for various transportation needs.
![72V 10kW Air Cooling BLDC Motor For Electric Vehicle](/static/images/products/3kw-water-cooling-bldc-motor-for-electric-vehicle-6.webp)
Tips: Which BLDC motor is used in electric vehicle?
Brushless direct current (BLDC) motoris one of the popular motors in the industry and automotive. In automotive, this motor is often used in an electric vehicle (EV) due to its high efficiency.
Related Products
Videos

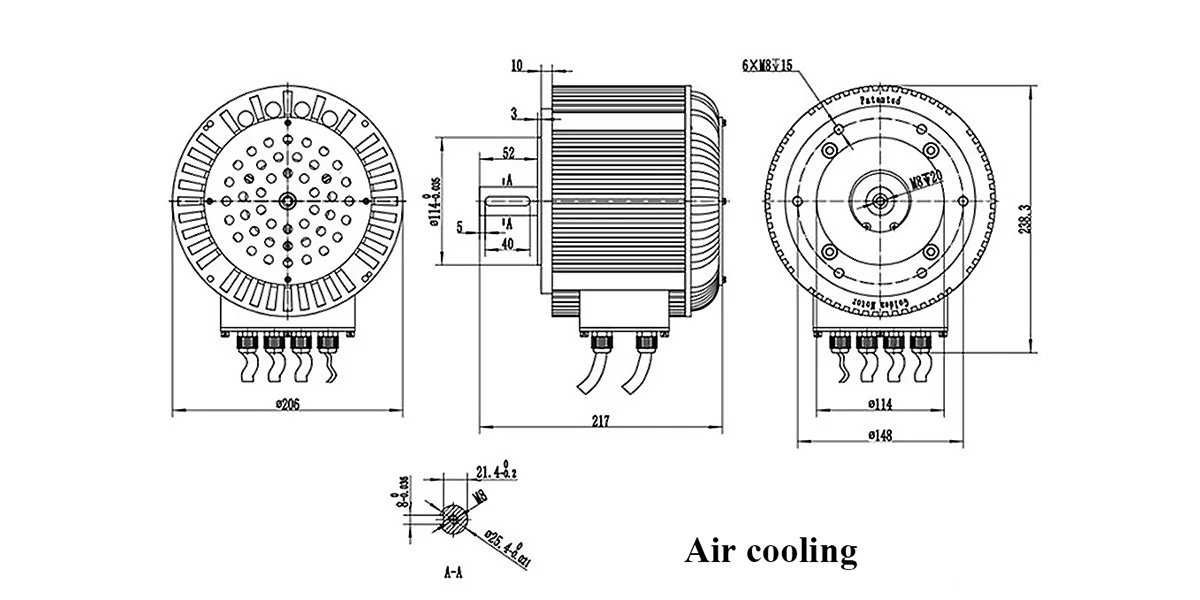

DIMENSIONS
Technical Documents Downloads
File Name | Size | Download |
DC-Motor-Catalog.pdf | 55.7MB | Download |
