80MM 750W 220V 3000RPM DS2 Servo Motor and Driver

$300-$337

This reliable 750W 80mm DS2 Servo Motor and Driver is designed for precision motion and ease of integration. Its high torque and smooth operation make it an ideal choice for industrial automation applications.

Get a QuoteLeave a Message

Model TypeServo Motor

Voltage(V)220

Output(W)750

Size(mm)80

Speed(RPM)3000

SPECIFICATIONS

Rated power [kW] 0.75
Rated voltage [V] 220
Rated torque [Nm] 2.39
Maximum torque [Nm] 8.4
Rated current [A] 4.44
Maximum current [A] 15.6
Rated speed [rpm] 3000
Maximum speed [rpm] 6000
Rotor inertia [10-⁴kg.m²] 1.49
Brake rated power [W] 8.5
Brake rated voltage [V] 24
Brake holding torque [Nm] 2.39

Voltage (V) Power Driver Model Flange(mm) Motor Model Rated Speed (rpm) Rated torque(N*m)
220V 100W DS2P-01AS 40 DM1M-01A40I8S 3000 0.32
200W DS2P-02AS 60 DM1M-02A60I8S 3000 0.64
400W DS2P-04AS 60 DM1M-04A60I8S 3000 1.27
750W DS2P-08AS 80 DM1M-08A80I8S 3000 2.39
1KW DS2P-10AS 80 DM1M-10A80I8S 3000 3.18
1KW DS2P—10AS 130 DMIS-10A13018S 2000 4.77
1.5KW DS2P—15AS 130 DMIS-15A13018s 2000 7.16
2KW DS2P—20AS 130 DMIS-20A13018S 2000 9.55

Product Display

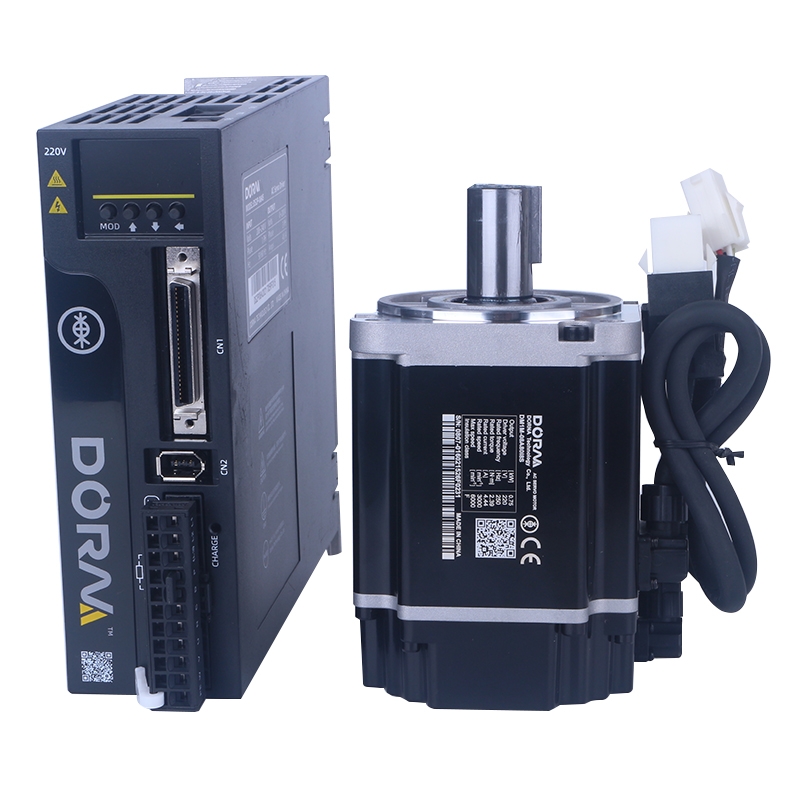

750W 80mm Servo Motor and Driver

Product Feature

  • 1. High Performance---Max Speed 6000rpm, Max Speed 6000rpm;
  • 2. 23-Bit Encoder----23-Bit absolute optical encoder, 8 millon ppr resolution up to 0.15arc/sec;
  • 3. IP67---Up to IP67 Protection class;
  • 4. High Vibration Resistance--Magnetic encoder can work in vibrations up to 20g;

Product Applications

750W 80mm Servo Motor and Driver

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
80mm-750w-220v-3000rpm-ds2-servo-motor-and-drive-dimensions-3.STEP6349KBDownload
80mm-750w-220v-3000rpm-ds2-servo-motor-and-drive-dimensions-4.STEP6196KBDownload
Servo-Motor-Catalog.pdf26.1MBDownload
