8000N 50-800MM 7.5-20mm/s linear actuator
$89-$247
This 8000N linear actuator is a 50-800MM model with a speed range of 7.5-20mm/s, making it ideal for applications which require great control and consistent motion. Its hardened steel construction and precision manufacturing techniques provide exceptional reliability and durability.
SPECIFICATIONS
| Input Voltage | 72V /48V/36V/24V/ 12V DC |
| Load Capacity | 8000N |
| Max Speed | 7.5mm/s-20mm/s |
| Stroke | Customize |
| Type Of Duty | 10%,2min.on/18min.off |
| Limit switches | Inner |
| Operation Temperature | -15℃~45℃ |
| Protection Class | IP67 |
If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage, usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!
Product Display

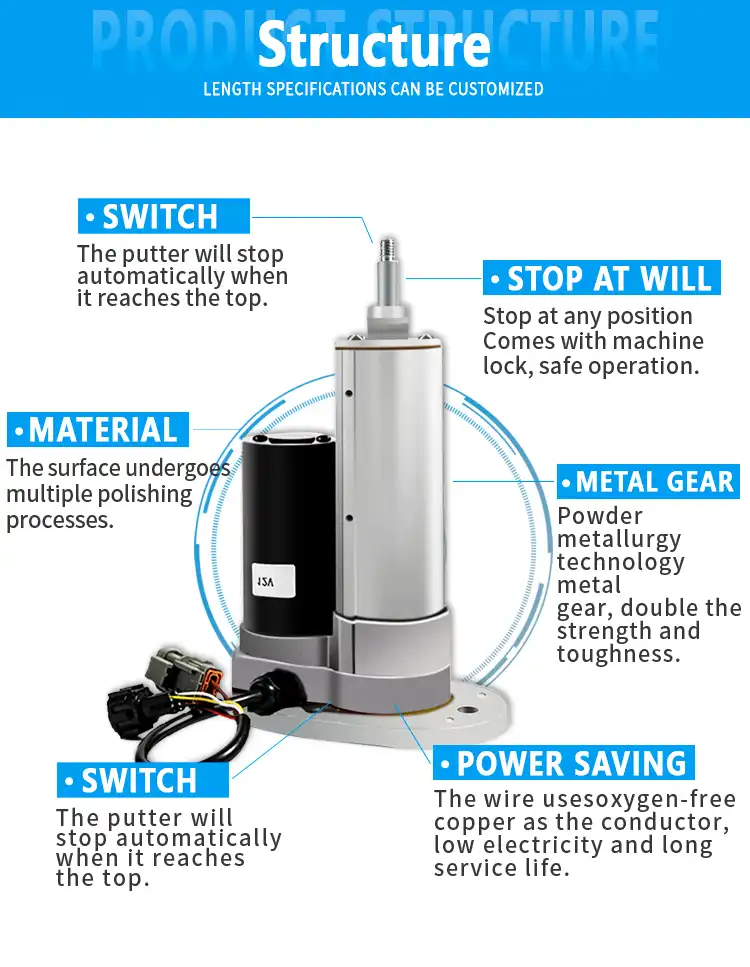

LY015C 8000N 50-800MM 7.5-20mm/s linear actuator low-noise permanent magnet DC motor driven worm gear and worm drive mechanical lift. It has the characteristics of small size, lighter weight, large torque and large stroke. The range of travel options is large, and with the controller, any height adjustment in the lifting position can be realized, meeting the needs of free adjustment of the lifting height of the product. It is most widely used in the fields of display stand, medical equipment, mechanical equipment and so on.
Product Feature
High Load Capacity
Capable of handling loads up to 8000N.
Customizable Stroke Length
Available in stroke lengths from 50mm to 800mm.
Variable Speed
Speed range of 7.5-20mm/s for flexible operation.
Multiple Voltage Options
Compatible with 72V, 48V, 36V, 24V, and 12V DC power supplies.
Durable Construction
Made with aluminum alloy material for a compact and lightweight design.
Built-in Limit Switches
Features inner limit switches for automatic stopping at the end of stroke.
Product Applications
Furniture Field
Sofas, chairs for the elderly, lazy chairs, foot bath chairs, home beds, beauty beds, massage chairs, massage beds, TV racks, electric beds, theater sofas, etc.
Office Furniture Field
Desks, smart desks, cabinets, office chairs, projection instruments, laboratory tables, work tables, etc.
Industrial Technology Field
Door opener, window opener, sweeper, agricultural harvester, yacht, automobile, stage, etc.
