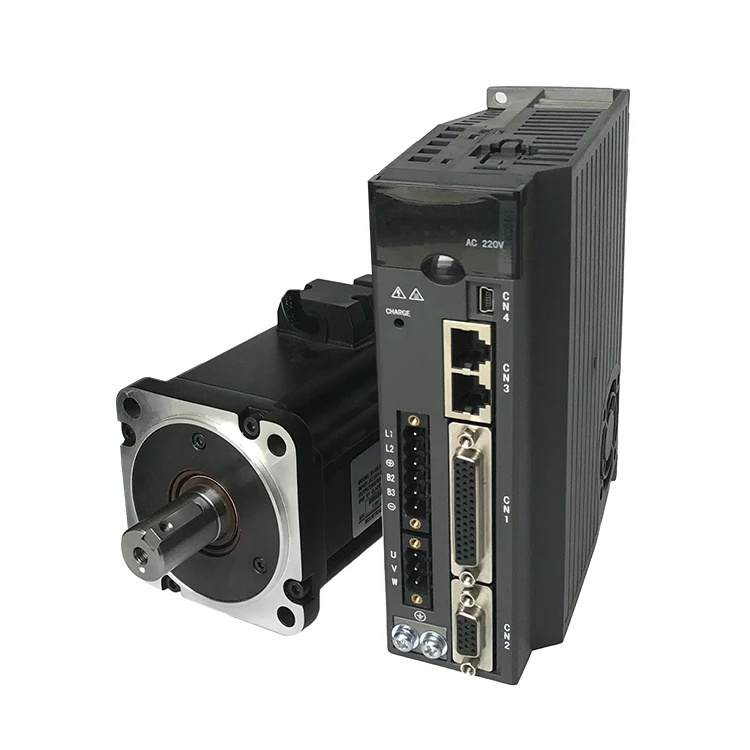

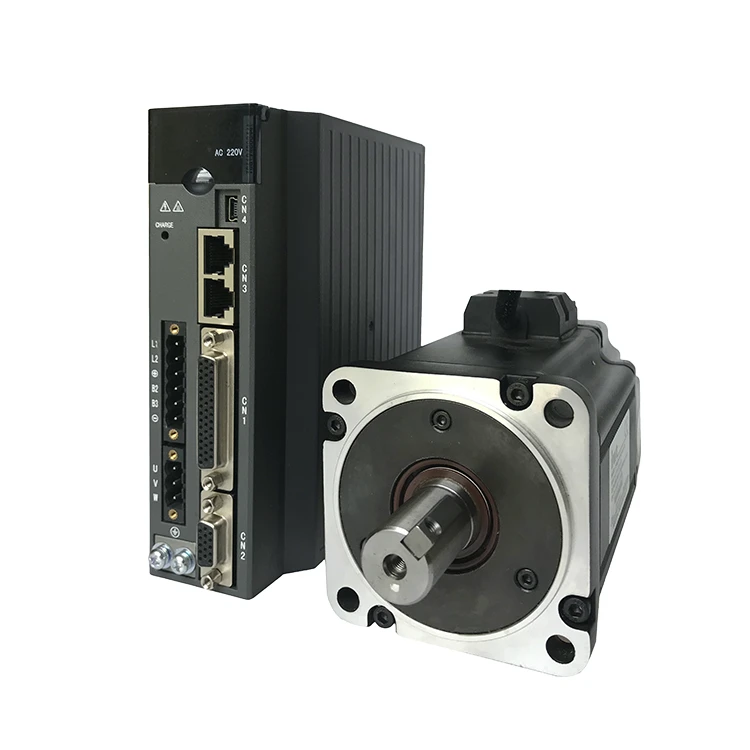

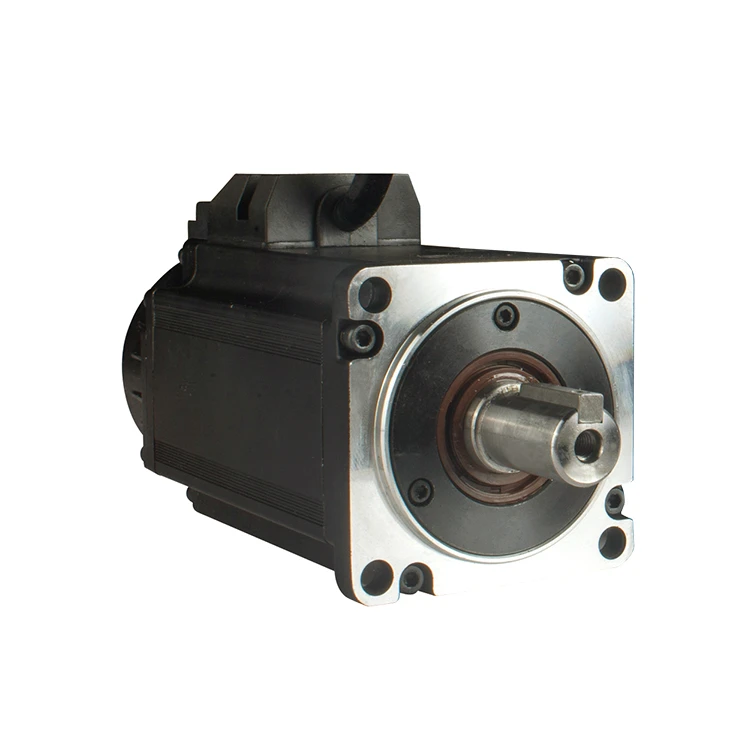

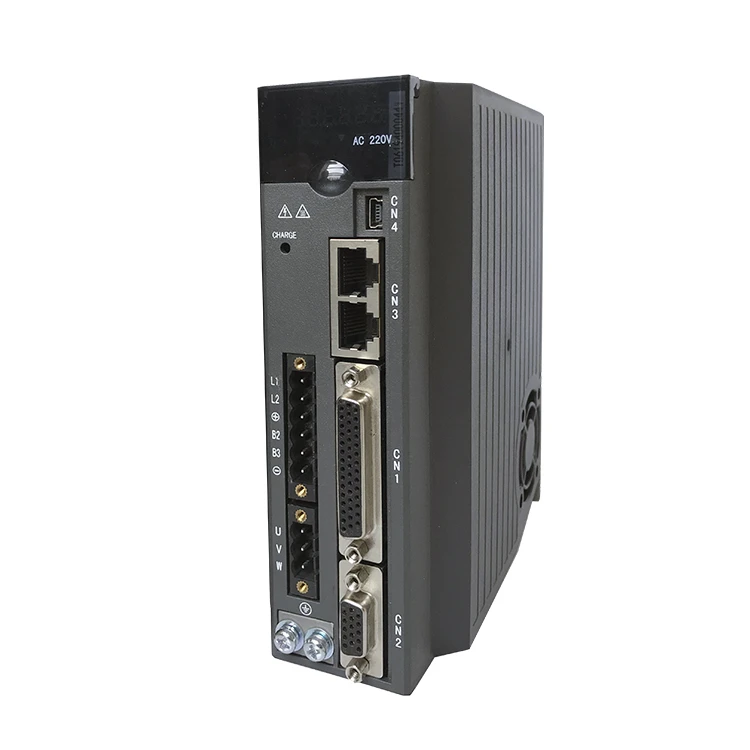

80MM 750W 220V 3000RPM DA180 Servo Motor And Drive
$177-$256
The 80Mm 750W 220V 3000Rpm Da180 Servo Motor And Drive Dimensions offers a powerful and precise solution. The servo motor and drive combination provides high torque with 750W power and runs at a rapid 3000RPM. With an 80mm size and 220V power supply, it's suitable for industries like manufacturing, robotics, and automation. It can operate in a wide range of temperatures and environments, ensuring reliability in both indoor and outdoor settings.
SPECIFICATIONS
| Rated Voltage | 220V AC |
| Rated Power | 0.75kW |
| Rated Torque | 2.38N.m |
| Peak Torque | 8.36N.m |
| Rated Current | 4.6±10%Arms |
| Peak Current | 16.3±10%Arms |
| Rated Speed | 3000RPM |
| Maximum Speed | 6000RPM |
| Torque Coefficient | 0.52±10%N.m/Arms |
| Back EMF Constant | 34.4±10%V/KRPM |
| Line-to-Line Resistance | 0.945±10%Ω |
| Line-to-Line Inductance | 5.6/4.5±20%mH |
| Rotor Inertia | 1.72/1.77±10%Kg.m2x10‾⁴ |
| Number of Poles | 5 Pole pair |
| Motor Protection Class | IP67 |
| Holding Brake Operating Voltage | 24V DC |
| Insulation Class | F |
| Insulation Resistance | >10MΩ DC500V |
| Rotation Direction | CCW |
| Motor Weight | 2.2/2.9Kg |
| Operating Temperature | 0℃-40℃ |
| Storage Humidity | 20%-80% |
