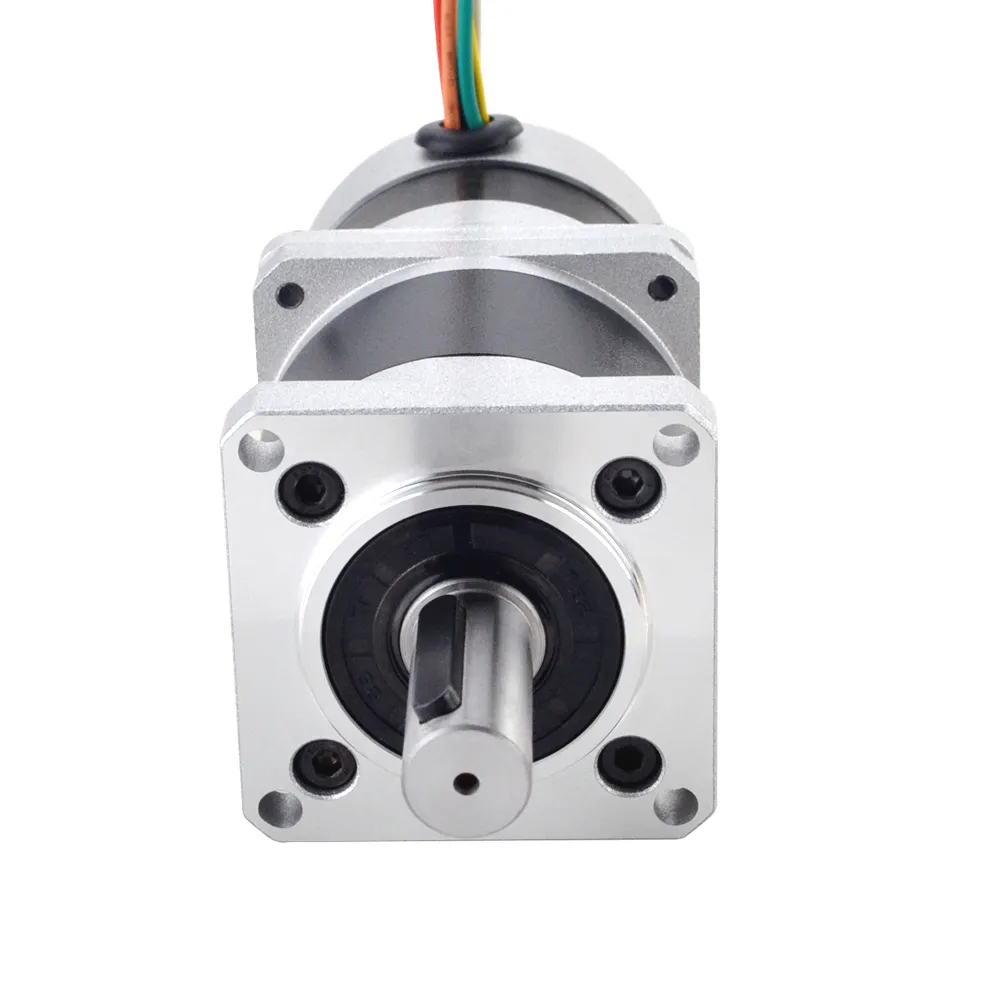

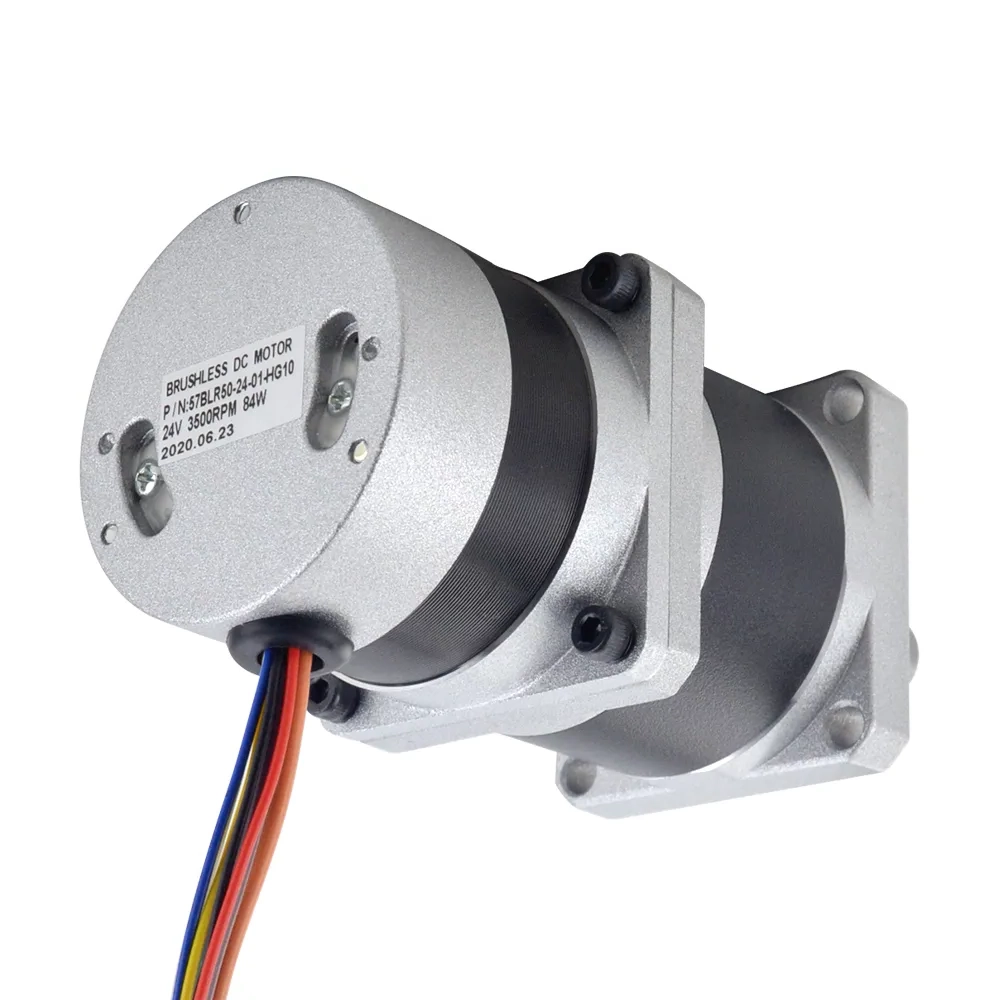

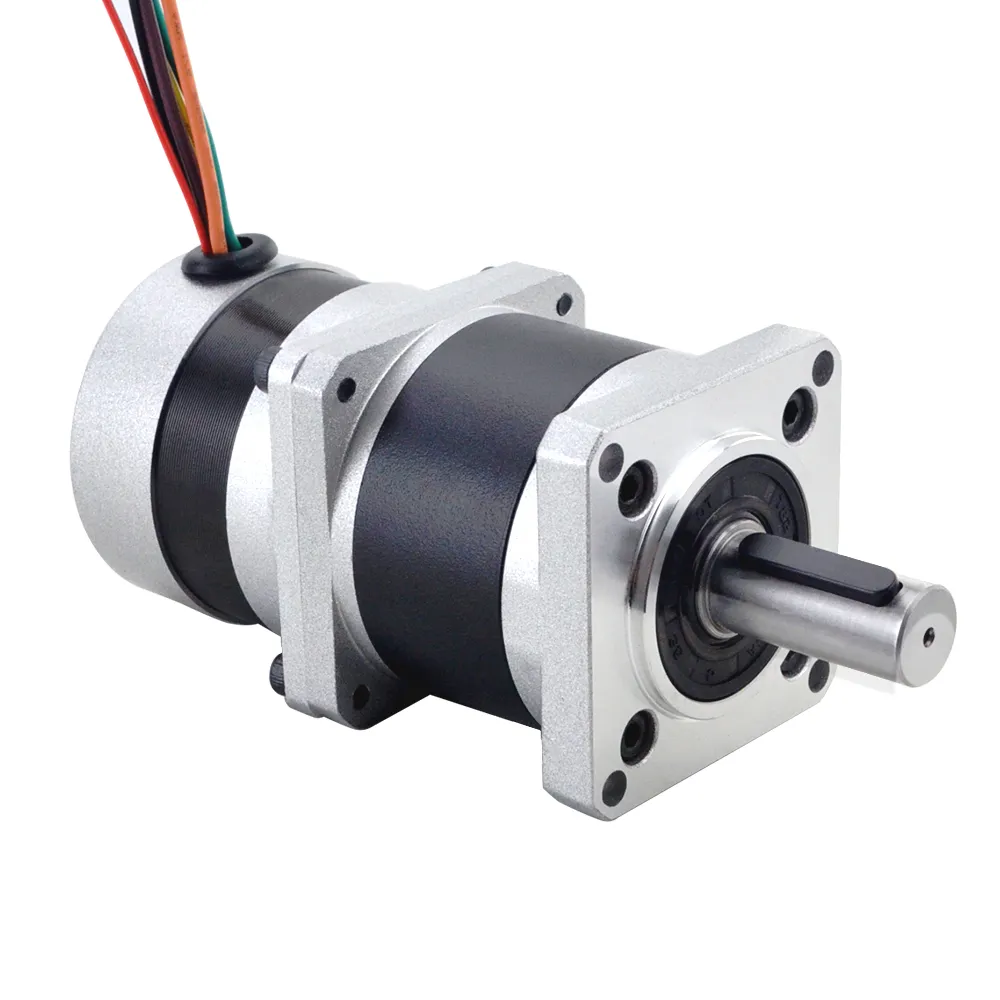

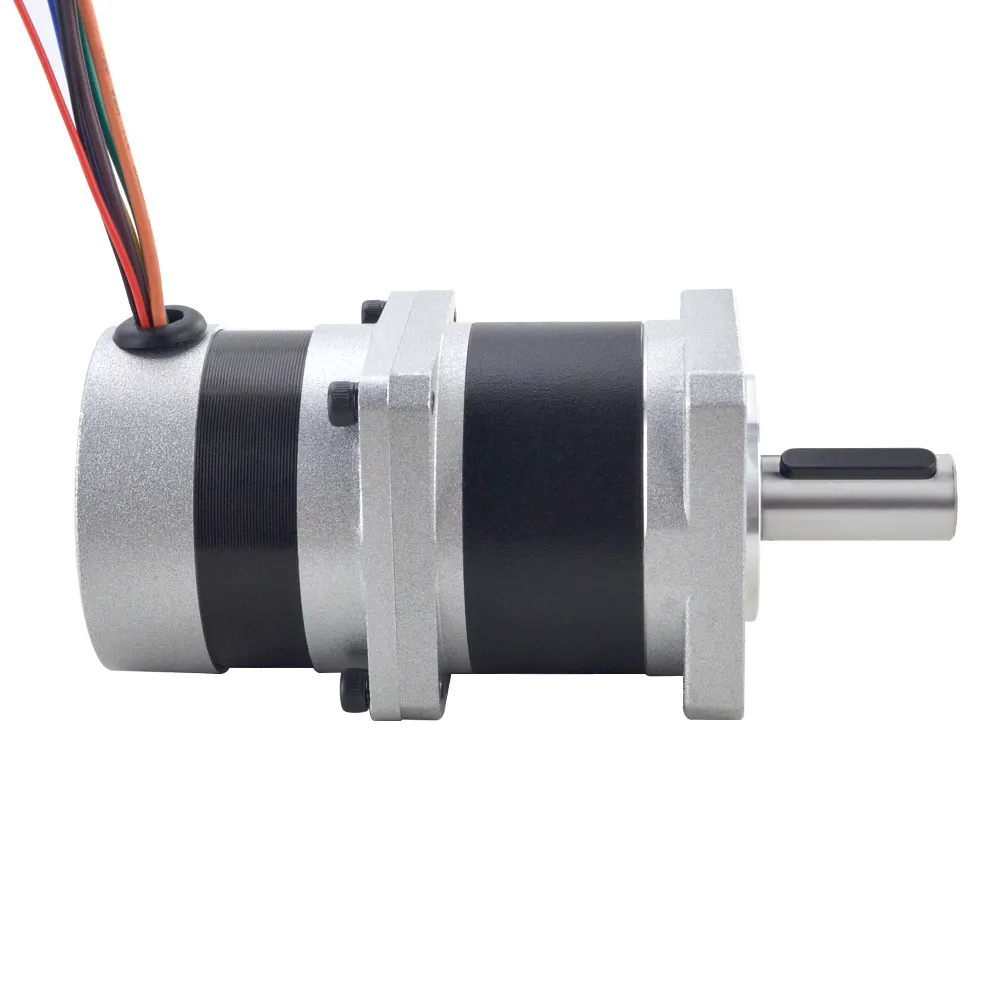

84W 24V 350RPM 1.89Nm Geared Brushless DC Motor
$37.62
84W 24V 350RPM 1.89Nm Geared Brushless DC Motor, a high-torque and efficient solution designed for applications that require both power and precision. With its optimized gear ratio and brushless DC motor technology, this motor delivers enhanced torque output and precise speed control. Perfect for tasks such as robotics, automation systems, and electric vehicles.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 57BLR50-24-01-HG10 |
| Phase | 3 |
| Poles | 4 |
| Product Type | Geared BLDC Motor |
| Rated Current(A) | 5.0 |
| Rated Power(W) | 84 |
| Rated Speed(rpm) | 350 |
| Rated Torque(Nm) | 1.89 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | Yes |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 49.1 |
| Gear Ratio(xx:1) | 10 |
| Backlash at No-load | <=0.8 deg |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 1.11kg |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 10 : 1 |
| Efficiency | 85% |
| Backlash at No-load | <=0.8deg |
| Max. Permissible Torque | 6Nm(849.7oz.in) |
| Moment Permissible Torque | 12Nm(1699.68oz.in) |
| Max. Radial Load | 250N |
| Insulation Class | B |
| Noise | =50dB |
| Ambient Temperature | 0 - 50℃ |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| DC-Motor-Catalog.pdf | 55.7MB | Download |
