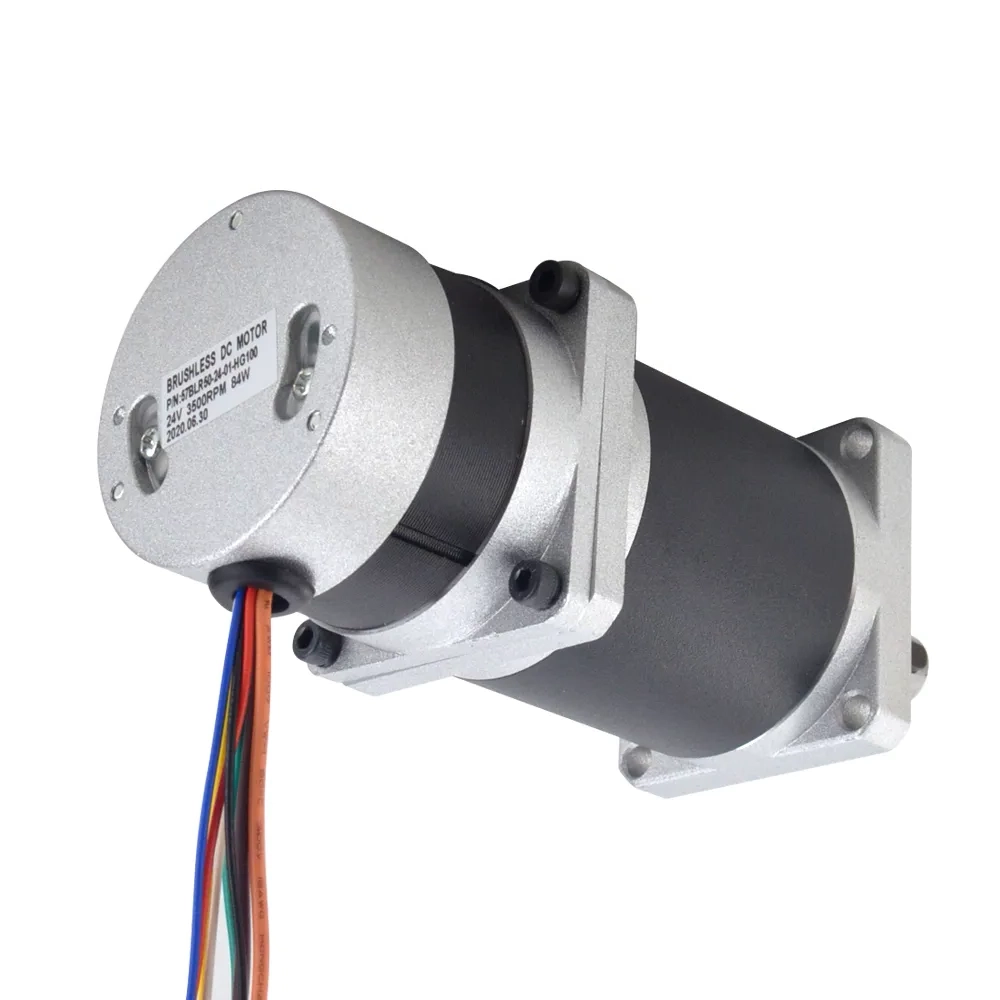

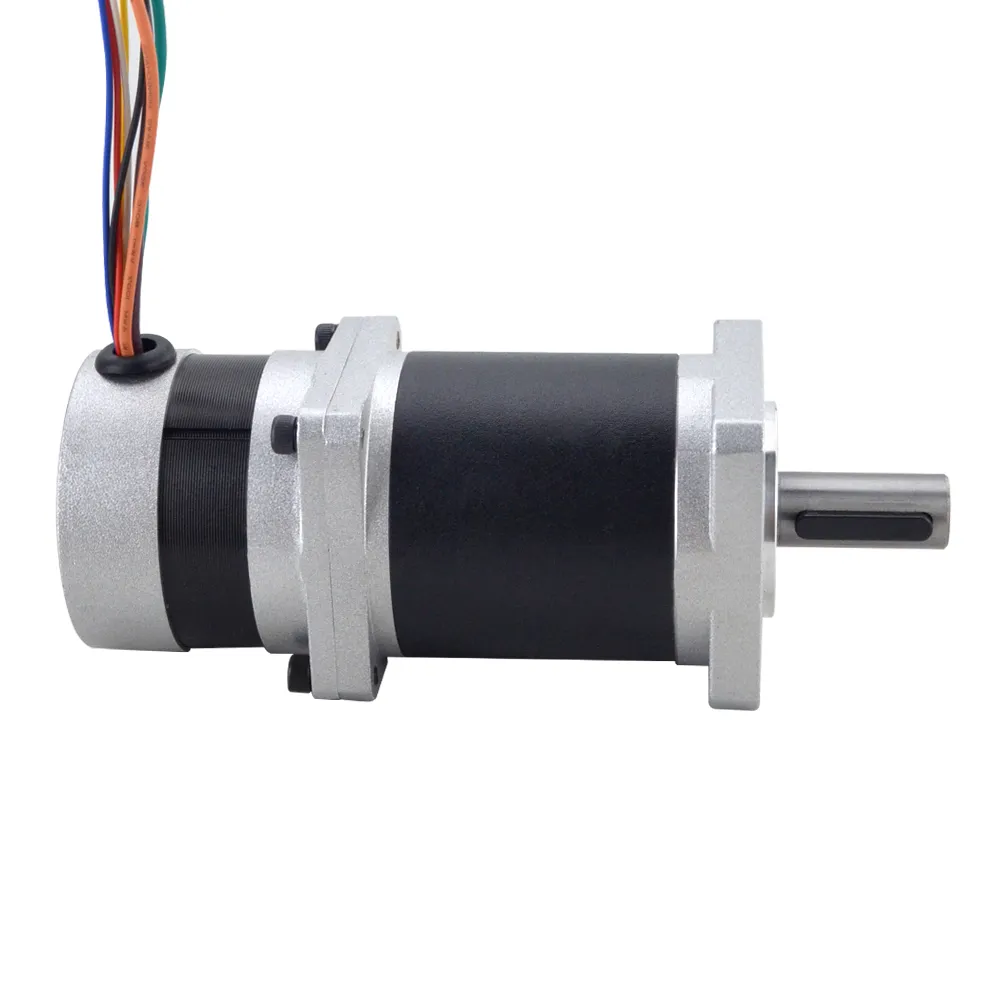

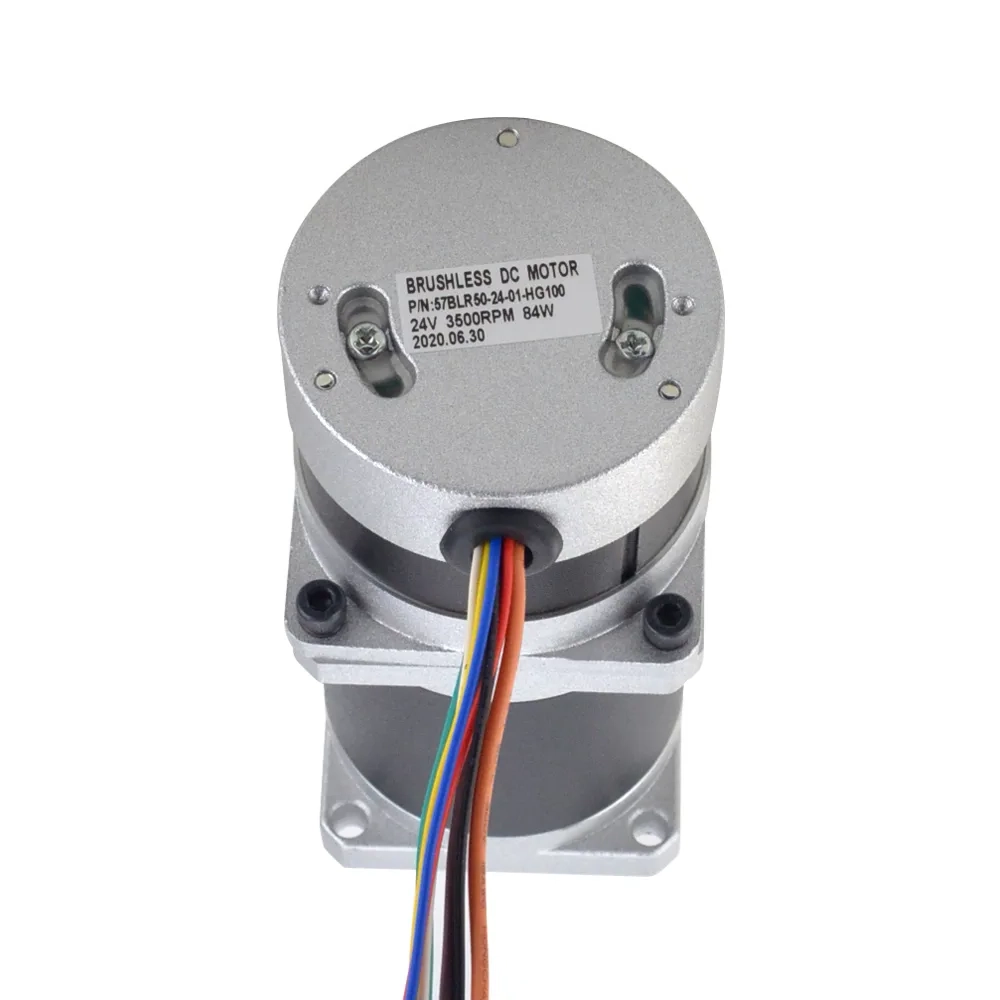

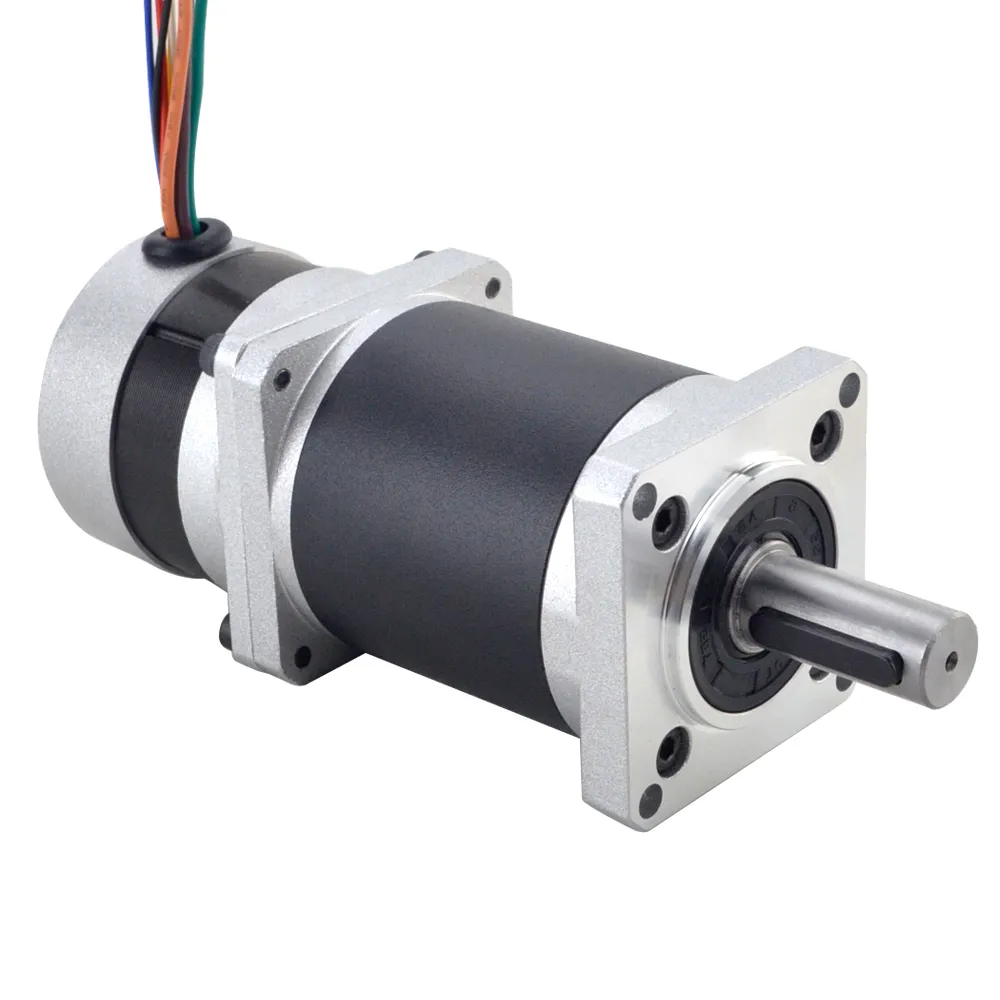

SPECIFICATIONS
Electrical Specification
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 57BLR50-24-01-HG100 |
| Phase | 3 |
| Poles | 4 |
| Product Type | Geared BLDC Motor |
| Rated Current(A) | 5.0 |
| Rated Power(W) | 84 |
| Rated Speed(rpm) | 35 |
| Rated Torque(Nm) | 14.95 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | Yes |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 49.1 |
| Gear Ratio(xx:1) | 100 |
| Backlash at No-load | <=0.8 deg |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 25 |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 1.43kg |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 100 : 1 |
| Efficiency | 65% |
| Backlash at No-load | <=2.4deg |
| Max. Permissible Torque | 25Nm(3541oz.in) |
| Moment Permissible Torque | 50Nm(7082oz.in) |
| Max. Radial Load | 250N |
| Insulation Class | B |
| Noise | <=50dB |
| Ambient Temperature | 0 - 50℃ |
