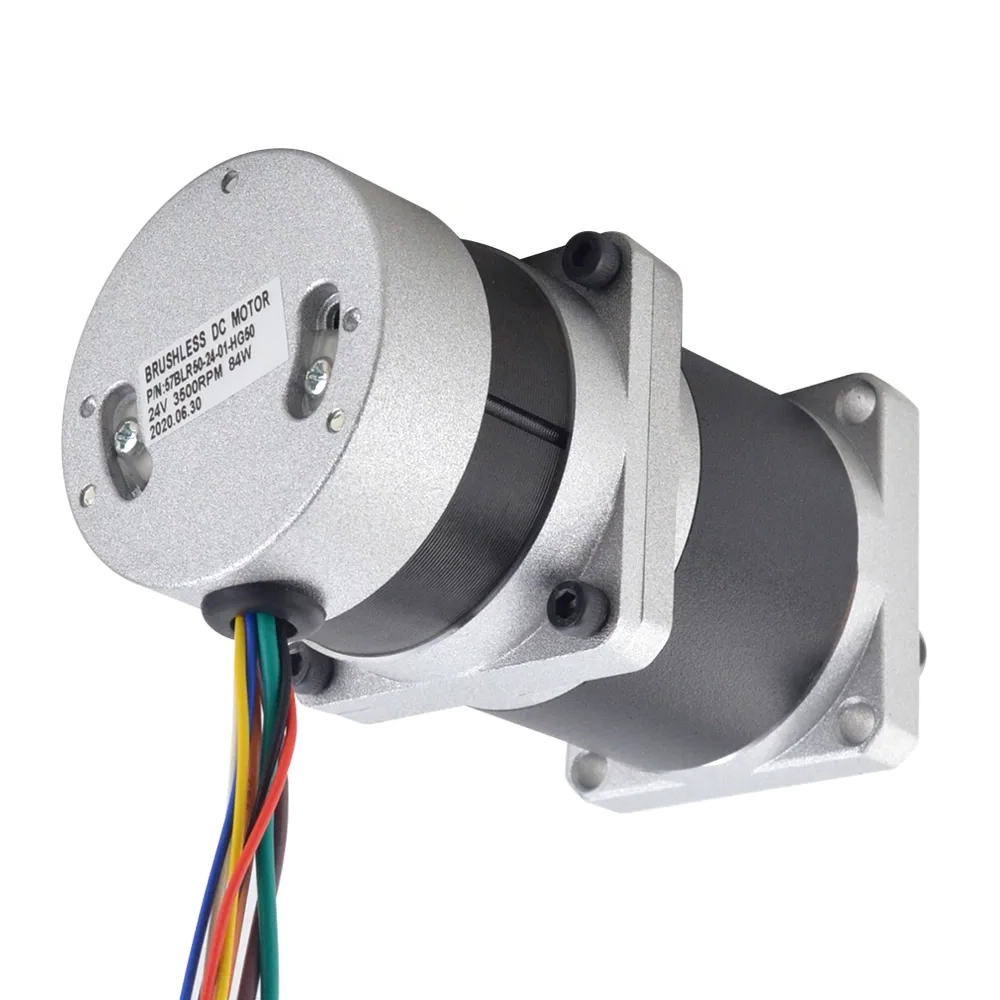

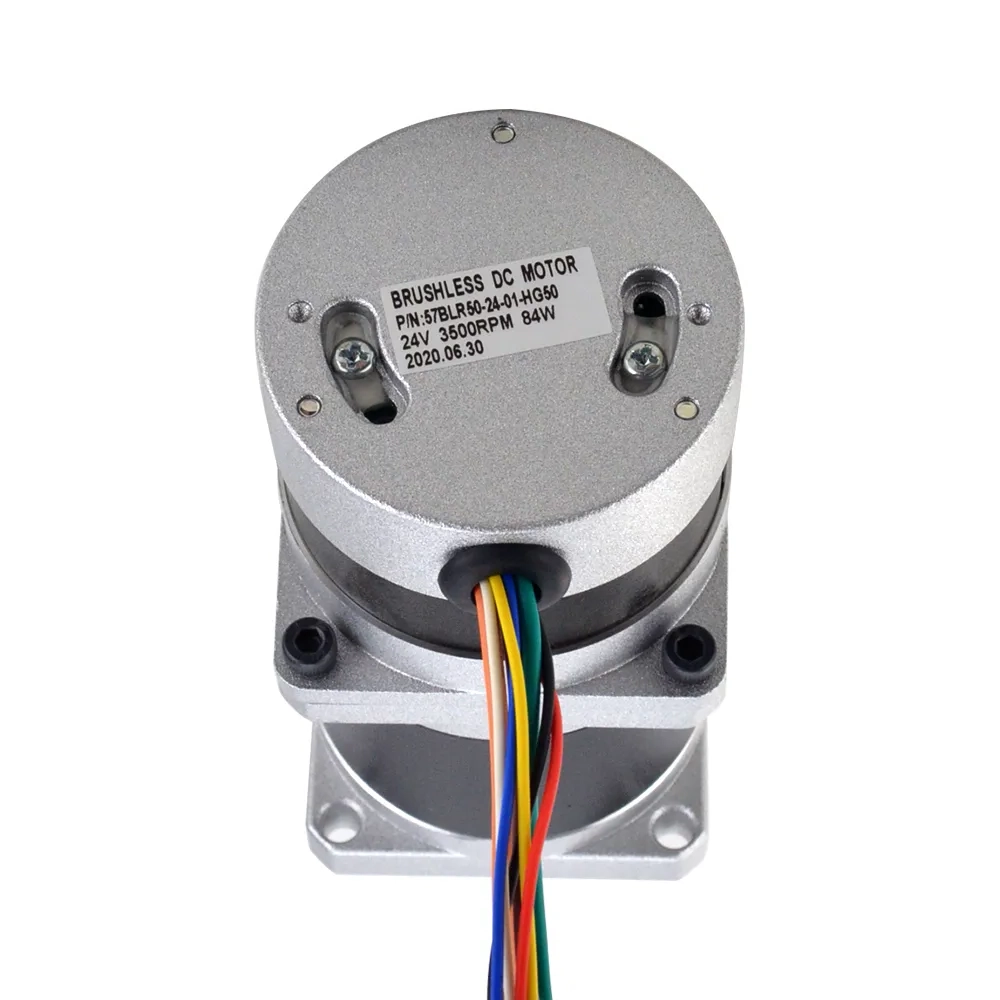

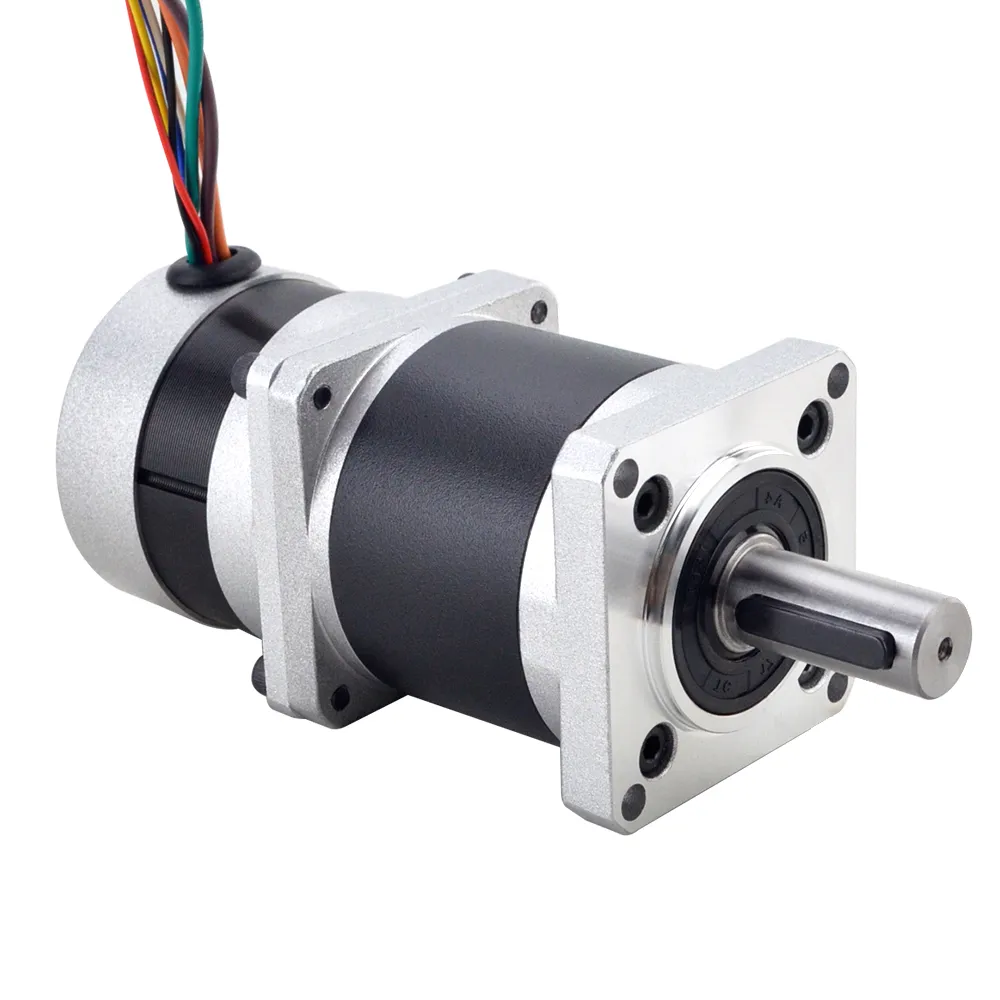

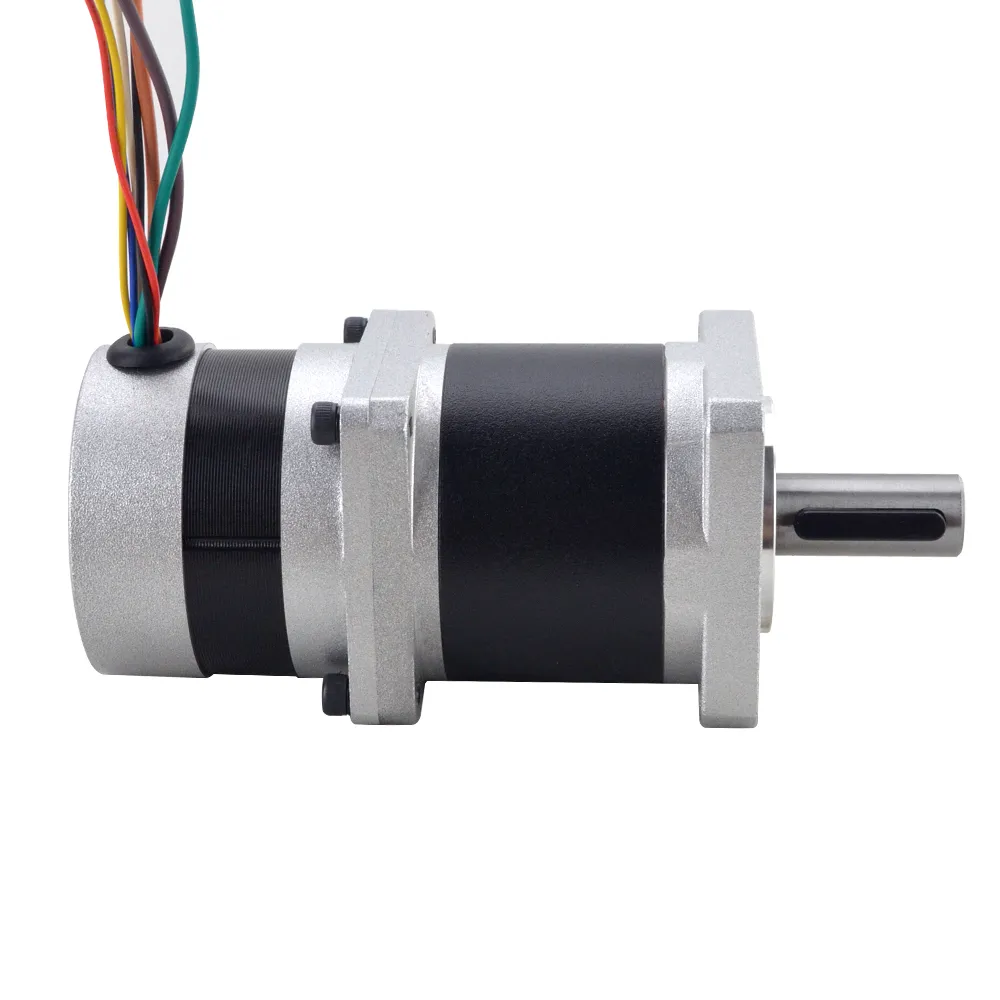

84W 24V 70RPM 8.63Nm Geared Brushless DC Motor
$78.66
84W 24V 70RPM 8.63Nm Geared Brushless DC Motor, a high-torque and precise solution designed for applications requiring exceptional power and control. With its optimized gear ratio and advanced brushless DC motor technology, this motor delivers superior torque output and precise speed control. Ideal for heavy-duty tasks in industrial machinery.
SPECIFICATIONS
Electrical Specification
| Attribute | Value |
|---|---|
| Manufacturer Part Number | 57BLR50-24-01-HG50 |
| Phase | 3 |
| Poles | 4 |
| Product Type | Geared BLDC Motor |
| Rated Current(A) | 5.0 |
| Rated Power(W) | 84 |
| Rated Speed(rpm) | 70 |
| Rated Torque(Nm) | 8.63 |
| Rated Voltage(V) | 24 |
| Insulation Class | Class B |
| Insulation Resistance | 100MΩ Min @500VDC |
| Dielectric Strength Test | 500VAC for 1 Minute |
Physical Specification
| Inventory Method | Dedicated Inventory |
| IP Rating | 20 |
| With Gearbox | Yes |
| Frame Size(mm) | Nema 23 (57 x 57) |
| Body Length(mm) | 49.1 |
| Gear Ratio(xx:1) | 50 |
| Backlash at No-load | <=0.8 deg |
| Output Shaft Type | Keyway |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 25 |
| Bearing Type | NMB Ball Bearing, C3 |
| Weight | 1.22kg |
Gearbox Specifications
| Attribute | Value |
|---|---|
| Gearbox Type | Planetary |
| Gear Ratio | 50 : 1 |
| Efficiency | 75% |
| Backlash at No-load | <=1.6deg |
| Max. Permissible Torque | 20Nm(2832.8oz.in) |
| Moment Permissible Torque | 40Nm(5665.6oz.in) |
| Max. Radial Load | 250N |
| Insulation Class | B |
| Noise | <=50dB |
| Ambient Temperature | 0 - 50℃ |
