SPECIFICATIONS
| Motor Type Lead Wire Type |
Output Power W |
Voltage V |
Frequency Hz |
Current A |
Starting Torque mN.m |
Rated Torque mN.M |
Rated Torque r/min |
Capacitor μF |
|
| Pinion Shaft | Round Shaft | ||||||||
| 0IK3GN-B | 0IK3A-B | 3 | 1ph110 | 50 | 0.12 | 5 | 11 | 2500 | 1.5 |
| 0IK3GN-B | 0IK3A-B | 3 | 1ph110 | 60 | 0.13 | 5 | 10 | 3000 | 1.5 |
| 0IK3GN-D | 0IK3A-D | 3 | 1ph220 | 50 | 0.06 | 5 | 11 | 2500 | 0.35 |
| 0IK3GN-D | 0IK3A-D | 3 | 1ph220 | 60 | 0.064 | 5 | 10 | 3000 | 0.35 |
Product Display
The ac induction motor has become the most often used motor due to the phenomenal expansion of the ac power system. The ac motor has a more straightforward construction and is simpler to produce than a dc motor because it lacks a commutator, which makes it straightforward to create motors with high speeds, high voltages, huge currents, and enormous capacities. The power of an alternating current motor may vary from a few watts to hundreds of thousands of kilowatts or even a million kilowatts.
Product Feature
Outstanding Torque Characteristics

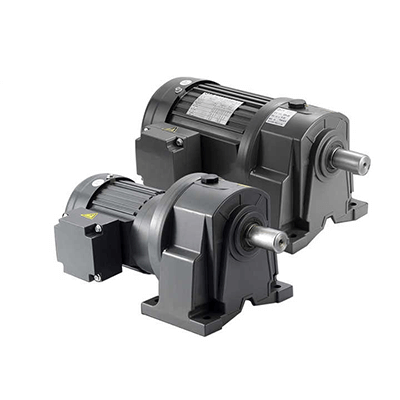

Our 90W AC Induction Gear Motor delivers high-performance torque, offering smooth and efficient operation in various application scenarios.
Instant Start/Stop
This motor is designed for rapid and responsive start/stop operation, delivering precise control and optimal performance in time-sensitive applications.
Reliable Starting and Directional Stability
The AC Induction Gear Motor provides reliable startup and exceptional directional stability. This feature contributes to the stable and dependable performance that this motor offers.
Near-Silent Operation for Noise-Sensitive Applications
The motor operates near-silently, making it ideal for noise-sensitive applications. Whether it’s for home appliances, office equipment, or industrial machinery, our gear motor assures minimal noise generation.
Stable Speed Under Rated Frequency
Under rated frequency, the motor maintains a steady speed unaffected by voltage fluctuations. This ensures consistent motor performance even under variable power supply conditions.
Product Applications
Industrial and Production Automation
Our 90W AC Gear Motor demonstrates robust performance, making it suitable for various industrial and production automation processes where reliable and durable operation is a necessity.
Transportation
The motor's efficient power output and compact design make it ideal for transportation-related uses, such as electric vehicles, conveyors, and other mobility systems.
Household and Commercial Appliances
With its quiet operation and durability, our AC gear motor is extensively used in appliances that require smooth, stable, and silent operations like washing machines, air conditioners, and more.
Medical Equipment
When precision, reliability, and quiet operation are paramount, such as in medical equipment, our AC gear motor tends to be the go-to choice for manufacturers globally.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
