SPECIFICATIONS
| Type | GDZ93x82-1.5 |
| Cooling Type | air cooling |
| Power（KW） | 1.5 |
| Diameter(MM) | 93x82 |
| Voltage(V) | 220/380 |
| Current(A) | 6.8/3.8 |
| Frequency(HZ) | 300 |
| Speed(RPM) | 18000 |
| Collet/Nut | ER20 |
| Bearings Amount | 4 |
| Model | LY47-82-1.5 |
| Matched VFD Model | GK3000-CS0022 (3 hp 1-phase 220V to 3-phase 380V VFD) |
| Power | 1.5 kW |
| Phase | Three phase |
| Speed | 18000 rpm |
| Voltage | 3-phase 380V±10% AC |
| Current | 3.2A |
| Frequency | 300Hz |
| Torque | 0.91 Nm |
| Number of Pole | 2 poles |
| Cooling Type | Air-cooled |
| Installation Method | Horizontally or Vertically (When the motor is installed, the radial runout standard is required to be within 5um, and the chuck is generally 10um-15um.) |
| Lubrication | Grease |
| Thermal Class | Class F |
| Protection Class | IP50 |
| Certification | CE |
| Warranty | Bearings for half a year, other parts for one year |
| Joint of Nose | ER20 (φ3.175 mm - φ13mm) |
| Bearings Type | 7005C P4*2 & 7002C P4*2 |
| Application | Woodworking & Plastic |
| Weight | 7 kg |

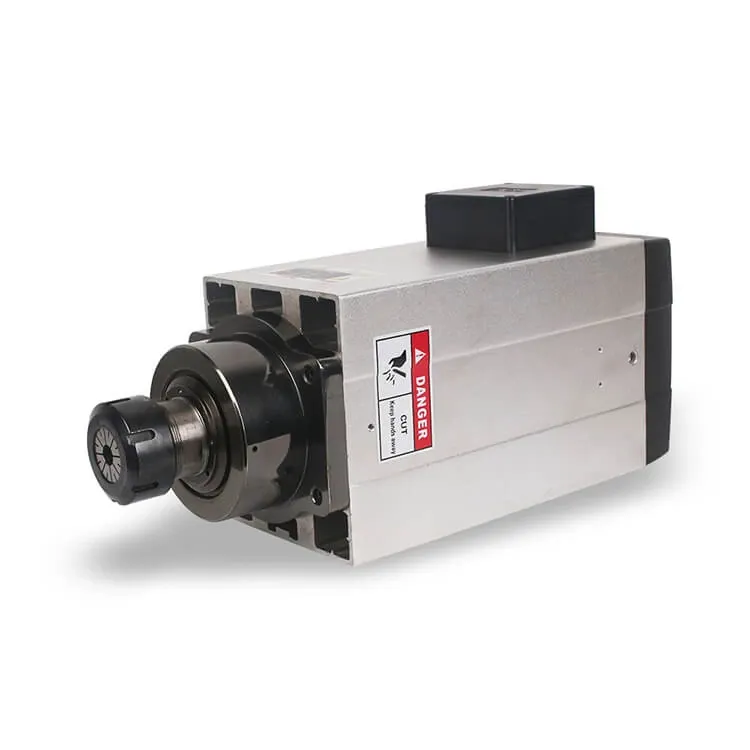

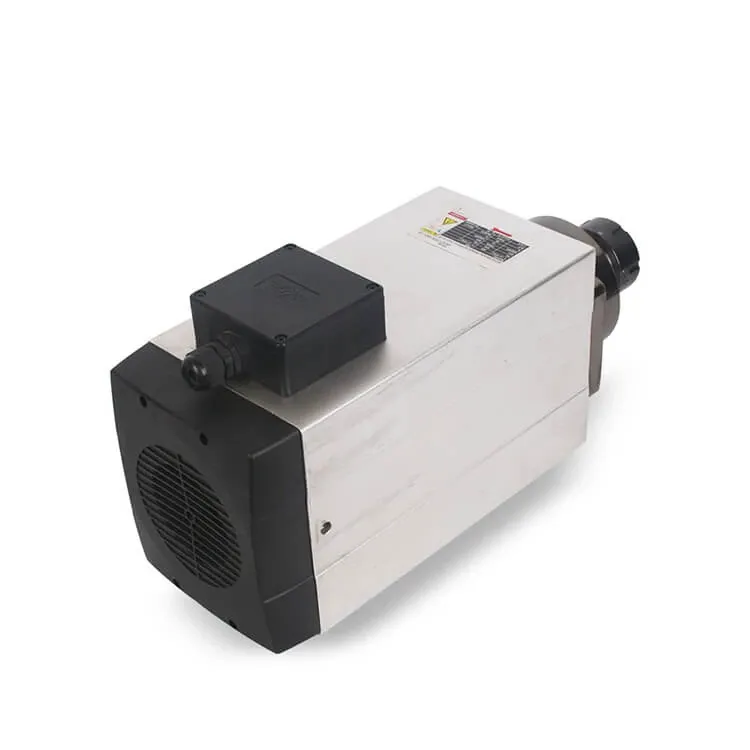

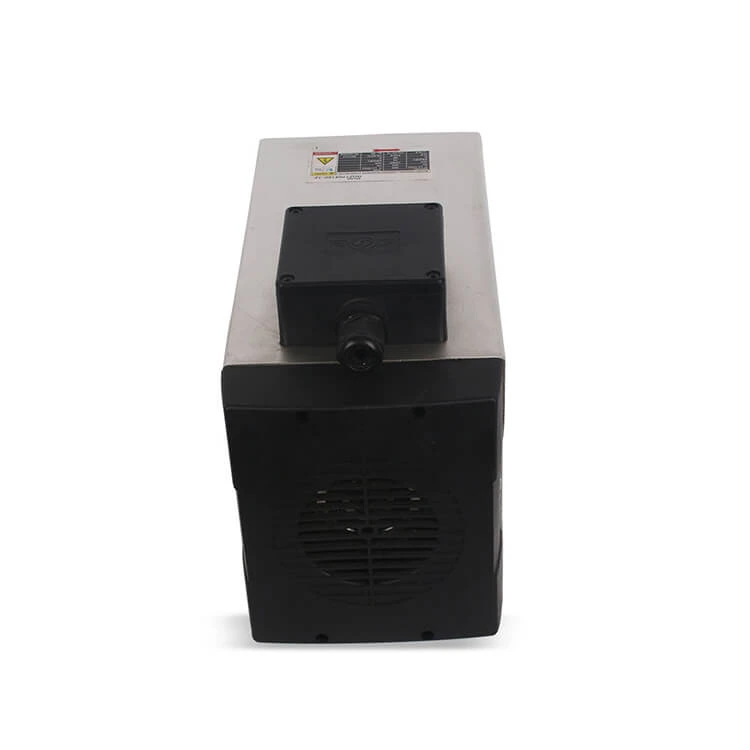

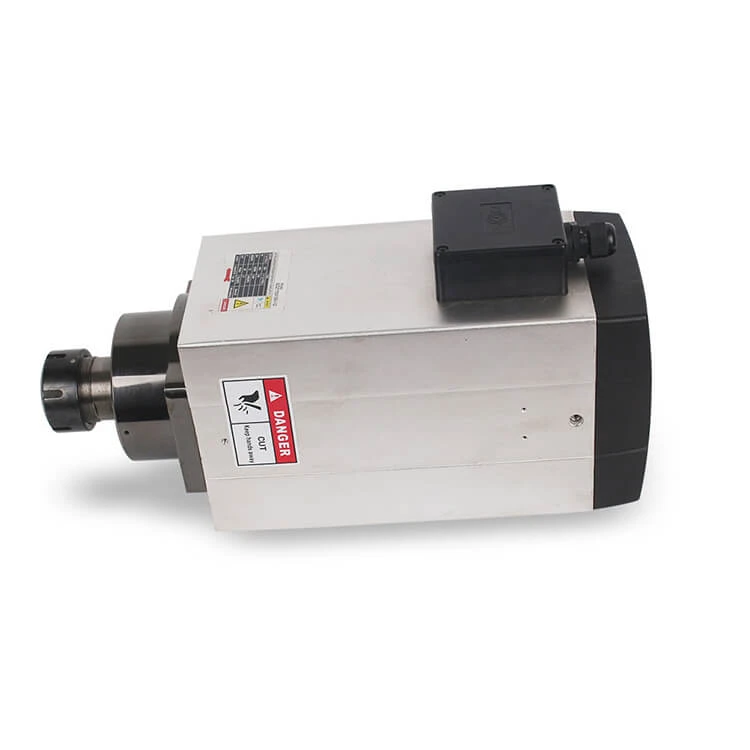

Product Display
Air Cooling
Spindle Motor
The spindle motor is the core power source of mechanical equipment
Strong
Milling
Perfect
Cooling
High
Precision
Product Feature
High Power Output
Delivers a robust 1500W output, making it suitable for various CNC machining tasks.
High-Speed Performance
Operates at an impressive speed of 18000RPM, ensuring efficient and precise machining.
Air-Cooling System
Features an air-cooling system that maintains optimal operating temperatures and prevents overheating.
Stable Frequency Operation
Provides stable frequency operation, delivering smooth and consistent performance under varying load conditions.
Durable Construction
Constructed with high-quality materials to ensure longevity and reliable performance in industrial environments.
Low Noise Operation
Designed to operate quietly, making it ideal for noise-sensitive environments.
Precision Bearings
Equipped with precision bearings that ensure smooth and accurate machining.
Product Applications
Plastic Fabrication
Perfect for machining plastic components with high precision and efficiency.
Sign Making
Ideal for creating detailed signs and designs on wood, metal, and plastic surfaces.
Prototyping
Used in prototyping and model making, ensuring detailed and precise results.
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| Spindle-Motor-Catalog.pdf | 12.1MB | Download |
