AL Series Reducer

$

Our AL Series Reducer is a top-of-the-line choice for reliable machine performance. This series is designed to handle high torque loads over long periods of time, so you can trust it to provide reliable service. Featuring precision ground gears, a rigid double-pinion design, and stainless-steel output springs, this series is built to last!

Get a QuoteLeave a Message

Model Type

SPECIFICATIONS

Model Unit AL070 AL090 AL120 AL155 AL205 Ratio Stage
Rated output torque N.m 18 50 120 240 600 3 1
27 75 180 360 750 4
27 75 180 360 750 5
27 75 180 360 750 7
18 50 120 240 500 10
35 90 180 450 650 15 2
37 96 230 450 1050 16
37 96 230 564 1000 20
37 96 255 585 1000 25
37 96 230 564 1050 28
27 87 180 360 800 30
37 96 255 585 1000 35
37 96 230 564 1000 40
37 96 255 585 1000 50
27 87 180 360 800 70
18 50 120 240 710 100
Emergency stop torque N.m 3 times Rated output torque
Norminal input speed rmp 3000 3000 3000 2000 1500
Maximum input speed rmp 6000 6000 6000 3500 3000
Maximum radial force N 1200 2400 4300 9100 15000
Maximum axial force N 1100 2200 3900 8200 14000
Efficiency % Single [97%] Double [95%]
Average lifetime h 20000
Weight kg 1.4 3.5 7.8 16 39 1
1.7 4.0 8.7 19 45 2
Moment of inertia kgcm2 0.16 0.61 3.25 12.31 28.98 3 1
0.14 0.48 2.74 7.54 23.67 4
0.13 0.47 2.71 7.42 22.75 5
0.13 0.47 2.62 7.25 22.48 7
0.13 0.44 2.57 7.14 22.55 10
0.127 0.72 2.56 12.35 12.35 15 2
0.088 0.5 1.75 7.47 7.54 16
0.075 0.44 1.5 6.65 7.42 20
0.075 0.44 1.49 5.81 7.54 25
0.064 0.39 1.3 6.34 7.14 28
0.064 0.39 1.3 6.34 7.14 30
0.064 0.39 1.3 6.34 7.14 35
0.064 0.39 1.3 4.08 7.14 40
0.075 0.39 1.5 7.5 7.54 50
0.075 0.39 1.5 7.5 7.54 70
0.075 0.39 1.5 7.5 7.54 100
Backlash arcmin ≤3 ≤ 3 ≤3 ≤3 ≤3 Precise[1]
≤5 ≤5 ≤5 ≤5 ≤5 Standard[1]
≤5 ≤5 ≤5 ≤5 ≤5 Precise[2]
≤7 ≤ 7 ≤7 ≤7 ≤7 Standard[2]
Torsional rigidity N.m/arc min 7 14 25 50 145
Noise dB 60 62 62 68 70
lubricating Synthetic grease lubrication
levels of protection IP65

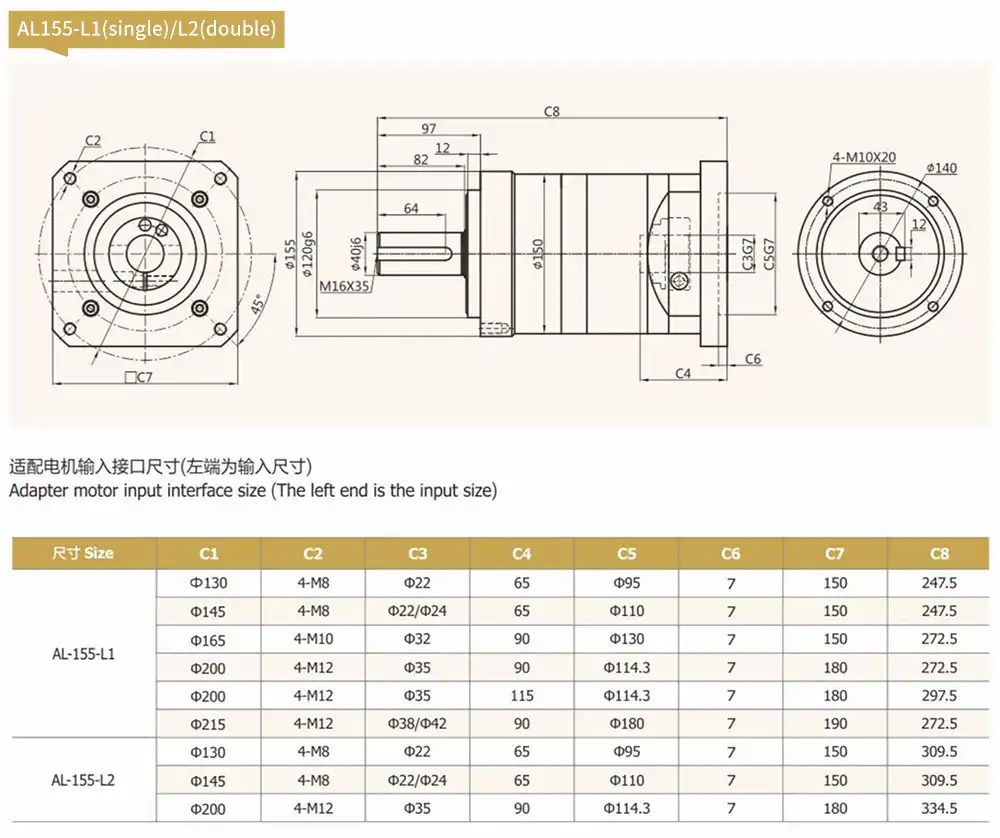

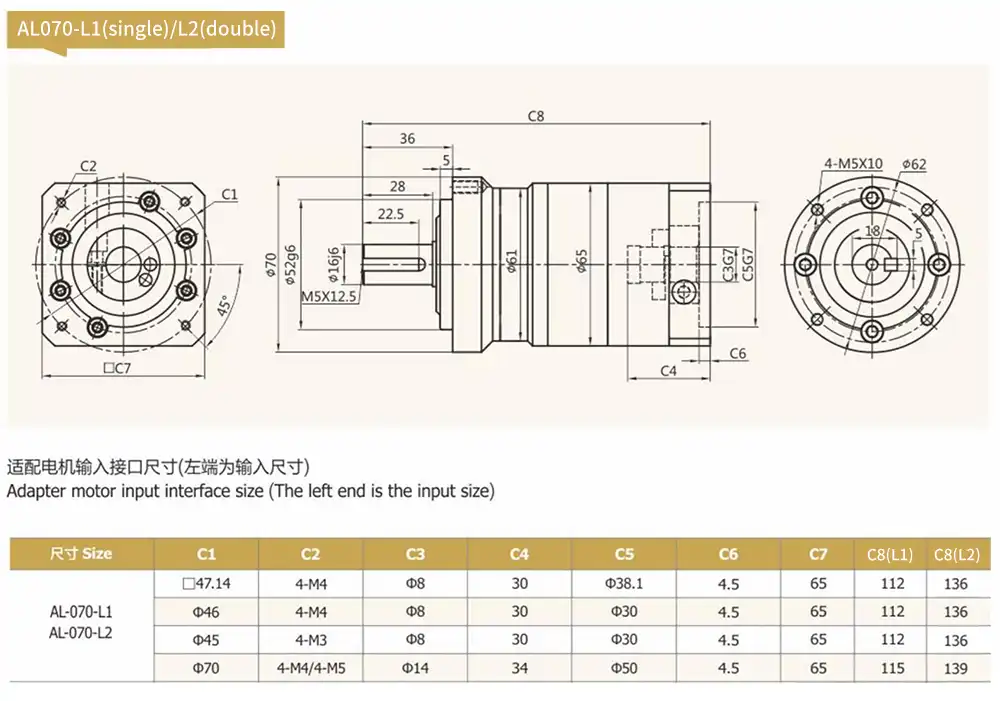

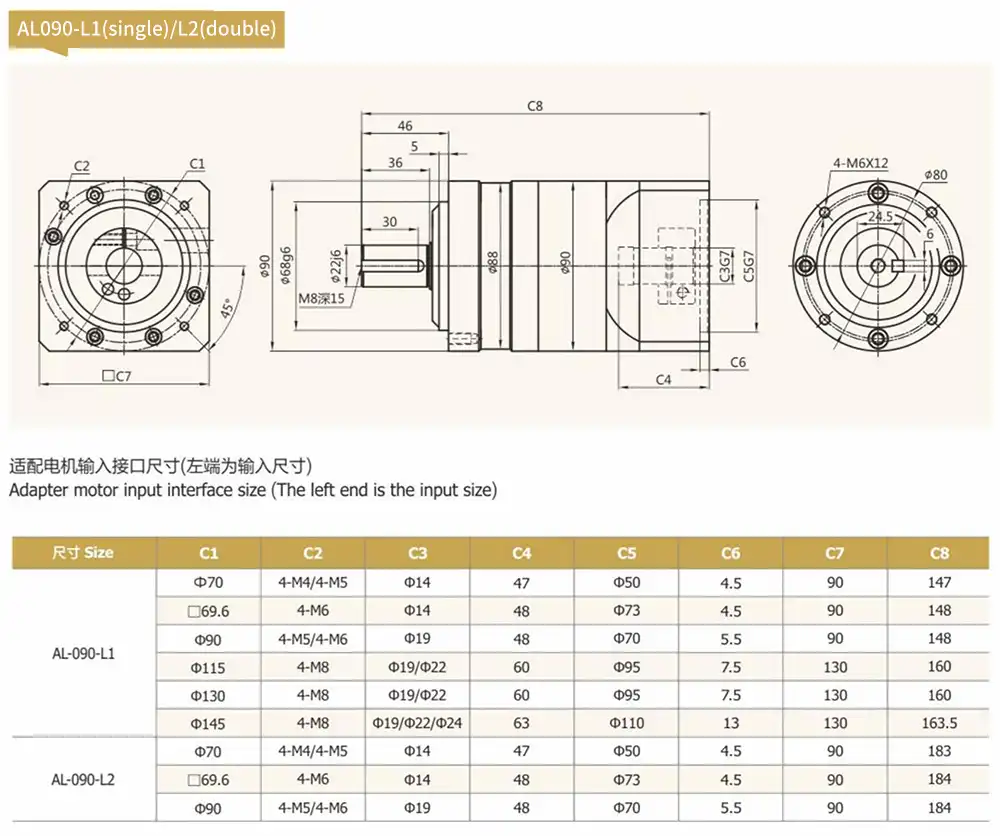

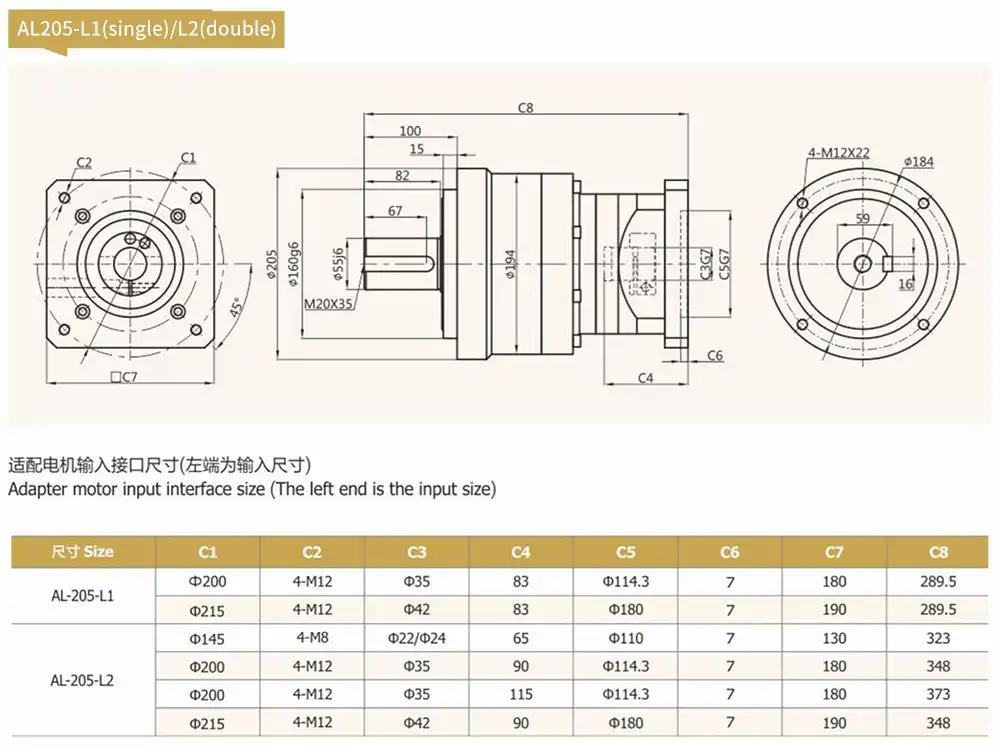

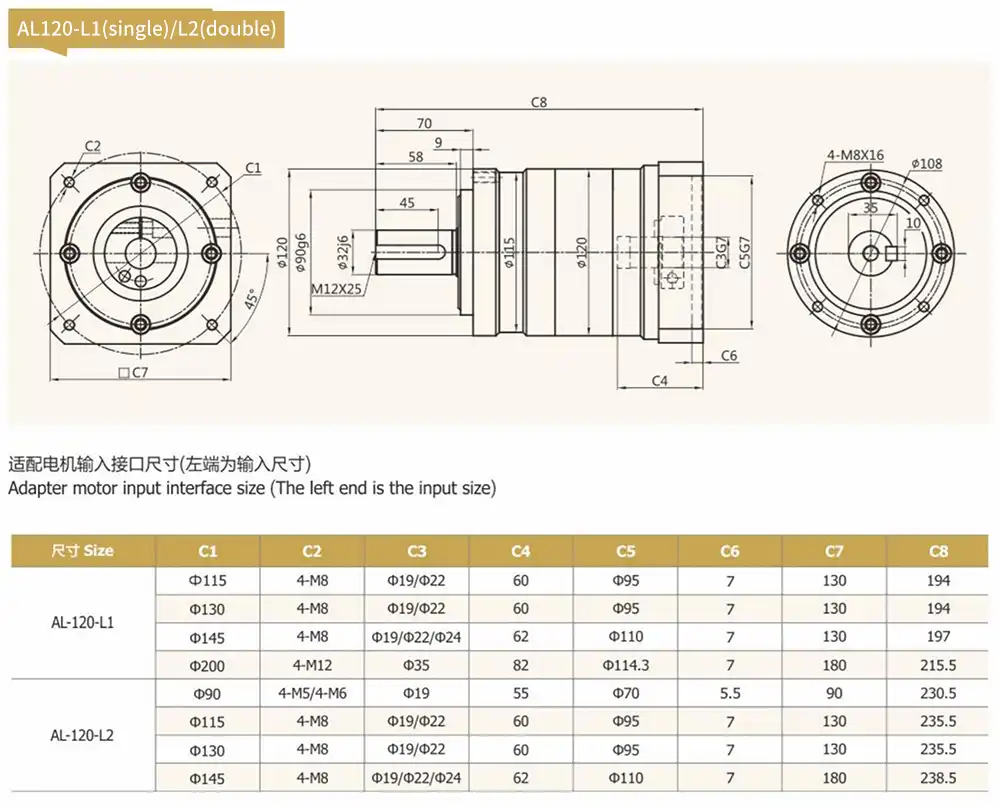

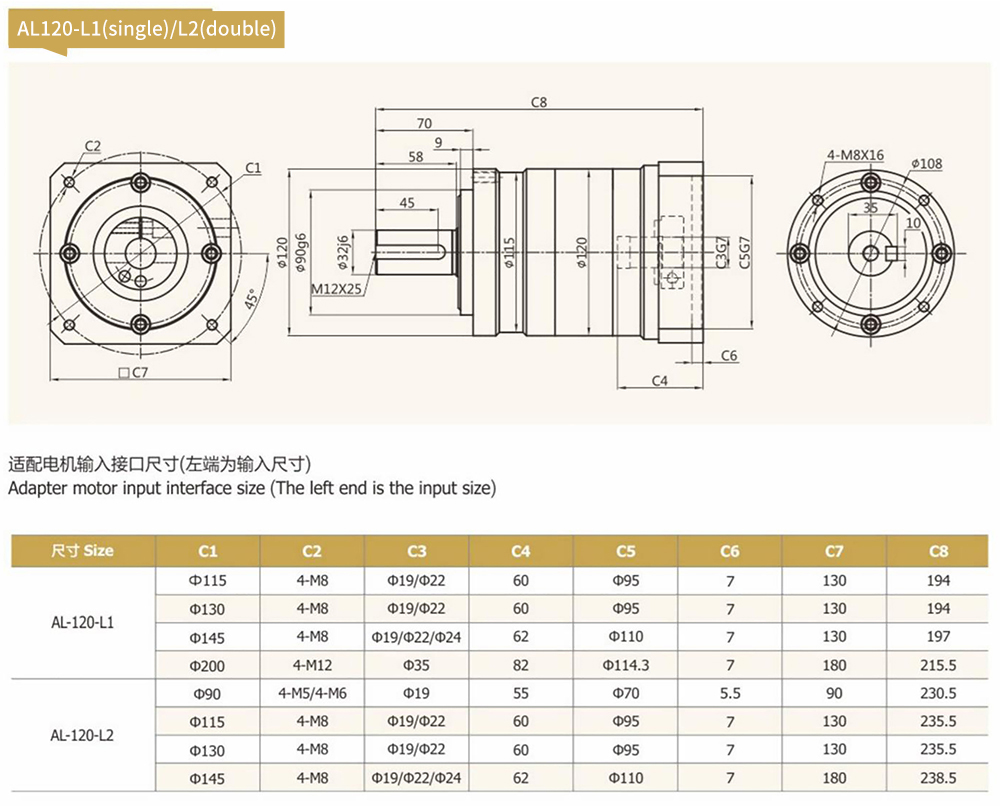

Product Display

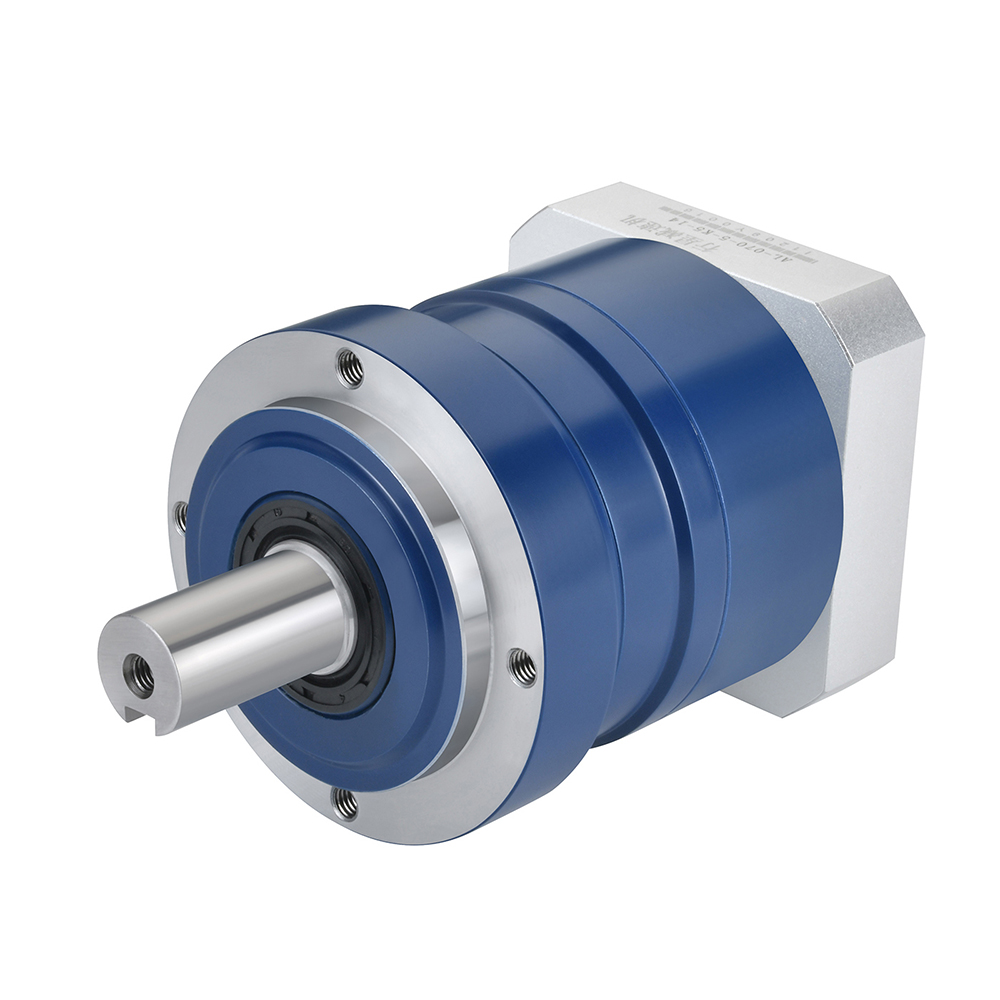

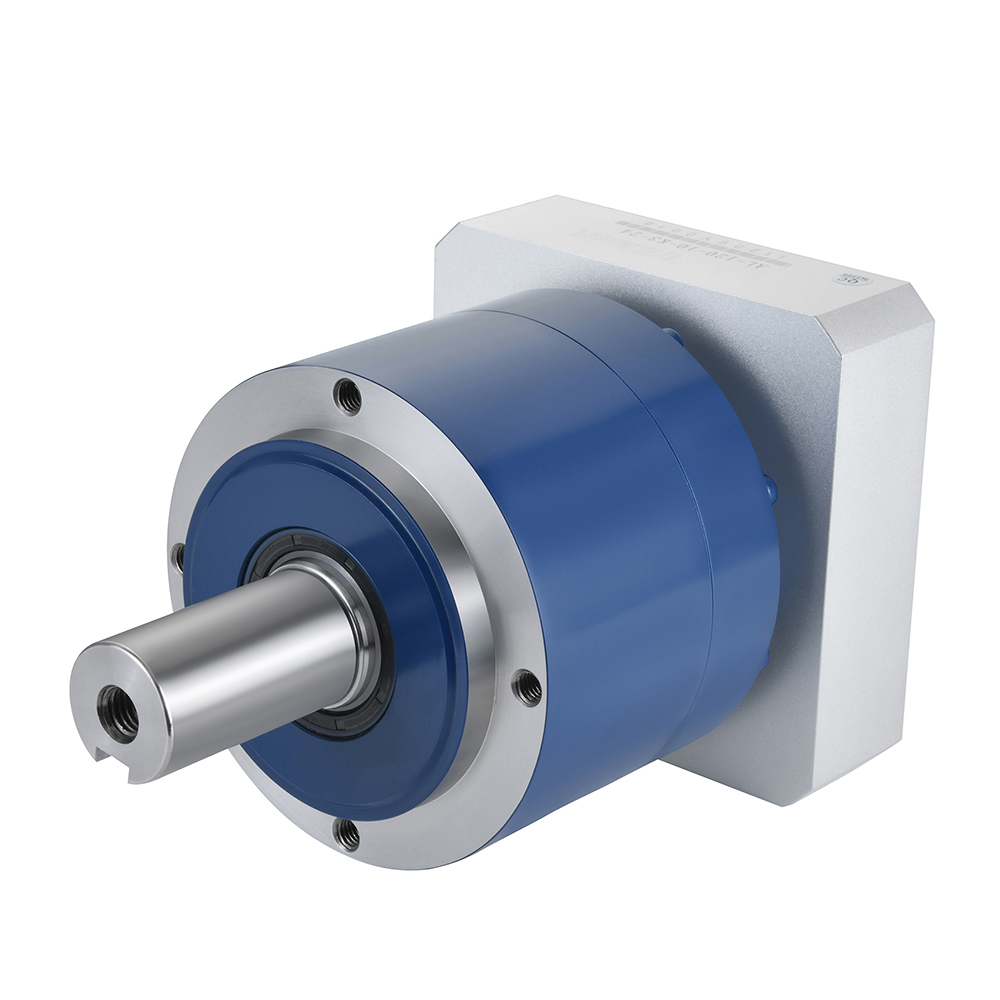

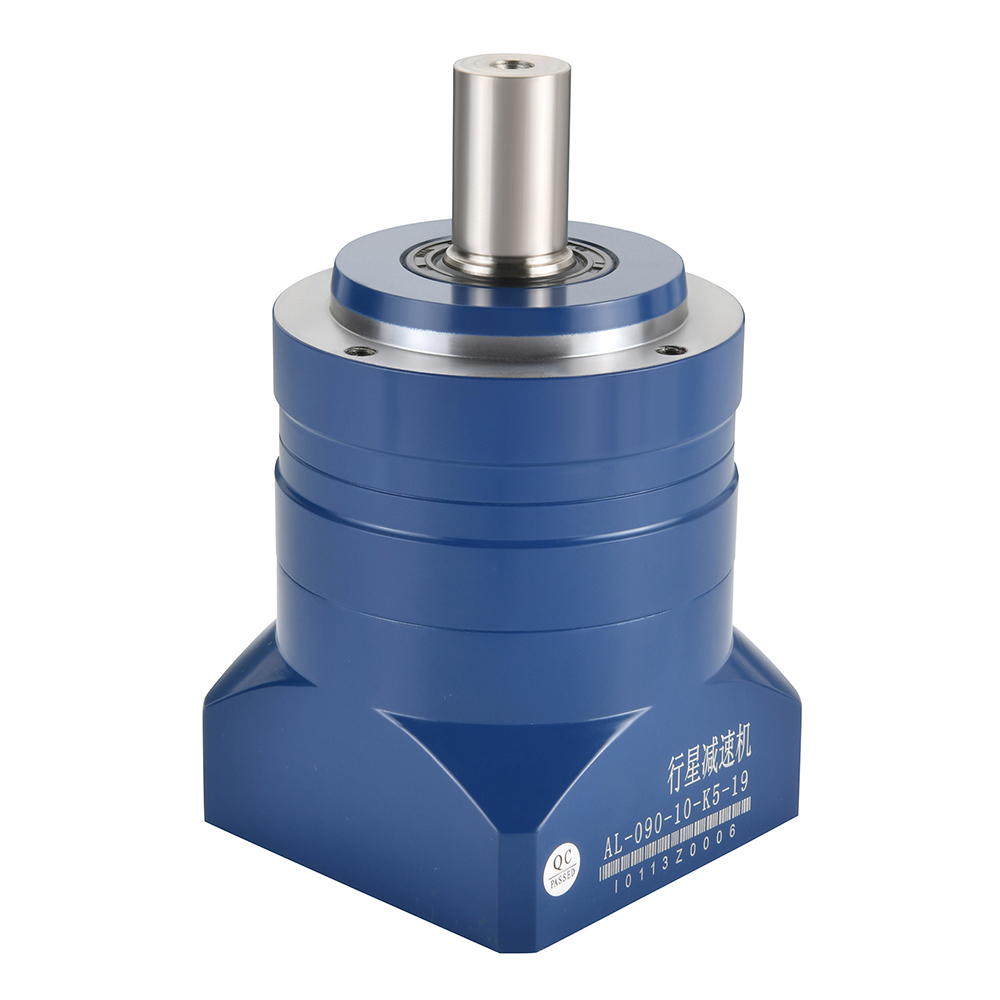

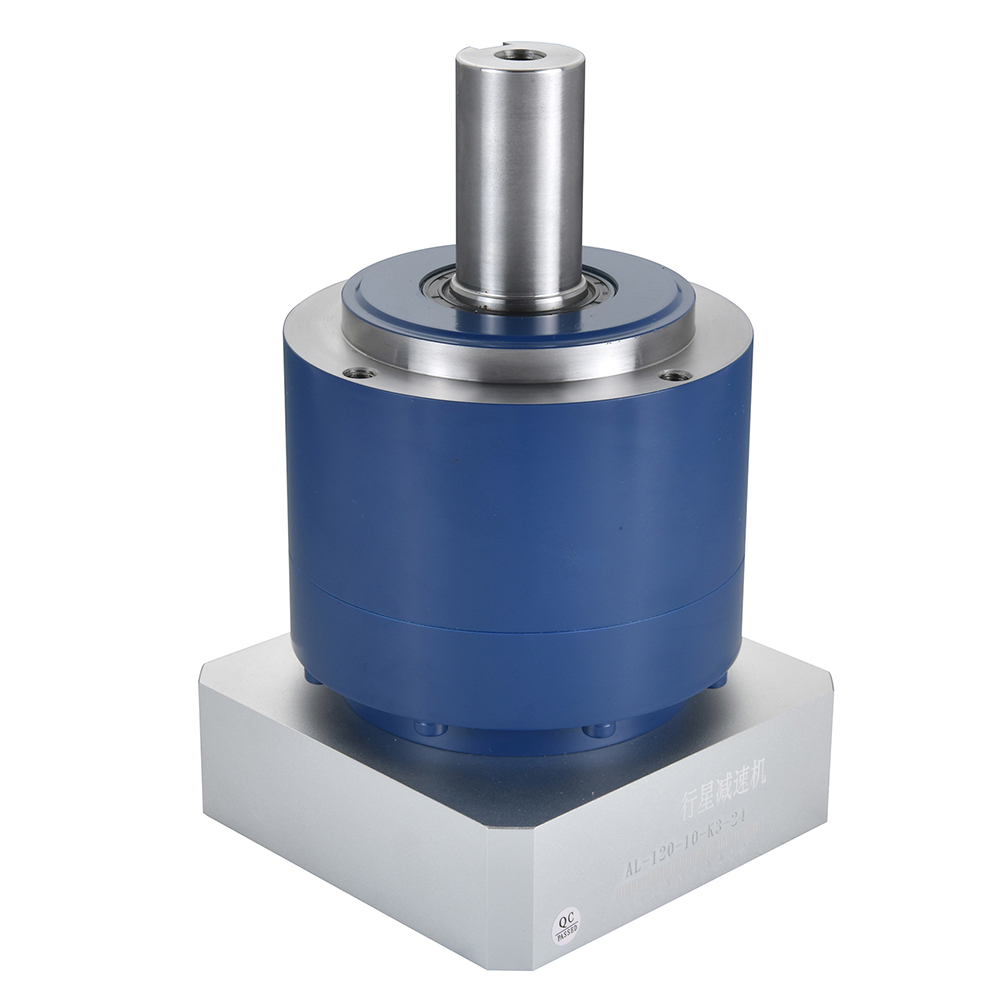

AL Series Reducer AL Series Reducer AL Series Reducer AL Series Reducer AL Series Reducer

Product Feature

  1. Helical gear transmission, carburizing and quenching treatment, tooth profile modification treatment, to ensure low noise and smooth operation. The bearing capacity is 20% higher than that of straight teeth.
  2. Integral output shaft and bearing support at both ends of planetary wheel to achieve high precision and strength.
  3. The backhaul clearance is small, and the precision single stage can achieve less than 3 arcmin.
