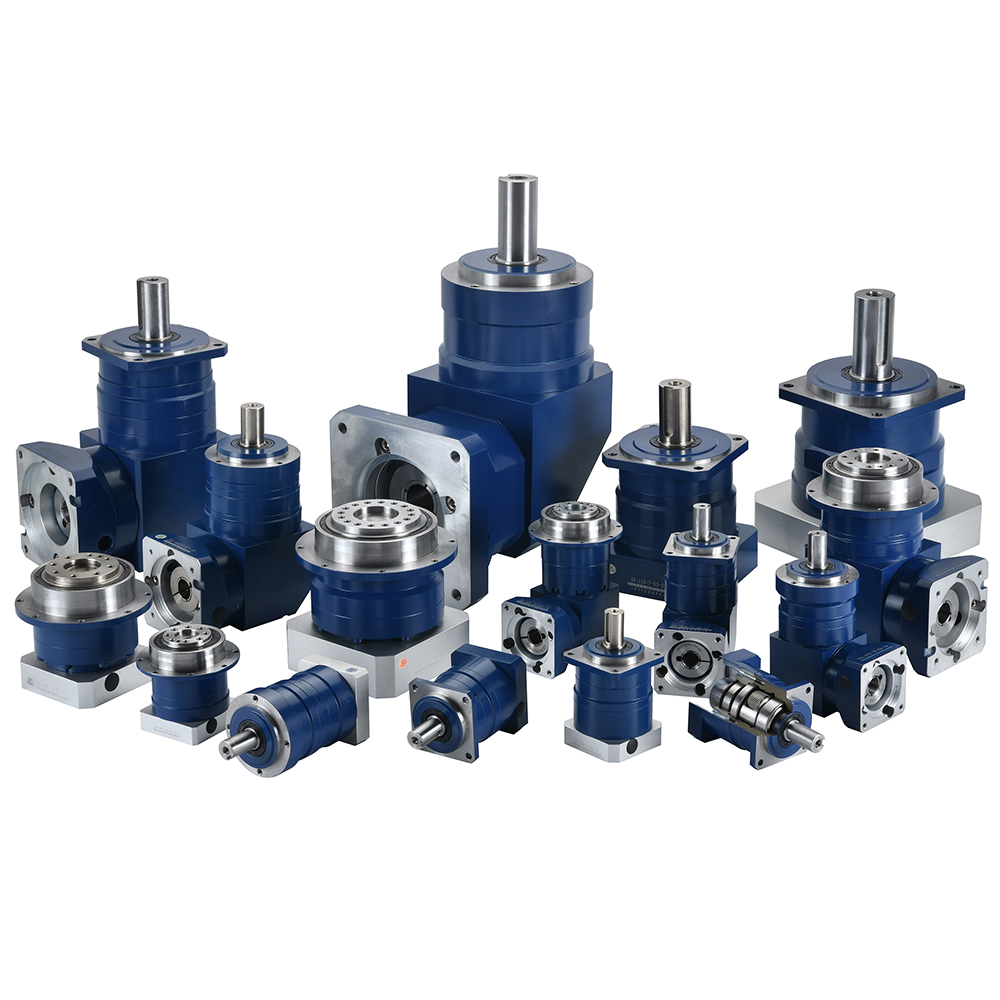

ALE Series Reducer
$
The ALE Series Reducer is designed with a heavy-duty stainless steel construction for maximum reliability and longevity. Its low-noise design perfectly meets noise-sensitive application requirements. The reducer is suitable for industrial applications and offers higher torque capacity than conventional reducers.
SPECIFICATIONS
| Model | Unit | ALE070 | ALE090 | Ratio | Stage |
| Rated output torque | N.m | 18 | 50 | 3 | 1 |
| 27 | 75 | 4 | |||
| 27 | 75 | 5 | |||
| 27 | 75 | 7 | |||
| 18 | 50 | 10 | |||
| Emergency stop torque | N.m | 3 times Rated output torque | |||
| Norminal input speed | rmp | 3000 | 3000 | ||
| Maximum input speed | rmp | 6000 | 6000 | ||
| Maximum radial force | N | 1200 | 2400 | ||
| Maximum axial force | N | 1100 | 2200 | ||
| Efficiency | % | Single [97%] | |||
| Average lifetime | h | 20000 | |||
| Weight | kg | 1.4 | 3.7 | 1 | |
| Moment of inertia | kgcm2 | 0.16 | 0.61 | 3 | 1 |
| 0.14 | 0.48 | 4 | |||
| 0.13 | 0.47 | 5 | |||
| 0.13 | 0.47 | 7 | |||
| 0.13 | 0.44 | 10 | |||
| Backlash | arcmin | ≤5 | ≤5 | Standard[1] | |
| Torsional rigidity | N.m/arc min | 7 | 14 | ||
| Noise | dB | 60 | 62 | ||
| lubricating | Synthetic grease lubrication | ||||
| levels of protection | IP65 | ||||

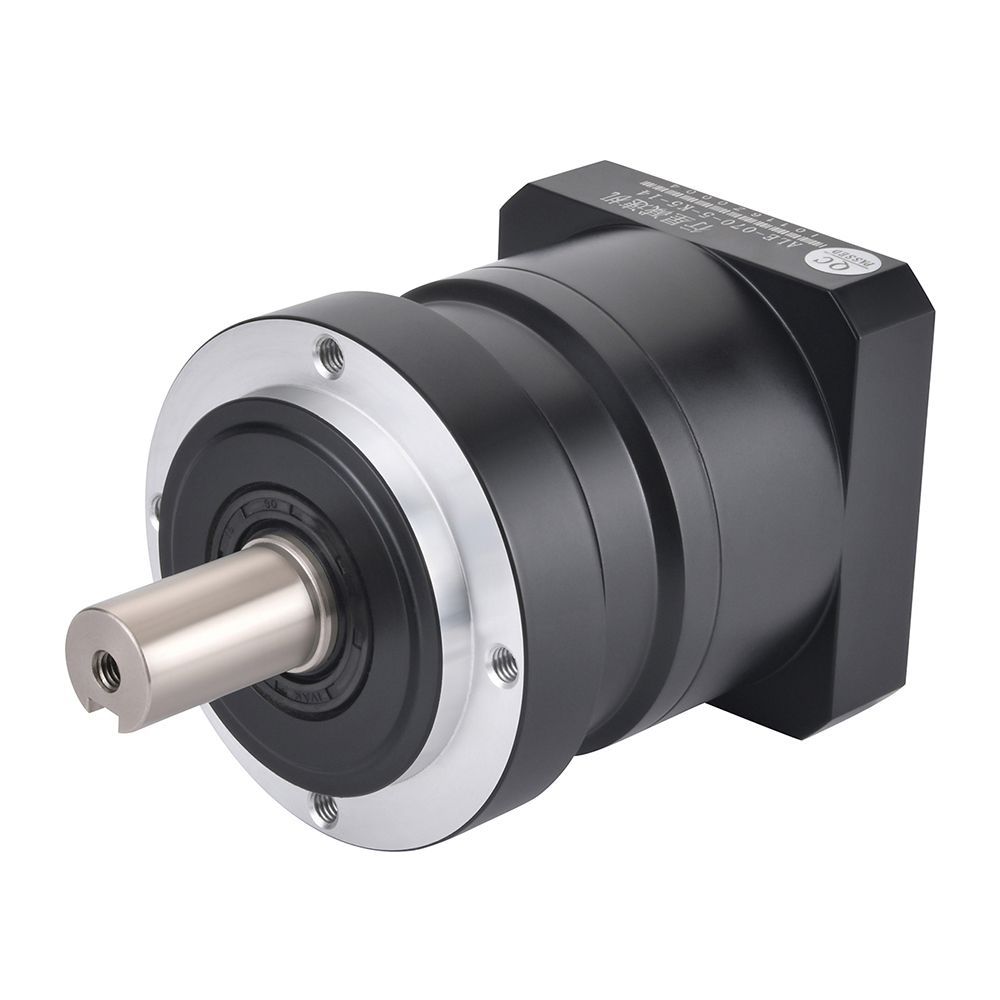

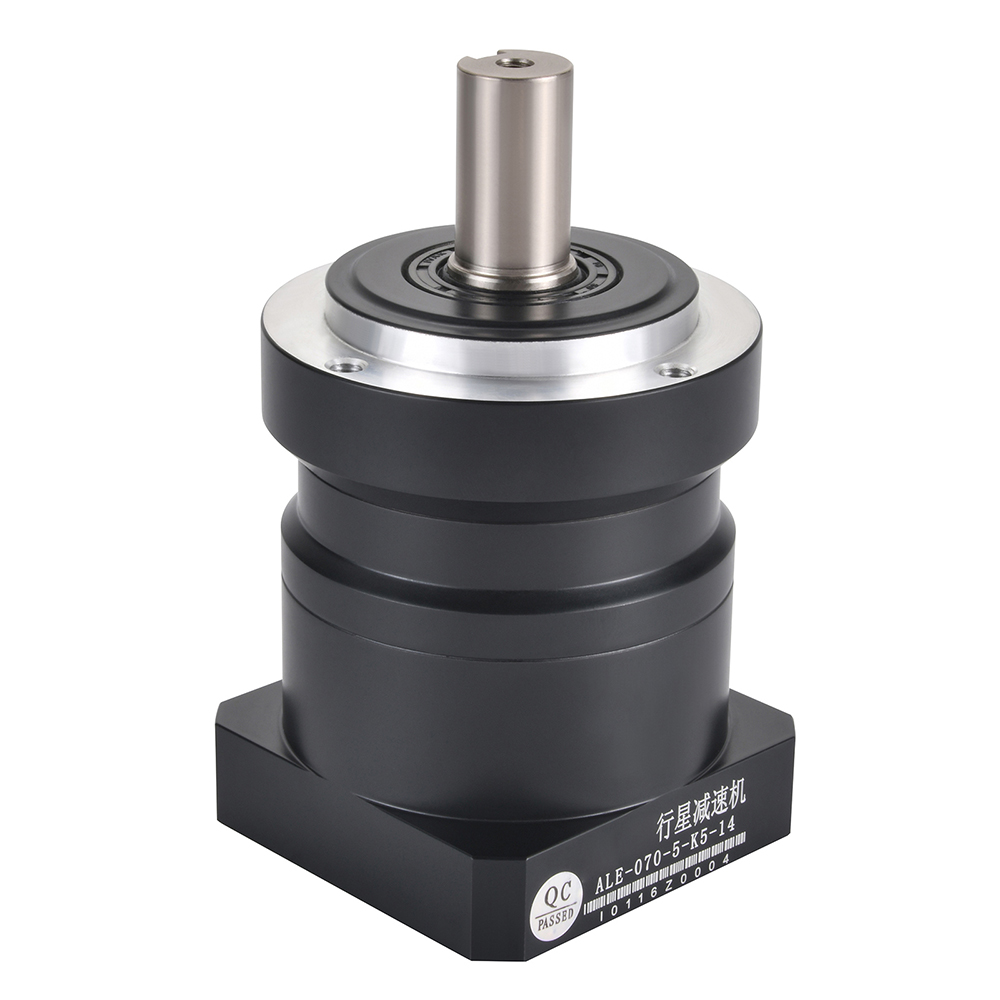

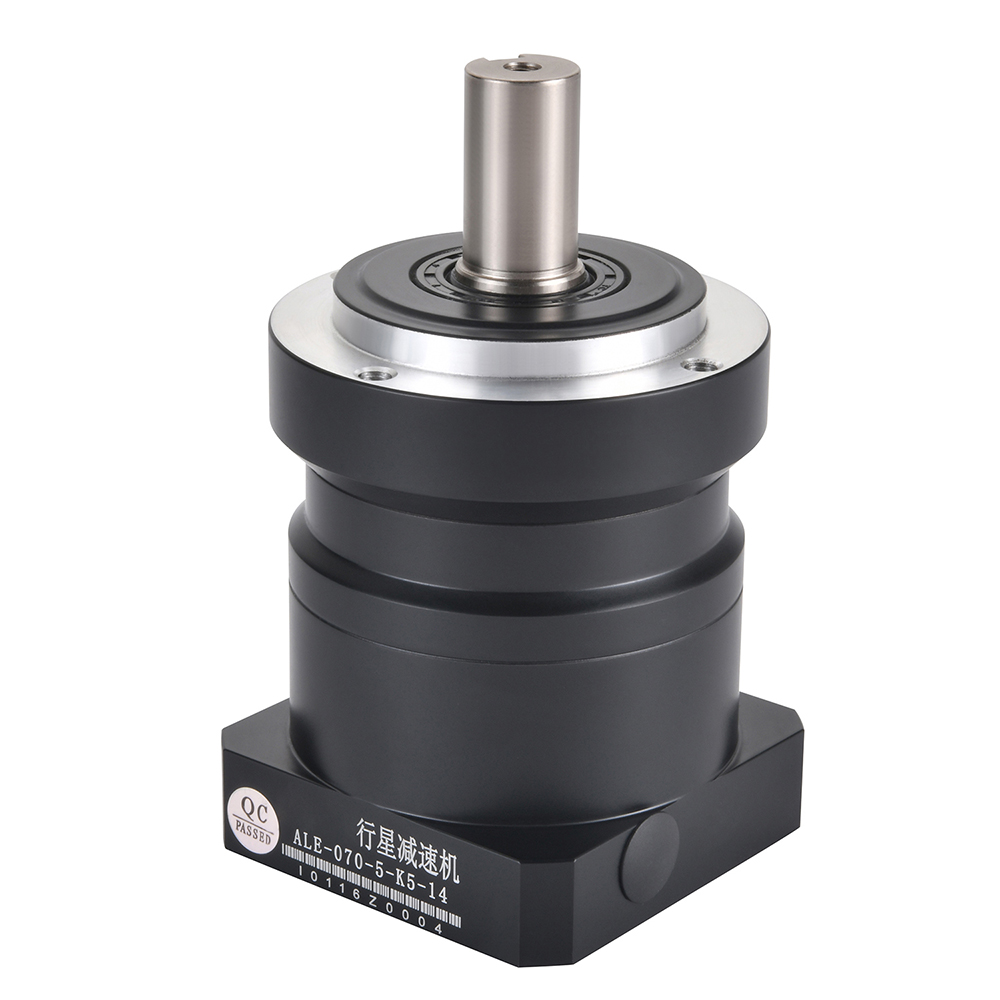

Product Display
Product Feature
- Helical gear transmission, carburizing and quenching treatment, tooth profile modification treatment, to ensure low noise and smooth operation. The bearing capacity is 20% higher than that of straight teeth.
- Integral output shaft and bearing support at both ends of planetary wheel to achieve high precision and strength.
- The backhaul clearance is small, and the precision single stage can achieve less than 3 arcmin.
Related Products
Videos

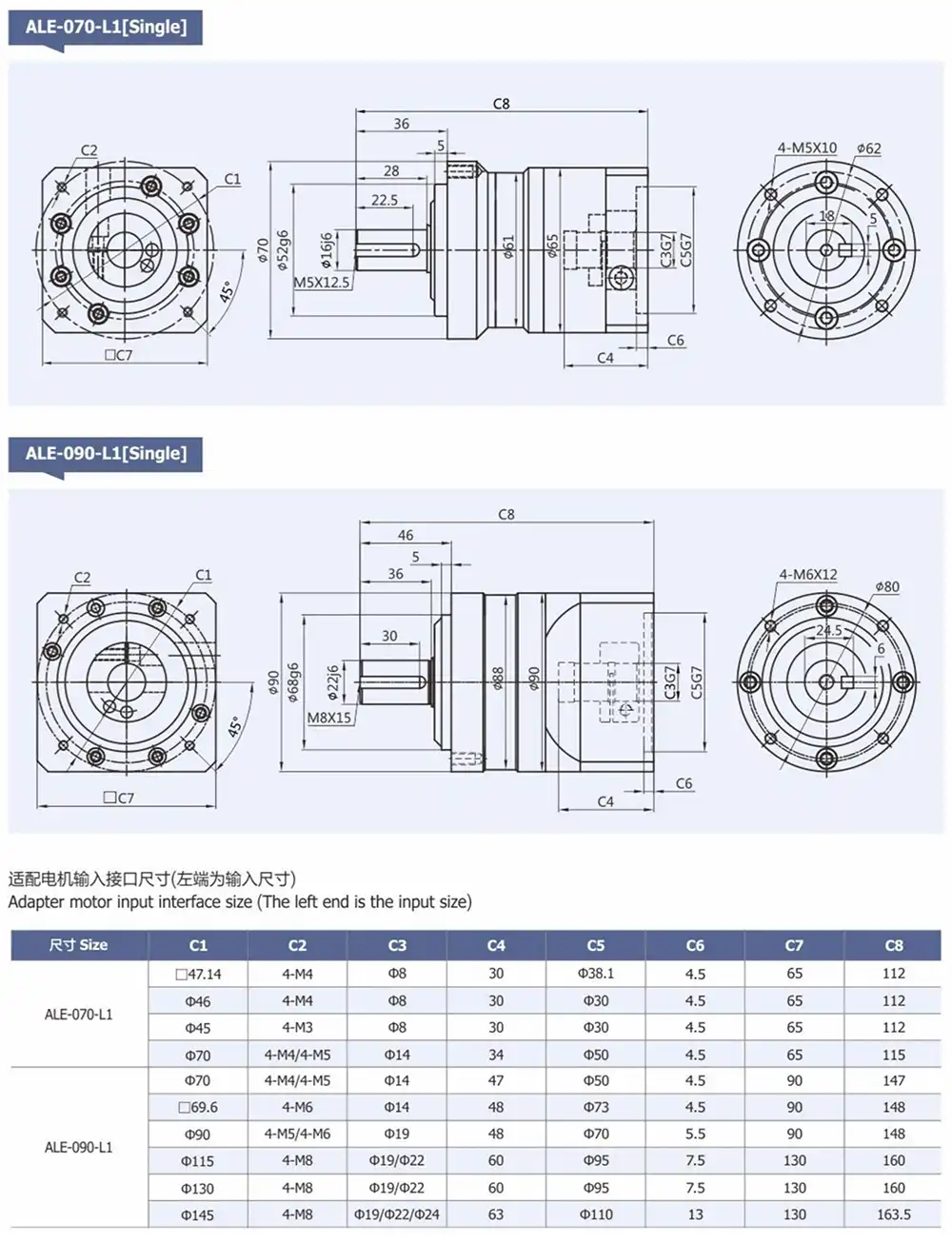

DIMENSIONS
