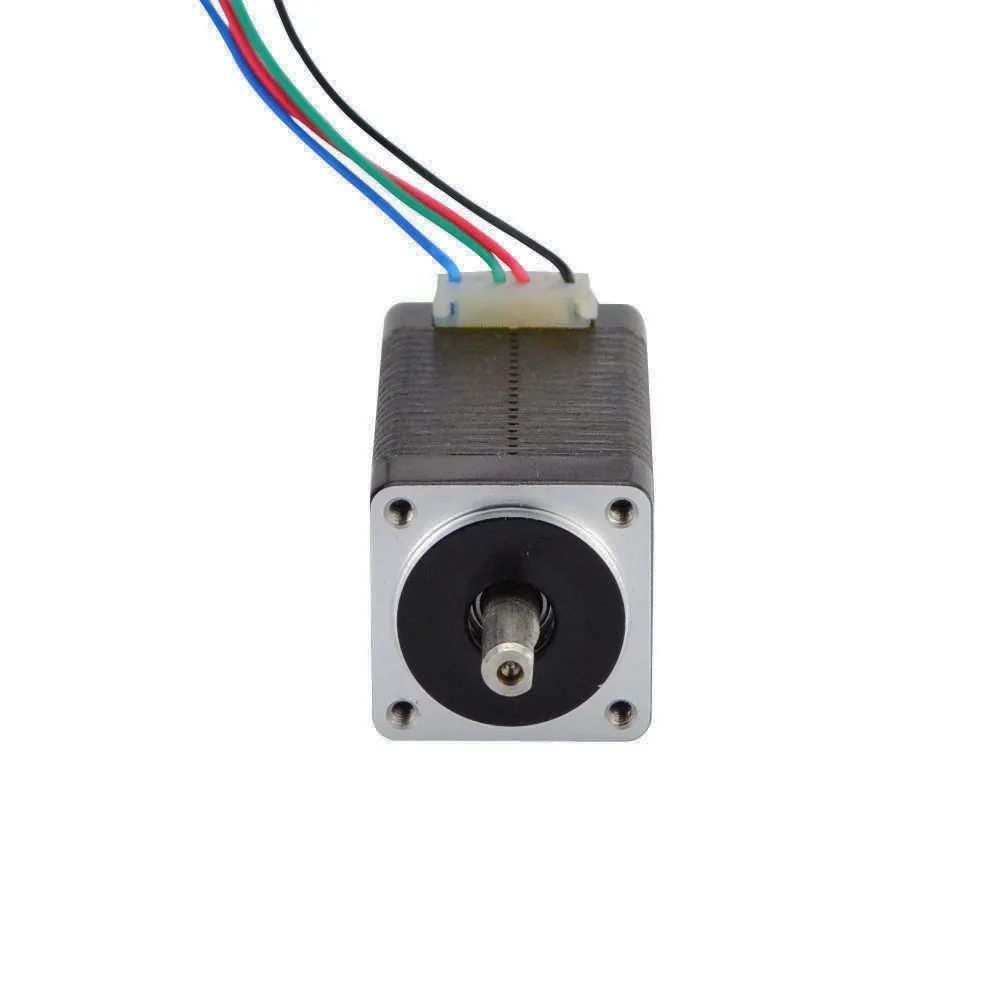

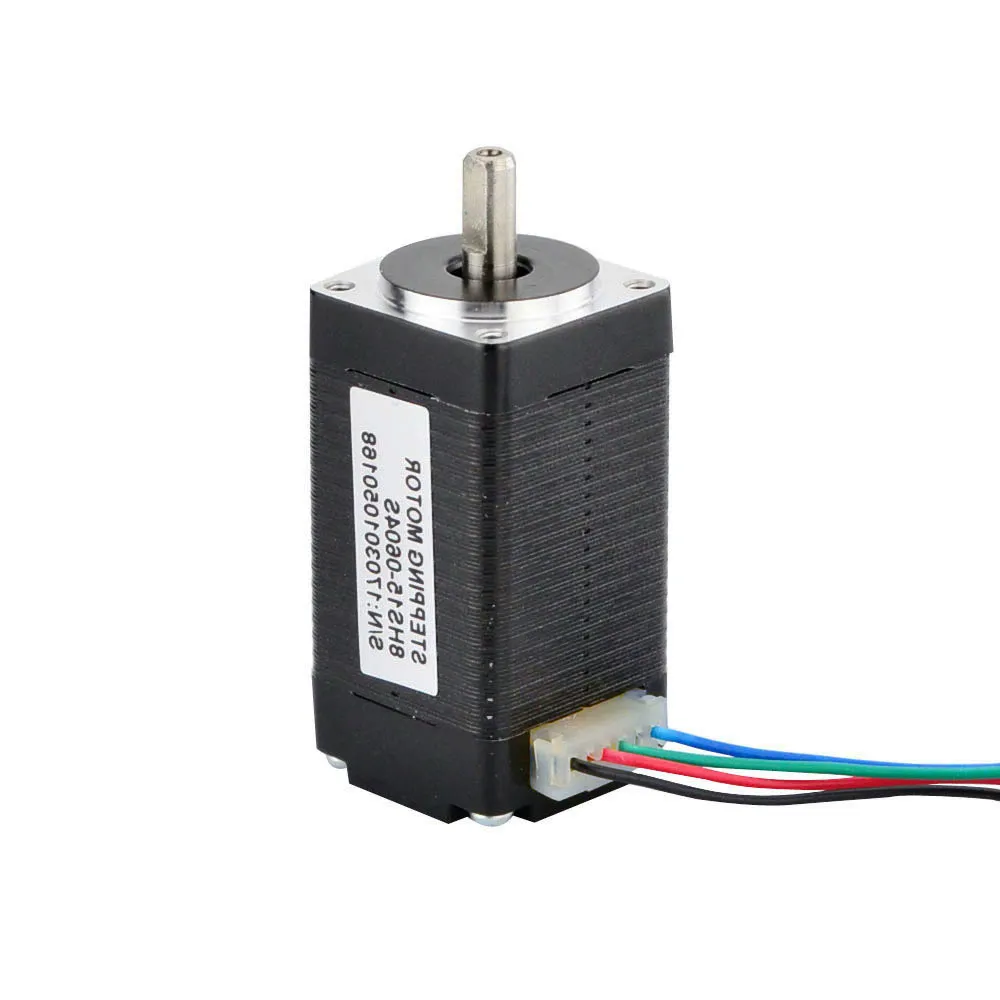

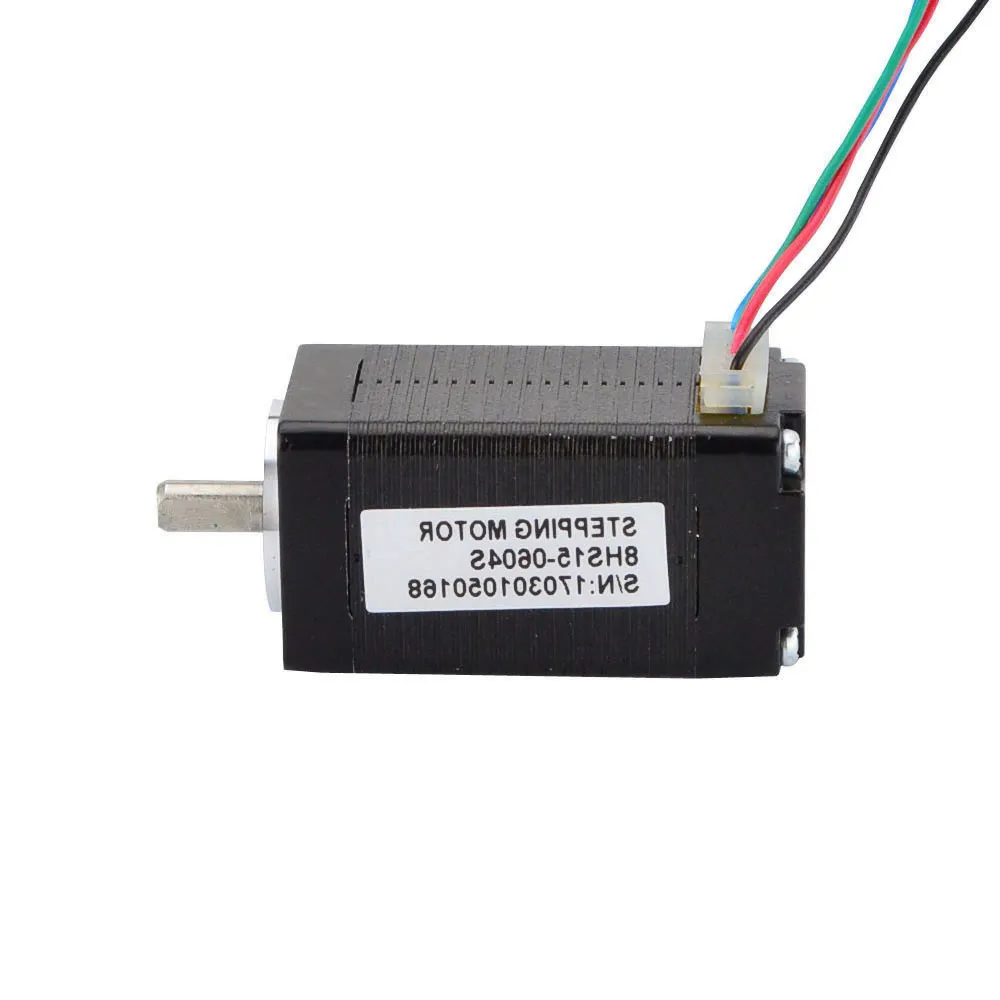

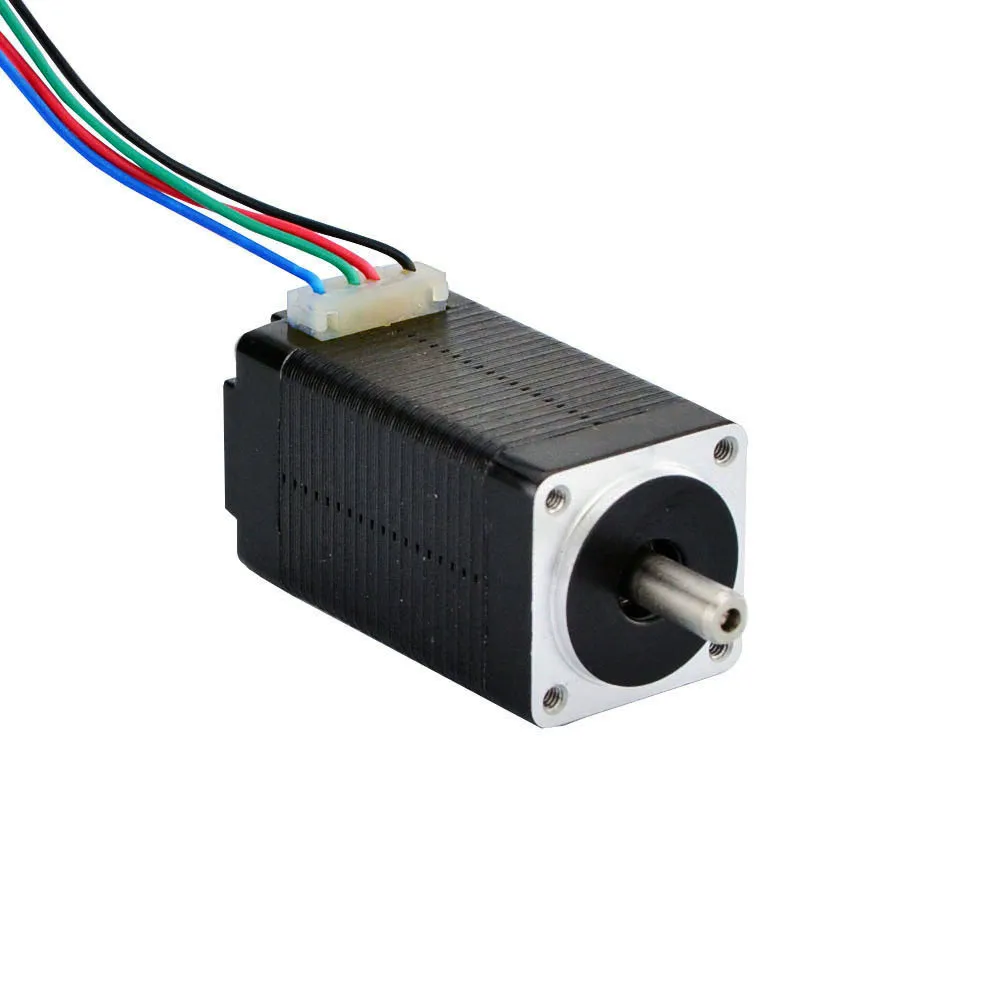

Nema 11 0.13deg 4Ncm 0.6A Bipolar Stepper Motor
$16.67
Nema 11 0.13deg 4Ncm 0.6A Bipolar Stepper Motor, a high-precision solution for your automation needs. With its ultra-fine step resolution and robust torque, this motor ensures accurate and controlled motion. Perfect for applications demanding intricate positioning, robotics, or CNC machines, this stepper motor delivers reliable performance and enhanced precision, allowing you to achieve exceptional results in your automation projects.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 8HS15-0604S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8 deg |
| Holding Torque | 4 Ncm (5.7 oz.in) |
| Rated Current/phase | 0.6A |
| Phase Resistance | 11 ohms |
| Inductance | 5.5mH ± 20% (1KHz) |
Physical Specifications
| Frame Size | 20 x 20mm |
| Body Length | 38mm |
| IP Rating | 40 |
| Shaft Shape | D-cut |
| Shaft Diameter | Φ4mm |
| Shaft Length | 10mm |
| D-cut Length | 7mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 80g |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| Stepper-Motor-Catalog.pdf | 19.2MB | Download |
