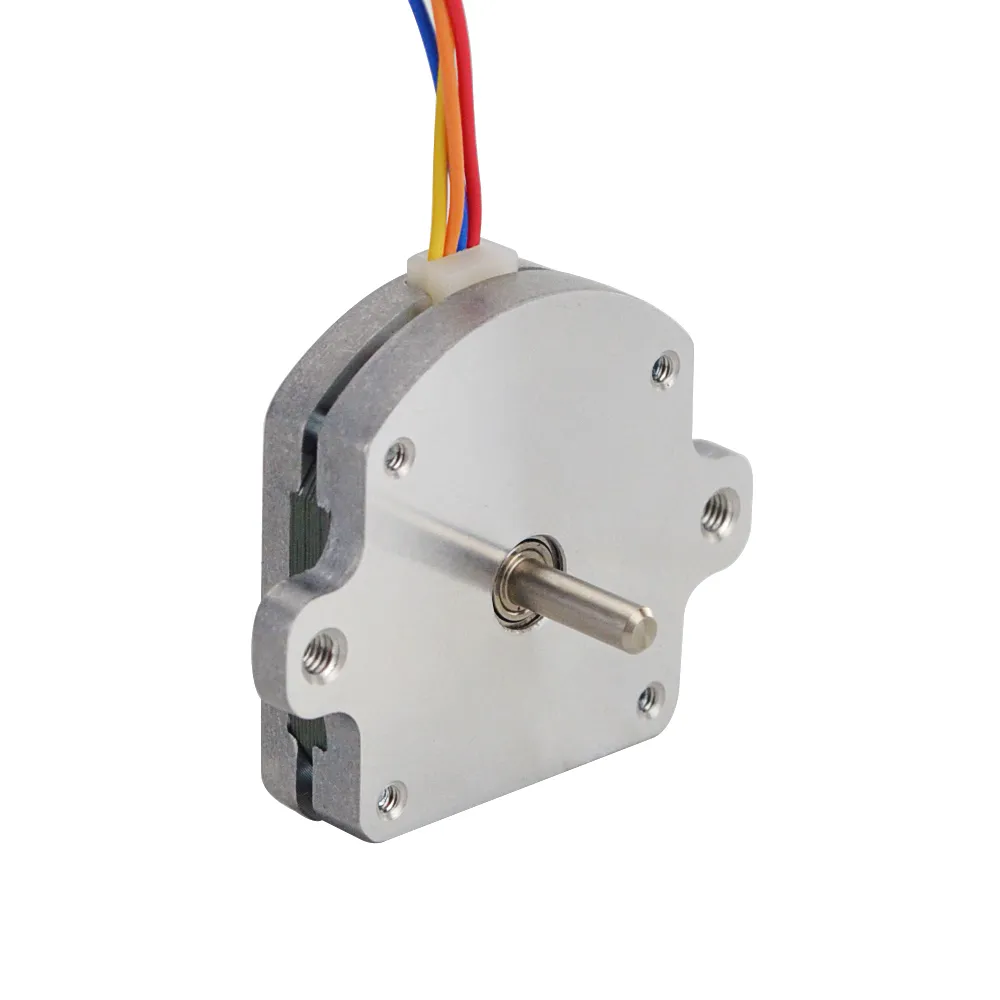

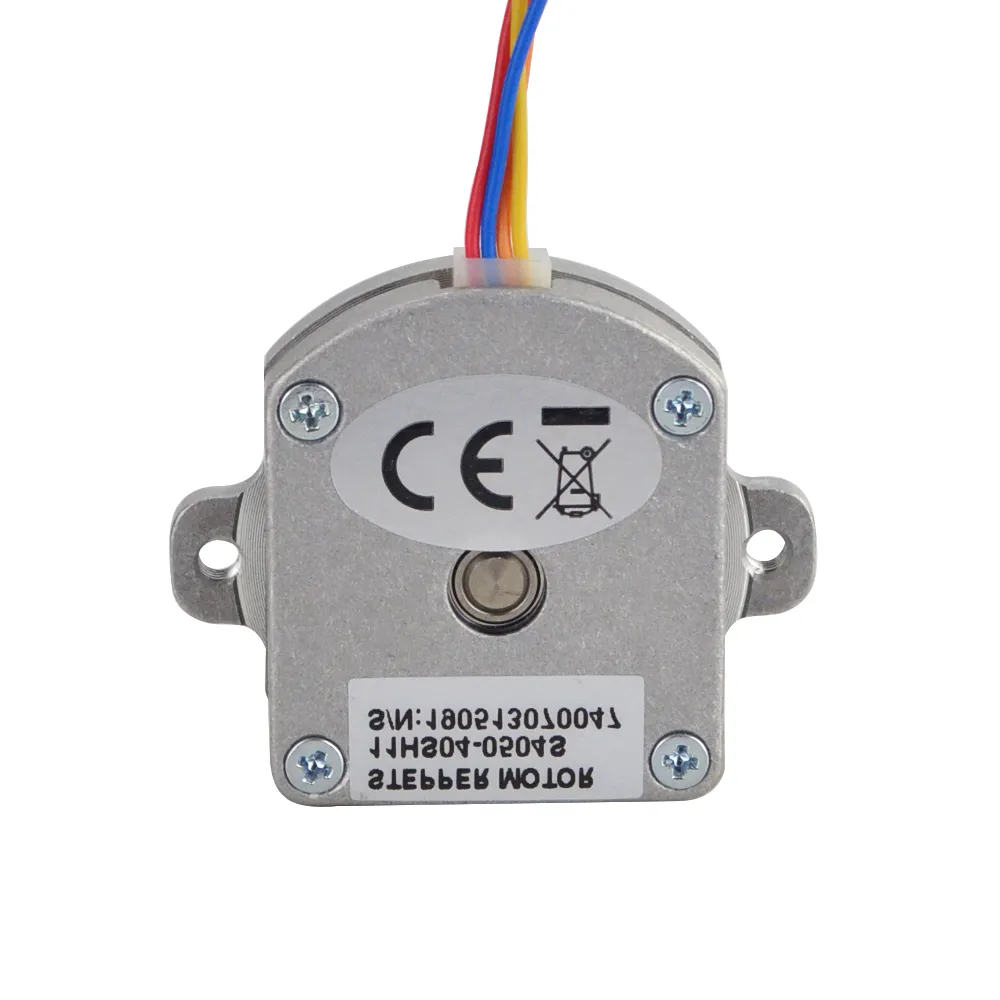

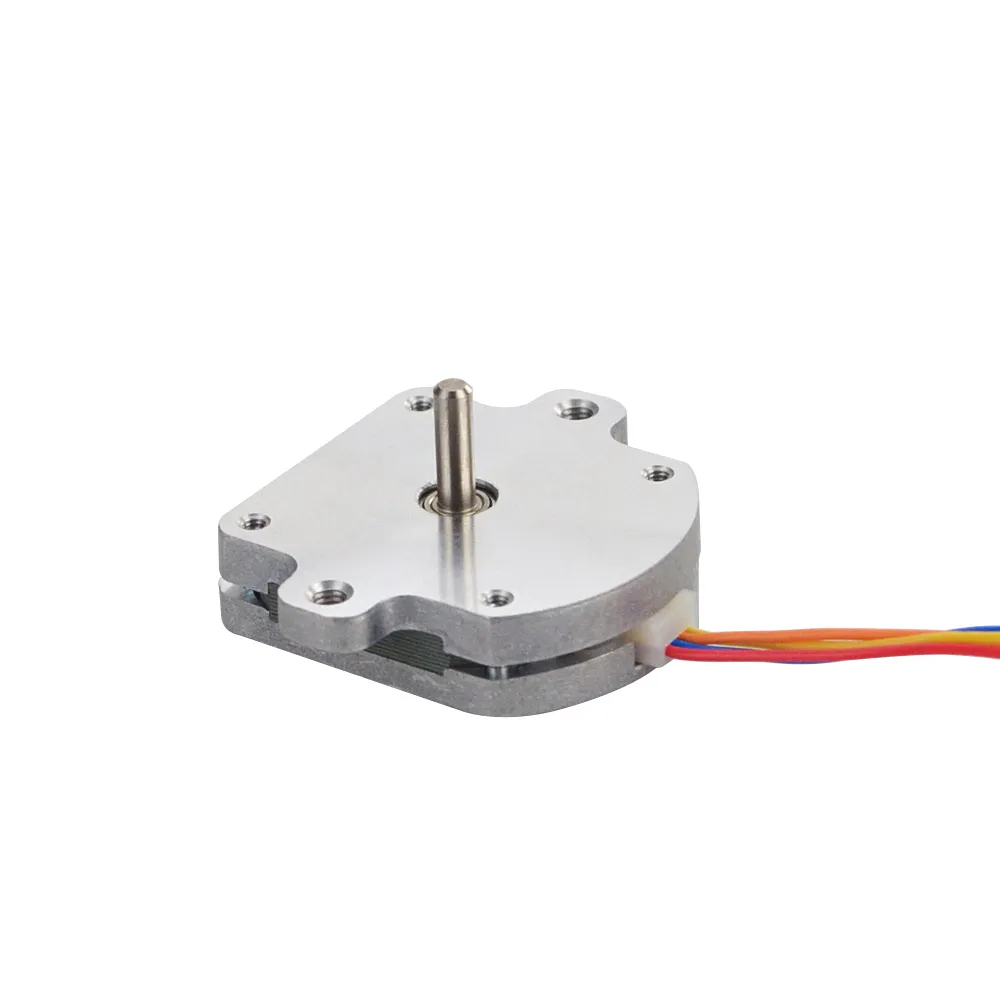

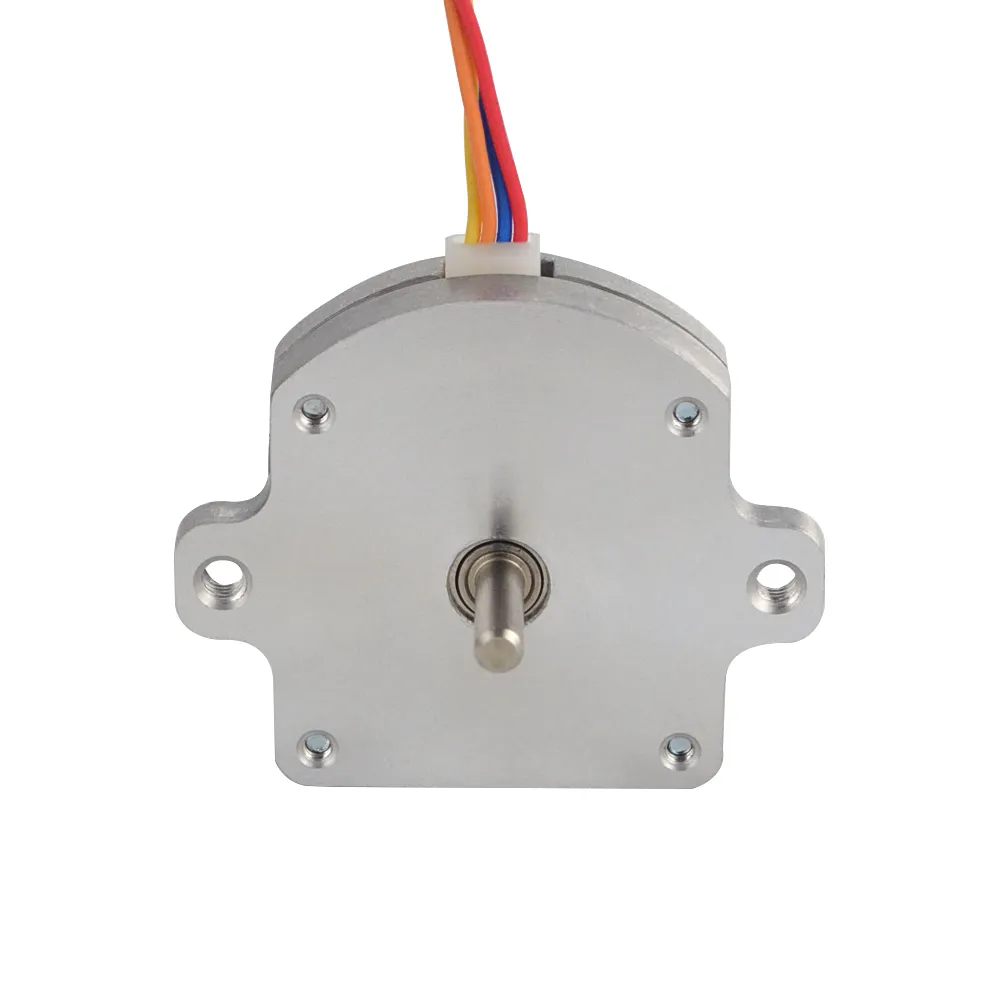

Nema 11 1.8deg 1Ncm 0.5A Bipolar Stepper Motor

$23.17

Nema 11 1.8deg 1Ncm 0.5A Bipolar Stepper Motor, a compact and reliable choice for precise motion control in your automation projects. With its high torque and accurate step resolution, this motor is suitable for applications requiring fine positioning and smooth operation. Upgrade your automation system with this stepper motor and experience enhanced precision and efficiency in your projects.

Get a QuoteLeave a Message

Model Type

Degree()1.8

Rated Torque(Ncm)()1

Current(A)()0.5

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number 11HS04-0504S
Motor Type Bipolar Stepper
Step Angle 1.8 deg
Holding Torque 1 Ncm (1.4164 oz.in)
Rated Current/phase 0.5A
Phase Resistance 4 ohms
Inductance 0.8mH ± 20% (1KHz)

Physical Specifications

Frame Size 28 x 28mm
Body Length 9.5mm
Shaft Diameter Φ3mm
Shaft Length 10mm
Number of Leads 4
Lead Length 300mm
Weight 28g

Videos

DIMENSIONS

Technical Documents Downloads

File NameSizeDownload
Stepper-Motor-Catalog.pdf19.2MBDownload
