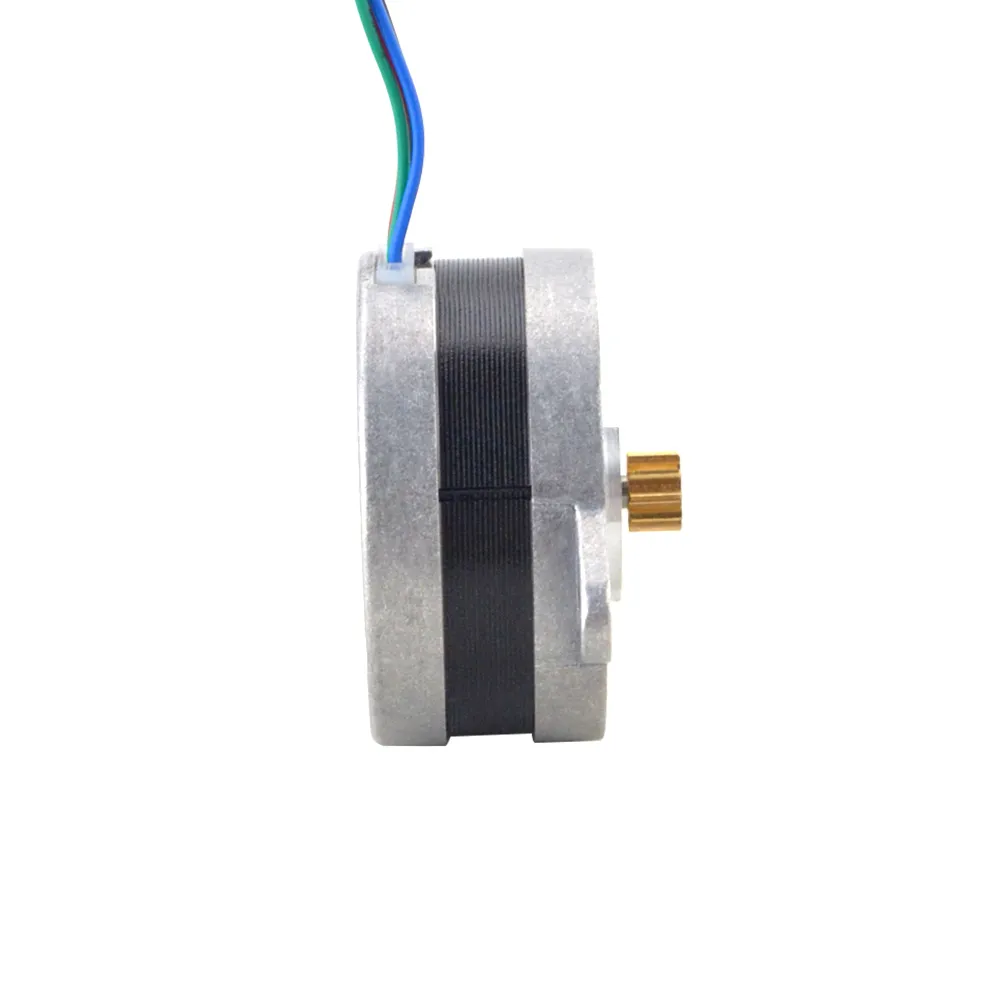

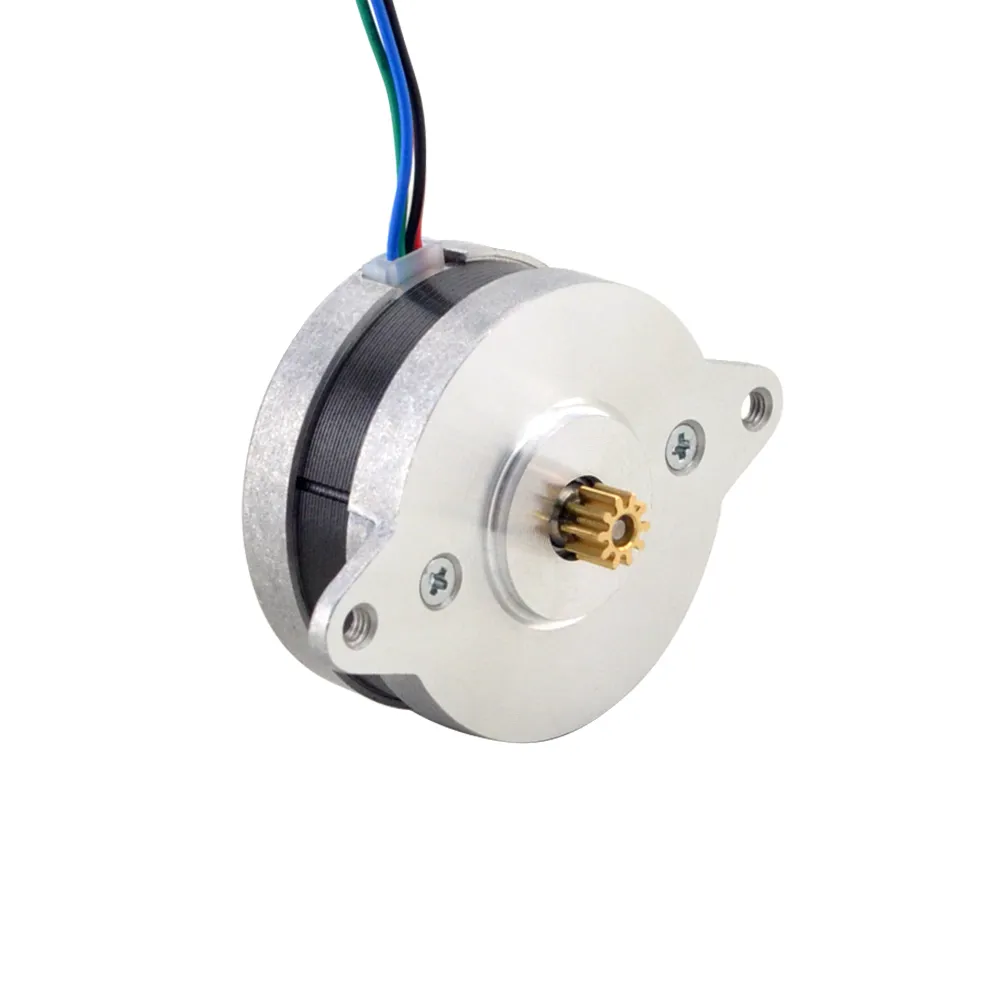

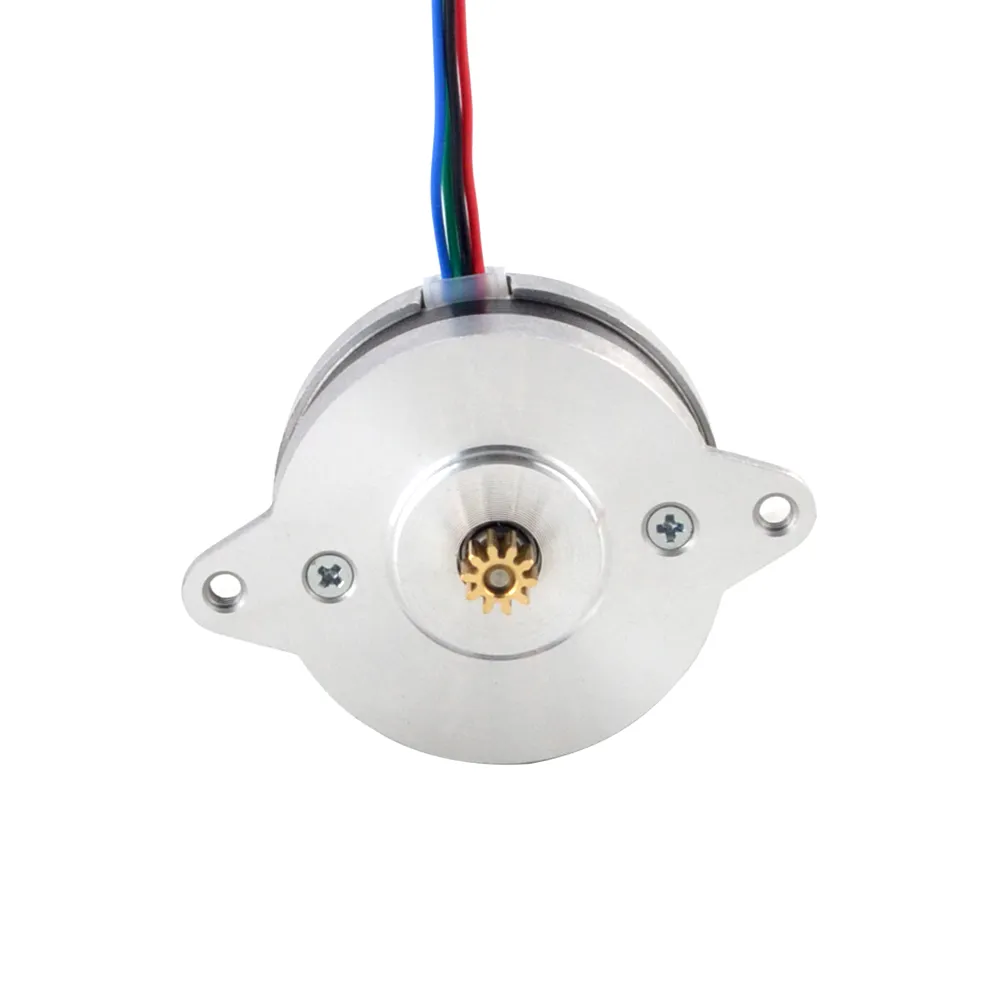

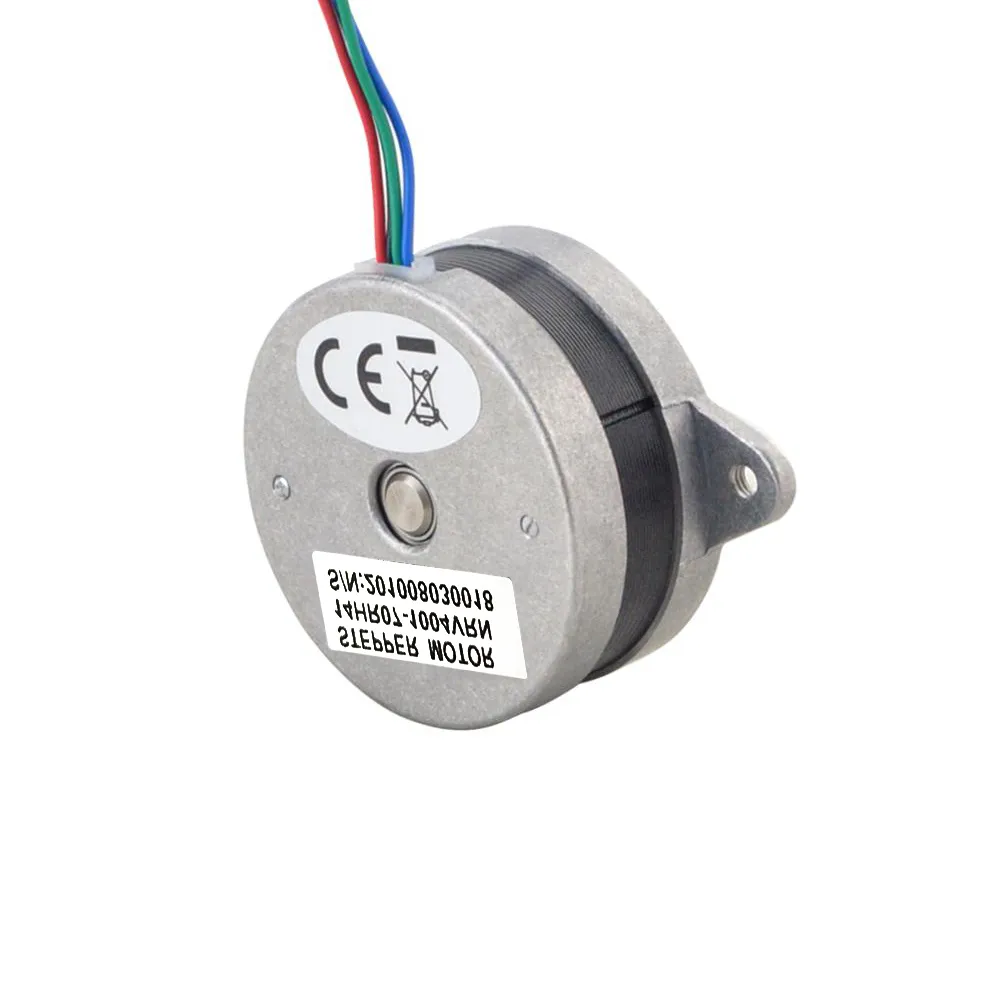

Nema 14 0.9deg 9Ncm 1A Stepper Motor
$13.83
Nema 14 0.9deg 9Ncm 1A Stepper Motor, a robust and precise solution for your automation projects. With its high torque output and accurate step resolution, this motor offers exceptional performance and control. Whether you're working on robotics, CNC machines, or other applications that require precise motion control, this stepper motor is designed to meet your needs.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 14HR07-1004VRN |
| Motor Type | Bipolar Stepper |
| Step Angle | 0.9 deg |
| Holding Torque | 9 Ncm (12.75 oz.in) |
| Rated Current/phase | 1.0A |
| Phase Resistance | 3.9 ohms |
| Inductance | 2.0mH ± 20% (1KHz) |
Physical Specifications
| Frame Size | 36.5 x 36.5mm |
| Body Length | 17.5mm |
| Shaft Diameter | Φ2.5mm |
| Shaft Length | 4mm |
| Number of Leads | 4 |
| Lead Length | 500mm |
| Weight | 0.08kg |
