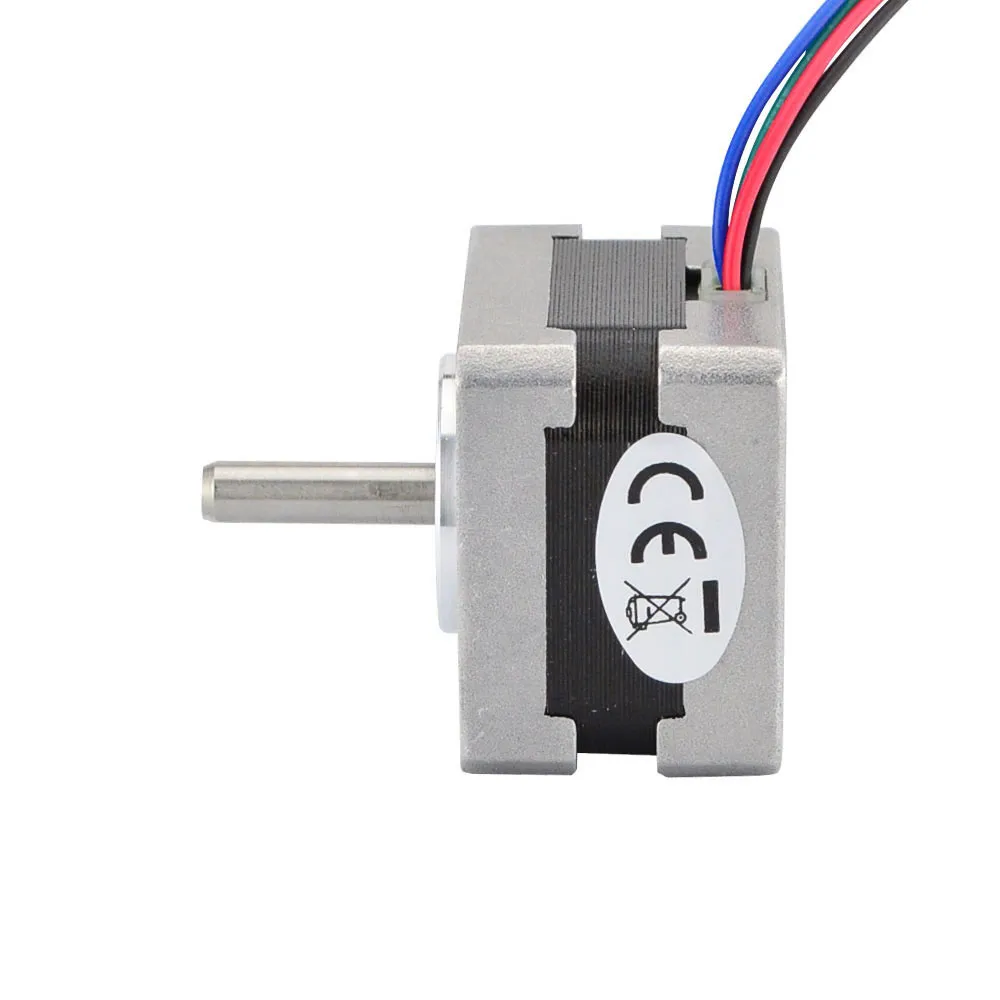

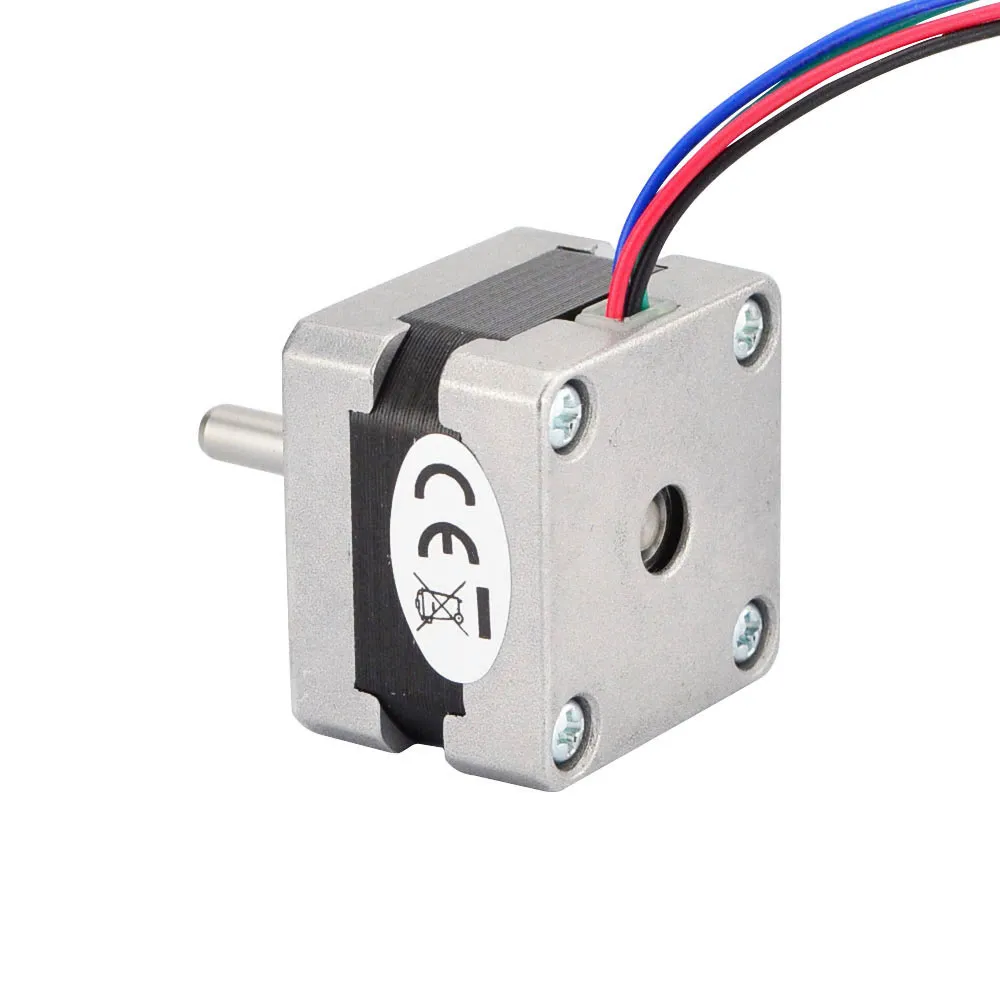

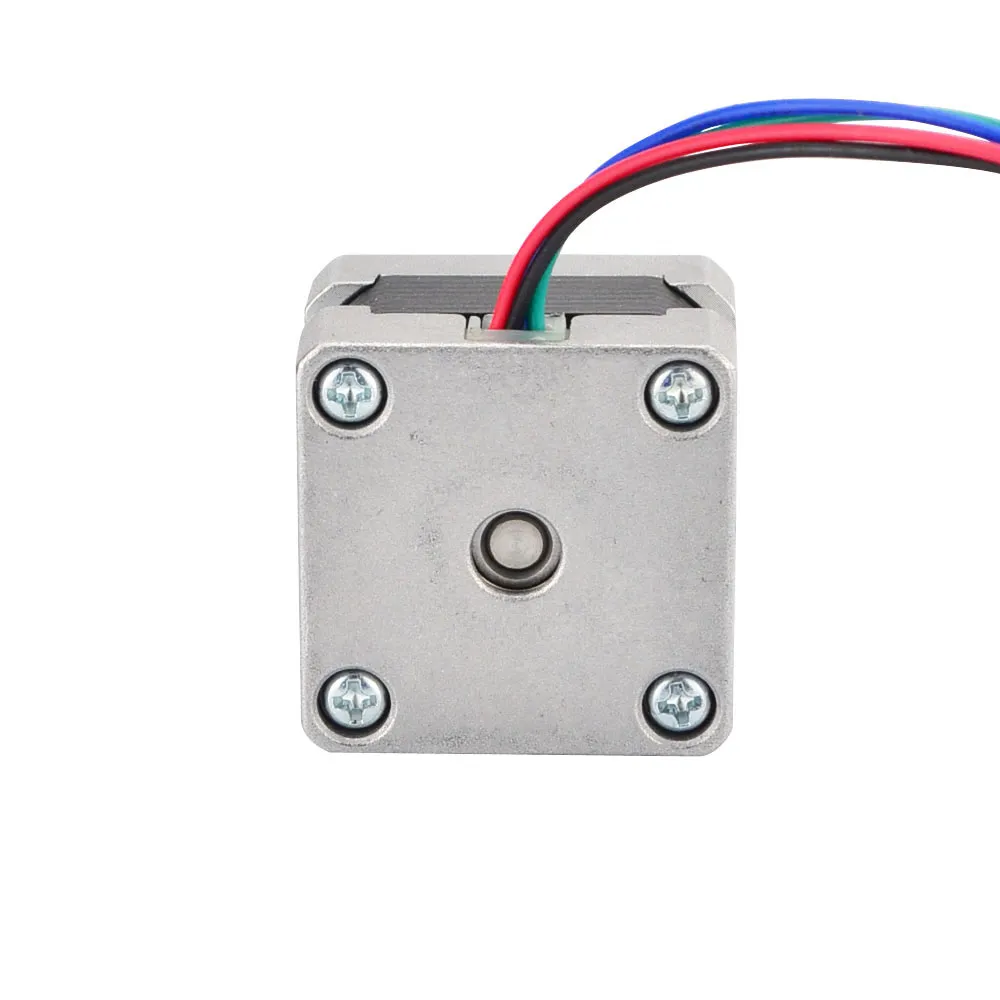

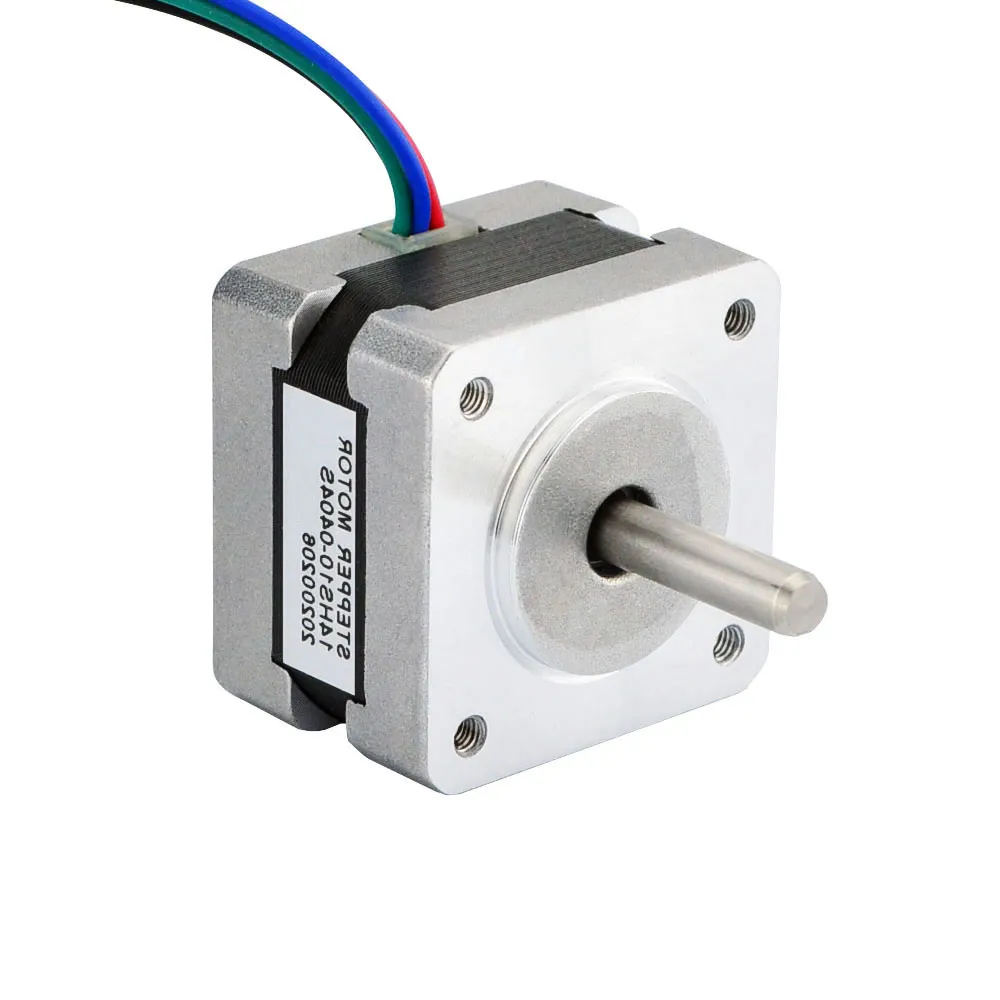

Nema 14 1.8deg 14Ncm 0.4A Stepper Motor

Name: Nema 14 1.8deg 14Ncm 0.4A Stepper Motor
Price: 9.13 USD
Availability: InStock

$9.13

Nema 14 1.8deg 14Ncm 0.4A Stepper Motor, a powerful and precise solution for your automation needs. With its high torque output and accurate step resolution, this motor delivers exceptional performance and control.

Get a Quote Leave a Message

Model Type

Degree()1.8

Rated Torque(Ncm)()14

Current(A)()0.4

SPECIFICATIONS

Electrical Specification

Manufacturer Part Number	14HS10-0404S
Motor Type	Bipolar Stepper
Step Angle	1.8 deg
Holding Torque	14 Ncm (20 oz.in)
Rated Current/phase	0.4A
Phase Resistance	30 ohms
Inductance	30mH ± 20% (1KHz)

Physical Specifications

Frame Size	35 x 35mm
Body Length	26mm
Shaft Diameter	Φ5mm
Shaft Length	20.5mm
D-cut Length	16.5mm
Number of Leads	4
Lead Length	400mm
Weight	140g

Videos

DIMENSIONS

Technical Documents Downloads

File Name	Size	Download
Stepper-Motor-Catalog.pdf	19.2MB	Download
