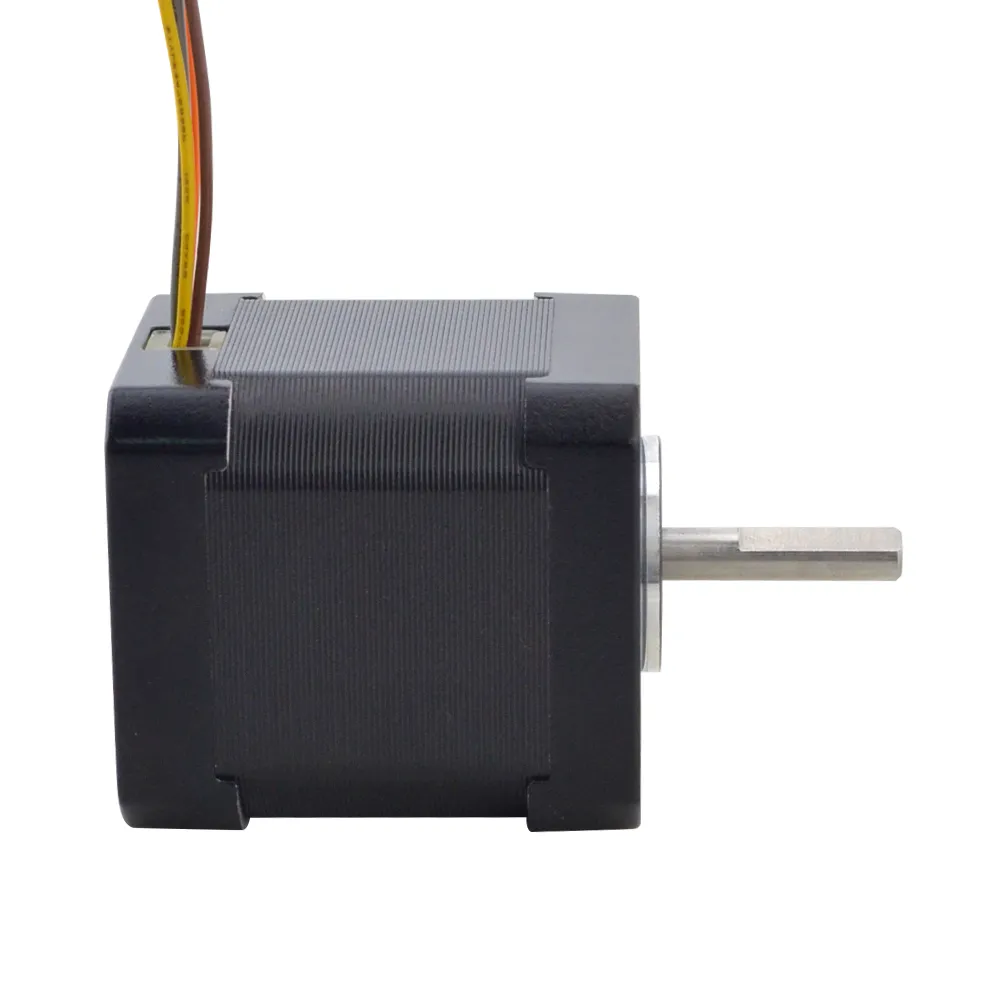

Nema 17 1.8deg 59Ncm 2.0A Stepper Motor
$16.27
Introducing the Nema 17 1.8deg 59Ncm 2.0A Stepper Motor, the ultimate solution for power and precision in your automation projects. This high-torque motor provides unparalleled performance, allowing you to tackle demanding tasks with ease. Whether you're working on robotics, CNC machines, or other applications, this stepper motor will enhance your efficiency and accuracy, making it the perfect choice for your project.
SPECIFICATIONS
Electrical Specification
| Manufacturer Part Number | 17HS19-2004S1-H |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8deg |
| Holding Torque | 59Ncm (83.6oz.in) |
| Rated Current/phase | 2.0A |
| Phase Resistance | 1.5ohms |
| Inductance | 3.0mH ±20% (1KHz) |
| Insulation Class | H 180C (356F) |
Physical Specification
| Frame Size | 42 x 42mm |
| Body Length | 48mm |
| Shaft Diameter | Φ5mm |
| Shaft Length | 24mm |
| D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 1000mm |
| Weight | 350g |
Related Products
Videos
DIMENSIONS
Technical Documents Downloads
| File Name | Size | Download |
| Stepper-Motor-Catalog.pdf | 19.2MB | Download |
